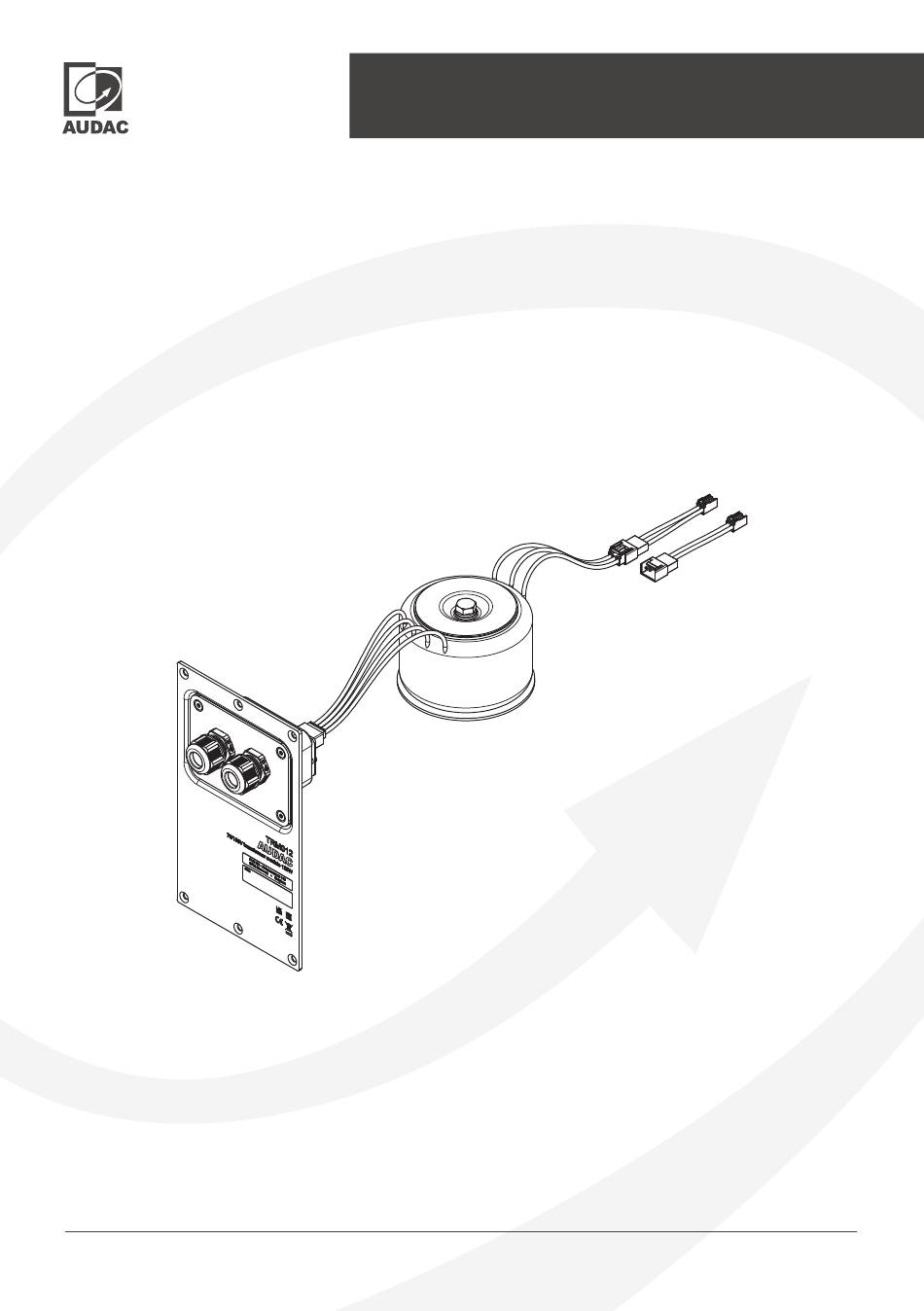

- Page 1 TRMxxx Installation manual TRM012/024...
- Page 2 CAUTION - INSTALLATION Installation must only be carried out by qualified technicians. This product contains no user serviceable parts. Refer all servicing to qualified service personnel. Do not perform any servicing (unless you are qualified to) READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY ALWAYS KEEP THESE INSTRUCTIONS.
-
Page 3: Transformer Mounting
Transformer mounting Unscrew the 6 screws from Remove the back plate. CAUTION: The SPEAKON connectors must be disconnected from their connection points to remove the entire back plate TRM - Installation manual... - Page 4 When the back plate is removed, you will see the standard M8 bolt. Unscrew this bolt and replace it with the longer M8 x 80mm bolt supplied with the TRM kit. The transformer should be secured with the large washer and both rubbers.
- Page 5 TRM kit comes with two 3-pin to 2-pin connection adapters. The adapter with black and red wire is for an 8 Ω connection wiring. The second adapter with black and orange wire is for a 4 Ω connection wiring. Adapter for 8 Ω connection (Black and red wire) Adapter for 4 Ω...
- Page 6 Power tappings The plate of the two cable glands can be unscrewed. Behind it, you will find the terminal block to make connections. The wiring scheme for the correct daisy chain is given on the next page for each transformer. This terminal block also provides the possibility of daisy chaining the speaker.
- Page 7 Connection plates layout TRM012 TRM024 TRM - Installation manual...
-
Page 8: Technical Specifications
Technical specifications Line transformer power TRM012 TRM024 tappings 41.67Ω 20.83Ω Tap 1 70V/120W 70V/240W 83.33Ω 41.67Ω Tap 2 100V/120W & 70V/60W 100V/240W & 70V/120W 166.67Ω 83.33Ω Tap 3 100V/60W & 70V/30W 100V/120W & 70V/60W 8 Ω (Black and red wire) Secondary impedance 4 Ω...
