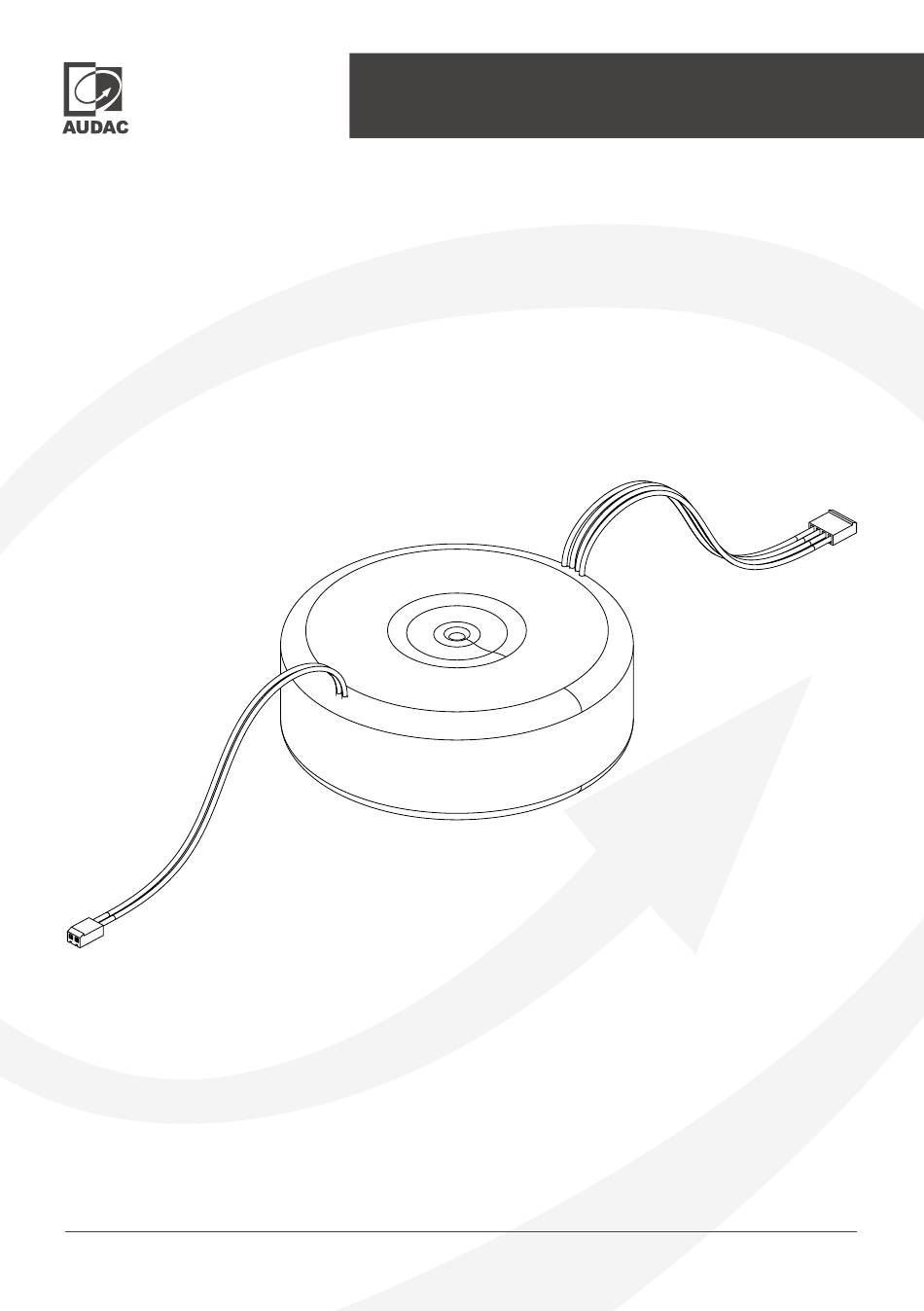

- Page 1 TRMxxx Installation manual audac.eu...
- Page 2 CAUTION - INSTALLATION Installation must only be carried out by qualified technicians. This product contains no user serviceable parts. Refer all servicing to qualified service personnel. Do not perform any servicing (unless you are qualified to) READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY ALWAYS KEEP THESE INSTRUCTIONS.
- Page 3 Transformer mounting for the VEXO series Unscrew the 6 screws from the Remove the back plate. CAUTION: The SPEAKON connectors VEXO1xx backplate must be disconnected from their con- nection points to remove the entire back plate of VEXO1xx. TRM - Installation manual...
- Page 4 When the back plate is removed, you will see the standard M8 bolt. Unscrew this bolt and replace it with the longer M8 x 80mm bolt supplied with the TRM kit. The transformer should be secured with the large washer and both rubbers. All washers and rubbers are included.
- Page 5 With the cables tucked away in the Secure the plate with the 6 screws. compartment with the transformer, the back plate is put back in place. Two cable glands are provided for daisy-chaining more than two speakers. The 8-pin terminal block is provided for ease of daisy-chaining.
- Page 6 Connection plates layout TRM248 TRM124 & TRM224 TRM - Installation manual...
-
Page 7: Technical Specifications
Technical specifications Line transformer power TRM124 TRM224 TRM248 tappings 20.83Ω 20.83Ω 10.41Ω Tap 1 70V/240W 70V/240W 70V/480W 41.67Ω 41.67Ω 20.83Ω Tap 2 100V/240W & 70V/120W 100V/240W & 70V/120W 100V/480W & 70V/240W 83.33Ω 83.33Ω 41.67Ω Tap 3 100V/120W & 70V/60W 100V/120W & 70V/60W 100V/240W &... - Page 8 Discover more on audac.eu...
