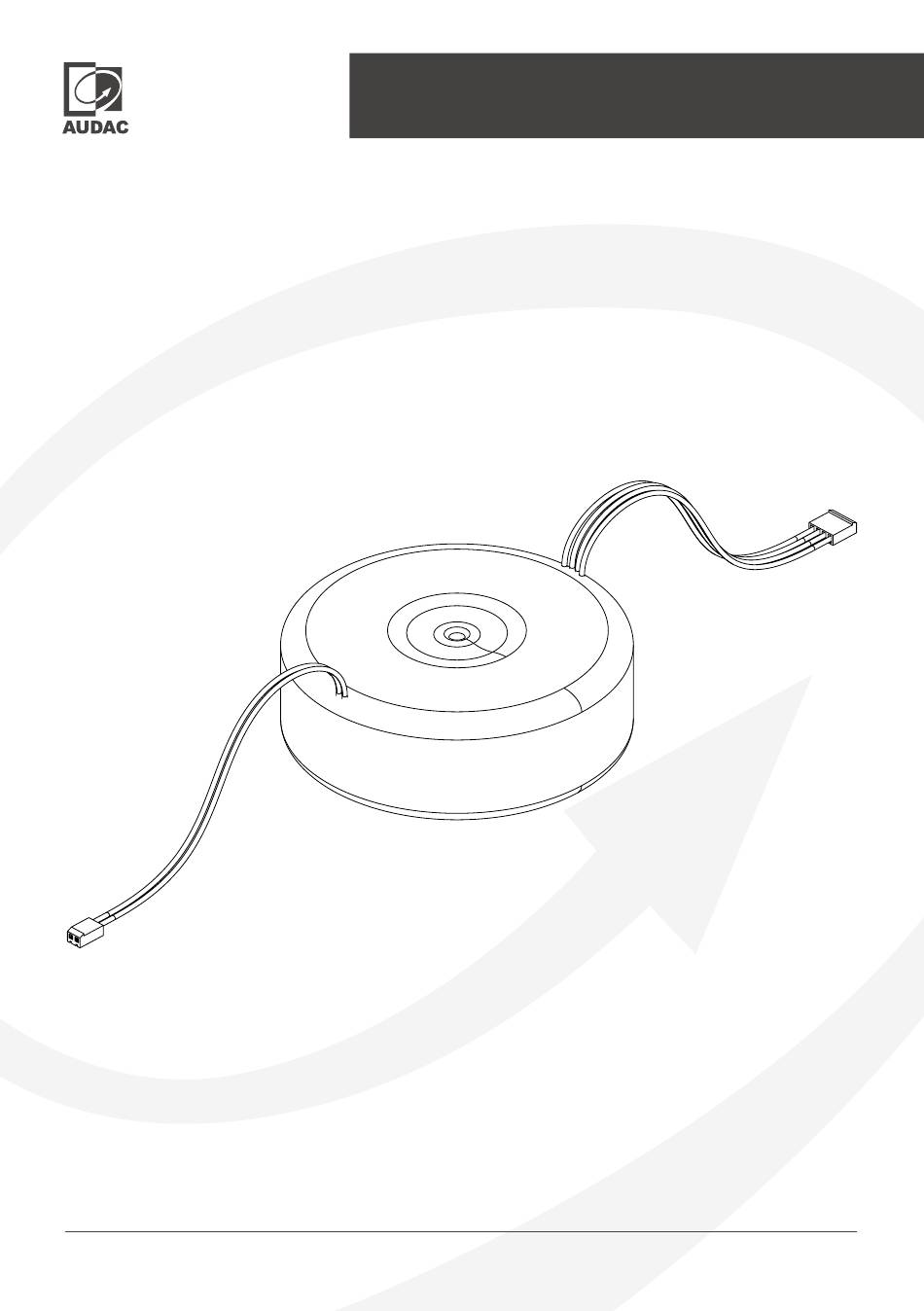

- Page 1 TRMxxx Installation manual audac.eu...
- Page 2 Transformer mounting for the VEXO series Unscrew the 6 screws from the Remove the back plate. CAUTION: The SPEAKON connections VEXO backplate must be disconnected from the back of the connector for total removal of the back plate. Disconnect the connectors. TRM - Installation manual...
- Page 3 When the back plate is removed, the standard M8 bolt is visible. Loosen this bolt. Replace the bolt with the longer, supplied with the TRM kit, M8 x 80mm bolt. Use this to secure the transformer. The transformer should be secured with the large washer and both rubbers.
- Page 4 With the cables tucked away in the Secure the plate with the 6 screws. compartment with the transformer, the back plate can be put back in Two cable glands are provided for place. daisy chaining speakers. The 8-pin terminal block is provided for ease of daisy chaining.
- Page 5 TRM248 TRM124 & TRM224 TRM - Installation manual...
- Page 6 Technical specifications Line transformer TRM124 TRM224 TRM248 power tappings 20.83Ω 20.83Ω 10.41Ω Tap 1 70V/240W 70V/240W 70V/480W 41.67Ω 41.67Ω 20.83Ω Tap 2 100V/240W & 70V/120W 100V/240W & 70V/120W 100V/480W & 70V/240W 83.33Ω 83.33Ω 41.67Ω Tap 3 100V/120W & 70V/60W 100V/120W & 70V/60W 100V/240W &...
- Page 7 CAUTION - INSTALLATION Installation must only be carried out by qualified technicians. This product contains no user serviceable parts. Refer all servicing to qualified service personnel. Do not perform any servicing (unless you are qualified to) READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY ALWAYS KEEP THESE INSTRUCTIONS.
