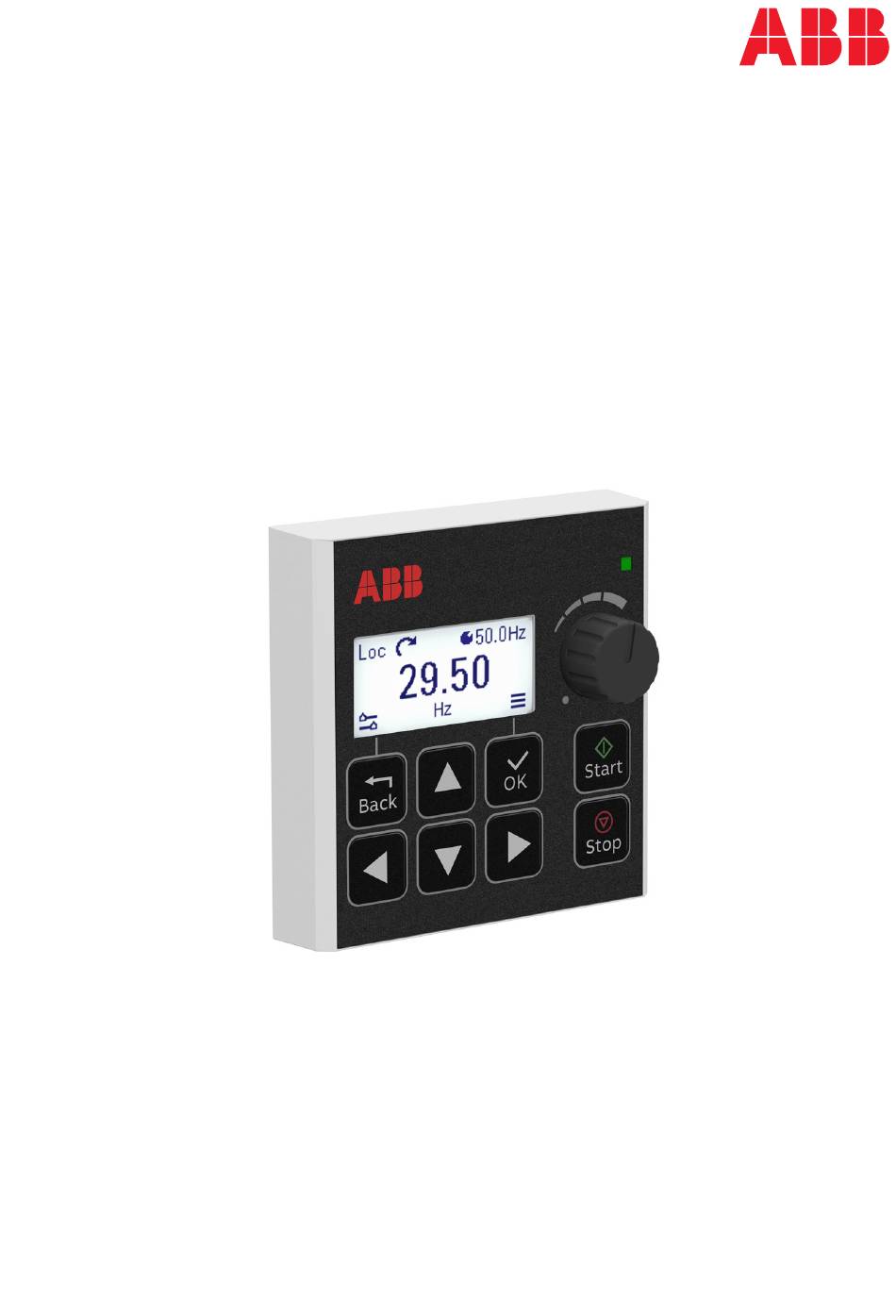

- Page 1 — USER INTERFACE OPTIONS FOR ABB DRIVES ACS-BP-C Compact basic control panel User’s manual...
-
Page 2: List Of Related Manuals
Panel manuals and guides Code (English) ACS-BP-C Compact basic control panel recycling 3AXD50001283599 instructions and environmental information ACS-BP-C Compact basic control panel user's manual 3AXD50001263690 ACS-BP-C Installation template 3AXD10002457083 You can find manuals and other product documents in PDF format on the Internet. - Page 3 User’s manual ACS-BP-C Compact basic control panel Table of contents 3AXD50001263690 rev A Effective: 2025-03-30...
-
Page 5: Table Of Contents
Table of contents 1. Introduction Compatibility..............7 Unpacking . -
Page 7: Introduction
Introduction 7 Introduction Compatibility The ACS-BP-C compact panel is compatible with below ABB drives: • ACS180 • ACS280 • ACS380 Unpacking 1. Compact control panel 2. Screw kit- M3x12 for installation. Make sure that there are no signs of damage. Before... -
Page 8: Installation
8 Introduction Installation Install the ACS-BP-C panel on the cabinet door with the installation holes cut out according to the Installation template below. 1. Install the control panel from the cutout with the M3 screws provided. 2. Connect the control panel to the drive with the standard Ethernet cable. Use CAT5e Ethernet cable (or higher level) for connection. -
Page 9: Control Panel Overview
Control panel overview 9 Control panel overview Display, keys and parts 1. Display - shows the current settings and menus. 2. Back key - back to the previous page/opens the Option menu Main menu 3. OK key - selects values/opens the Status LED - green and red colors indicate the status of the drive. -
Page 10: Type Code Label
10 Control panel overview Type code label Type code MRP code Serial number SW version QR code for MRP code and serial number Valid markings Manufactured country Link to product information... -
Page 11: Use Of The Control Panel
Use of the control panel 11 Use of the control panel Home view When first power-up, the panel will show the Home view. 1. Control location indicator None = Drive is controlled by other source e.g integrated panel Loc = local control Rem = remote control 2. - Page 12 12 Use of the control panel When first power-up, the panel will show the Home view. 3. Status icon Shows the status of the drive and the motor. The direction of the arrow shows forward (clockwise) or reverse (counter-clockwise) active reference direction.
-
Page 13: Option Menu
Use of the control panel 13 Option menu When under Home view, press “back” button to enter Option menu. 1. Control location - set to local or remote control 2. Rotation direction - forward or reverse 3. Active faults 4.Reference speed or frequency 5. -
Page 14: Sub-Menus
14 Use of the control panel Sub-menus The sub-menus of the main menu are listed below. You can change settings and set actions. Some sub-menus also include lower level menus and/or option lists. The sub-menus may vary in different drive types. Motor data 1. - Page 15 Use of the control panel 15 Diagnostics 1. Active Fault - if there is an active fault, the fault code is displayed. 2. Fault History - list of latest fault codes (latest in the front). 3. Active Warning - if there is an active warning, the warning code is displayed .
-
Page 16: Information View
16 Use of the control panel Language setting 1. Set menu to Chinese. 2. Set menu to icon style. This sub-menu is only shown on specific drives. Information view Panel information will be dispayed when press and hold the OK key while powering on. -
Page 17: Troubleshooting
Troubleshooting 17 Troubleshooting Fault and warning messages Fault message When a fault occurs, the fault message will pop up. Press the arrow keys can switch between fault code and aux code. Press the Back key can close the fault message view. After troubleshooting, press OK key to reset the fault and close the fault message view. -
Page 18: Drive And Panel Communication Failure
18 Troubleshooting Drive and panel communication failure A general communication failure, e. g., the drive does not respond to the panel commands. The drive and panel are not compatible, e. g., the drive does not support the compact panel. Status LED Green, on The drive is functioning normally. -
Page 19: Maintenance
(for example, Isopropyl Alcohol (IPA) solution). Do not use the cleaning solution to clean inside the connectors. Control panel software updates If the control panel software needs to be updated, contact your local ABB representative. Recycling instructions and environmental information... - Page 20 20 Maintenance...
-
Page 21: Technical Data
Technical data 21 Technical data Ambient conditions Operation Storage Transportation (in original package) Installation site max 4000 m (13123 feet) - altitude Air temperature -20 °C to +50 °C (-4 °F -40 °C to +70 °C (-40 -40 °C to +70 °C (-40 °F to +158 °F) to + 122 °F) °F to +158 °F) -
Page 22: Power Supply (From The Drive)
22 Technical data Power supply (from the drive) Supply voltage DC +15V…+24V (±10%) Supply current Max. 65mA, 24V DC Display The control panel has a monochrome, 128×64 pixel resolution LCD display with backlight. Weight and dimensions 4-M3 4- 4 Opening Weight Length 75mm [2.95inches]... -
Page 23: Markings
Product is compliant with the People’s Republic of China Electronic Industry Standard (SJ/T 11364-2014) about hazardous substances. The EFUP is 20 years. China RoHS II Declaration of Conformity is available from https://library.abb.com. UKCA (UK Conformity Assessed) mark Product complies with the applicable United Kingdom’s legislation (Statutory Instruments). - Page 24 ABB and its affiliates are not liable for damages and/or losses related to such security breaches, any unauthorized access, interference, intrusion, leakage and/or theft of data or information.
-
Page 25: Further Information
Address any inquiries about the product to your local ABB representative, quoting the type designation and serial number of the unit in question. A listing of ABB sales, support and service contacts can be found by navigating to abb.com/searchchannels. Product training For information on ABB product training, navigate to new.abb.com/service/training. - Page 26 © Copyright 2025 ABB. All rights reserved. Specifications subject to change without notice.
