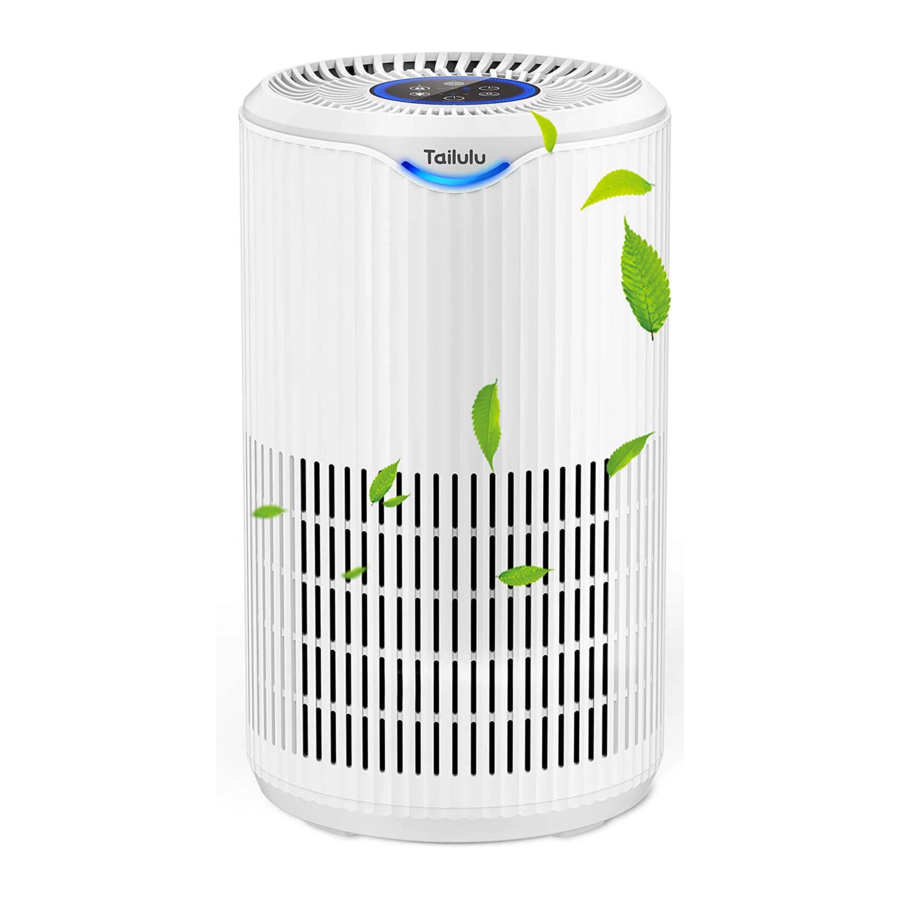

Tailulu D09 Manual

PURIFICATION PROCESSING

COMPONENT INTRODUCTION

DIAGRAM OF THE OUTLOOK

OPERATION PANEL

Diagram of Control Panel

USE AND OPERATION

PLACEMENT

• Please keep the machine air inlet and outlet 30cm or more far away from the wall and home furniture
• Do not use the machine in front of hot source outlet

REPLACEMENT OF THE FILTERS

• Filter replacement reminder When using the machine for a certain period of time, The filter should replace when the remind light on.

Operate as below:

• Take out filter

1. Turn it off first, then unplug it;

2. Put the machine upside down, one hand to hold tight the machine body, the other hand press down the cover while turning left, can open the base cover;

3. Remove the used filter


INSTALL THE FILTER

1. Remove the protective bag of the new filter, and then install the new filter;

2. One hand to hold tight the machine body, the other hand press down the cover while turning right, can install the filter.

3. After replacement, press the filter remind button and hold it for 3 seconds to reset the using time.


• Please do not mistakenly connect the external power source different from the power adapter specification Of this machine, and firmly insert the plug into the power socket
• Connect the power, the power adapter's DC plug into the machine's DC socket, and then plug the power adapter into the AC socket.
• When power is cut Off, first unplug the AC plug of the power adapter, and then unplug the DC plug from the unit

FAN SPEED SETTING

Press the "" button to switch the fan speed to "LOW", "HIGH" Speed and "Sleep Mode"

In sleep mode, the button lights will turn off automatically after 30s if there is no operation, you can wake the button lights by tapping any button

FAN SPEED SETTING

TIMING SETTING

Press the button to setting the working time
There are 3 timer settings to choice from: 2 hours (2H), 4 hours (4H) and 8 hours (8H). The timer function indicator lights will show the selected timer setting. The air purifier will automatically switch Off after the selected time has expired

RESET AFTER REPLACING THE FILTER

If the "" indicator light is lighted, it means the filters' lifetime(1440hrs)comes to the end, please replace new filters. After replacing new filters, please long press the "" button for approx.3 seconds, then "" indicator light will be switched off, the machine starts to record the filters using time

indicator light is on

CHILD LOCK SETTING

Use the child lock to temporarily lock the control panel. Tap the button to turn on the function, press and hold the "" button for 3 seconds to deactivate the function

Turn on

NIGHT LIGHT SETTING

To turn on/off the night light function, press on the control panel

TECHNICAL PARAMETERS

Model No	D09
Power supply	DC 24V/1A
Net Weight	1.6 kgs
Power cord length	1.2m
Power consumption (W):	22W
Dimensions (wxdxh):	190xH325(mm)

FILTER PARAMETER

Item name	Dimensions	Life time
3 in 1 Multi-function filter	140xH147(mm)	1440H

IMPORTANT

To prevent harm or damage happened to users or others, be sure to comply with the requirement as below:
Warning/Attention

It reminds that misusing or mishandling may cause death
Attention
It reminds that misusing or mishandling may cause hurt

FORBID	FORCE

	Please supervise your children and avoid them from touching or using the machine.		Do not connect or disconnect the power with a wet hand. It may cause electrical shocking
No disassembly, repair and reconstruction. It may cause fire or damage. Please send it to the retailer for repair.	Do not use the over run socket or wiring connector. Do use the rated voltage. It may cause fire	Do plug the power into the socket completely. It may cause fire because of heating or electrical shocking. Do not use the damaged plug or loose socket	Avoid any water on the surface of the unit. It may cause short circuit or electrical shocking
The appliance must be disconnected from the supply mains before cleaning or other maintenance. Otherwise, the unit may start working in a sudden which may cause electrical shocking or hurt	Do not insert any metal objects into the unit. it may cause hurt or electric shocking.	Do not repair it when the cord or plug is damaged. It may cause short circuit, electric shocking or fire. Please send it to the retailer for repair.	If there is dust on the plug, it may weaken the insulation, even cause fire. Take out the plug and clean it with dry cloth, the plug from the socket If not using for a long period
Do not power the unit on when using insecticide in the room Otherwise the insecticide may be stored in the unit and will blowout during the normal working time. It IS harmful to the health. Please ventilate completely after having used the Insecticide before turn on the unit	ATTENTION Do not use in the room with lampblack such as kitchen. It may cause hurt because the machine is not a ventilator	Do not blow in any combustible or fired cigarette into the unit. It may cause fire	Do not use in the watery or high temperature room such as the bathroom etc. Otherwise, it may cause creepage, electric shocking or fire
Please hold the plug instead of the cord when unplug the power. Otherwise, it may cause short circuit, breaking of the cord, electric shocking or fire.	Keep away from alcohol, organic impregnant or insecticide. It may cause cracking, short circuit, electric shocking, hurt or fire.	Please ventilate timely when used with fire in the room. Otherwise, it may cause poisoning Of Col as the machine is not a ventilator	Please remove the plug from the socket if any conditions as below: If all switches do not work If the power cord or plug hot singularly. If any peculiar smell, exceptional noise or vibration. Any other abnormality or failure

CUSTOMER SERVICE
Our customer service team is standing by to assist you if you have any questions or concerns.
www.tailulu.com
support@tailulu.com
1-833-368-8825
