Tailulu HQZZ-160 Manual

Product introduction

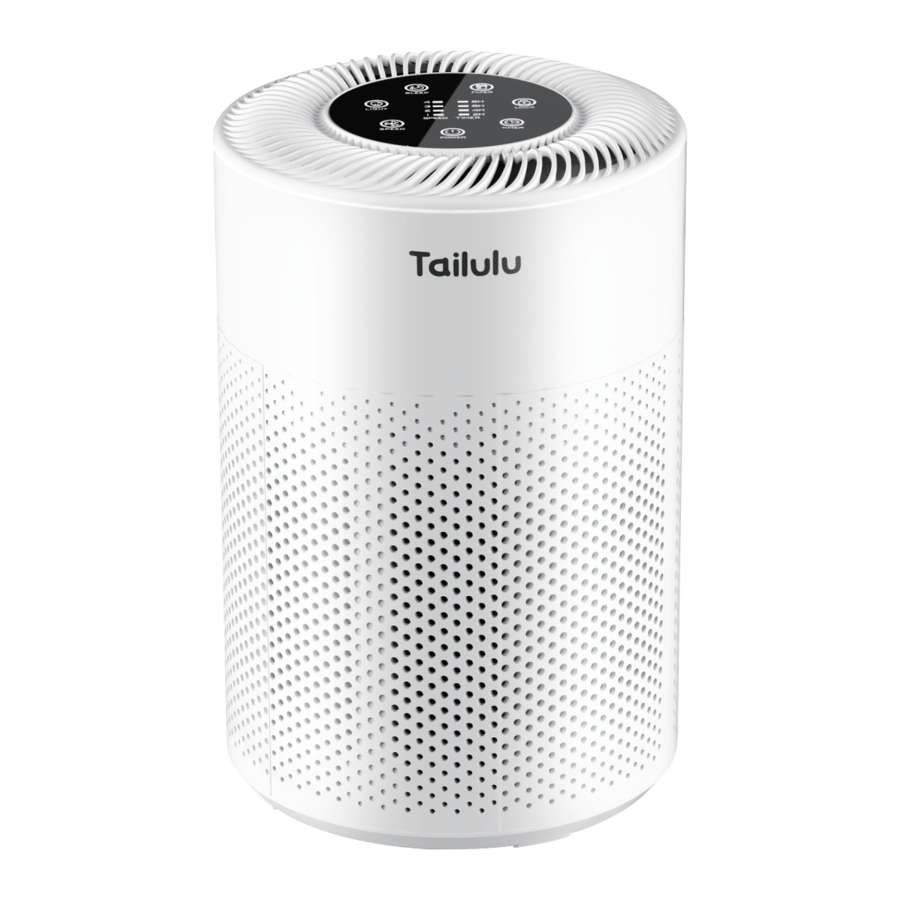

This product is a small desktop air purifier. Its unique appearance design can bring you aesthetic experience. The structure of air inlet on four sides and air outlet on the top enables it better circulate and purify the air. The compact size makes it placed on the desktop without affecting your work. This air purifier can absorb, decompose or convert various air pollutants and effectively improve air cleanliness. It adopts multiple technologies and media so that it can provide you with clean and safe air. A small "body" can realize great effects!

Product overview

Before using the appliance

1. Open the package, Take out the air purifier. Rotate the twist handle counterclockwise to unlock the base cover.
2. Take out the power adapter (placed in the middle of the filter).
3. Remove the new filter protective film before installation
4. Place the filter into the air purifier and put the base cover back (Align the base cover locking notches and rotate it clockwise until it clicks into place.)
5. To better exert the performance of the air purifier, the air inlet of the machine should be kept a certain distance (above 20 cm recommended) from the obstruction.
6. Please insert the plug into the power socket firmly.

Control panel and functions

Operation

1. "POWER" ON/OFF
   Press the " " button to switch on the purifier, then you will find the filtration runs in speed 2 automatically. Press the " " button again to switch off the purifier.
2. Sleep mode:
   Press the " " button to enter sleep mode, the air purifier will start the lowest airflow speed.
3. Speed:
   Press the " " button to adjust the speed level (I, 2, 3, 4) and choose the most comfortable one for you. Please note the noise will increase when the speed lever is increased.
4. Timer function:
   Press the " " button to pick the required operating time (2, 4, 6, 8hours). Air purifier shuts off automatically at the end of the selected period.
5. Child lock function:
   Press the " " key, and other keys will be locked. Press and hold "LOCK" key for 5s again to cancel Child lock function.
6. Atmosphere light button,
   Press the " " key to turn on/off the ice blue light.
7. Filter reset function:
   When the filter service life is over, the " " light will light up to remind you that the filter needs to be replaced. After replacing the filter, press and hold the "FILTER" button for 5 seconds to cancel the filter replacement reminder.

Maintenance

Be sure to unplug the power adapter before any maintenance!

1. Recommended daily cleaning and maintenance frequency of the filter: about once a month. The surface of the filter can only be cleaned with a brush or dry cotton cloth. Do not clean the filter with water or detergent. The filter is easy to be damaged and deformed, so do not press or pull it hard during cleaning. Replace the filter with a new one in case of damage.
2. Recommended replacement frequency of the filter: about once every 3-6 months, depending on the place and the usage method. For example, the filter replacement cycle may be shortened in case of heavily polluted areas, smoking of family members, etc. Please replace the filter in time if the filtering effect is not good.
3. Surface cleaning: Wipe the outer surface and the air inlet and outlet with a wrung soft cloth. Do not clean the surface with chemical cleaners.
4. Long-time idling: Unplug the power adapter, and clean the outer surface and the filter. Put the purifier in a plastic bag and store it in a place with less moisture.

Specifications

Matters needing attention

Do not clean or sprinkle the product with liquid.

1. There is a high-speed wind wheel rotating in the purifier, so do not put your hands or foreign matters into the air inlet and outlet.
2. Keep the purifier away from children, and do not let them play with this product.
3. Keep hair, fabric, etc. away from the machine to avoid being caught in or blocking the air inlet and outlet.
4. Close the doors and windows to improve the purification effect when using the product. (Please ventilate when using the purifier with a combustion device to avoid carbon monoxide poisoning.)
5. Do not use power adapters of different specifications. Please install the power adapter attached to this product.
   Do not use this purifier in high-temperature, humid, and water-stained places such as bathrooms.

Troubleshooting Guide

CUSTOMER SERVICE
Our customer service team is standing by to assist you if you have any questions or concerns.
www.tailulu.com
support@tailulu.com
1-833-368-8825
