Eaton VoCALL 16US Installation Instructions

Installation instructions
P/N 25-1017
Installation instructions
August 2024
Description
Call Stations are remote devices providing communications during
an emergency situation such as fire, medical or other types of
emergencies. Incoming and outgoing calls are established at
the Call Station by pressing the "Call" button; calls are ended by
pressing the "End Call" button.
The VoCALL 16US System provides for calls to be made from
the MX16US panel to Call Stations and from Call Stations to the
MX16US. Additionally, if the VoCALL 16US System includes the
optional Cellular Gateway connected to a customer-provided inter-
net connection with a cellular provider plan, 2-way VoIP calls can
be connected to a remote location when necessary.

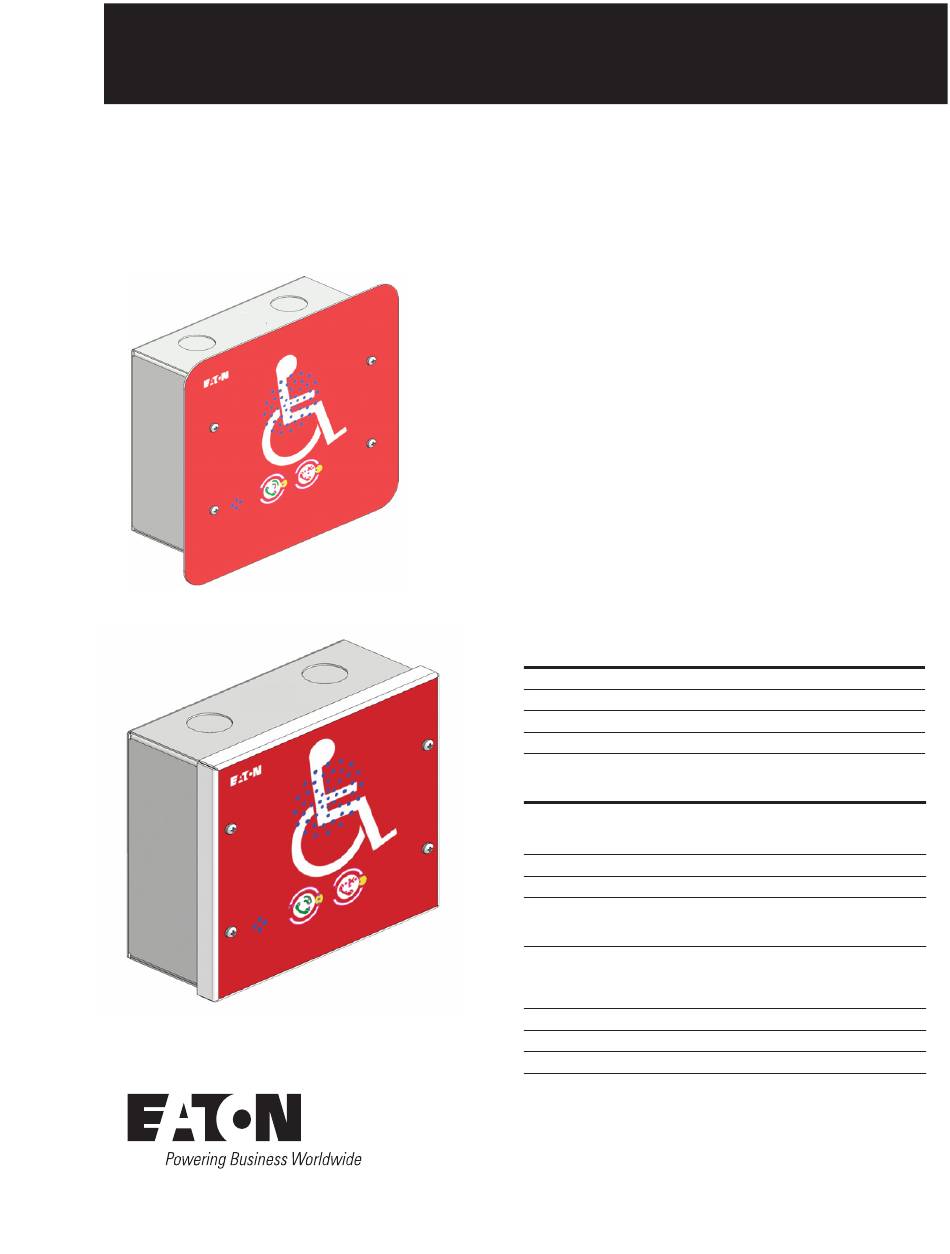

Call Stations are installed either flush or surface mounted as
determined by the specific part number.
Read all instructions carefully before installing, configuring and
operating Call Stations.
Refer to the VoCALL 16US 2-Way Emergency Communication
System installation and operation
and programming Call Stations into the VoCALL 16US system.
Product Number Description
MX16RRF Call Station Red Flush
MX16RSF Call Station Silver Flush
MX16RRS Call Station Red Surface
MX16RSS Call Station Silver Surface
Specification
Environments
Operating temp:
Humidity:
Rated Voltage
Rated Input Current
Power Consumption
Active:
Standby:
Dimensions:
Surface:
Flush:
Weight
Indicators
Knockouts
VoCALL 16US Call Station
manual, P/N P85899,
Description
32ºF to 98ºF (0ºC to 37ºC)
95% Non-Condensing
21V to 27.6V (Nominal 24V) DC
32mA
0.65 Watts
0.52 Watts
5.4 x 5.4 x 2.2 inches (137 x 137 x 56 mm)
6.4 x.6.4 x 2.2 inches (162 x 162 x 56 mm)
1.8 lbs. (0.8 Kg)
Audible and visual indicators
3/4 inch standard knockouts (20 mm)
for wiring
