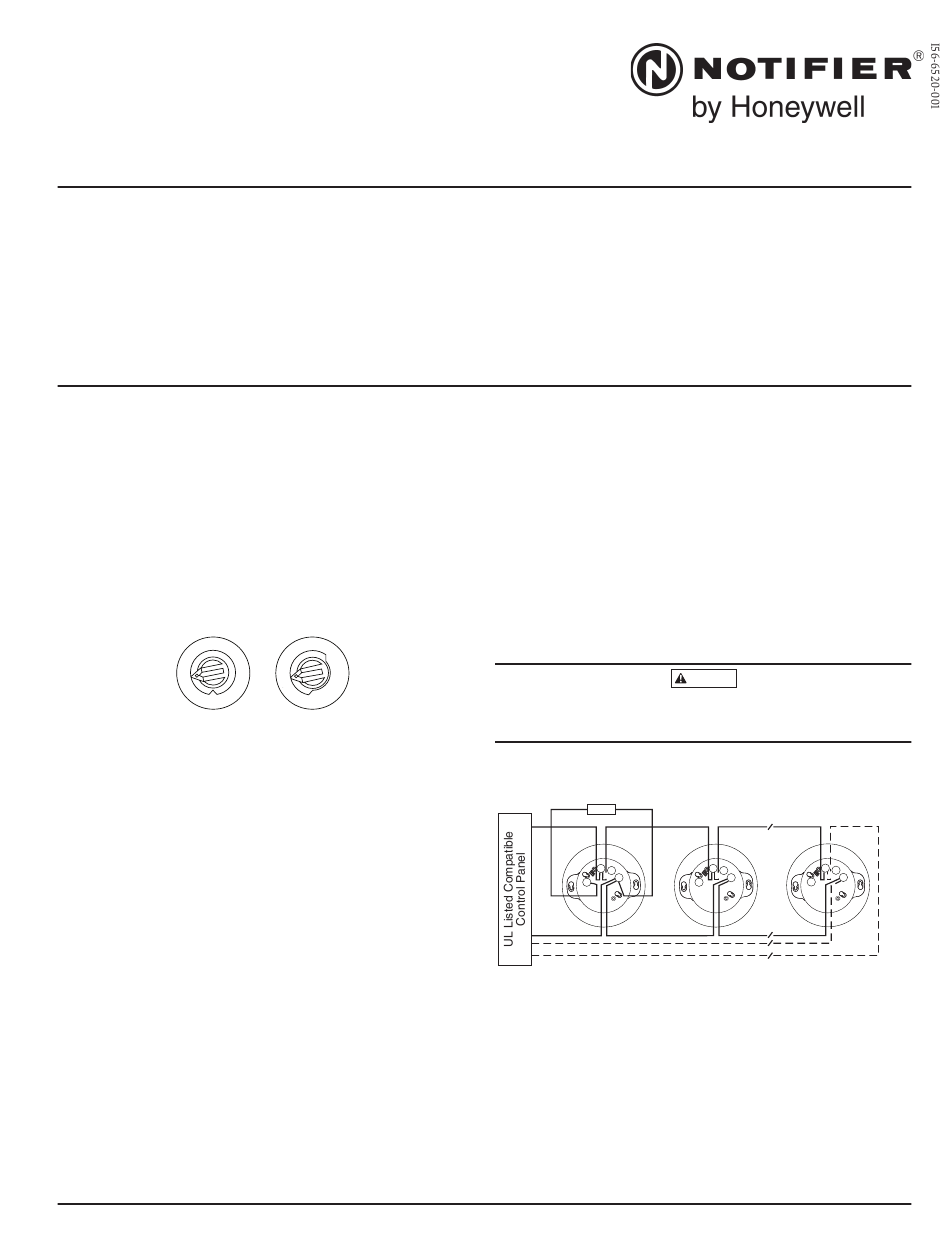

INSTALLATION AND MAINTENANCE INSTRUCTIONS
FSP-951R and FSP-951R-IV
Intelligent Photoelectric Smoke Sensor
with Remote Test Capability in Duct Applications
SPECIFICATIONS
Operating Voltage Range:
Operating Current @ 24 VDC:
Maximum Alarm Current:
Maximum Current:
Operating Humidity Range:
Operating Temperature Range:
Air Velocity:
Height:
Diameter:
Weight:
Isolator Load Rating:
*Please refer to your isolator base/module manual for isolator calculation instructions.
UL268A listed for Duct Applications
This sensor must be installed in compliance with the control panel system
installation manual. The installation must meet the requirements of the Au-
thority Having Jurisdiction (AHJ). Sensors offer maximum performance when
installed in compliance with the National Fire Protection Association (NFPA);
see NFPA 72.
GENERAL DESCRIPTION
Models FSP-951R and FSP-951R-IV are plug-in type smoke sensors that com-
bines a photoelectronic sensing chamber with addressable-analog communi-
cations. When used in duct applications with a DNR(W), testing can be done
remotely using approved System Sen sor test accessories, eliminating the need
for a test coil. The sensors transmit an analog representation of smoke density
over a communication line to a control panel. Rotary dial switches are pro-
vided for setting the sensor's address.
FIGURE 1. ROTARY ADDRESS SWITCHES
7 8
6 9
5 10
11
4
12
3
13
2
14
1 0
15
TENS
Two LEDs on the sensor are controlled by the panel to indicate sensor status.
An output is provided for connection to an optional remote LED annunciator
(P/N RA100Z).
Note: Only System Sensor approved accessories may be used with the
FSP-951R and FSP-951R-IV.
Notifier panels offer different features sets across different models. As a result,
certain features of the photoelectric sensors may be available on some control
panels, but not on others. FSP-951R will support only FlashScan® protocol
mode. FSP-951R-IV will support either FlashScan or CLIP (Classic Loop In-
terface Protocol) mode. The possible features available if supported by the
control panel are:
1. The sensor's LEDs can operate in three ways—on, off, and blinking–and
they can be set to red, green, or amber. This is controlled by the panel.
2. The remote output may be synchronized to the LED operation or con-
trolled independent of the LEDs.
3. Devices are point addressable up to 159 addresses.
Please refer to the operation manual for the UL listed control panel for spe-
cific operation. The FSP-951R and FSP-951R-IV require compatible addressable
communications to function properly. Connect these sensors to listed-compat-
ible control panels only.
SPACING
Notifier recommends spacing sensors in compliance with NFPA 72. In low air
flow applications with smooth ceilings, space sensors 30 feet apart (9.1 m).
For specific information regarding sensor spacing, placement, and special ap-
plications, refer to NFPA 72 or the System Smoke Detector Application Guide,
available from Notifier.
Duct Applications: FSP-951R and FSP-951R-IV are listed for use in ducts. See
Duct Smoke Detectors Applications Guide HVAG53 for details on pendant
15 to 32 VDC
200 uA (one communication every 5 seconds with green LED blink on communication)
2 mA @ 24 VDC (one communication every 5 seconds with red LED solid on)
4.5 mA @ 24 VDC (one communication every 5 seconds with amber LED solid on)
10% to 93% Relative Humidity, Non-condensing
32°F to 122°F (0°C to 50°C), -4°F to 158°F (-20°C to 70°C) in duct applications
0 to 4000 ft./min. (0 to 1219.2 m/min.)
2.0˝ (51 mm) installed in B300-6 Base
6.2˝ (156 mm) installed in B300-6 Base; 4.1˝ (104 mm) installed in B501 Base
3.4 oz. (95 g)
0.0063*
7 8
6 9
5
4
3
2
1 0
C0162-00
ONES
mount applications. NOTE: FSP-951R and FSP-951R-IV are also listed for use
inside DNR(W) duct smoke detectors.
WIRING GUIDE
All wiring must be installed in compliance with the National Electrical Code,
applicable local codes, and any special requirements of the Authority Having
Jurisdiction. Proper wire gauges should be used. The installation wires should
be color-coded to limit wiring mistakes and ease system troubleshooting. Im-
proper connections will prevent a system from responding properly in the
event of a fire.
Remove power from the communication line before installing sensors.
1. Wire the sensor base (supplied separately) per the wiring diagram, Figure 2.
2. Set the desired address on the sensor address switches, see Figure 1.
3. Install the sensor into the sensor base. Push the sensor into the base while
turning it clockwise to secure it in place.
4. After all sensors have been installed, apply power to the control panel and
activate the communication line.
5. Test the sensor(s) as described in the TESTING section of this manual.
Dust covers provide limited protection against airborne dust particles during
shipping. Dust covers must be removed before the sensors can sense smoke.
Remove sensors prior to heavy remodeling or construction.
FIGURE 2. WIRING DIAGRAM
Remote
Annunciator
+ -
(+)
+
+
2 –
RA
1
3
(–)
(–)
CLASS A OPTIONAL WIRING
(+)
TAMPER-RESISTANCE
Models FSP-951R and FSP-951R-IV include a tamper-resistant capability that
prevents their removal from the base without the use of a tool. Refer to the
base manual for details on making use of this capability.
TESTING
Before testing, notify the proper authorities that the system is undergoing
maintenance, and will temporarily be out of service. Disable the system to
prevent unwanted alarms.
All sensors must be tested after installation and periodically thereafter. Test-
ing methods must satisfy the Authority Having Jurisdiction (AHJ). Sensors
offer maximum performance when tested and maintained in compliance with
NFPA 72.
1
12 Clintonville Road
Northford, CT 06472-1653
Phone: 203.484.7161
CAUTION
CAUTION: Do not loop wire under
terminal 1 or 2. Break wire run to
supervise connections.
+ +
+ +
2 2 –
–
RA
RA
1 1
3
3
