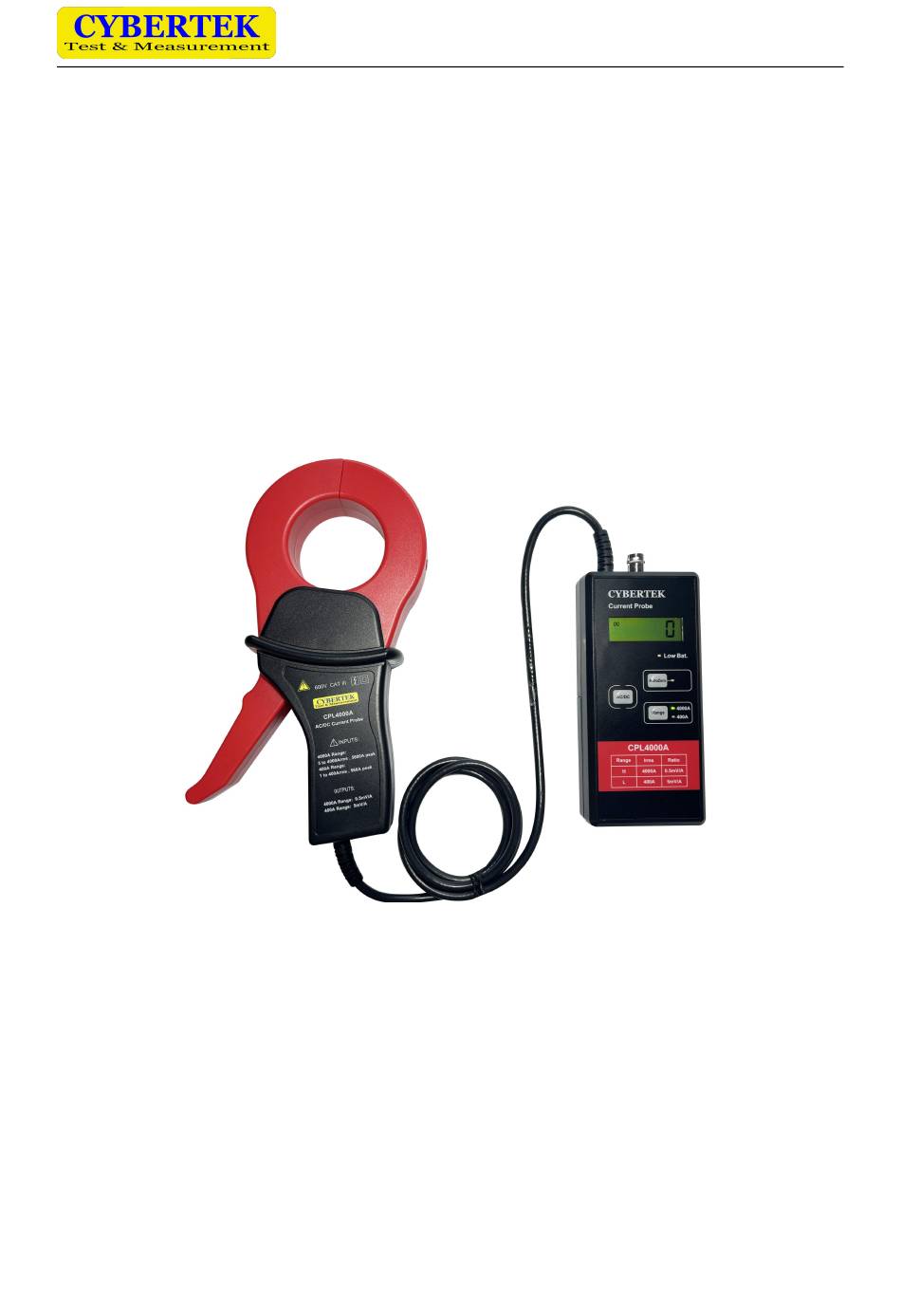

- Page 1 Shenzhen Zhiyong Electronics Co., Ltd Low Frequency AC/DC Current Probe CPL2000A（2000A/10kHz） CPL4000A （4000A/ 5kHz） Shenzhen Zhiyong Electronics Co., Ltd www.cybertek.cn...
- Page 2 Shenzhen Zhiyong Electronics Co., Ltd Preface First of all, thank you for purchasing our products, this instruction manual is the description about the function, usage, operation attention points, etc. Before use, please read the instructions carefully and use correctly. Manual annotation will use the following symbols to distinguish. This symbol means it is harmful to the machine and human body;...
- Page 3 Shenzhen Zhiyong Electronics Co., Ltd Notice The sensor head is assembled of precision components including magnetic core, Hall component. The rapid change of temperature or the external impact could damage the sensor, so please avoid vibration or strike when using. CPL series product is neither waterproof nor dust-proof.
- Page 4 。 CPL2000A/4000A is able to directly display the RMS current value without connecting any devices, and also able to measure the waveform by connecting to an oscilloscope.Its unique sensor design achieves twice the current measurement capability (4000ARMS) compared to similar products in the field, while ensuring excellent in accuracy.
- Page 5 Shenzhen Zhiyong Electronics Co., Ltd 1）Clamp: Current clamp that can measure cable of maximum diameter up to 54mm 2）Signal output cable: BNC standard connector, able to adapt oscilloscope of any brand through standard BNC cable. 3）USB 5V power supply connector: standard USB (Type B) connector for standard USB power supply cable.
- Page 6 Shenzhen Zhiyong Electronics Co., Ltd 3. Electronics Characteristics Test Condition: 23℃, 60RH, no nearby current, cable under test through the center during testing, load impedance 1MΩ. Model CPL2000A CPL4000A Range 200A 2000A 400A 4000A Maximum measurable current 200Arms 2000Arms 400Arms...
- Page 7 Shenzhen Zhiyong Electronics Co., Ltd 5. Mechanical Specification Size of current clamp 216*115*45mm Size of output box 150*70*27mm Operating altitude 0~2000m Max size of conductor under test diameter 54mm Length of the cable between clamp and box Length of BNC cable Weight 690g (Battery Excluded) 6.
- Page 8 Shenzhen Zhiyong Electronics Co., Ltd CYBERTEK SHENZHEN ZHIYONG ELECTRONICS CO., LTD Addr： Room A1702, Building 4, TianAn Cyber Park, HuangGe North Road, LongGang District, ShenZhen City, China Tel: +86-400 852 0005 / +86-755-86628000 Q Q: 400 852 0005 Email: cybertek@cybertek.cn ©...
