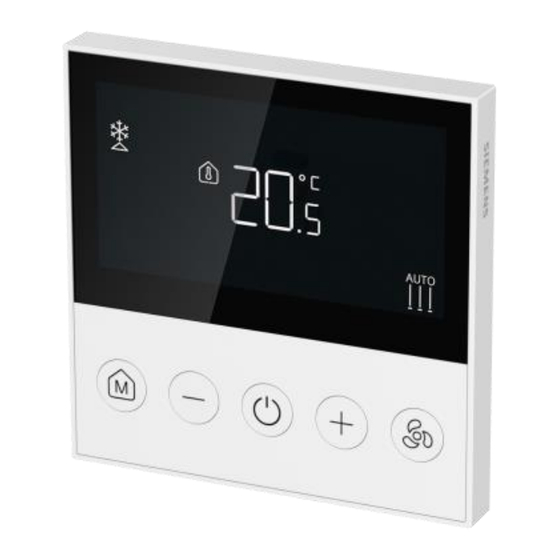

Fan coil room thermostat
RDQ400, RDQ410, RDQ411
A6V13959821_en--_a
2024-09-18
For fan coil unit
For 2-pipe fan coil units (RDQ400)
For 2-pipe and 4-pipe fan coil units (RDQ410 and RDQ411)
One multi-functional input (X1) for keycard contact or external sensor (RDQ411)
LCD backlit display and keylock function
Operating mode button: Comfort, Protection, and Economy (3-second long-press
in Comfort)
'M' button:
– For 2-pipe applications: Heating, cooling, ventilation
– For 4-pipe applications (auto): Automatic heating/cooling changeover,
ventilation
– For 4-pipe applications (manual): Heating, cooling, ventilation
3-speed fan control (automatic or manual) via fan button
Display of either room temperature or setpoint
Support of Chinese standard conduit boxes (max. 78 × 78) ≥ 45 mm (±2) deep
and British metal standard conduit boxes (max. 75 × 75) ≥ 47 mm (±2) deep
Adjustable commissioning and control parameters
智能基础设施集团

Advertisement

loading
Need help?

Need help?

Do you have a question about the RDQ400 and is the answer not in the manual?

Questions and answers

Summary of Contents for Siemens RDQ400

  • Page 1 Fan coil room thermostat RDQ400, RDQ410, RDQ411 For fan coil unit ● For 2-pipe fan coil units (RDQ400) ● For 2-pipe and 4-pipe fan coil units (RDQ410 and RDQ411) ● One multi-functional input (X1) for keycard contact or external sensor (RDQ411) ●...
  • Page 2 ● Temperature sensor calibration ● Surge protection at power-up ● Maintenance of room temperature via built-in temperature sensor (RDQ400, RDQ410) ● Maintenance of room temperature via built-in temperature sensor or external temperature sensor (RDQ411) ● HVAC application selection via parameter P01 ●...
  • Page 3 See Operating mode [▶ for more information on "timer with delay Off" mode Fan button for: Enter parameter setting ● Fan speed selection ● Screen unlock (press and hold down the button for 3 seconds) Siemens A6V13959821_en--_a Smart Infrastructure 2024-09-18...
  • Page 4 If P27 = 1, the unit is in Protection mode. ● If P27 = 2, the unit resumes Comfort mode (On). Type summary Product Stock Operating Control outputs Multi-functional voltage types input number number On/Off 3-pos On/Off Sensor (3-wire) speed card Siemens A6V13959821_en--_a Smart Infrastructure 2024-09-18...
  • Page 5 √ √ RDQ411 S55770- AC 230 V T517 Ordering When ordering, specify both product number / stock number and name: e.g., RDQ400 / S55770-T515 Room thermostat. Order valve actuators and external sensors separately. Equipment combinations On/Off actuators Type of units...
  • Page 6 A5W00769647A Environmental declarations A5W01944065A Related documents such as environmental declarations, CE declarations, etc., can also be downloaded at the following Internet address: www.siemens.com/bt/download Notes Security CAUTION National safety regulations Failure to comply with national safety regulations may result in personal injury and property damage ●...
  • Page 7 Temperature out of range When the room temperature is out of range, i.e. above 50 °C or below 0 °C, the temperature displays and flashes at “0 °C” or “50 °C”. The thermostat continues to work. Siemens A6V13959821_en--_a Smart Infrastructure...
  • Page 8  Once a desired parameter is selected, the parameter's value begins to flash on the screen. 4. Press to select a desired parameter value, and then press to confirm selection. 5. Repeat the above two steps to adjust other parameters. 6. Press to exit parameter setting adjustment. Siemens A6V13959821_en--_a Smart Infrastructure 2024-09-18...
  • Page 9 Control parameters Parameter Description Factory setting Setting range Application 1 (RDQ400, 0 = 2-pipe, 2-wire valve, heating RDQ411) only 7 (RDQ410) 1 = 2-pipe, 2-wire valve, cooling only 2 = 2-pipe, 2-wire valve, heating/cooling changeover manual 3 = 2-pipe, 3-wire valve, heating...
  • Page 10 Economy with HMI locked when the room is unoccupied and returns to the previous operating mode when the room is occupied. (keycard) Keylock and unlock Keylock can be activated or deactivated via parameter P14. See "Control parameters [▶ 8]" for details. Siemens A6V13959821_en--_a Smart Infrastructure 2024-09-18...
  • Page 11 => 'Siemens Security Advisories' Warranty Technical data on specific applications are valid only together with Siemens products listed under "Equipment combinations". Siemens rejects any and all warranties in the event that third-party products are used. Siemens...
  • Page 12 Current rating External preliminary protection with max. 10 A circuit breaker in the supply line required under all circumstances. *) Internal fuse only protects internal circuit. Outputs RDQ400 Valve output Y12 (N.C.)/Y14 (N.O.) AC 230 V Rating 5 mA...4 (2) A RDQ410, RDQ411 Valve output Y1 (N.O.) /Y2 (N.O.)
  • Page 13 Operation altitude Max. 3,000 m above sea level Mechanical ambient conditions Storage as per EN 60721-3-1 Class 1M2 Transport as per EN 60721-3-2 Class 2M2 Operation as per EN 60721-3-3 Class 3M2 Climatic ambient conditions Siemens A6V13959821_en--_a Smart Infrastructure 2024-09-18...
  • Page 14 (A5W01944065A*) contains data on environmentally compatible product design and assessments (RoHS compliance, materials composition, packaging, environmental benefit, disposal). *) All documentation can be downloaded from www.siemens.com/bt/download. General Connection terminals 1 × 0.5...1.5 mm Weight (Without box and user document) 154 g (RDQ400)
  • Page 15 Output “Valve”, AC 230 V (NO), SPST Output “Valve”, AC 230 V (NO), SPST Multi-functional input for temperature sensor (e.g. QAH11.1) or potential-free switch (keycard) Measuring neutral for sensor and switch Connection diagrams RDQ400 (2-pipe application) 2-wire valve 3-wire valve Siemens A6V13959821_en--_a Smart Infrastructure...
  • Page 16 RDQ410, RDQ411 (2-pipe application, X1 connects external sensor or keycard contact) 2-wire valve 3-wire valve RDQ410, RDQ411 (4-pipe application, X1 connects external switch or keycard contact) 2-wire valve 3-wire valve Siemens A6V13959821_en--_a Smart Infrastructure 2024-09-18...
  • Page 17 Application examples RDQ400, RDQ410, RDQ411 2-pipe fan coil unit On/Off (heating or cooling) Heating/cooling valve actuator 3-speed fan Thermostat RDQ410, RDQ411 4-pipe fan coil unit On/Off (heating and cooling) Heating or heating/cooling valve actuator Cooling valve actuator 3-speed fan Thermostat...
  • Page 18 Dimensions (mm) Siemens A6V13959821_en--_a Smart Infrastructure 2024-09-18...
  • Page 20 Issued by © Siemens 2024 Siemens Switzerland Ltd Technical specifications and availability subject to change without notice. Smart Infrastructure Global Headquarters Theilerstrasse 1a CH-6300 Zug +41 58 724 2424 www.siemens.com/buildingtechnologies Document ID A6V13959821_en--_a Edition 2024-09-18...
