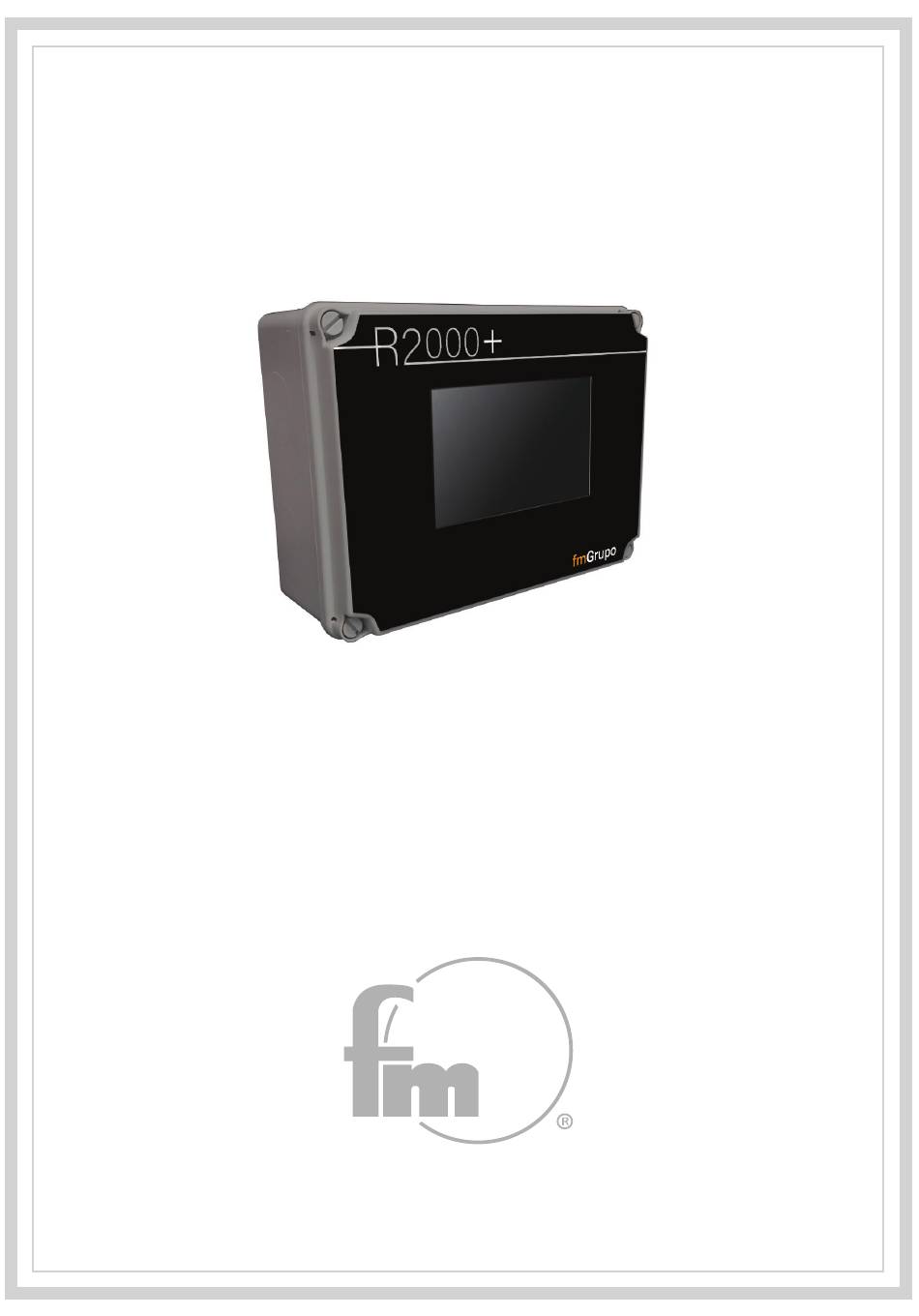

- Page 1 R-2000+ MANUAL INSTRUCTIONS...
- Page 2 R-2000+ INDEX INSTALLATION MAINTENANCE MODE OF USE STATUS SETUP DATE AND TIME CORRECTIONS AND ALARMS WORKING TEMPERATURES MANUAL CONTROL VENTILATION HEATING REFRIGERATION AUXILIARY RELAY 0-10V OUTPUTS CONNECTION...
-
Page 3: Installation
R-2000+ INSTALLATION 1.INTRODUCTION Congratulations, you are looking at one of the most modern micro-regulators from FMGRUPO, R2000+. With it, we want to help you obtain the best results. 2. ELECTRICAL INSTALLATION AND PLACEMENT OF THE EQUIPMENT For the correct installation of this equipment, it is necessary to carefully read the following instructions. -
Page 4: Technical Information
R-2000+ TECHNICAL INFORMATION Voltage 220 Vc.A +10 to -15% 50Hz Consumption 2.5 W (electronic only) Working temperature 5 to 45 ºC Storage temperature -20 to +70 ºC Humidity 35 to 85% R.H. (no condensation) Vibration resistance 5 to 55 Hz, 5G, for 2,5 hours. Environmental conditions free of corrosive agents Weight... - Page 5 R-2000+ MAIN MENU The normal operating mode of this equipment is automatic mode (START). To use this operating mode, the START 15:56:47 option must be selected in the MAIN menu section, and in AUTO mode. In START and MANUAL mode we will control all our equipments manually.
-
Page 6: Inputs Outputs Configuration
R-2000+ INPUTS OUTPUTS CONFIGURATION first division, configure our equipment with 15:56:47 15:56:47 all the data elements, probes and outputs with which we are going to work, the dark grey icon being activated. Disarm, the Icon will be light grey. 15:56:47 15:56:47 15:56:47 By touching probe 2, we activate or disarm it. -
Page 7: Date And Time
R-2000+ DATE AND TIME To change the date and time, we 15:56:47 15:56:47 hold our finger on one of these, 15:56:47 write our new data, and press 11-12-2024 the ENTER button on the CASTELLANO keyboard. CORRECTIONS CORRECTIONS MENU AND ALARMS AND ALARMS 15:56:47 15:56:47... - Page 8 R-2000+ MENU WORKING TEMPERATURES The R2000+ is a cyclic controller, that is, it can work with 15:56:47 a cycle start temperature, an end temperature and a few cycle days. If we do not want to work with this work curve, we will simply indicate to the controller days of cycle 1, and we will always work with the desired temperature indicated.
-
Page 9: Manual Control
R-2000+ MANUAL CONTROL 15:56:47 15:56:47 15:56:47 To access this menu, the controller must be in STAR-MANUAL working mode. To access this menu, the cont troller must be in STAR-MANUA troll AL working mode. AL w From here, we can manually control all the data elements installed on our controller. VENTILATION 15:56:47 15:56:47... -
Page 10: Auxiliary Relay
R-2000+ COOLING 15:56:47 15:56:47 15:56:47 15:56:47 0.0`C AUXILIARY RELAY 15:56:47 15:56:47 15:56:47 ON/OFF OUTPUTS 0-10V 15:56:47 15:56:47 15:56:47 Output 1 is the one that the controller uses for the ventilation outlet, so we activate it from the previous menu. Pressing on any of the other two outputs, we indicate the % that we want the output working on. - Page 11 R-2000+ VENTILATION 15:56:47 15:56:47 4.0ºC 10.0ºC To work with our regulated ventilation outlet, we will take into account four working with our regulated ventilation out t, we will take into account four w parameters. 1. RAMP: Degrees in which we want the ventilation speed goes from the minimum speed to the maximum.
-
Page 12: Heating On/Off
R-2000+ HEATING ON/OFF 15:56:47 15:56:47 15:56:47 2.0ºC 1.0ºC 10.0ºC 10.0ºC Relative degrees for heating connection. Relative degrees for heating nnection. Degrees by which the temperature of the room must drop (with respect to the average of probes 1 and 2), so that the heating system is connected. Relative degrees to disconnect the heating system. - Page 13 R-2000+ AUXILIARY RELAY Relative degrees for auxiliary 15:56:47 15:56:47 relay connection. D e g r e e s w h i c h t h e 4.0ºC 8.0ºC temperature of the house must 1 Sg 0 Sg rise (with respect to the desired temperature) for the auxiliary relay to be connected.
- Page 14 R-2000+ 0-10V OUTPUTS 1. For an air inlet with 0-10 control. 2. For another ventilation outlet. 3. For a regulated heating control. 14.1 VENTILATION OR REGULATED OUTPUT In mode 1 and 2, the output works in an ascending mode, that is, to the degrees above the ON on the desired one.
- Page 15 R-2000+ CONNECTION TEMP PROBE 1 TEMP PROBE 2 EXIT 0-10 (2) EXIT 0-10 (1) 230V IN OUTPUT 0-10 (2) PHASE OUTPUT 0-10 (1) NEUTRAL PHASE 230V AC INPUT LAND NEUTRAL PROBE 1 PROBE 2 POWER SUPPLEMENT...
- Page 16 www.fmgrupo.com fmGrupo | T. +34 93 574 49 35 info@fmgrupo.com Pol. Ind. Llevant - c/ Llevant 24 Parets del Vallès (Barcelona - Spain)
