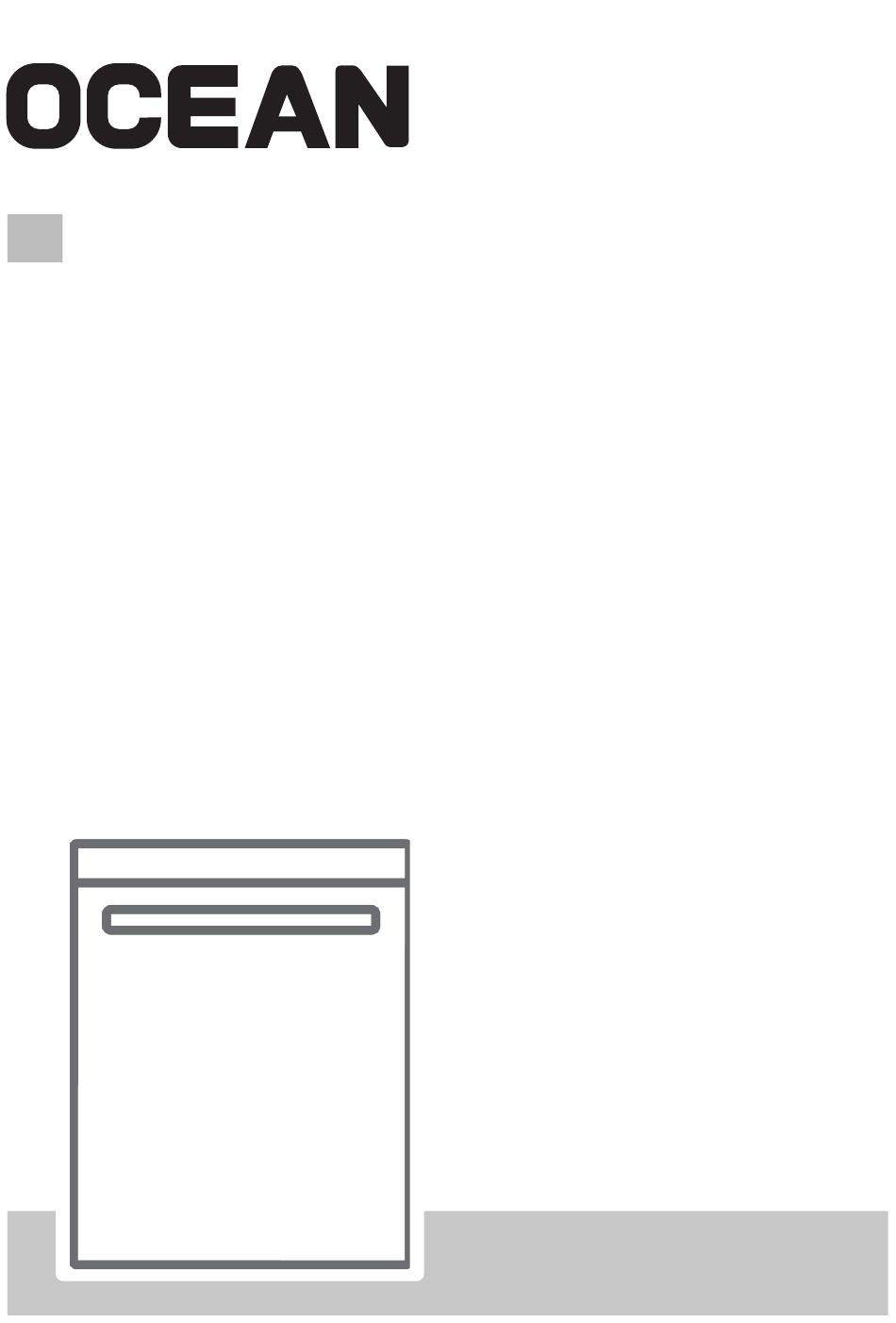

- Page 1 ® Dishwasher / User Manual ODA 813 VS ODA 813 VXB ODA 813 VXBN...
- Page 2 Thank you for choosing this product. This user manual contains important information on safety and instructions intended to assist you in the operation and maintenance of your appliance. Please take the time to read this user manual before using your appliance and keep this book for future reference.
-
Page 3: Table Of Contents
CONTENTS 1 SAFETY INSTRUCTIONS ................3 1.1 General Safety Warnings ....................3 1.2 Installation Warnings .......................4 1.3 During Usage........................5 2 INSTALLATION ....................7 2.1 Machine Positioning ......................7 2.2 Water Connection ......................7 2.3 Water Inlet Hose ......................7 2.4 Drain Hose (Model Depending) ..................8 2.5 Electrical Connection .......................8 2.6 Fitting The Machine Undercounter ..................9 3 TECHNICAL SPECIFICATIONS .............. -
Page 4: Safety Instructions
1 SAFETY INSTRUCTIONS 1.1 General Safety Warnings • Read these instructions carefully before using your appliance and keep this manual for future reference. Please check the packaging of your machine before installation and the outer surface of the machine once the packaging has been removed. Do not operate the machine if it appears damaged or if the packaging has been opened. -
Page 5: Installation Warnings
There may be some residue left in the machine after washing. Keep children away from the machine when it is open. 1.2 Installation Warnings • Choose a suitable and safe place to install your machine. • Only original spare parts should be used with the machine. -
Page 6: During Usage
Always use the coated plug supplied with your machine. If the electrical cable is damaged, it should only be replaced by a qualified electrician. • Connect the hose directly to the water inlet tap. The pressure supplied by the tap should be a minimum of 0.03 MPa and a maximum of 1 MPa. - Page 7 Do not open the door while the machine is in operation, hot water may spill out. Safety devices ensure the machine stops if the door is opened. The machine door should not be left open. It may cause accidents. Place knives and other sharp objects in the cutlery basket in a blade-down position.
-
Page 8: Installation
2 INSTALLATION 2.2 Water Connection We recommend fitting a filter to your water 2.1 Machine Positioning inlet supply in order to prevent damage to your machine due to contamination (sand, When positioning the machine, place it in rust, etc.) from indoor plumbing. This will an area where dishes can be easily loaded also help prevent yellowing and deposit and unloaded. -
Page 9: Drain Hose (Model Depending)
2.5 Electrical Connection WARNING: After the connections are made, turn the tap on fully and check for water leaks. Always turn off the water inlet tap after a wash program has finished. WARNING: Your machine is set to operate at 220-240 V. If the mains voltage supply to your machine is 110 V, connect a transformer of 110/220 V and 3000 W between the electrical connection. -
Page 10: Fitting The Machine Undercounter
2.6 Fitting The Machine Undercounter If you wish to fit your machine undercounter, there must be sufficient space to do so and the wiring-plumbing must be suitable to do so (1). If the space under the countertop is suitable for fitting your machine, remove the worktop as shown in the illustration (2). -
Page 11: Technical Specifications
3 TECHNICAL SPECIFICATIONS 3.2 Technical Specifications 13 place Capacity settings Dimensions Height 850(mm) Width 598(mm) Depth 598(mm) Net weight 43 kg Operating 220-240V voltage / 50 Hz frequency Total current 10(A) Total power 1900(W) Maximum: Water supply 1 (Mpa) pressure Minimum: 0.03 (Mpa) 3.1 General Appearance... -
Page 12: Packaging And The Environment
RECYCLING CE Declaration of Conformity • Some machine components and We declare that our products meet the packaging consist of recyclable applicable European Directives, Decisions materials. and Regulations and the requirements listed in the standards referenced. • Plastics are marked with the international abbreviations:(>PE<, >PP<, etc. -
Page 13: Before Using The Appliance
4 BEFORE USING THE 4.3 Fill The Salt (IF AVAILABLE) APPLIANCE To add softener salt, open the salt compartment cap by turning it counter 4.1 Preparing Your Dishwasher For First clockwise. (1) (2) At first use, fill the compartment with 1 kg salt and water (3) until it is almost overflowing. -
Page 14: Test Strip
4.4 Test Strip Run water through Keep the strip in Set the hardness level of Shake the strip. Wait (1min.) the tap (1min.) the water (1sec) your machine. second munite munite NOTE: The level is set to 3 as default. If the water is well water or has a hardness level above 90 dF, we recommend that you use filter and refinement devices. -
Page 15: Detergent Usage
4.8 Detergent Usage 4.10 Using Combined Detergents Only use detergents specifically designed These products should be used according for domestic dishwashers. Keep your to the manufacturer’s instructions. detergents in cool, dry places out of reach Never put combined detergents into the of children. -
Page 16: Filling The Rinse-Aid And Setting
4.12 Filling The Rinse-aid And Setting Level Brightener Dose Indicator Rinse-aid not r1 is shown on the To fill the rinse aid compartment, open dispensed display. the rinse-aid compartment cap. Fill the 1 dose is r2 is shown on the compartment with rinse aid to the MAX dispensed display. -
Page 17: Loading Your Dishwasher
5 LOADING YOUR DISHWASHER 5.1 Recommendations Remove any coarse residue on dishes For best results, follow these loading before placing the dishes in the machine. guidelines. Start the machine with full load. Loading the household dishwasher up to the capacity indicated by the manufacturer will contribute to energy and water savings. - Page 18 Upper Basket Height Adjustable Rack (peg type) Height Adjustment Turn the Rail Stop Clips, at the ends of the The height adjustable racks enable glasses rails, to the sides to open them (as shown and cups to be placed on or under the in the image below), then pull out and racks.
-
Page 19: Alternative Basket Loads
Incorrect Loads and serial number to the following address: Incorrect loading can cause poor washing info@oceanoverseas.it – www.ocean.it and drying performance. Please follow the manufacturer’s recommendations for a good performans result. EN - 18... -
Page 20: Programme Table
6 PROGRAMME TABLE Programme Duration (min) Description Prewash Suitable to rinse dishes that you plan to wash later Fastest program for lightly soiled and recently used dishes and suitable Mini 14' for 4 place settings. Quick 30’ Suitable for lightly soiled dishes and quick wash. Standard program for normally soiled daily using dishes with reduced energy and water consumptions. -
Page 21: Control Panel
7 CONTROL PANEL 3. Delay Button You can delay the start time of the program- me for 1-2...24 hours by pressing the delay (10) (11) (a) (b) (c) (d) button (3) before the programme starts. The delay indicator (3.1) will be on. If you want to change the delay time,first press the Start/Pause button and then the delay but- ton to select a new delay time. - Page 22 10. Tablet Indicator NOTE: Child lock is activated/ Select the Tablet Detergent function when deactivated by pressing select button (7) for using a combined detergent that contains about 3 seconds. When it is activated, all leds blink and “CL” is shown on Remaning salt, rinse aid or other extras.
- Page 23 Buzzer Sound Control Cancelling the Program (Model Depending) If you want to cancel the program while it is To change the buzzer sound level, follow running. the below steps: 1. Open the door and press Option (6) and Select (7) buttons at the same time for 3 seconds.
- Page 24 Natural Ion Tech (Model Depending) This function provides extra hygiene to the machine thanks to Ion Technology. It oper- ates as an independent program. This func- tion is activated by pressing Options button (6) for 3 seconds in ready state. At the end of 3 seconds, “Ion”...
-
Page 25: Cleaning And Maintenance
8 CLEANING AND MAINTENANCE To remove and clean the filter combination, turn it counter clockwise and remove it by Cleaning your dishwasher is important to lifting it upwards (1).Pull the coarse filter out maintain the machine’s service life of the micro filter (2).Then pull and remove Make sure that the water softening setting the metal filter (3).Rinse the filter with lots of (If available) is done correctly and correct... -
Page 26: Drain Pump
8.3 Drain Pump Large food residues or foreign objects which were not captured by the filters may block the waste water pump. The rinsing water will then be above the filter. Warning Risk of cuts! When cleaning the waste water pump, ensure that you do not injure yourself on p ieces of broken glass or pointed implements. -
Page 27: Troubleshooting
9 TROUBLESHOOTING FAULT POSSIBLE CAUSE TROUBLESHOOTING Your Dishwasher is not plugged in. Plug your Dishwasher in. Switch your Dishwasher on by pressing the Your Dishwasher is not switched on. On/Off button. Fuse blown. Check your indoor fuses. The programme does not start. - Page 28 FAULT POSSIBLE CAUSE TROUBLESHOOTING Use the correct amount of detergent, as Not enough detergent used. instructed in the programme table. Rinse aid dosage and/or water Increase rinse aid and/or water softener softener setting set too low. level. Whitish stains remains on dishes.
- Page 29 AUTOMATIC FAULT WARNINGS AND WHAT TO DO TROUBLE POSSIBLE FAULT WHAT TO DO CODE Make sure the water inlet tap is open and water is flowing. Separate the inlet hose from the tap and clean the filter of Water inlet system failure the hose.
-
Page 30: The Product Fiche
THE PRODUCT FICHE ® Supplier's trade mark ODA 813 VS / ODA 813 VXB Supplier's model ODA 813 VXBN Capacity of dishwasher The energy efficiency class Annual energy consumption in kWh per year (AEc) ( 280 Cycle )* Energy consumption (Et) (kWh per cycle) -
Page 31: Warranty
For technical repair or spare parts orders, please contact the seller (local store where your purchase was made) or the local Authorized Service Center: * For models sold in European countries only and compliant with new European Energy Labelling requirements effective as of 1st March 2021. Visit our website to: www.ocean.it EN - 30... - Page 32 5XXXXXX...
