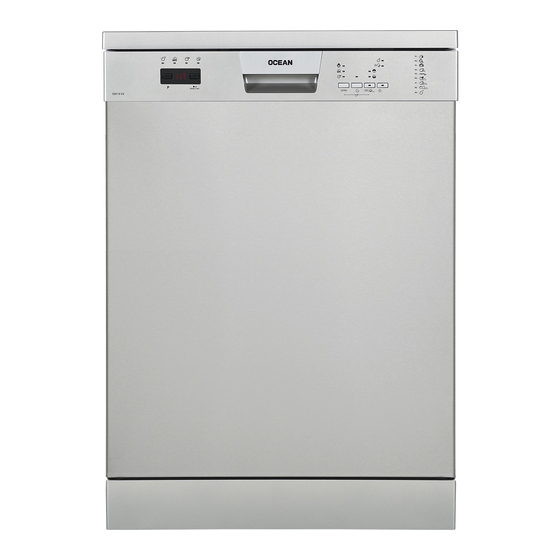

Ocean ODY 9 V User Manual
  1. Manuals
  2. Brands
  3. Ocean Manuals
  4. Dishwasher
  5. ODY 9 V
  6. User manual

Ocean ODY 9 V User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

EN
Dishwasher / User Manual
ODY 9 V

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ODY 9 V and is the answer not in the manual?

Questions and answers

Related Manuals for Ocean ODY 9 V

Summary of Contents for Ocean ODY 9 V

  • Page 1 Dishwasher / User Manual ODY 9 V...

  • Page 2: Table Of Contents

    CONTENTS Technical specifications …………………………………………………….. • Conformity with the standards and Test data …………………………….. • Safety information and Recommendations………………………………….. Recycling ..………………………............• Safety information …………………………………………………………… • Recommendations …...……………………………………………………… • Items not suitable for dishwashing ………………………………………… • Installing the machine ………………………………………………………….. Positioning the machine …………………………………………………….. •...
  • Page 3 Loading your dishwasher .……………………………………………………. Alternative basket loads …………………………………………………... • Programme descriptions .…………………………………………………….. Programme items ………………………………………………………….. • Getting familiar with your machine …………………………………………… 2 ……………..… ..Changing a programme…………………………………………………. • Cancelling a programme ……………………………………………………… • Maintenance and Cleaning ................ Filters ..………………………………………………………………………...
  • Page 4 1. Worktop 7. Rating plate 2. Upper basket with racks 8. Control Panel 3. Upper spray arm 9. Detergent and rinse-aid dispenser 4. Lower basket 10. Cutlery basket 5. Lower spray arm 11. Salt dispenser 6. Filters 12. Upper basket track latch 13.

  • Page 5: Technical Specifications

    Technical specifications Capacity 1 place settings Height 850 mm Height 820 mm (without worktop) Width 598 mm Depth 598 mm Net Weight Electricity input 220-240 V, 50 Hz Total Power 1900 W Heating Power 1800 W Pump Power 100 W Drain Pump Power 30 W Water supply pressure 0.03 MPa...

  • Page 6: Safety Information And Recommendations

    SAFETY INFORMATION AND RECOMMENDATIONS Recycling • Certain components and the packaging of your machine have been produced from recyclable materials. • Plastic parts are marked with international abbreviations: (>PE< , >PS< , >POM<, >PP<, ) • Cardboard parts have been produced from recycled paper and they should be disposed of into waste paper collection containers for recycling.
  • Page 7 • Check whether the indoor electrical fuse system is connected according to the regulations. • All electrical connections must match the values indicated on the rating plate. • Pay special attention and be sure that the machine does not stand on the electricity supply cable. •...
  • Page 8 mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.Cleaning and user maintenance shall not be made by children without supervision.

  • Page 9: Recommendations

    For your children’s safety • After removing the machine’s packaging, make sure that the packaging material is out of reach of children. • Do not allow children to play with or start the machine. • Keep your children away from detergents and rinse aids. •...

  • Page 10: Items Not Suitable For Dishwashing

    Items not suitable for dishwashing: • Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron-alloy materials; • Forks, spoons and knives with wooden or bone, or ivory or nacre-coated handles; glued items,items soiled with abrasive, acidic or base chemicals. • Plastic items that are not heat-resistant, copper or tin-coated containers.
  • Page 11 Position the machine close to a water tap or drain. You need to site your machine, taking into consideration that its connections will not be altered once they are made. Do not grip the machine by its door or panel in order to move Take care to leave a certain clearance from all sides of the machine so that you can comfortably move it back and forth during cleaning.

  • Page 12: Water Inlet Hose

    Water inlet hose Do not use the water inlet hose of your old machine,if any. Use the new water inlet hose supplied with your machine instead. If you are going to connect a new or long - unused water inlet hose to your machine ,run water through it for a while before making the connection.

  • Page 13: Water Outlet Hose

    Water outlet hose The water drain hose can be connected either directly to the water drain hole or to the sink outlet spigot. Using a special bent pipe (if available), the water can be drained directly into the sink via hooking the bent pipe over the edge of the sink.

  • Page 14: Electrical Connection

    Electrical connection The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current. If there is no earthing installation, have a competent electrician carry out an earthing installation. In case of usage without earthing installed, our company will not be responsible for any loss of usage that might occur.

  • Page 15: Fitting The Machine Undercounter

    Fitting the machine undercounter If you wish to fit your machine undercounter, check whether you have sufficient space under your countertop and whether the wiring-plumbing is suitable to do so.1 If you decide that the space under the countertop is suitable for fitting your machine, remove the worktop as shown in the illustration.
  • Page 16 Adjust the machine feet according to the slope of the floor.3 Fit your machine by pushing it undercounter without letting the hoses get crushed or bent.4 Product  Without Insulation With Insulation  All Product  For 2nd Basket For 3rd Basket  Height 820 mm 830mm 835 mm Warning: After removal of worktop, the machine should be placed in such a closed place of which dimensions are shown at fig.

  • Page 17: Prior To Using The Machine

    Prior to using the machine for the first time Check whether the electricity and supply water specifications match the values indicated by the • installation instructions for the machine. Remove all packaging materials inside the machine. • Set the water softener. •...

  • Page 18: Testing Strip

    Testing strip The washing effectiveness of your machine depends on the softness of the tap water. For this reason, your machine is equipped with a system that reduces the hardness in mains water supply. The washing effectiveness will increase when the system is correctly set. To find out the water hardness level of water in your area, contact your local water board or determine water hardness level by using the test strip(if available).
  • Page 19 -Press program button(2) when the machine is off position. -Turn on the machine by pressing On/Off button(1) and continue to press program button(2) at least for 3 seconds. -If “Hardness set” is recognized “SL” is shown for 2 seconds. -Release program button(2). The last setting level is viewed. -Press program button(2) to set the desired level.At any pressure of program button hardness level is incremented.

  • Page 20: Detergent Usage

    Detergent usage Use a detergent specifically designed for use in domestic dishwashers. You can find powder,gel,and tablet detergents in the market that have been designed for household dishwashers. Detergent should be put into the compartment prior to starting the machine. Keep your detergents in cool, dry places out of reach of your children.

  • Page 21: Filling With Rinse Aid And Making The Setting

    Recommended usage: If you want to obtain better results while using combined detergents, add salt and rinse aid into your machine and adjust the water hardness setting and the rinse aid setting to the lowest position. Solubility of the tablet detergents produced by different companies can vary depending on the temperature and time.

  • Page 22: Loading Your Dishwasher

    Warning: Use only those rinse aid materials which are allowed for use in the machine. As rinse aid residues left as a result of overflowing will create extremely high amounts of foam and thus reduce the washing performance, remove the excess amount of rinse aid by wiping it with a rag. LOADING YOUR DISHWASHER If you properly place your dishes into the machine, you will be using it in the best way in terms of energy consumption, washing and drying performance.
  • Page 23 Top basket height adjustment Top basket of your machine is in upper position. When it is in this position, you can place big items such as pans, etc. on lower basket. When you take top basket to lower position, you can place and wash big sized plates on the top basket.

  • Page 24: Alternative Basket Loads

    Alternative basket loads Lower Basket Top basket Incorrect Loads Important Note for Test Laboratories For detailed information on performance tests, please contact following address: “dishwasher@standardtest.info” . In your email, please provide the model name and serial number (20 digits) which you can find on the appliance door.

  • Page 25: Programme Items

    Programme items Programme No 3 Reference Programme Prewash Quick 30’ Daily names Temperatures No Heat 40°C 50°C 60°C Type of food Prewash to coffee, milk, coffee, milk, Fresh coffee, milk, waste rinse and tea, cold meats, tea, cold meats, tea, cold meat, loosen residues vegetables, not vegetables, not...
  • Page 26 Programme items Programme No Programme Super 50 Delicate Normal Intensive Steamwash names min. Temperatures 65°C 40°C 55°C 65°C 65°C Type of food soups, Detects contamination level of dishes and sets soups, sauces, waste sauces, temperature and amount of washing water pasta, eggs, pasta, eggs, and washing period automatically.

  • Page 27: Getting Familiar With Your Machine

    GETTING FAMILIAR WITH YOUR MACHINE Programme Selection and Operating the Machine By pressing On/Off button(4), energise the the selected program, so you can ensure machine. On/Off lamp lights as long as the that your dishes will be extracted cleaner machine is on. and glosser.

  • Page 28: Changing A Programme

    Note: When rinse aid is not enough, rinse aid Cancelling a programme If you would like to cancel a program while lack warning indicator (9) turns on and washing is continuing. you need to fill in rinse aid chamber. Changing a programme If you would like to change the program while Press Start/Pause washing is continuing.

  • Page 29: Maintenance And Cleaning

    MAINTENANCE AND CLEANING Cleaning the machine in regular intervals prolongs the machine’s service life. Oil and lime may accumulate in the machine’s washing section. In case of such accumulation; -Fill the detergent compartment without loading any dishes into the machine, select a programme that runs at high temperature, and start the machine.

  • Page 30: Spray Arms

    Spray arms Check whether or not the holes for the upper and lower spray arms are clogged. If there is any clogging, remove the spray arms and clean them under water. You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left.

  • Page 31: Failure Codes And What To Do In Case Of Failure

    FAILURE CODES AND WHAT TO DO IN CASE OF FAILURE ERROR CODE ERROR DESCRIPTION CONTROL • Make sure the water input tap is totally open and that there is no water cut. Inadequate water supply Close the water input tap, separate the water input hose from the tap and clean the filter at •...
  • Page 32 If one of program monitor lights is on and start/Pause light is on and off, Your machine’s door is open, shut the door. If the programme won’t start Check if the plug is connected. • Check your indoor fuses. • Be sure that the water inlet tap is turned on.

  • Page 33: Practical And Useful Information

    If the dishes won't dry up A programme without a dry operation selected. • Rinse aid dosage set too low • Dishes unloaded too fast. • If there are rust stains on the dishes Stainless-steel quality of the dishes washed is insufficient. •...
  • Page 34 THE PRODUCT FICHE (Spect) Supplier's trade mark OCEAN ODY 9 V Supplier's model Capacity of dishwasher The energy efficiency class Annual energy consumption in kWh per year (AEc) ( 280 Cycle )* Energy consumption (Et) (kWh per cycle) 0,90 Off-mode power consumption (W) (Po) 0,50 Left-on mode power consumption (W) (Pı)
  • Page 35 52238584 R35...
