Ocean ODY 9 VS User Manual

Hide thumbs

Advertisement

Quick Links

EN Dishwasher / User Manual
ODY 9 VS

Advertisement

loading
Need help?

Need help?

Do you have a question about the ODY 9 VS and is the answer not in the manual?

Questions and answers

Related Manuals for Ocean ODY 9 VS

Summary of Contents for Ocean ODY 9 VS

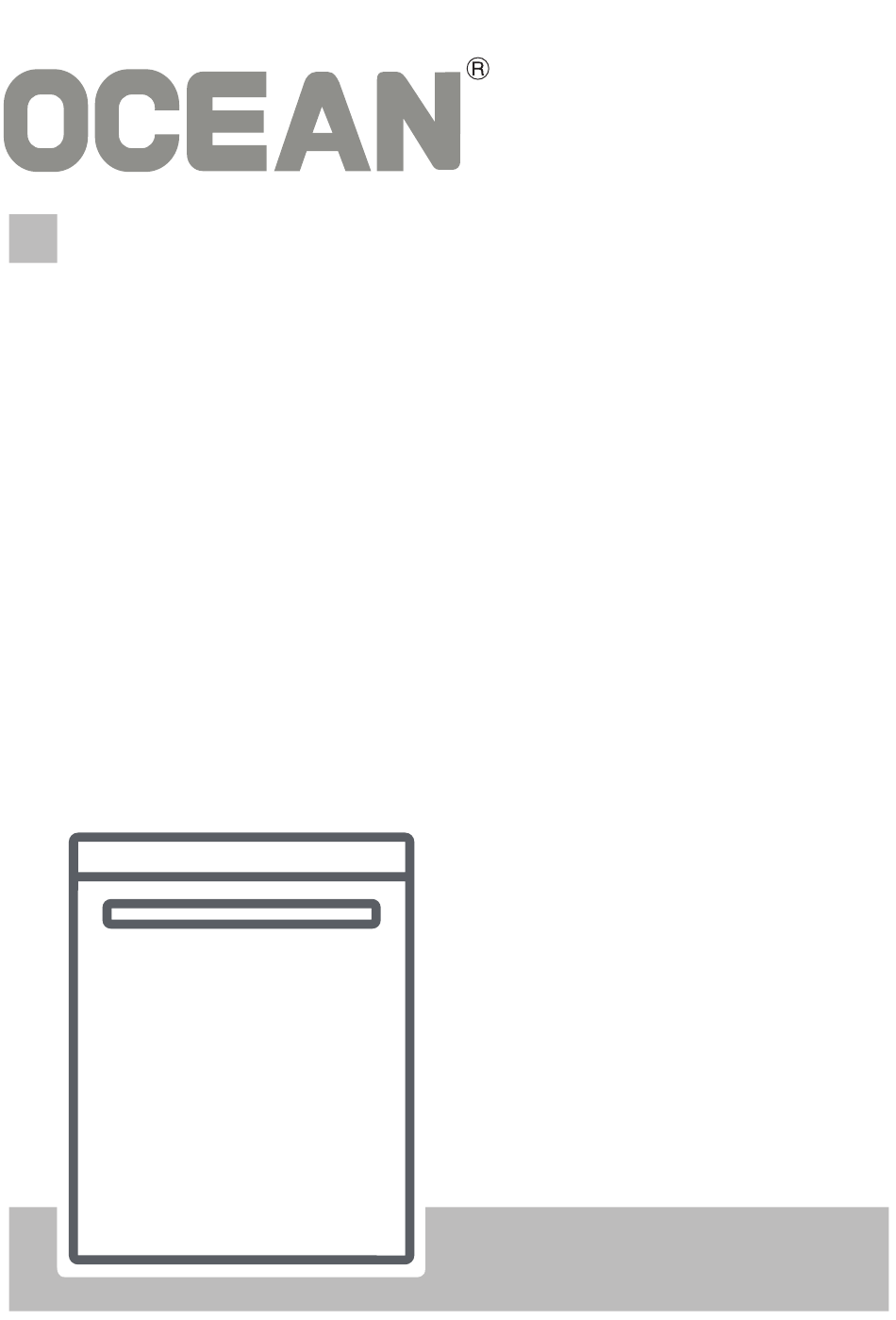

  • Page 1 EN Dishwasher / User Manual ODY 9 VS...

  • Page 2: Table Of Contents

    CONTENTS • T • • Recycling • • Recommendations • • • W • W • W • • • • • • T • • • • • . 20 • . 23 • . 24 Programme Selection and Operating the Machine •...
  • Page 3 Worktop Rating plate Upper basket with racks Control Panel Upper spray arm Detergent and rinse-aid dispenser Lower basket Cutlery basket Lower spray arm Salt dispenser Filters Upper basket track latch Super Active Drying Unit: This system provides better drying performance for your dishes.
  • Page 4 CE marking. Important Note for User:For softcopy of this user manual, please contact following address: "www.ocean.it”.In your e-mail, please provide the model name and serial number (20 digits) which you can find on the appliance door.

  • Page 5: Recycling

    SAFETY INFORMATION AND RECOMMENDATIONS Recycling • Certain components and the packaging of your machine have been produced from recyclable materials. • Plastic parts are marked with international abbreviations: (>PE< , >PS< , >POM<, >PP<, ) • Cardboard parts have been produced from recycled paper and they should be disposed of into waste paper collection containers for recycling.
  • Page 6 • Check whether the indoor electrical fuse system is connected according to the regulations. • All electrical connections must match the values indicated on the rating plate. • Pay special attention and be sure that the machine does not stand on the electricity supply cable. •...
  • Page 7 mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance.Cleaning and user maintenance shall not be made by children without supervision.

  • Page 8: Recommendations

    For your children’s safety • After removing the machine’s packaging, make sure that the packaging material is out of reach of children. • Do not allow children to play with or start the machine. • Keep your children away from detergents and rinse aids. •...
  • Page 9 Items not suitable for dishwashing: • Cigarette ashes, candle leftovers, polish, paint, chemical substances, iron-alloy materials; • Forks, spoons and knives with wooden or bone, or ivory or nacre-coated handles; glued items,items soiled with abrasive, acidic or base chemicals. • Plastic items that are not heat-resistant, copper or tin-coated containers.
  • Page 10 Position the machine close to a water tap or drain. You need to site your machine, taking into consideration that its connections will not be altered once they are made. Do not grip the machine by its door or panel in order to move Take care to leave a certain clearance from all sides of the machine so that you can comfortably move it back and forth during cleaning.
  • Page 11 Water inlet hose Do not use the water inlet hose of your old machine,if any. Use the new water inlet hose supplied with your machine instead. If you are going to connect a new or long - unused water inlet hose to your machine ,run water through it for a while before making the connection.
  • Page 12 Water outlet hose The water drain hose can be connected either directly to the water drain hole or to the sink outlet spigot. Using a special bent pipe (if available), the water can be drained directly into the sink via hooking the bent pipe over the edge of the sink.
  • Page 13 Electrical connection The earthed plug of your machine should be connected to an earthed outlet supplied by suitable voltage and current. If there is no earthing installation, have a competent electrician carry out an earthing installation. In case of usage without earthing installed, our company will not be responsible for any loss of usage that might occur.
  • Page 14 Fitting the machine undercounter If you wish to fit your machine undercounter, check whether you have sufficient space under your countertop and whether the wiring-plumbing is suitable to do so.1 If you decide that the space under the countertop is suitable for fitting your machine, remove the worktop as shown in the illustration.
  • Page 15 Adjust the machine feet according to the slope of the floor.3 Fit your machine by pushing it undercounter without letting the hoses get crushed or bent.4 Product  Without Insulation With Insulation  All Product  For 2nd Basket For 3rd Basket  Height 820 mm 830mm 835 mm Warning: After removal of worktop, the machine should be placed in such a closed place of which dimensions are shown at fig.
  • Page 16 ENGLISH IF AVAILABLE Prior to using the machine for the first tim Check whether the electricity and supply water specifications match the values indicated by the • installation instructions for the machine. Remove all packaging materials inside the machine. • Set the water softener.
  • Page 17 Testing strip The washing effectiveness of your machine depends on the softness of the tap water. For this reason, your machine is equipped with a system that reduces the hardness in mains water supply. The washing effectiveness will increase when the system is correctly set. To find out the water hardness level of water in your area, contact your local water board or determine water hardness level by using the test strip(if available).
  • Page 18 -Press program button(2) when the machine is off position. -Turn on the machine by pressing On/Off button(1) and continue to press program button(2) at least for 3 seconds. -If “Hardness set” is recognized “SL” is shown for 2 seconds. -Release program button(2). The last setting level is viewed. -Press program button(2) to set the desired level.At any pressure of program button hardness level is incremented.
  • Page 19 Detergent usage Use a detergent specifically designed for use in domestic dishwashers. You can find powder,gel,and tablet detergents in the market that have been designed for household dishwashers. Detergent should be put into the compartment prior to starting the machine. Keep your detergents in cool, dry places out of reach of your children.
  • Page 20 ENGLISH They produce good results for certain types of usage only. If you are using this type of • detergents, you need to contact the manufacturers and find out about the suitable conditions of use. When the conditions of use of such products and the machine settings are appropriate, •...
  • Page 21 ENGLISH Level Brightener Dose Indicator Rinse-aid not dispensed r1 is shown on the display. 1 dose is dispensed r2 is shown on the display. 2 doses are dispensed r3 is shown on the display. 3 doses are dispensed r4 is shown on the display. 4 doses are dispensed r5 is shown on the display.
  • Page 22 Bottle Rack Bottle rack is designed to let you wash items with large openings and higher items easier. You can pull out bottle rack in the direction of the arrow as shown on the picture when you do not use it.
  • Page 23 Spoon rack It allows your long-stemmed goblets to be washed safely as well as it is a part to provide your spoons and forks put easily to spoon rack. Do not lean your long-stemmed goblets and glasses against each other but spoon rack, thus during the washing it is ensured your glasses and goblets stay in place and a safe washing by preventing...
  • Page 24 Alternative basket loads Lower Basket Top basket...
  • Page 25 Faulty loads   Important Note for Test Laboratories For detailed information on performance tests, please contact following address:   "dishwasher@standardtest.info” . In your email, please provide the model name and serial number (20 digits) which you can find on the appliance door.
  • Page 26 Programme items Programme No 3 Reference Programme Prewash Quick 30’ Daily names Temperatures 40°C 50°C 60°C No Heat Type of food Prewash to coffee, milk, coffee, milk, Fresh coffee, milk, waste rinse and tea, cold meats, tea, cold meats, tea, cold meat, loosen residues vegetables, not vegetables, not...
  • Page 27 Programme items Programme No Programme Super 50 Delicate Normal Intensive Steamwash names min. Temperatures 65°C 40°C 55°C 65°C 65°C Type of food soups, Detects contamination level of dishes and sets soups, sauces, waste sauces, temperature and amount of washing water pasta, eggs, pasta, eggs, and washing period automatically.

  • Page 28: Programme Selection And Operating The Machine

    GETTING FAMILIAR WITH YOUR MACHINE Programme Selection and Operating the Machine Note: If Drying lamp is on, extra heating and By pressing On/Off button(4), energise the machine. On/Off lamp lights as long as the drying steps will be added into the machine is on.

  • Page 29: Changing The Programme

    Note: When rinse aid is not enough, rinse aid Cancelling a programme lack warning indicator (9) turns on and If you would like to cancel a program while you need to fill in rinse aid chamber. washing is continuing. Changing a programme If you would like to change the program while washing is continuing.

  • Page 30: Filters

    MAINTENANCE AND CLEANING Cleaning the machine in regular intervals prolongs the machine’s service life. Oil and lime may accumulate in the machine’s washing section. In case of such accumulation; -Fill the detergent compartment without loading any dishes into the machine, select a programme that runs at high temperature, and start the machine.
  • Page 31 ENGLISH Spray arms Check whether or not the holes for the upper and lower spray arms are clogged. If there is any clogging, remove the spray arms and clean them under water. You can remove the lower spray arm by pulling it upwards, while the upper spray arm nut can be removed by turning the nut to the left.
  • Page 33 If the programme won’t start Check if the plug is connected. • Check your indoor fuses. • Be sure that the water inlet tap is turned on. • Be sure that you have closed the machine door. • Be sure that you switched off the machine by pressing the Power On / Off button. •...
  • Page 34 If the dishes won't dry up A programme without a dry operation selected. • Rinse aid dosage set too low • Dishes unloaded too fast. • If there are rust stains on the dishes Stainless-steel quality of the dishes washed is insufficient. •...
  • Page 35 THE PRODUCT FICHE (Spect)  Supplier's trade mark  OCEAN ODY 9 VS Supplier's model  Capacity of dishwasher  12  The energy efficiency class  A++  Annual energy consumption in kWh per year (AE ) ( 280 Cycle )*  0,90 Energy consumption (E ) (kWh per cycle)  Off­mode power consumption (W) (P )  0,50  Left­on mode power consumption (W) (P )  1,00 2520 Annual water consumption in litres per year (AW )  ( 280 Cycle )**  Drying efficiency class***  A  Standard programme name****  Eco  Programme time for standard cycle ( min)  Noise dB(A)    Energy c nsumption kwh per year, based on 280 standard cleaning cycles using cold water fill and the consumption of low power modes.
  • Page 36 52242020 R24...
