Toro 34232 Operator's Manual
  1. Manuals
  2. Brands
  3. Toro Manuals
  4. Paint Sprayer
  5. 34232
  6. Operator's manual
Toro 34232 Operator's Manual

Toro 34232 Operator's Manual

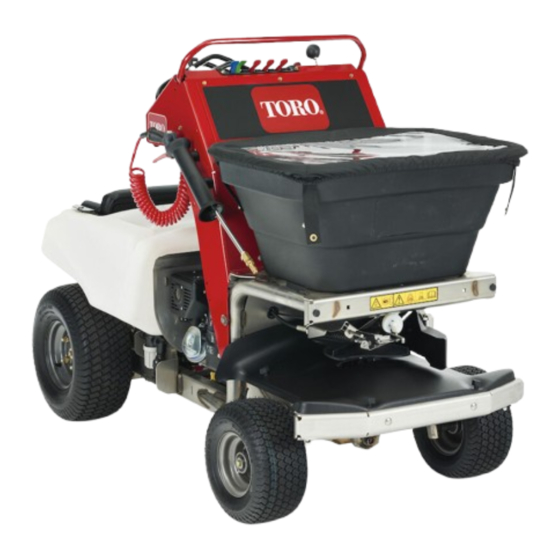

Stand-on spray master lean-to-steer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Register at www.Toro.com.
Original Instructions (EN)
Stand-On Spray Master
Lean-to-Steer
Model No. 34232—Serial No. 400000000 and Up
Form No. 3470-987 Rev B
