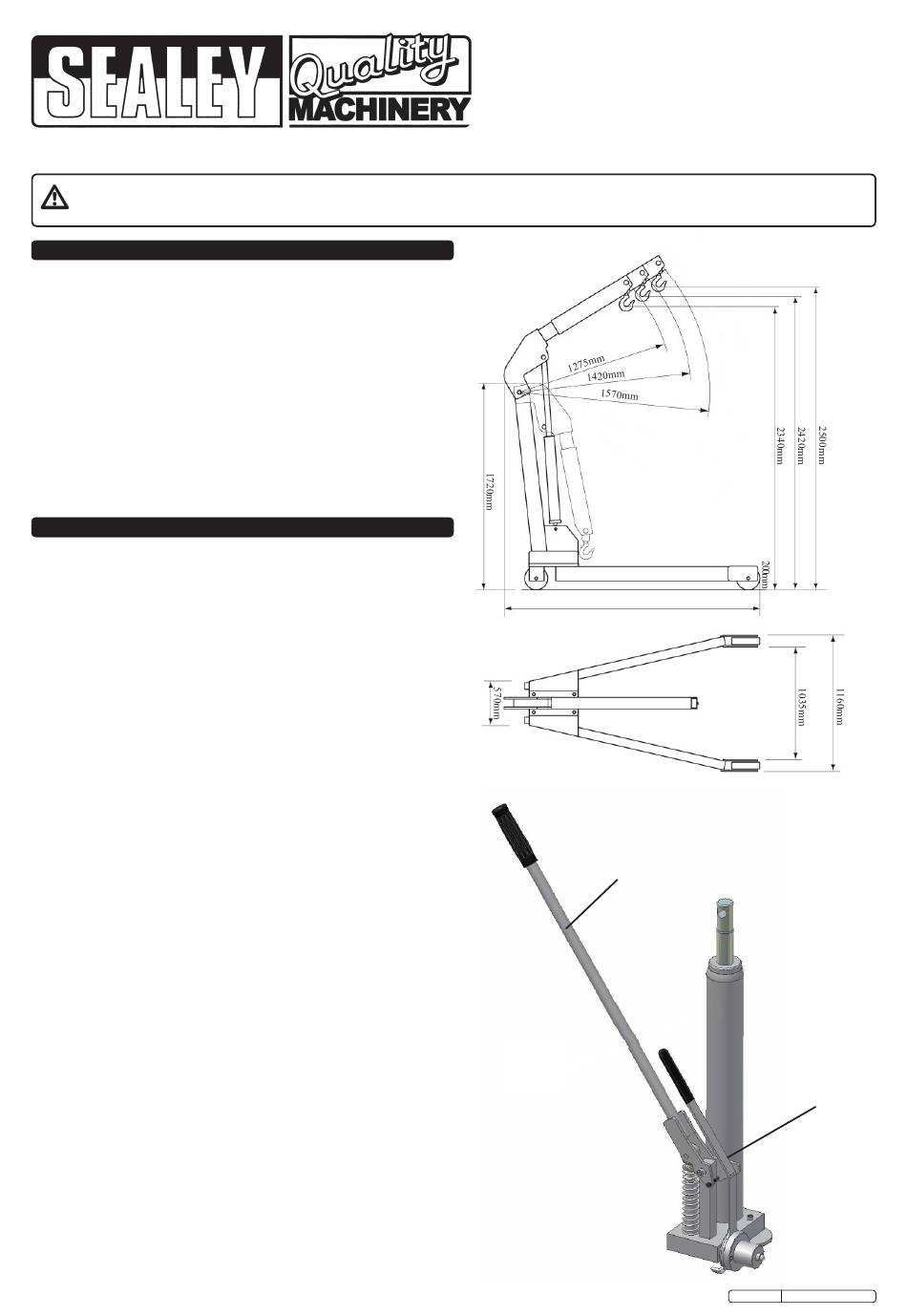

Sealey WF20.V3 Instructions

thank you for purchasing a sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, wARNINGS AND
CAUTIONS. USE THE PRODUCT CORRECTLY AND wITH CARE FOR THE PURPOSE FOR wHICH IT IS INTENDED. FAILURE TO DO SO MAY
CAUSE DAMAGE AND/OR PERSONAL INJURY AND wILL INVALIDATE THE wARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. CONTENTS
section 2. General. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.
section 2.1 Identification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.
section 2.2. technical Data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.
section 3. safety/operational Instructions. . . . . . . . . . . . . . . . . . .2.
section 4. Maintenance/Examination/Inspection. . . . . . . . . . . . . .2.
section 5. Assembly and storage. . . . . . . . . . . . . . . . . . . . . . . . . .3.
section 6. owner's & operator's responsibilities . . . . . . . . . . . . .3.
section 7. Declaration of conformity. . . . . . . . . . . . . . . . . . . . . . .4.
section 8. Parts List/Diagram
2. GENERAL
2.1 Identification
supplier: sealey Power Products,
Kempson Way,
suffolk Business Park,
Bury st Edmunds,
suffolk, IP32 7Ar.
Model no: Wf20.V3
2.2 Technical Data
Rated Capacity
safe Working Load (sWL) 2t (tested to 50% overload).
Working Load Limit (WLL) 2t (tested to 50% overload).
Lifting cap. in Position 1: .............................................. 2000kg
Lifting cap. in Position 2: .............................................. 1750kg
Lifting cap. in Position 3: .............................................. 1650kg
Maximum Lift Ht. at Minimum Jib Extn: ....................... 2340mm
Maximum Lift Ht. at Maximum Jib Extn: ...................... 2500mm
Length of Jib Position 1: .............................................. 1275mm
Length of Jib Position 2: .............................................. 1420mm
Length of Jib Position 3: .............................................. 1570mm
Width inside frame (max) ............................................ 1035mm
Distance between rear wheel centres ....................... 570mm
Weight ........................................................................... 173kg
Height/Length/Width (max) of frame: .......... 200/1900/1160mm
overall height .............................................................. 1720mm
a) Design capability: test Load 50% overload.
b) for a description of in-service and out-of-service conditions see
section 3 safety, section 4 Maintenance and section 6.
c) for applications see section 3 safety.
d) for control system, see fig.1 for release valve and pump handle
assy. usage is explained in section 3.2 operation.
e) for ground condition requirements, see section 3 safety.
f) for information on parts and materials requiring specialised
repair techniques see section 4 Maintenance.
. . . . . . . . . . . . . . . . . . . . . . . . . . . .5.
Original Language Version
InstructIons for:
FOLDING CRANE 2.0 Tonne
MoDEL no:
Page No.
Page 1
wF20.V3
1750kg Max.
2000kg Max.
1900mm
fig.1
PuMP HAnDLE AssY.
rELEAsE VALVE
Wf20.V3
1650kg Max.
Issue: 2 - 18/02/10
