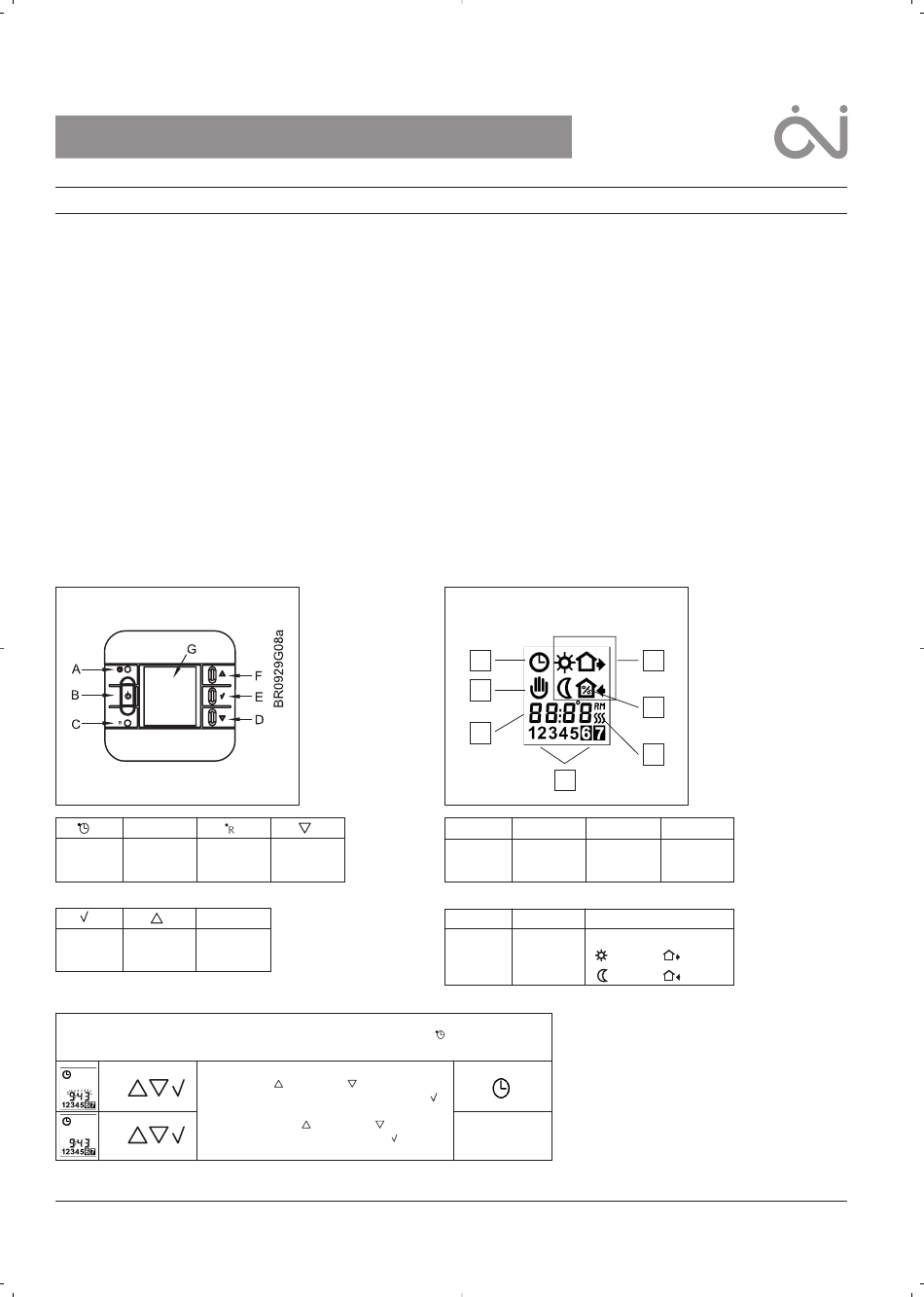

U S E R M AN U A L
Type OCC3
57030 03/07 - (BJ)
Introduction
The OCC3 thermostat is capable of switching on your heating system at pre determined times on different days of the week. It is possible to set 4 periods
called events each day with different temperatures. From factory a default schedule is programmed suitable for most installations. Unless you change these
settings the thermostat will operate to this default program.
Working with lower temperatures during times that the room is unoccupied will lower your energy costs without reducing the comfort. The thermostat has an
adaptive function that automatically changes the start time of a heating period so that the desired temperature is reached at the time that you set. After 3
days the adaptive function has learned when the heating must be switched on.
Type OCC3-1991 has an external temperature sensor that is normally placed in the floor construction. In this configuration the thermostat controls the
temperature of the floor and not the temperature within the room.
Type OCC3-1999 has a built-in temperature sensor. In this configuration the thermostat controls the temperature of the room, and the external temperature
sensor should not be installed.
The thermostat has a pin button marked R, allowing you to reset the thermostat to factory settings. These are listed at the end of this manual with space for
you to record your own weekly schedule.
The display is backlit when operating the buttons. The heating element is switched off when the light is on in the display.
The heating system can be switched off on the built-in interrupter. The Microprocessor taking care of the time will still be supplied with power whereby time
and day will be maintained. When the heating is required and the thermostat is switched on, it will continue the 4-event programme based on present time
and day.
1. Getting started
Buttons
A:
B:
C:
Pin button
On/off
Reset to
adjust of
factory
clock
setting
E:
F:
G:
OK -
Adjustment
Display
accept
up
Setting the thermostat into operation
First time power is connected the clock and day will be flashing and must be set. If you need to
adjust the time of the thermostat at a later date, insert a pin into the hole
and day. Adjustment must be made for summer and winter time.
Press the UP (
select the correct time and press OK button (
Then press the UP (
select the correct day and press OK (
Type: OCC3
English
Display symbols
D:
H:
Adjustment
Clock
down
function
L:
Heating on
for setting of time
) or DOWN (
) buttons to
).
) or DOWN (
) button to
) button.
H
N
I
M
J
L
K
I:
J:
Manual
Time and
mode
temperature
M:
N:
%
4-event symbol
Monitoring
Wake
of switch-on
Night
time
1-7
K:
Day number
Out
Home
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the OCC3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for OJ Electronics OCC3

  • Page 1 Introduction The OCC3 thermostat is capable of switching on your heating system at pre determined times on different days of the week. It is possible to set 4 periods called events each day with different temperatures. From factory a default schedule is programmed suitable for most installations. Unless you change these settings the thermostat will operate to this default program.
  • Page 2 2. Daily use of the thermostat 4-event clock mode The day has been split into 4 events describing a typical day. When the thermostat is in 4-event mode it will automatically adjust the temperature according to the required temperature to the required time. As standard the thermostat has 5 days with 4 events, and 2 days with 2 events. Programming see 3. 4-event clock mode: The clock function symbol ( ) and one of the 4-event symbols (...
  • Page 3 4. Advanced settings and read-out ☞ Press both UP ( ) and DOWN ( ) buttons together for 3 seconds. INFO is displayed. ✚ Press UP( ) button until you reach the desired sub menu. Select the sub menu with the OK ( ) button.
  • Page 4 E1 = Built-in sensor short-circuit or disconnected, replace thermostat E2 = External sensor short-circuit or disconnected OJ ELECTRONICS A/S Stenager 13B · DK-6400 Sønderborg Tel. +45 73 12 13 14 · Fax +45 73 12 13 13 oj@oj.dk · www.oj.dk...
  • Page 5 Deutsch Einführung Mit dem OCC3-Thermostaten kann das Heizsystem zu vorgegebenen Zeiten an verschiedenen Wochentagen eingeschaltet werden. Bis zu 4 verschiedenen Perioden, auch Events genannt, können jeden Tag mit verschiedenen Temperaturen verwendet werden. Ab Werk enthält der Thermostat eine Standardprogrammierung, die für die meisten Heizsysteme geeignet ist. Falls diese Programmierung nicht geändert wird, wird der Thermostat mit dem Standardprogramm laufen.
  • Page 6 2. Täglicher Gebrauch des Thermostaten 4 Event Uhr-Modus Der Tag ist in 4 Events aufgeteilt worden, die einen typischen Tag beschreiben. Wenn der Thermostat im 4 Event Modus läuft, wird die Temperatur automatisch an die gewünschte Temperatur zum gewünschten Zeitpunkt angepasst. Standardmäßig hat der Thermostat 5 Tage mit 4 Events und 2 Tage mit 2 Events.
  • Page 7 4. Spezielle Einstellungen und Anzeigen ☞ Die Knöpfe ( ) und ( ) gemeinsam für 3 Sekunden betätigen. INFO wird angezeigt. Den Knopf ( ) drücken, bis das gewünschte ✚ Untermenü erreicht ist. Mit ( ) das Untermenü wählen. Überwachung des Energieverbrauchs ☞...
  • Page 8 Der eingebaute Fühler ist kurzgeschlossen oder ausgeschaltet. Der Thermostat muss ausgewechselt werden. E2 = Der externe Fühler ist kurzgeschlossen oder ausgeschaltet. OJ ELECTRONICS A/S Stenager 13B · DK-6400 Sønderborg Tel. +45 73 12 13 14 · Fax +45 73 12 13 13...
  • Page 9 íËÔ éëë3-1991 ËÏÂÂÚ ‚˚ÌÓÒÌÓÈ ‰‡Ú˜ËÍ ÚÂÏÔÂ‡ÚÛ˚, ÍÓÚÓ˚È Ó·˚˜ÌÓ ‡ÁÏ¢‡ÂÚÒfl ‚ ÍÓÌÒÚÛ͈ËË ÔÓ·. Ç Ú‡ÍÓÈ ÍÓÏÔÓÌÓ‚Í ÚÂÏÓÒÚ‡Ú ÍÓÌÚÓÎËÛÂÚ ÚÂÏÔÂ‡ÚÛÛ ÔÓ·, ‡ Ì ÚÂÏÔÂ‡ÚÛÛ ‚ ÔÓÏ¢ÂÌËË. íËÔ OCC3-1999 ÒÓ ‚ÒÚÓÂÌÌ˚Ï ‰‡Ú˜ËÍÓÏ ÚÂÏÔÂ‡ÚÛ˚. Ç ‰‡ÌÌÓÈ ÍÓÏÔÎÂÍÚ‡ˆËË ÚÂÏÓÒÚ‡Ú ÍÓÌÚÓÎËÛÂÚ ÚÂÏÔÂ‡ÚÛÛ ‚ ÔÓÏ¢ÂÌËË Ë Ì ÒΉÛÂÚ ÛÒڇ̇‚ÎË‚‡Ú¸ ‚˚ÌÓÒÌÓÈ ‰‡Ú˜ËÍ ÚÂÏÔÂ‡ÚÛ˚.
  • Page 10 2. èӂ҉̂ÌÓ ËÒÔÓθÁÓ‚‡ÌË ÚÂÏÓÒÚ‡Ú‡ ‚ 4-ı ÔÓ„‡ÏÏÌÓÏ ÂÊËÏ ÑÂ̸ ‡Á‰ÂÎÂÌ Ì‡ 4 ÒÓ·˚ÚËfl, ˜ÚÓ ı‡‡ÍÚÂÌÓ ‰Îfl ÚËÔ˘ÌÓ„Ó ‰Ìfl. äÓ„‰‡ ÚÂÏÓÒÚ‡Ú ‡·ÓÚ‡ÂÚ ‚ 4-ı ÔÓ„‡ÏÏÌÓÏ ÂÊËÏÂ, ÓÌ ‡‚ÚÓχÚ˘ÂÒÍË ÛÒڇ̇‚ÎË‚‡ÂÚ ÌÂÓ·ıÓ‰ËÏÛ˛ ÚÂÏÔÂ‡ÚÛÛ ‚ Á‡‰‡ÌÌÓ ‚ÂÏfl. íËÔÓ‚‡fl ÛÒÚ‡Ìӂ͇ ÚÂÏÓÒÚ‡Ú‡ ̇ÒÚÓÂ̇ ̇ 4 ÒÓ·˚ÚËfl ‚ Ú˜ÂÌË 5 ‰ÌÂÈ (‡·Ó˜Ë ‰ÌË) Ë...
  • Page 11 4. ì„ÎÛ·ÎÂÌÌ˚ ÛÒÚ‡ÌÓ‚ÍË Ë Ò˜ËÚ˚‚‡ÌË ËÌÙÓχˆËË ☞ ç‡ÊÏËÚ ӉÌÓ‚ÂÏÂÌÌÓ ÍÌÓÔÍË ì‚Â΢ÂÌË ( ) Ë ìÏÂ̸¯ÂÌË ( ) ̇ 3 ÒÂÍÛ̉˚. ç‡ ‰ËÒÔΠÔÓfl‚ËÚÒfl ̇‰ÔËÒ¸ INFO. ✚ ç‡ÊËχÈÚ ÍÌÓÔÍÛ ì‚Â΢ÂÌË ( ) ‰Ó ÔÓfl‚ÎÂÌË Ê·ÂÏÓ„Ó ÏÂÌ˛. á‡ÙËÍÒËÛÈÚ ‚˚·‡ÌÌÓ ÏÂÌ˛ ÍÌÓÔÍÓÈ éä ( ). åÓÌËÚÓËÌ„...
  • Page 12 E0 = ÇÌÛÚÂÌÌflfl ÌÂËÒÔ‡‚ÌÓÒÚ¸, Á‡ÏÂÌËÚ ÚÂÏÓÒÚ‡Ú E1 = äÓÓÚÍÓ Á‡Ï˚͇ÌË ËÎË ÓÚÍβ˜ÂÌË ‚ÒÚÓÂÌÌÓ„Ó ‰‡Ú˜Ë͇, Á‡ÏÂÌËÚ ÚÂÏÓÒÚ‡Ú E2 = äÓÓÚÍÓ Á‡Ï˚͇ÌË ËÎË ÓÚÍβ˜ÂÌË ‚˚ÌÓÒÌÓ„Ó ‰‡Ú˜Ë͇ OJ ELECTRONICS A/S Stenager 13B · DK-6400 Sønderborg Tel. +45 73 12 13 14 · Fax +45 73 12 13 13...
  • Page 13 Każdorazowe użycie przycisków powoduje podświetlenie wyświetlacza. Gdy wyświetlacz jest podświetlony element grzejny jest odłączony. OCC3 został wyposażony w funkcję adaptacyjną, która automatycznie zmienia czas załączenia ogrzewania w taki sposób, aby o nastawionej przez użytkownika porze, została osiągnięta zadana temperatura. Po trzech dniach funkcja adaptacyjna zostaje zapisana w pamięci regulatora. Funkcję...
  • Page 14 2. Obsługa termostatu T ryb 4 zdarzeń W termostacie OCD2 dzień został podzielony na 4 typowe zdarzenia. Działając w tym trybie, urządzenie automatycznie dostosowuje temperaturę powietrza w pomieszczeniu do temperatury zadanej na tę porę dnia. Standardowo urządzenie pracuje przez 5 dni w trybie 4 zdarzeń i przez 2 dni – w trybie 2 zdarzeń. Programowanie termostatu: patrz pkt 3.
  • Page 15 4. Odczyty i ustawienia zaawansowane ☞ Jednocześnie naciśnij przyciski W GÓRĘ ( ) i W DÓŁ ( ) i przytrzymaj przez 3 sekundy. Wyświetli się menu INFO. Naciskaj przycisk ✚ W GÓRĘ ( ) do momentu wyświetlenia się właściwego podmenu. Wybierz podmenu naciskając OK ( Odczyt zużycia energii Z regulatora można odczytać...
  • Page 16 Użytkownik dodatkowe Wariant podziału tygodnia Ograniczenie OCC3-1991: +5/+55˚C OCC3-1999: +15/+28˚C zakresu MIN/MAX Rodzaj skali i zegara 24 h/˚C Funkcja adaptacyjna 7. Kody błędów Regulator został tak zaprogramowany aby pomóc użytkownikowi podczas wystąpienia ewentualnych nieprawidłowości w jego działaniu: E0: Błąd wewnętrzny. Wymienić regulator.
