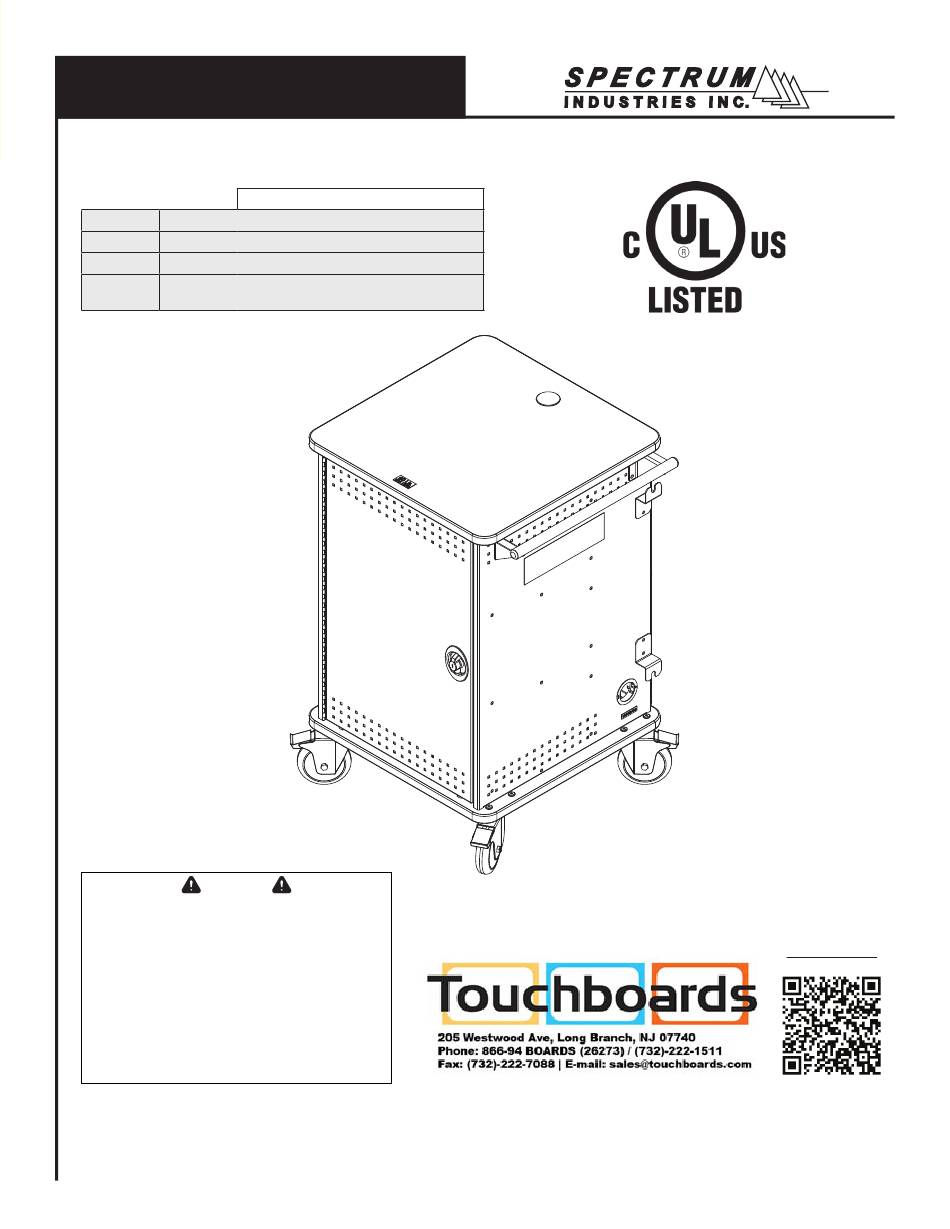

Owner's Manual
mLT-30
Mini Laptop Cart
™
55315BW
base cart + rear panel
55319BW
base cart + rear panel, wire management trays
55318BW
base cart + rear locking door, wire management trays
rear locking door, wire management trays,
55329BW
base cart +
cycle timer
Important
Before using this product:
• Read this manual
• Comply with all safety and operating instructions
• Ensure all parts and correct quantities are included
Any parts damaged during shipment must be reported
within 15 days of receipt. To report information regard-
ing missing parts or damage, to purchase parts or
accessories, or if you have any questions, please
contact us.
Thank you for purchasing Spectrum products!
Spectrum Industries, Inc
925 First Avenue, Chippewa Falls, WI 54729 USA
800 235 1262
715 723 6750
www.spectrumfurniture.com
Includes factory-installed:
Spectrum product page:
http://bit.ly/mlt30
0105788R14 Page 1 of 11
Advertisement
Table of Contents
Related Manuals for Spectrum Industries mLT-30
Summary of Contents for Spectrum Industries mLT-30
- Page 1 Thank you for purchasing Spectrum products! Spectrum Industries, Inc 925 First Avenue, Chippewa Falls, WI 54729 USA 800 235 1262 715 723 6750 www.spectrumfurniture.com...
-
Page 2: Hardware Package Contents
Safety • Read this owner’s manual before assembly or operation. • Keep the unit powered OFF before plugging or unplugging from outlet. • Do not allow children to move cart. • Be sure devices are turned OFF before plugging into cart. •... - Page 3 Cord wrap bracket installation 4mm hex wrench 1. Attach the cord wrap brackets to the side panels (left and right-side) with 1/4-20 x 15mm JC bolts as shown in (included) Figure 2 and tighten securely. Be sure the brackets are facing away from each other as shown. 2.
- Page 4 1. Remove the rear panel (or open rear door.) Make sure all power cords are unplugged. 2. Wiring without wire management trays: Stack two chargers together along with the necessary bundled charge cords, and attach to the cart using zip ties and the slots shown in Figure 6.
- Page 5 section view power-side student-side charge cord pine tree clips Mini laptop / netbook charge cord position 1 zip ties charge cord charge cord position 3 position 2 wiring option 1 chargers secured to brackets with charge cord Velcro (tray not needed) Mini laptop / netbook wiring option 2 chargers on wire...
- Page 6 student-side view pine-tree clips worksurface mini-laptop / netbook 15 storage compartments 4”W [10.16 cm] x 12 ⁄ ”D [31.12 cm] x 10”H [25.4 cm] (2 mini laptops per storage slot) Figure 8 0105788R14 Page 6 of 11...
- Page 7 CAUTION The mLT-30 Mini Laptop Cart features two separate 16-outlet charging 1. Switch off both power units. circuits on separate cords. Some computers may draw more than ⁄ 2. Route the power unit cords as shown. Figure 9.
- Page 8 1. Switch both power units and the cycle timer OFF. 2. Route the power unit cords as shown and plug one in to the A side outlet, and one into the B side outlet on the timer.
-
Page 9: Door Stop Adjustment
brake lever Wheel operation 1. To lock the wheel rotation, press the brake lever. Figure 11. 2. To resume operation, lift up on brake lever. Figure 11 Door stop adjustment If necessary, the offset door stop can be rotated slightly to adjust the closed position of the doors and lock rods. -
Page 10: Using Timer
Optional Cycle Timer ON / OFF switch (controls power to timer ‘A’ and ‘B’ outlets) cycle switch 15-amp reset button timer left (A) power right (B) power unit auxiliary control unit outlet and outlet and indicator (constant-power) indicator 2-outlets used for accessories such as Wi-Fi routers, teacher Note: Each power unit in the... -
Page 11: Warranty Statement
Warranty Statement WE WILL MAKE IT RIGHT FOR YOU! Spectrum is committed to provide complete customer satisfaction. Each of our products is manufactured from the best materials available and each product is stringently monitored throughout the production process through our P.A.C.E. program (Product Assurance to meet Customer Expectations). We expressly warrant that Spectrum products will be of good quality and workmanship and free from defect for the period set out in the warranty table below from the date of delivery.
