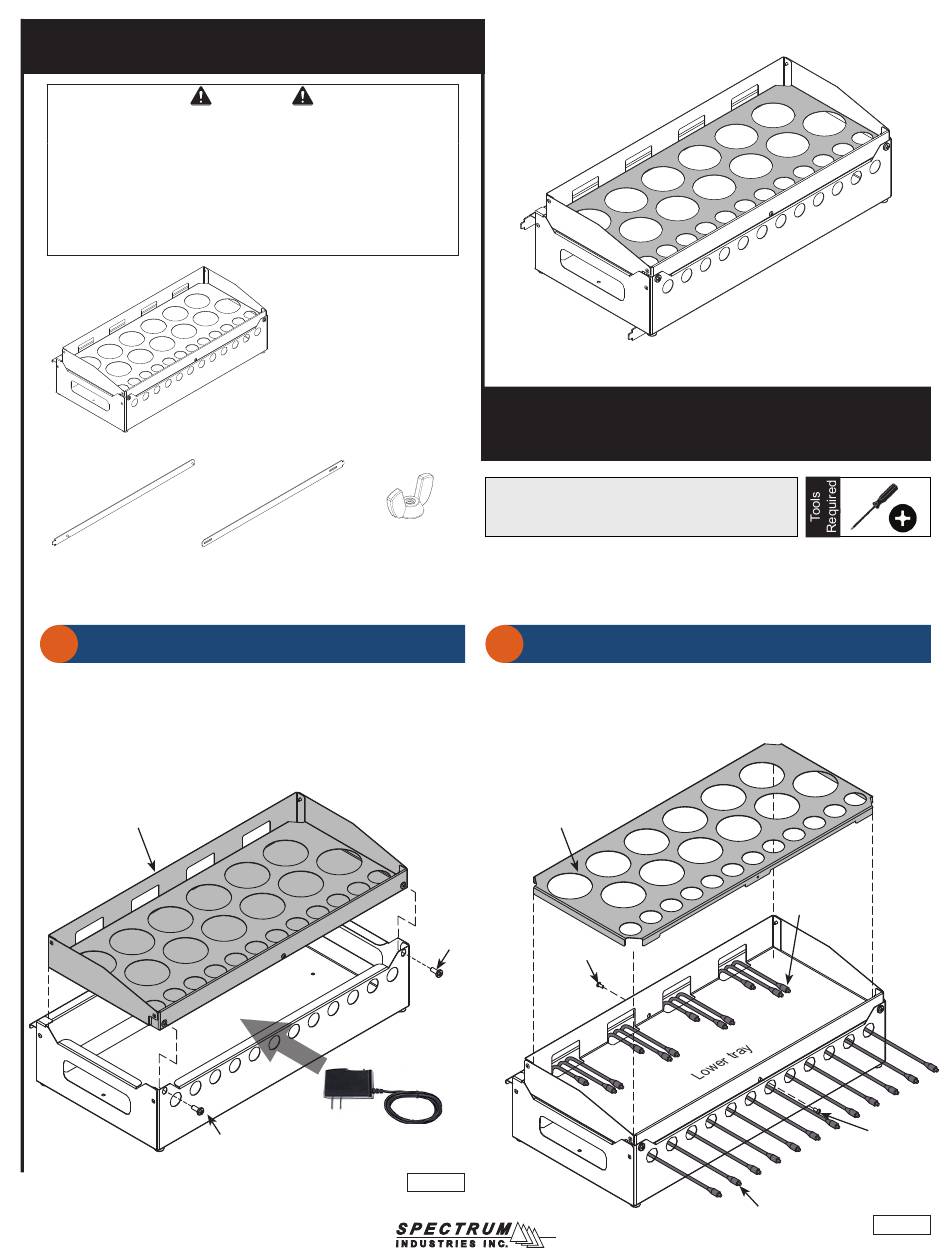

Assembly Instructions
Assembly Instructions
Important
Before you begin, read and comply with all safety and operating instructions,
and ensure all parts and correct quantities are included.
Any parts damaged during shipment must be reported within 5 days of receipt.
To report information regarding missing parts or damage, to purchase parts
or accessories, or if you have any questions, please contact us.
www.spectrumfurniture.com
800-235-1262, 715-723-6750
Thank you for purchasing Spectrum products!
(2) 0142528
Bar support
(with threaded
weld studs)
1

Install chargers

1. Remove the (2) 1/4-20 x 5/8" PHM screws and remove the tray
assembly. Figure 1.
2. Place chargers inside module and plug into power strip or USB
hub (not included).
3. Replace tray assembly and secure with previously removed screws.
Tray
assembly
1/4-20 x 5/8"
PHM screw
(1) 0144113
Robot charging module
(2) 0145039
(4) 056284
Bar support
8-32 Wing nut
B-side
(with slots)
1/4-20 x 5/8"
PHM screw
Chargers
Figure 1
Robot Device Charging Module
The Robot Charging Module can store and charge
®
up to 12 Sphero
robots, and 12 Sphero Minis
The tray can be swapped for other robot types*.
*Contact Spectrum for a list of available trays or custom options.
2
Route cords
1. Remove (2) #8 x 3/8" PHSM screws and remove robot tray.
2. Route charge cords through the openings in the module. Be sure to
leave enough slack in the cords to reach all robots in the tray. Figure 2.
3. Replace tray and screws.
Robot tray
#8 x 3/8"
PHSM
55107
®
.
Charge
cords
Charge cords
0191523 Page 1 of 4
#8 x 3/8"
PHSM
Figure 2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 55107 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Spectrum Industries 55107

  • Page 1 800-235-1262, 715-723-6750 Thank you for purchasing Spectrum products! Robot Device Charging Module (1) 0144113 Robot charging module 55107 The Robot Charging Module can store and charge ® ® up to 12 Sphero robots, and 12 Sphero Minis The tray can be swapped for other robot types*.
  • Page 2 Install robots Connect charge cords 1. Plug charge cords into robot bases. Figure 3. 1. Plug charge cords into mini robots. Figure 4. 2. Place robots* into tray cutouts. Robot X 12 Base Mini X 12 X 12 Charge cords *Robots not included Figure 3 Figure 4...
  • Page 3 Installing module into cart or TechCenter - optional Assemble bars Bar support (with threaded 1. The bars should be assembled with the tabs facing away from each weld studs) other as shown in Figure 5. 2. Loosen the (2) wingnuts slightly. Bar support B-side 3.
  • Page 4 “hooks” the rear set of bars fully. Figure 7. Rear channel Robot Module Bars Bars Figure 7 925 FIRST AVENUE, CHIPPEWA FALLS, WI 54729 / 800-235-1262 / 715-723-6750 / WWW.SPECTRUMFURNITURE.COM © 2019 Spectrum Industries Inc., All rights reserved. 0191523 Page 4 of 4...
