Leva 150mm Type 51 Wall Mounted
Adjustable Mixing Set - Ceramic Disc
Installation and Maintenance Instructions
LEV150422
LEV150422X
technical data
Working Pressure Range
Maximum Static Pressure
Maximum Working
Temperature
Inlet Connection
Flow Rate
Enware products are to be installed in accordance with the Plumbing Code of Australia (PCA) and AS/NZS3500.
Installations not complying with PCA and AS/NZS 3500 may void the product and performance warranty provisions.
Reference should also be made to the Australasian Health Facility Guidelines (AHFG), ABCB and Local Government
regulations when considering the choice of, and the installation of these products.
This product must be installed and commissioned by a qualified plumber.
For use with potable water only.
NOTE: Enware Australia advises:
1. Due to ongoing Research and Development, specifications may change without notice.
2. Component specifications may change on some export models.
I00587_16 Feb 2024
1300 369 273 | info@enware.com.au | enware.com.au
Min 50 kPa
Max 500 kPa
800 kPa
85°C (Ceramic disc)
1/2" BSP
5 L/min (WELS 5 Star)
4 L/min (WELS 6 Star)
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Watts ENWARE Leva LEV150422
Summary of Contents for Watts ENWARE Leva LEV150422

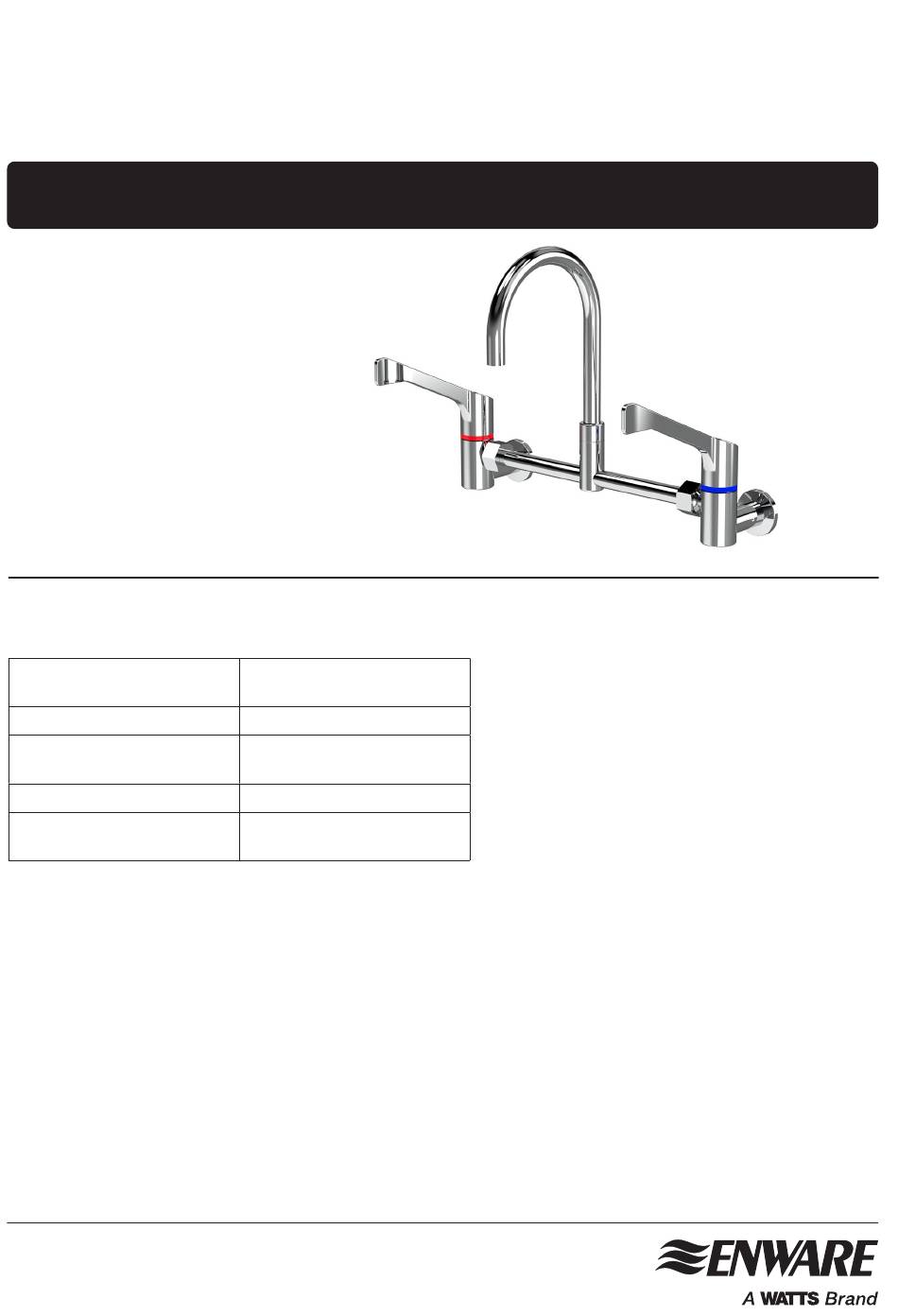

- Page 1 Leva 150mm Type 51 Wall Mounted Adjustable Mixing Set - Ceramic Disc Installation and Maintenance Instructions LEV150422 LEV150422X technical data Working Pressure Range Min 50 kPa Max 500 kPa Maximum Static Pressure 800 kPa Maximum Working 85°C (Ceramic disc) Temperature Inlet Connection 1/2”...
