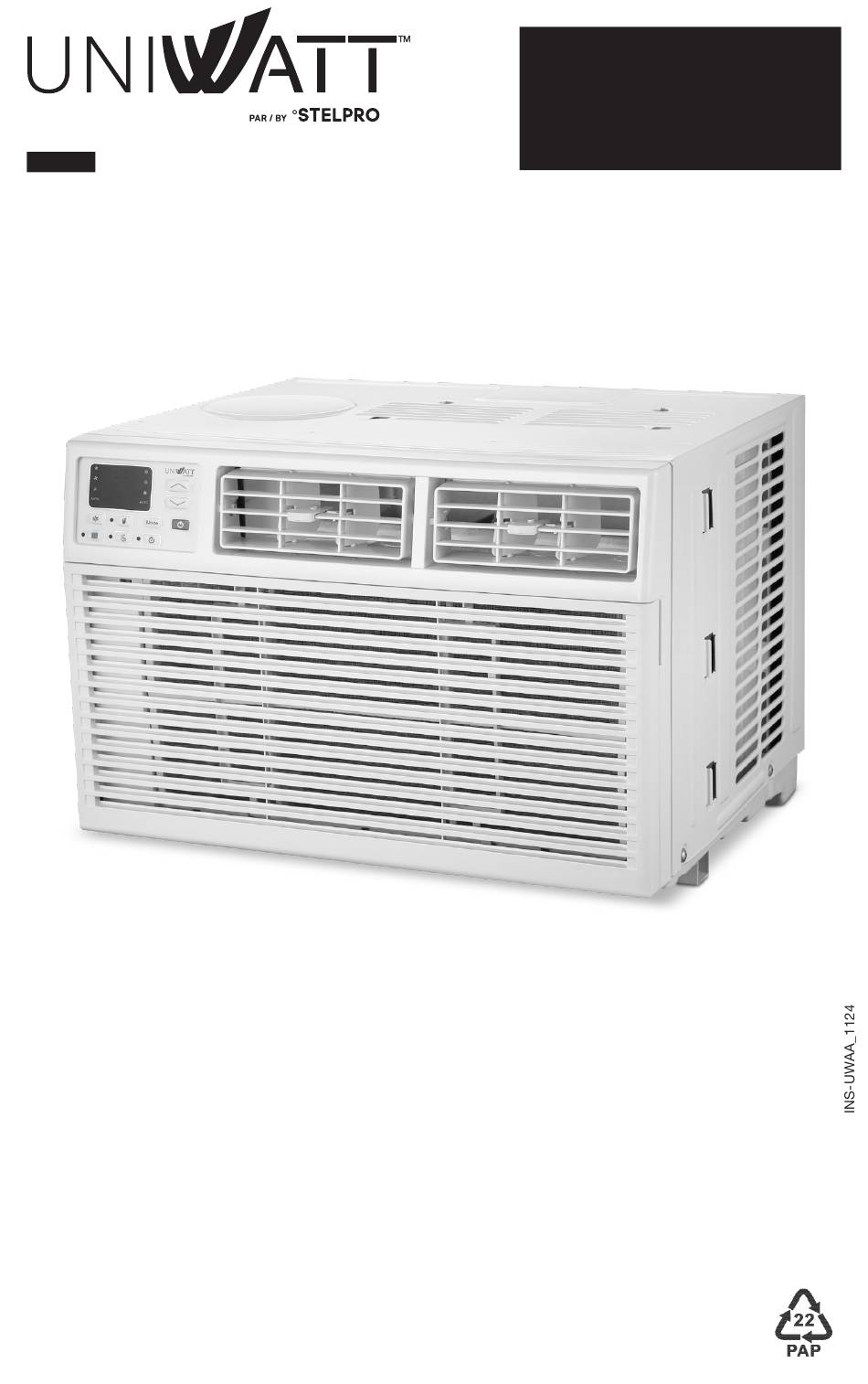

- Page 1 OWNER'S MANUAL UWAA WINDOW AIR CONDITIONER UWAA08KEC109E UWAA12KEC109E THANK YOU FOR YOUR PURCHASE! QUESTION? PROBLEM? CONTACT STELPRO CUSTOMER SERVICE. WWW.UNIWATT.CA CONTACT@STELPRO.COM 1-844-STELPRO...
-
Page 2: Table Of Contents
CONTENT IMPORTANT INSTRUCTIONS .................... 3 Introduction to R32 refrigerants ..................4 Electrical Requirements ....................5 Electrical Shock Hazard ....................5 Recommended Ground Method ................... 5 LCDI Power Cord and Plug .................... 6 To test the plug ......................6 INSTALLING THE AIR CONDITIONER................7 Parts name ........................ -
Page 3: Important Instructions
IMPORTANT INSTRUCTIONS Before installing and using your air conditioner, please read this owner's manual carefully. Store this manual in a safe place for future reference. Your safety and the safety of others is very important to us. Please pay attention to all safety messages outlined in this user manual. -
Page 4: Introduction To R32 Refrigerants
INTRODUCTION TO R32 REFRIGERANTS The refrigerants used for air conditioners are environmentally friendly hydrocarbons R32. This kind of erant is combustible and odorless. Moreover, it can burn and explode under certain condition. However, there will be no risk of burning and explosion if you comply with the following table to install your air conditioner in a room with an appropriate area and use it correctly. -
Page 5: Electrical Requirements
ELECTRICAL REQUIREMENTS WARNING ELECTRICAL SHOCK HAZARD • Your air conditioner must be plugged into a properly grounded wall outlet. If the outlet you wish to use is not properly grounded or protected by a fuse or circuit breaker, have a qualified electrician install the appropriate outlet •... -
Page 6: Lcdi Power Cord And Plug
LCDI POWER CORD AND PLUG This air conditioner is equipped with an LCDI (Leakage Current Detection and Interruption) power cord that is requiredby UL. This power supply cord contains state-of-the-art electronics that sense leakage current. If the cord is damaged and leakage occurs, power will be disconnected from the unit. -
Page 7: Installing The Air Conditioner
INSTALLING THE AIR CONDITIONER PARTS NAME 1 Window Air Conditioner 1 Remote Control 1 Top Rail (With sponge) 2 Lock Frame 2 Filler Panels (With "Left" & "Right" remark on the front face) 1 Sash Lock 1 Window Sash Seal 1 Foam Top 2 Insulation strip (Two holes) - Page 8 Some assembly is required for your new air conditioner. Please read and follow these instructions carefully. • This air conditioner is designed to be installed in a standard double-hung window with a window width between 23" and 36" (584mm-914 mm) for 8000btu~10000btu. a window width between 26"...
-
Page 9: Top Rail Assembly
TOP RAIL ASSEMBLY The top rail must be assembled prior to installing the air conditioner in the window. Tool Needed: Phillips Head Screw Driver ATTACHING THE TOP RAIL TO THE AIR CONDITIONER • Remove the air conditioner from the box and place on a hard and flat surface. •... -
Page 10: Installation Of Accordion Panels
INSTALLATION OF ACCORDION PANELS Note : Top Rail and Sliding Panels at each side are offset to provide the proper pitch to the rear of (5/16"). This is necessary for proper condensed water utilization and drainage. If you are not using the Side Panels for any reason, this pitch to the rear must be maintained! Now that you've installed the top rail, you can install the accordion panels on either side. - Page 11 7. Keep a firm grip on the air conditioner, carefully place the unit into the window opening so the bottom of the air conditioner frame is against the window sill (Fig.8). Carefully close the window behind the top rail of the unit. (Suggest to keep a down- ward oblique, to let accumulated rain water to drain out, from back side of the unit bottom.) 8.
- Page 12 10. Drive 1/2" (12.7mm) locking screws through frame holes into window sash. (Fig.12 and Fig.13). Fig. 12 Fig. 13 11. To secure lower sash in place, attach right angle sash lock with 3/4" (19 mm) screw as shown (Fig.14). 12. Cut foam seal and insert in the space between the upper and lower sashes (Fig.15). Fig.
-
Page 13: If Air Conditioner Is Blocked By Storm Window
IF AIR CONDITIONER IS BLOCKED BY STORM WINDOW Add wood as shown in Fig.16, or remove stormwindow before air conditioner is installed. FRAME 1-1/2 (38 mm) Storm Window Frame INTERIOR EXTERIOR Fig. 16 Board thickness as required, for proper pitch to rear, along entire sill. Fasten with nails or screws. -
Page 14: Introduction To R32 Refrigerants
INTRODUCTION TO R32 REFRIGERANTS THESE OPERATIONS MUST BE CARRIED OUT BY QUALIFIED PERSONNEL ONLY. • Before installing the appliance, you must read the manual carefully to get the safety information and notes. • When filling the combustible refrigerant, any of your rude operations may cause serious injury or injuries to human body or bodies and object or objects. - Page 15 Please note that: • The installation site should be in a well-ventilated condition. • The sites for installing and maintaining an air conditioner using R32 refrigerant should be free from open fire or welding, smoking, drying oven or any other heat source higher than 548°C which easily produces open fire.
-
Page 16: Using The Air Conditioner
USING THE AIR CONDITIONER Operating your air conditioner properly helps you to obtain the best possible results. This section explains proper air conditioner operation. NORMAL OPERATING SOUNDS • You may hear a pinging noise caused by water hitting the condenser, on rainy days, or when the humidity is high. -
Page 17: Power Button
3. POWER BUTTON Turn the air conditioner on and off. Important • If you turn off the air conditioner, wait at least 3 minutes before turning it back on. This prevents the air conditioner from blowing a fuse or tripping a circuit breaker. •... -
Page 18: Eco Button
Note : It can be set to automatically turn off or on in 0.5-24 hours. Each press of the " " or " " buttons will increase or decrease the timer. The Timer can be set in 0.5 hours increment below 10 hours and 1 hour increment for 10 hours or above. The SET light will turn on while setting. -
Page 19: Remote Control
REMOTE CONTROL 1. POWER Turn the air conditioner on and off. 2. COOL Press the " " button for cooling mode. 3. " " AND " " BUTTONS Use these buttons on the control panel and remote to increase or decrease the Set Temperature or Timer. -
Page 20: Automatic Mode
Timer On When the unit is off, press " " button a first time, set the temperature with the " " or " " button. Press " " button a second time, set the rest time by pressing the " "... -
Page 21: Cleaning And Maintenance
CLEANING AND MAINTENANCE Clean your air conditioner to keep it looking new and to minimize dust build up. The air filter should be checked at least once every month to see if it needs cleaning. Trapped particles and dust can build up in the filter and may decrease airflow as well as cause the cooling coils to accumulate frost. -
Page 22: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSES SOLUTIONS Make sure the air conditioner The air conditioner is plug is pushed completely into unplugged the outlet. Check the house fuse/circuit The fuse is blown/circuit breaker box and replace the breaker is tripped fuse or reset the breaker. The unit will automatically re- start when power is restored. - Page 23 PROBLEM POSSIBLE CAUSES SOLUTIONS Set the MODE dial Ice blocks the air flow The Air Conditioner to HIGH FAN or HIGH COOL and stops the air conditioner is freezing up and set the thermostat from cooling the room to a higher temperature. The batteries are Check the position The Remote Control...
-
Page 24: Assistance
ASSISTANCE Distribué par Stelpro Design inc. www.stelpro.com contact@stelpro.com 1 844-STELPRO Before returning the unit to the retailer, for any problem related to the installation, use or proper functioning of the unit; contact our customer support department. One of our agents will guide you through the next steps.
