Specification—-496/496P Operators
Table 1-3
PHYSICAL CHARACTERISTICS
Weight (standard accessories and cover
except manuais)
42 pounds (20.5 kg} maximum
Dimensions (Fig. 1-2)
Without front cover and handle or feet | 6.9 X 12.87 X 19.65 inches (17.5 cm X 32.69 X 49.91 cm)
9.15 X 15.03 X 23.4 inches (handle folded back over instrument), 25.85 inches
(handle fully extended)
Ig
eI
TOP
io
bl
{oe 33.02 em (13.0 in) sf
57.6 em (23 i n . )
Geom
in.
I
{j
pa —en 38.7 om (15 In.)
[ r n a e l
2 3 . 2 4 e m
( 9 . 1 5 i n )

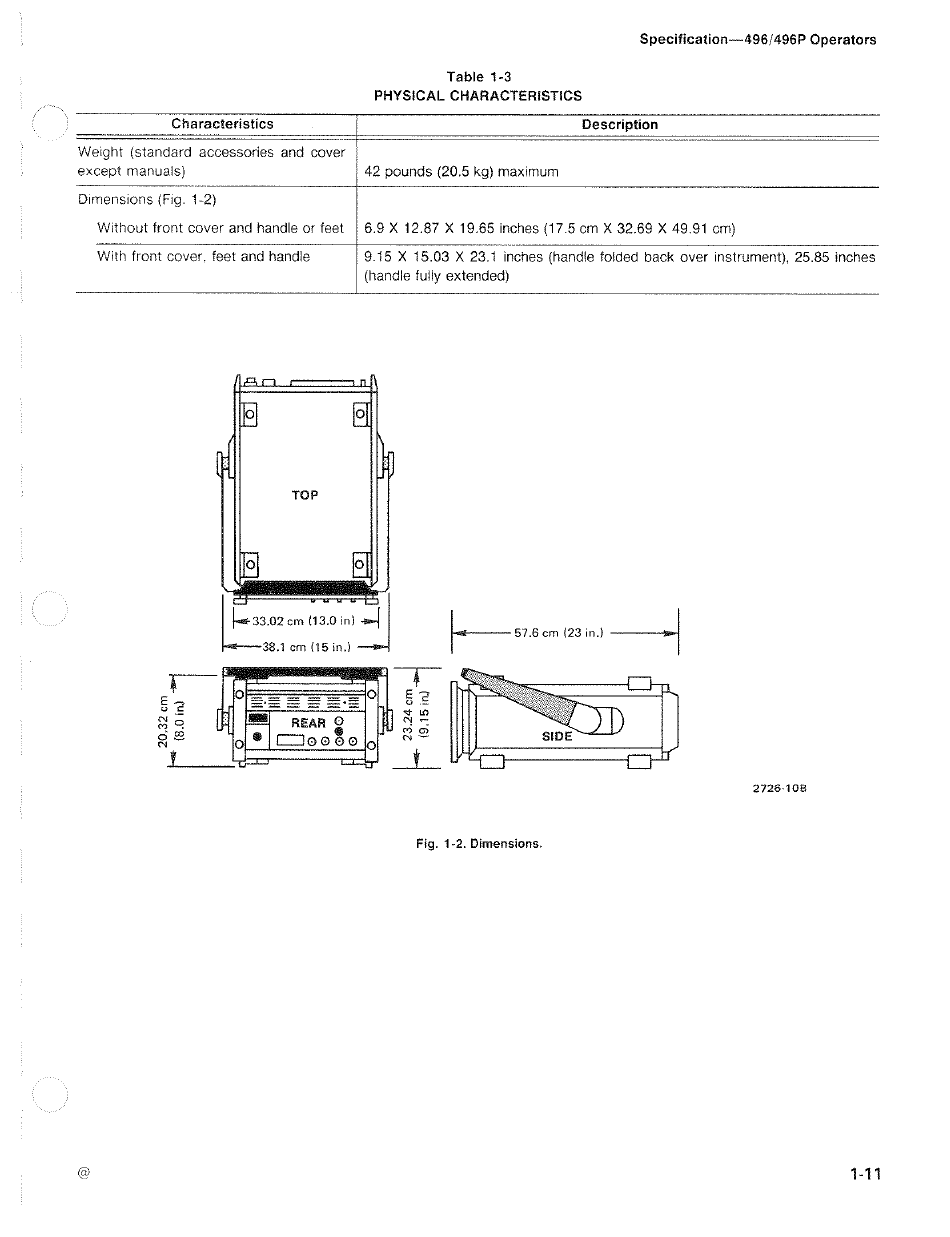

Fig. 1-2. Dimensions.
