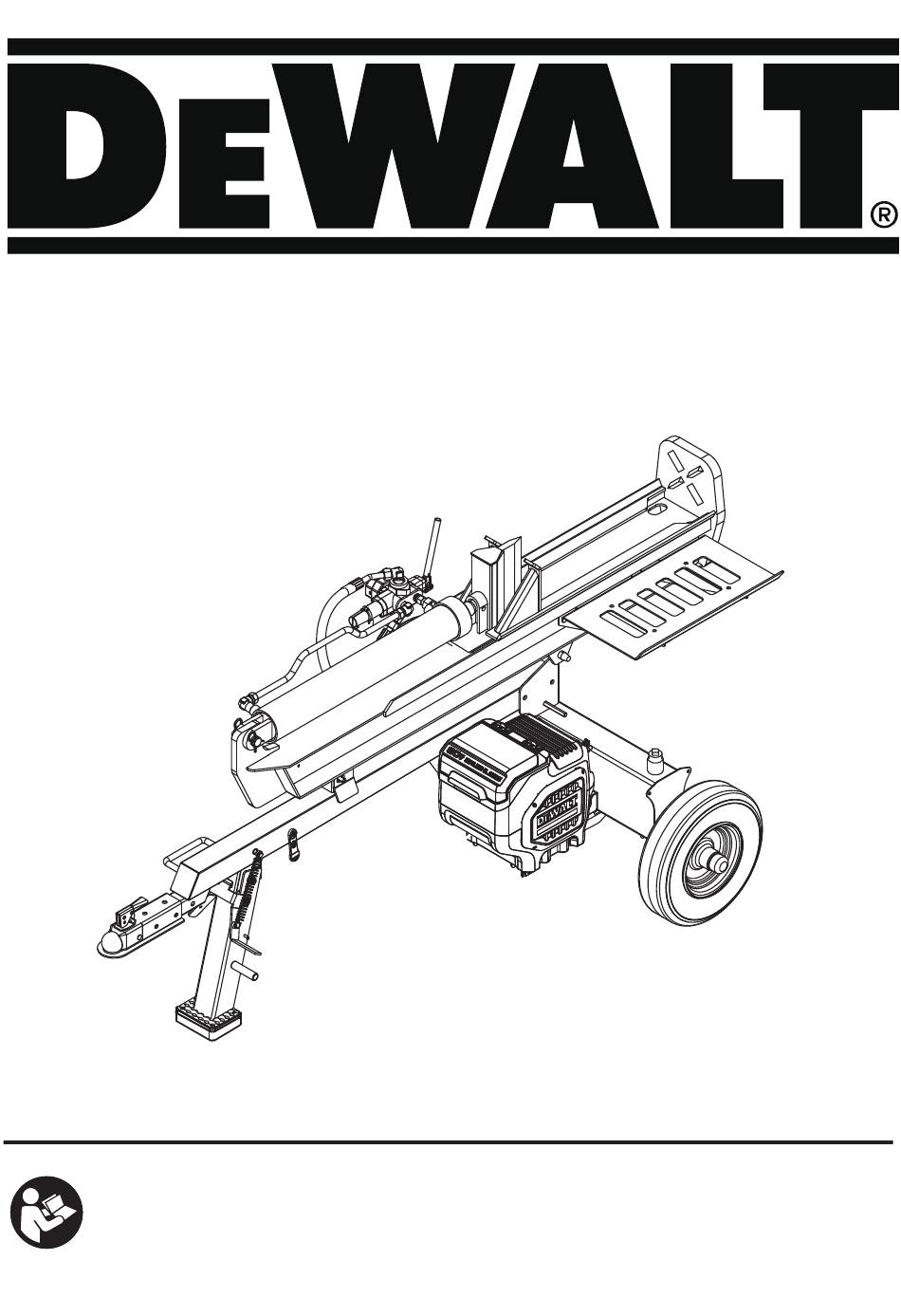

20 TON 60V LOG SPLITTER
DIVISOR DE LEÑOS DE 20 TONELADAS Y 60V
FENDEUSES DE BÛCHES DE 20 TONNES ET 60V
IF YOU HAVE QUESTIONS OR COMMENTS, CONTACT US.
SI TIENE DUDAS O COMENTARIOS, CONTÁCTENOS.
SI VOUS AVEZ DES QUESTIONS OU DES COMMENTAIRES, CONTACTEZ-NOUS.
1-833-784-7333
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
MANUEL D'INSTRUCTION
DXGLXT2000
www.dewalt.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DeWalt DXGLXT2000
Summary of Contents for DeWalt DXGLXT2000
- Page 1 DIVISOR DE LEÑOS DE 20 TONELADAS Y 60V MANUAL DE INSTRUCCIONES FENDEUSES DE BÛCHES DE 20 TONNES ET 60V MANUEL D’INSTRUCTION DXGLXT2000 IF YOU HAVE QUESTIONS OR COMMENTS, CONTACT US. SI TIENE DUDAS O COMENTARIOS, CONTÁCTENOS. SI VOUS AVEZ DES QUESTIONS OU DES COMMENTAIRES, CONTACTEZ-NOUS.
- Page 2 Damage or personal injury could result. Gear Pump WARNING: To reduce the risk of injury, read the Support Leg instruction manual. Chains If you have any questions or comments about this or Manual Canister any product, call DEWALT toll free at: Log Cradle 1-833-784-7333.
- Page 3 WARNING: WARNING: Read and understand all instructions and safety information in This product can expose you to chemicals including lead and this manual and on safety decals before assembling or operating the log splitter. lead compounds which are known to the State of California to cause cancer and Failure to understand and follow all instructions and safety information may result birth defects or other reproductive harm.
- Page 4 DANGER / PELIGRO / DANGER WARNING / ADVERTENCIA / AVERTISSEMENT HOT! DO NOT TOUCH! Always remove batteries from the powerhead before transporting. Before towing, check that beam latch pin is completely locked. CALIENTE! NO TOQUES! Retire siempre las baterías del cabezal motor antes de transportarlo. CHAUDE! NE PAS TOUCHER! Antes de remolcar, asegúrese de que la clavija de seguridad de la viga esté...
-
Page 5: Save All Warnings And Instructions For Future Reference
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. 1 Work Area Safety used for appropriate conditions will reduce personal injuries. a) Keep work area clean and well lit. Cluttered or dark c) Prevent unintentional starting. -
Page 6: Batteries And Chargers
Battery Packs chargers. WARNING: Read all safety warnings, instructions, Charge the battery packs only in DeWALT chargers. and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and DO NOT splash or immerse in water or other liquids. -
Page 7: Battery Transportation
(pierced with a nail, hit with a hammer, stepped on). The DeWALT FLEXVOLT® battery pack has a battery cap Damaged battery packs should be returned to the that should be used when shipping the battery pack. -
Page 8: Important Safety Instructions For All Battery Chargers
DO NOT attempt to charge the battery pack with any ventilation slots and result in excessive internal heat. chargers other than a DeWALT charger. DeWALT Place the charger in a position away from any heat chargers and battery packs are specifically designed to source. - Page 9 Charging a Battery DCB118 and DCB112 Chargers 1. Plug the charger into an appropriate outlet. The DCB118 and DCB112 chargers are equipped with an internal fan designed to cool the battery pack. The fan 2. Insert and fully seat battery pack. The red charging will turn on automatically when the battery pack needs to light will continuously blink while charging.
- Page 10 Machine Operation ONLY operate the machine in daylight or well-lit areas. Some DeWALT chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an...
-
Page 11: Maintenance And Storage
ALWAYS chock the wheels to prevent movement of the NEVER adjust the relief valve setting. The pressure relief log splitter while in operation. valve on the log splitter is preset at the factory. Only a qualified service technician should perform any ALWAYS check and tighten hardware and assembled adjustments. -
Page 12: Personal Protective Equipment
A A LWAYS check before towing that the log splitter is ASSEMBLY INSTRUCTIONS correctly and securely attached to the towing vehicle and TOOLS REQUIRED (Not Included) that the safety chains are secured to the hitch or bumper Needle nose pliers of the vehicle with enough slack to allow for turning. - Page 13 STEP 3: Connect the Beam Assembly STEP 5: Attach Switch Box and Hydraulic Hoses 3.1 Caution two-person lift required, mechanical lift recommended. 5.1 Remove the switch box and M8x50 inner hex bolt (62) tied to the control valve, then Connect the beam assembly and tank assembly using hitch pin (17) secure the switch box to the control valve using item 62.
- Page 14 To Remove the Battery Packs WARNING 1. Lift and hold the battery port cover up to expose the ● DO NOT remove the hydraulic oil fill cap when the powerhead and pump are battery ports. running. Hot oil can escape causing severe burns. Always allow the log splitter to cool completely before removing the hydraulic oil cap.
-
Page 15: Operation
WARNING: Since accessories, other than those and a shorter run time. The Eco setting will have a offered by DeWALT, have not been tested with this slower cycle time but a longer run time. product, use of such accessories with this tool could be hazardous. -
Page 16: Specifications
SPECIFICATIONS Hydraulic Oil..........AW32, AW46 Maximum Splitting Force........20 Tons Hydraulic Capacity...........3.7 Gallons Cycle Time..........16 / 22 Seconds Operational Maximum Log Length........25” Hydraulic Cylinder........3-1/2” x 24-1/2” (Note: Cycle time may vary given mechanical and environmental factors; Wheel Size........4.8-8 x 16” D.O.T tires the published cycle time is for ideal conditions) Hitch Type..........2”... - Page 17 DRAWING...
- Page 18 PARTS LIST Ref# Drawing No. Description Qty. 9121-06010-FH Screw M6x10 LSD2504-02000 Cylinder LSP25-00001-DX Tube LSP25-00005-DX R pin LSP25-00004-DX Cylinder Pin LSD2504-00008 Hydraulic Hose (valve-oil filter) LSP25-06000 Ferrule Connector LSD2504-03000 Control Valve LSP25-17000 Combination Connector LSP25-00002-DX 130° Elbow LSP25-00006-DX Lock Pin 9206-12000-DX Nylon Lock Nut M12 LSP2702-02000...
- Page 19 PARTS LIST Ref# Drawing No. Description Qty. 9404-03030-DX Cotter Pin Ø3x30 LSP25-00009-DG Hub Cap LSP25-00021 Rubber Washer LSP25-10008-FH Steel Wire Snap Ring for Shaft LSP25-03000 Tank 9301-06000-DX Flat Washer Ø6 9101-08025-DX8.8 Hex Bolt M8x25 9101-06020-DX8.8 Hex Bolt M6x20 LSP25-15000-DX Suction Filter Mounting Plate LSP25-09000 Oil Filter LSP25-00007-DX...
- Page 20 PARTS LIST Ref# Qty. Drawing No. Description LSP2501-00011 Connecting Belt 8801-4.78x4.78x35 Flat Key 9206-08000-DX Nylon Lock Nut M8 LSP30MD-02000 Manual Canister LSP25-10009 Gear Pump Flat Key 9105-08030-DX Screw M8x30 LSP30C-00001-DX Lock Pin 9101-12030-DX8.8 Hex Bolt M12x30 9104-10020-FH10.9 Inner Hex Screw M10x20 9206-10000-DX Nylon Lock Nut M10 9302-06000-DX...
-
Page 21: Limited Warranty
U.S. & Canada Only Solo en EE. UU. y Canadá É.-U. The log splitter needs periodic service to perform well. et Canada seulement www.dewalt.com 833-784-7333 The warranty does not cover repair when normal use has exhausted the life of a part or the equipment as a whole.
