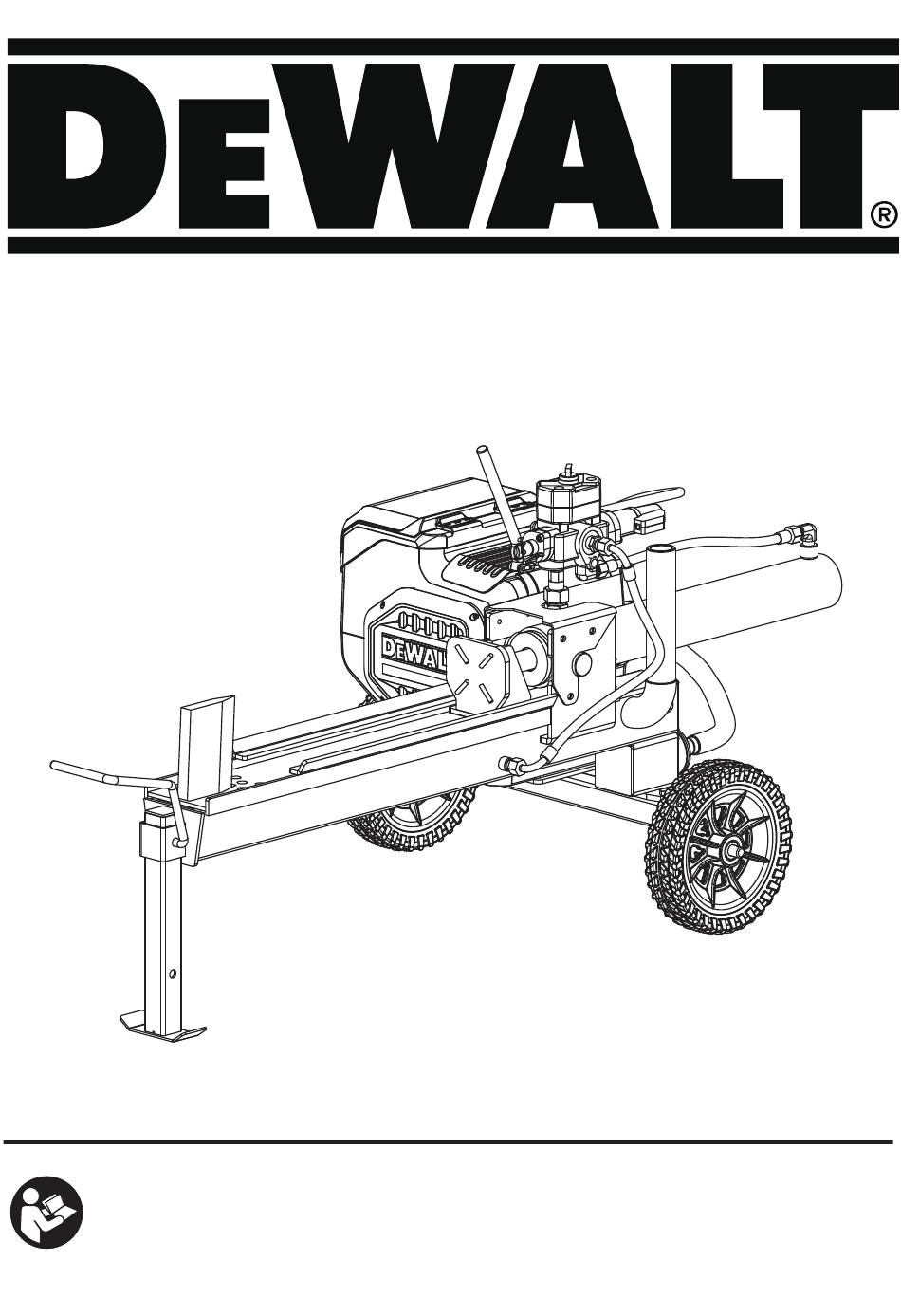

9 TON 60V LOG SPLITTER
DIVISOR DE LEÑOS DE 9 TONELADAS Y 60V
FENDEUSES DE BÛCHES DE 9 TONNES ET 60V
IF YOU HAVE QUESTIONS OR COMMENTS, CONTACT US.
SI TIENE DUDAS O COMENTARIOS, CONTÁCTENOS.
SI VOUS AVEZ DES QUESTIONS OU DES COMMENTAIRES, CONTACTEZ-NOUS.
1-833-784-7333
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
MANUEL D'INSTRUCTION
DXGLXT0900
www.dewalt.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DeWalt DXGLXT0900
Summary of Contents for DeWalt DXGLXT0900
- Page 1 DIVISOR DE LEÑOS DE 9 TONELADAS Y 60V MANUAL DE INSTRUCCIONES FENDEUSES DE BÛCHES DE 9 TONNES ET 60V MANUEL D’INSTRUCTION DXGLXT0900 IF YOU HAVE QUESTIONS OR COMMENTS, CONTACT US. SI TIENE DUDAS O COMENTARIOS, CONTÁCTENOS. SI VOUS AVEZ DES QUESTIONS OU DES COMMENTAIRES, CONTACTEZ-NOUS.
- Page 2 Damage or personal injury could result. Wedge WARNING: To reduce the risk of injury, read the Support Leg instruction manual. Filling Port Oil Sight Window If you have any questions or comments about this or any product, call DEWALT toll free at: Wheel Assembly 1-833-784-7333.
- Page 3 WARNING: WARNING: Read and understand all instructions and safety information in This product can expose you to chemicals including lead and this manual and on safety decals before assembling or operating the log splitter. lead compounds which are known to the State of California to cause cancer and Failure to understand and follow all instructions and safety information may result birth defects or other reproductive harm.
- Page 4 WARNING / ADVERTENCIA / AVERTISSEMENT - Avoid dangerous environments. - Evite los entornos peligrosos. No utilice - Évitez les situations dangereuses. N'utilisez Do not operate the unit in the rain, la unidad bajo la lluvia, en condiciones pas l'appareil sous la pluie, dans un endroit in wet conditions or on wet surfaces.
-
Page 5: Save All Warnings And Instructions For Future Reference
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. 1 Work Area Safety used for appropriate conditions will reduce personal injuries. a) Keep work area clean and well lit. Cluttered or dark c) Prevent unintentional starting. -
Page 6: Batteries And Chargers
Battery Packs chargers. WARNING: Read all safety warnings, instructions, Charge the battery packs only in DeWALT chargers. and cautionary markings for the battery pack, charger and product. Failure to follow the warnings and DO NOT splash or immerse in water or other liquids. -
Page 7: Battery Transportation
(pierced with a nail, hit with a hammer, stepped on). The DeWALT FLEXVOLT® battery pack has a battery cap Damaged battery packs should be returned to the that should be used when shipping the battery pack. -
Page 8: Important Safety Instructions For All Battery Chargers
DO NOT attempt to charge the battery pack with any ventilation slots and result in excessive internal heat. chargers other than a DeWALT charger. DeWALT Place the charger in a position away from any heat chargers and battery packs are specifically designed to source. - Page 9 Charging a Battery DCB118 and BCB112 Chargers 1. Plug the charger into an appropriate outlet. The DCB118 and DCB112 chargers are equipped with an internal fan designed to cool the battery pack. The fan 2. Insert and fully seat battery pack. The red charging will turn on automatically when the battery pack needs to light will continuously blink while charging.
-
Page 10: General Information
Machine Operation ONLY operate the machine in daylight or well-lit areas. Some DeWALT chargers are designed to be wall mountable or to sit upright on a table or work surface. If wall mounting, locate the charger within reach of an... -
Page 11: Personal Protective Equipment
ALWAYS chock the wheels to prevent movement of the NEVER adjust the relief valve setting. The pressure relief log splitter while in operation. valve on the log splitter is preset at the factory. Only a qualified service technician should perform any ALWAYS check and tighten hardware and assembled adjustments. - Page 12 STEP 2: Attach the Support Leg ASSEMBLY INSTRUCTIONS TOOLS REQUIRED (Not Included) 2.1 Attach the support leg (41) to the square tube on the beam assembly, then insert the handle (39) into the hole in the direction shown in the figure. Finally, insert the R pin Scissors (40) from the bottom upwards into the hole to secure the leg.
- Page 13 STEP 4: Attach the Cylinder Cover and the Hydraulic Hose 4.1 Pull the cylinder assembly back until the two mounting ears on the cylinder snap into the groove, then re-install the cylinder cover (50) into its’ original position and tighten it with the M8x16 hex bolt (22), the Ø8 lock washer (21) and the Ø8 flat washer (25).
- Page 14 To Remove the Battery Packs WARNING 1. Lift and hold the battery port cover up to expose the ● DO NOT remove the hydraulic oil fill cap when the powerhead and pump are battery ports. running. Hot oil can escape causing severe burns. Always allow the log splitter to cool completely before removing the hydraulic oil cap.
-
Page 15: Operation
3. Place a log on the beam against the wedge. Make WARNING: Since accessories, other than those sure the log is securely on the wedge and up against offered by DeWALT, have not been tested with this the beam. product, use of such accessories with this tool could be ×... -
Page 16: Specifications
SPECIFICATIONS Maximum Splitting Force.........9 Tons Hydraulic Oil..........AW32, AW46 Cycle Time..........16 / 20 Seconds Hydraulic Capacity.........1.32 Gallons Operational Maximum Log Length........19” (Note: Cycle time may vary given mechanical and environmental factors; Hydraulic Cylinder........2-3/4” x 18-3/8” the published cycle time is for ideal conditions) Wheel Size...........10”... - Page 17 DRAWING...
- Page 18 PARTS LIST Ref# Drawing No. Description Qty. TS600-00009 O Lock Ring 9301-16000-DX Flat Washer Ø16 MS12A-00001 10” Never Flat LSD0902-01000 Wheel Stand Assembly 9010-08025-DX Hex Bolt M8x25 9010-10065-DX Hex Bolt M10x65 9302-10000-DX Large Flat Washer Ø10 9301-10000-DX Flat Washer Ø10 9206-10000-DX Nylon Lock Nut M10 9702-20000...
- Page 19 PARTS LIST Ref# Drawing No. Description Qty. LS0900-00003 Hydraulic Hose (valve-cylinder) LS0900-00004 Handle N280-00041-DX R Pin LS0900-03000 Support Leg LSD0901-04000 Beam LSP25-13001-DX Oil Cap LS12J-00011 Connector LS0900-04000 Cylinder LSA22-00009-DX Connector 9901-16x2.5 O Ring 16x2.5 LS12-00006-DX Valve B Joint LSP25-17002-DX LSE12-00003 Cylinder Cover 9101-12065-DX8.8 Hex Bolt M12x65...
-
Page 20: Limited Warranty
U.S. & Canada Only Solo en EE. UU. y Canadá É.-U. The log splitter needs periodic service to perform well. et Canada seulement www.dewalt.com 833-784-7333 The warranty does not cover repair when normal use has exhausted the life of a part or the equipment as a whole.
