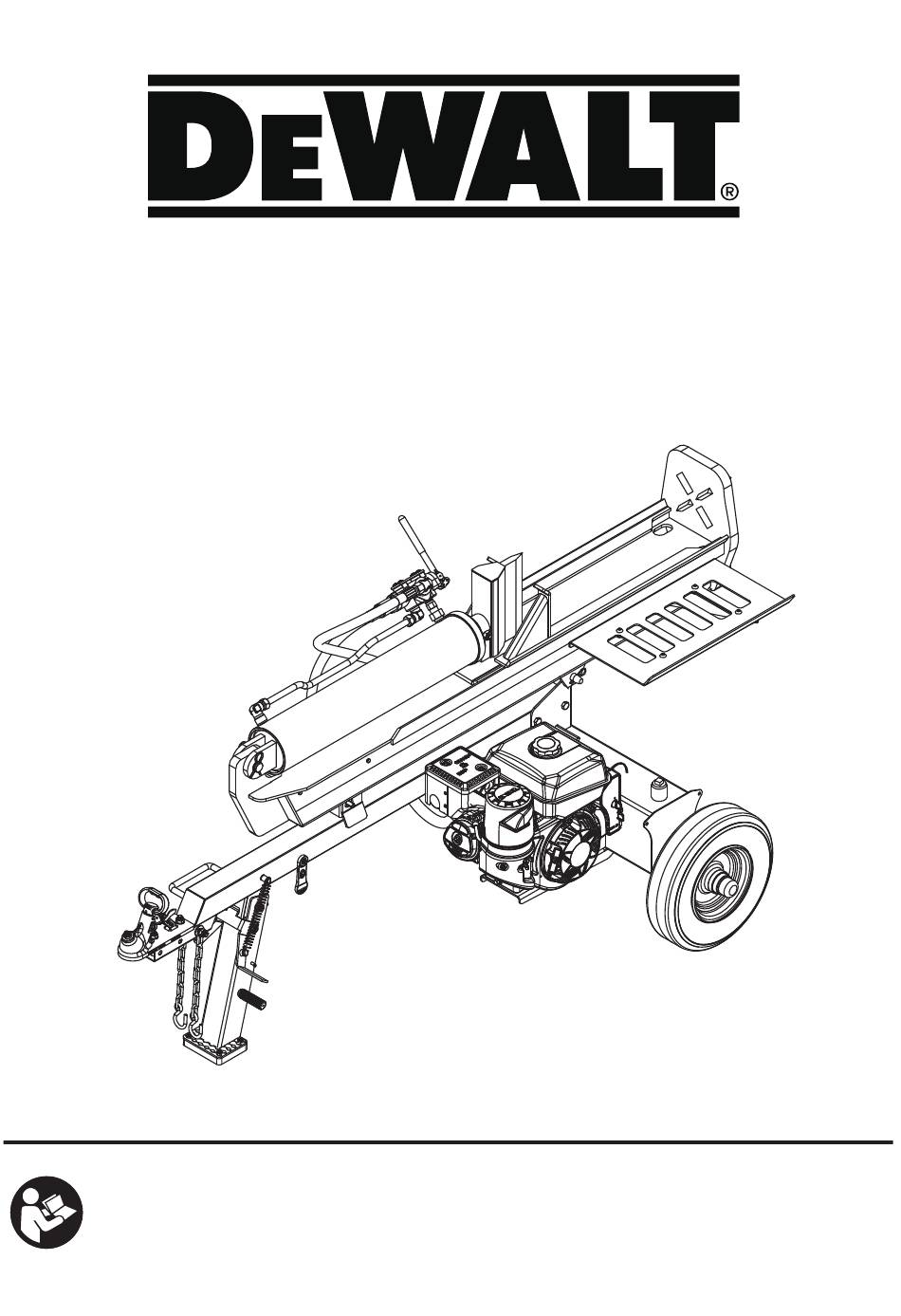

- Page 1 INSTRUCTION MANUAL 38 TON LOG SPLITTER DXGLXT3802XE IF YOU HAVE QUESTIONS OR COMMENTS, CONTACT US. 1300-039-251 www.dewalt.com...
- Page 2 Damage or personal injury could result. Gear Pump WARNING: To reduce the risk of injury, read the Support Leg instruction manual. Safety Chains If you have any questions or comments about this or Manual Canister any product, call DEWALT toll free at: Log Cradle 1300-039-251.
- Page 3 WARNING: • NEVER move the log splitter while the engine is running. Turn off the engine before Read and understand all instructions and safety information in leaving the log splitter. this manual and on safety decals before assembling or operating the log splitter. •...
- Page 4 ASSEMBLY INSTRUCTIONS WARNING: IMPORTANT SAFETY INFORMATION TOOLS REQUIRED (Not Included) 7) FIRE PREVENTION • Needle nose pliers • ONLY refuel the log splitter in clear areas with no gas fumes and no spilled gas. • Scissors • NEVER operate the log splitter near flames, sparks or smoke. Hydraulic oil and gasoline •...
- Page 5 STEP 3: Connect the Beam Assembly STEP 5: Attach Hydraulic Hoses 3.1 Caution two person lift required, mechanical lift recommended. 5.1 Put the Ø14x2.5 O ring (18) on the gear pump connector (22), then attach the Connect the beam assembly and tank assembly using hitch pin (17) hydraulic hose (valve-gear pump) (15) to the gear pump connector (22).
- Page 6 STEP 8: Add Gasoline to the Engine OPERATING INSTRUCTIONS 8.1 Use only clean, fresh, regular unleaded fuel with a minimum 87 octane rating. WARNING: Read and understand all instructions and safety information in this 8.2 DO NOT mix oil with fuel. manual and on safety decals before assembling or operating the log splitter.
- Page 7 HORIZONTAL POSITION OPERATING INSTRUCTIONS TOWING WARNING: The log splitter is equipped with pneumatic tires, a Class I or above coupler (50mm diameter ball required) and safety chains. Before towing, the safety chains must be secured to the hitch or bumper of the vehicle. Local regulations should be checked regarding licensing, lights, towing, etc.
- Page 8 FREE WARNING LABEL REPLACEMENT: If warning labels become illegible or are missing, call 1300-039-251 for a free replacement. For further technical support please contact: Dealer Wholesale Supplies (DWS) 22 Kitchen Road, Dandenong South Victoria, Australia 3193 Phone: 1300-039-251 Website: www.dewalt.com Log Splitter Parts and Service: Toll Free 1300-039-251...
- Page 9 SPECIFICATIONS Maximum Splitting Force................38 Tons Cycle Time....................14 Seconds (Note: Cycle time may vary given mechanical and environmental factors; the published cycle time is for ideal conditions) Wedge Height ............10” / 250mm Hardened Steel Gear Pump .................17 GPM, 2-Stage Hydraulic Oil ......... AW32, AW46 and Universal Hydraulic Oil Hydraulic Capacity..........
- Page 10 DRAWING...
- Page 11 PARTS LIST Ref# Drawing No. Description Qty. 9121-06010-FH M6x10 Inner Hex Cone Point Set Screw LSP37B-03000-GS036 Cylinder LSP25-00001-DX Metal Tube LSP25-00005-DX R Pin LSP25-00004-DX Cylinder Pin LSP30M-00017 Hydraulic Hose (valve-oil filter) LSP25-06000 Connector LSA22-09000 Control Valve LSP25-17000 Combination Connector LSP25-00002-DX 130°Joint LSP25-00006-DX 9206-12000-DX...
- Page 12 PARTS LIST Ref# Drawing No. Description Qty. 9404-03030-DX Ø3x30 Cotter Pin LSP25-00009-DX Axle Cap LSP30-00006 Rubber Washer LSP25-10008-FH Steel Wire Snap Ring for Shaft LSP30-03000-Y386 Hydraulic Tank 9301-06000-DX Ø6 Flat Washer 9101-10500-DX8.8 M10x50 Hex Bolt 9101-06020-DX8.8 M6x20 Hex Bolt LSP30-15000-DX Filter Mounting Plate LSP25-09000 Spin-on Filter...
- Page 13 PARTS LIST Ref# Drawing No. Description Qty. LSP2501-00011 Connecting Belt LSP3700-05004 Engine Flat Key 9206-08000-DX M8 Nylon Lock Nut LSP30MD-02000 Manual Canister LSP3700-05003 Gear Pump Flat Key 9101-08030-DX8.8 M8x30 Hex Bolt LSP30C-00001-DX 9101-12030-DX8.8 M12x30 Hex Bolt 9104-10020-FH M10x20 Screw 9206-10000-DX M10 Nylon Lock Nut 9206-14000-DX M14 Nylon Lock Nut...
- Page 14 Para obtener información sobre el producto, el mantenimiento o la garantía, comuníquese con nosotros en: Pour obtenir de l'information sur les produits, les réparations ou la garantie, prière de nous contacter au: Australia Only • Solo en Australia • Australie seulement www.dewalt.com • 1300-039-251...
