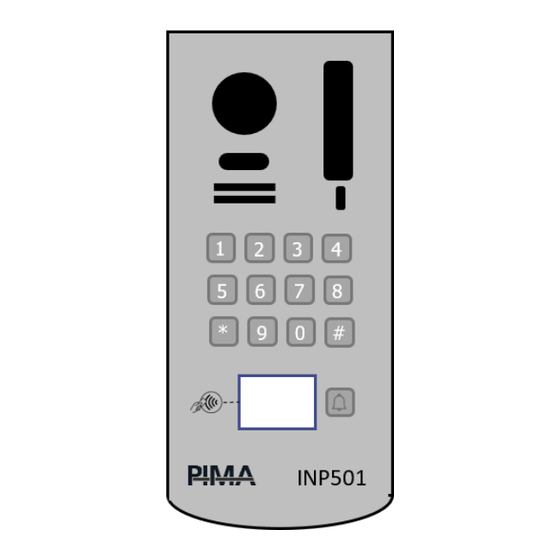

- Page 1 GUEST Intercom System Installation & Programming Quick Guide...
-
Page 2: System Installation
SYSTEM INSTALLATION This quick guide describes the installation of one monitor and a one-button doorbell. For other options – see the full installation manual (QR and the end of the manual) Important: Do not use shielded cable 1.1 Panel Installation Location Recommended installation height - 1.5 to 1.6 meters. -
Page 3: Din Rail Installation
1.4 Exit Button Connections Connect the exit button to the panel as described in the following drawing: Note: for the INP401 panel – see figure above. 2-wire bus Exit button 1.5 7" Monitor Installation Install at a height of 1.5 to 1.6 meters. See the following drawing 1.6 Power Supply Installation 1.6.1 Wall Mounting... -
Page 4: System Programming
1.7 System Connection to 2-wire bus The bus connection of the panel to the monitor and the power supply is a 2-wire in-series connection . Connect the two wires bus to the connecting clamps as shown in the following diagram : Panel INP501/502/504 INP511/512/514... -
Page 5: Panel Programming
1.8.1 Panel Programming To determine the parameters of the panel, Enter the menu of the panel, as follows : Home screen → Quick Setting → Doorbell List A line that starts with Mac... appears on the screen with the details of the installed panel. Note: If the line does not appear - check the bus connections of the panel and the power supply again. -
Page 6: Smartphone Application
Connecting to the doorbell (panel) On the app's main screen, click the doorbell icon. The app connects to the doorbell. The continuation is as described in the previous section. Manufactured by: PIMA Electronic Systems Ltd. 5, Hatzoref St., Holon 5885633, Israel Tel: +972.3.6506411 www.pima-alarms.com...
