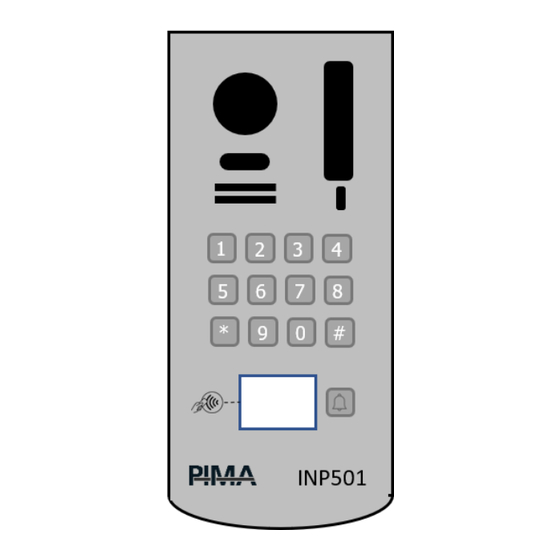

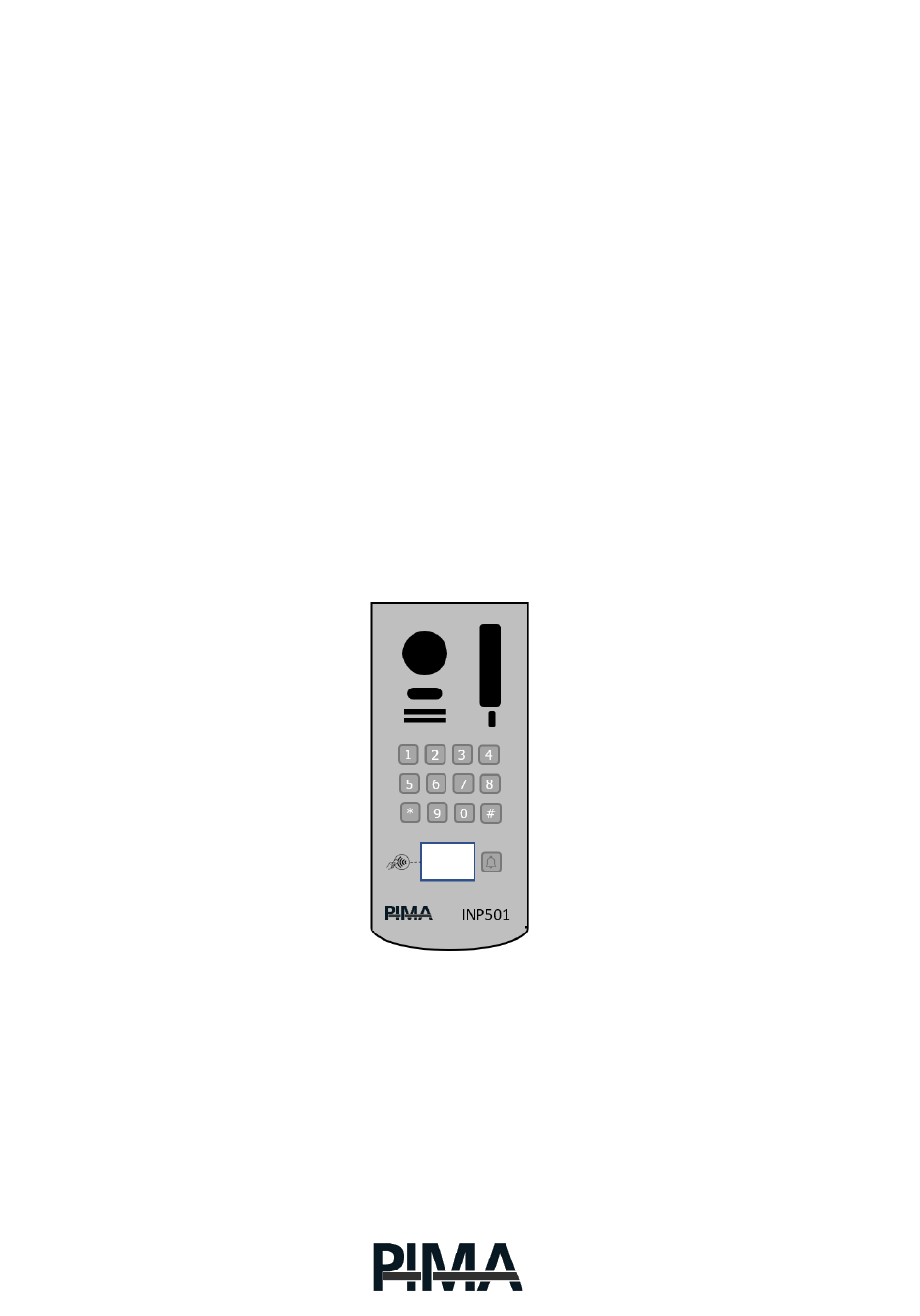

- Page 1 GUEST Intercom System Installation & Programming Quick Guide...
-
Page 2: System Installation
SYSTEM INSTALLATION This quick guide describes the installation of one monitor and a one-button doorbell. For other options – see the full installation manual (QR and the end of the manual) Important: Do not use shielded cable 1.1 Panel Installation Location Recommended installation height - 1.5 to 1.6 meters. - Page 3 1.4 Exit Button Connections Connect the exit button to the panel as described in the following drawing: Note: for the INP401 panel – see figure above. 2-wire bus Exit button 1.5 7" Monitor Installation Install at a height of 1.5 to 1.6 meters. See the following drawing 1.6 Power Supply Installation 1.6.1 Wall Mounting...
-
Page 4: System Programming
1.7 System Connection to 2-wire bus The connection of the panel to the screen and the power supply is a series connection of a 2-wire bus. Connect the two wires of the bus to the connection clamps as detailed in the following drawing: פנל... -
Page 5: Smartphone Application
(Note: there are two parameters named "state". One for the door and one for the gate. They are distinguished by the icon). Below this line, two parameters appear. Change as needed: Unlock Time – Operation time of the door lock when active. 4 seconds is recommended. Unlock Signal Type –... -
Page 6: Important Note
Connecting to the doorbell (panel) On the app's main screen, click the doorbell icon. The app connects to the doorbell. The continuation is as described in the previous section. Manufactured by: PIMA Electronic Systems Ltd. 5, Hatzoref St., Holon 5885633, Israel Tel: +972.3.6506411 www.pima-alarms.com...
