Stainless steel jumbo bath tissue dispenser double roll
Hide thumbs
1
2
3
4
5
6

Advertisement

Available languages

Available languages

Table of Contents

H-5114
STAINLESS STEEL JUMBO
BATH TISSUE DISPENSER –
DOUBLE ROLL
TOOLS NEEDED
Drill
Drill Bit
Dispenser x 1
NOTE: Recommended mounting height is 19"
from the floor to bottom of dispenser.
NOTE: Ensure that proper mounting hardware
is used for appropriate wall composition as
enclosed hardware may not be compatible
with your wall surface.

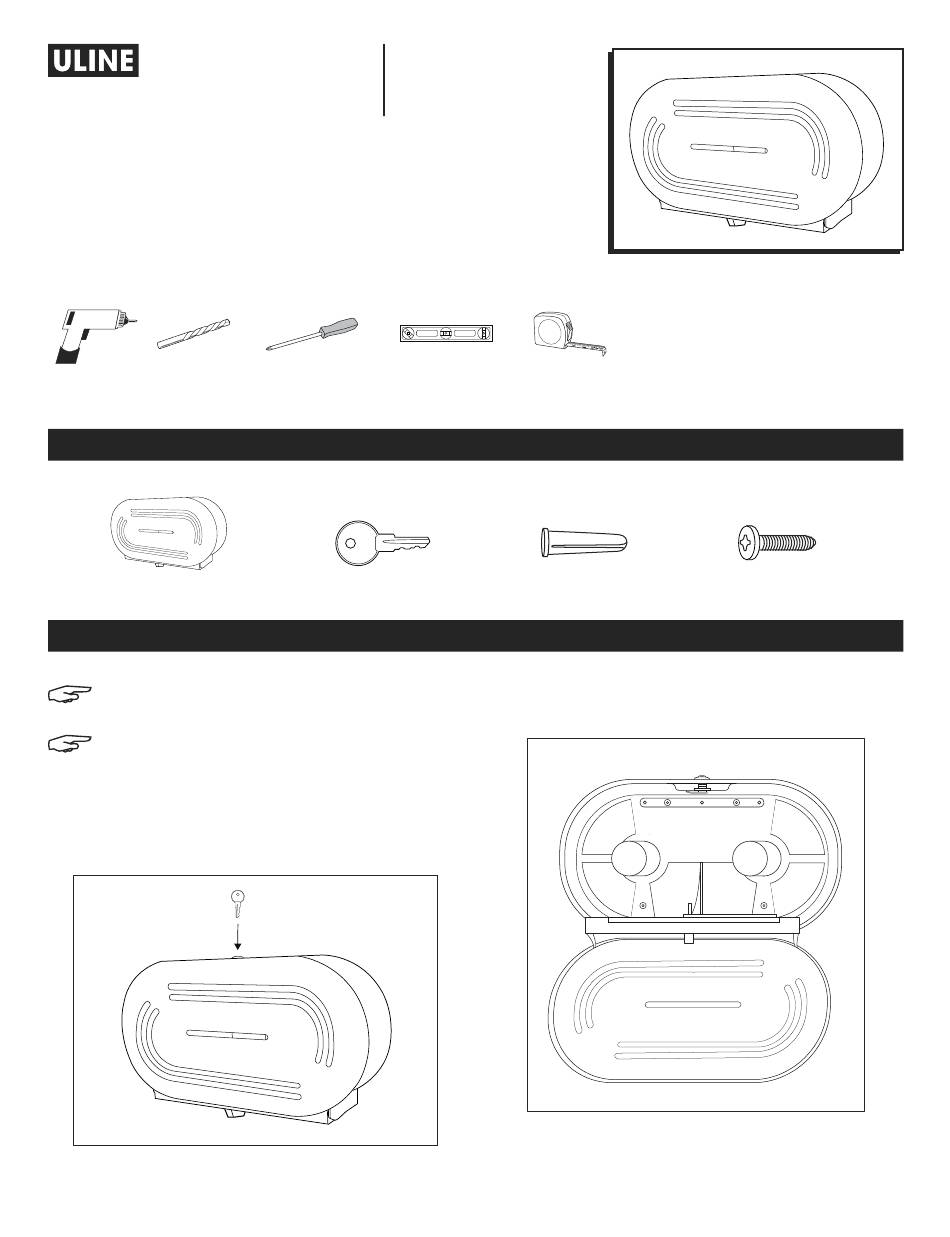

1.
Insert the key into the lock opening on top of
dispenser and turn to open cover. (See Figure 1)
Figure 1
PAGE 1 OF 6
1-800-295-5510
uline.com
Phillips Screwdriver
Level
Key x 1
MOUNTING INSTRUCTIONS
Tape Measure
PARTS
Wall Anchor x 4
2. Open dispenser cover and hold dispenser to ideal
mounting location on wall. (See Figure 2)
Figure 2
Para Español, vea páginas 3-4.
Pour le français, consulter les pages 5-6.
Screw x 4
0521 IH-5114
