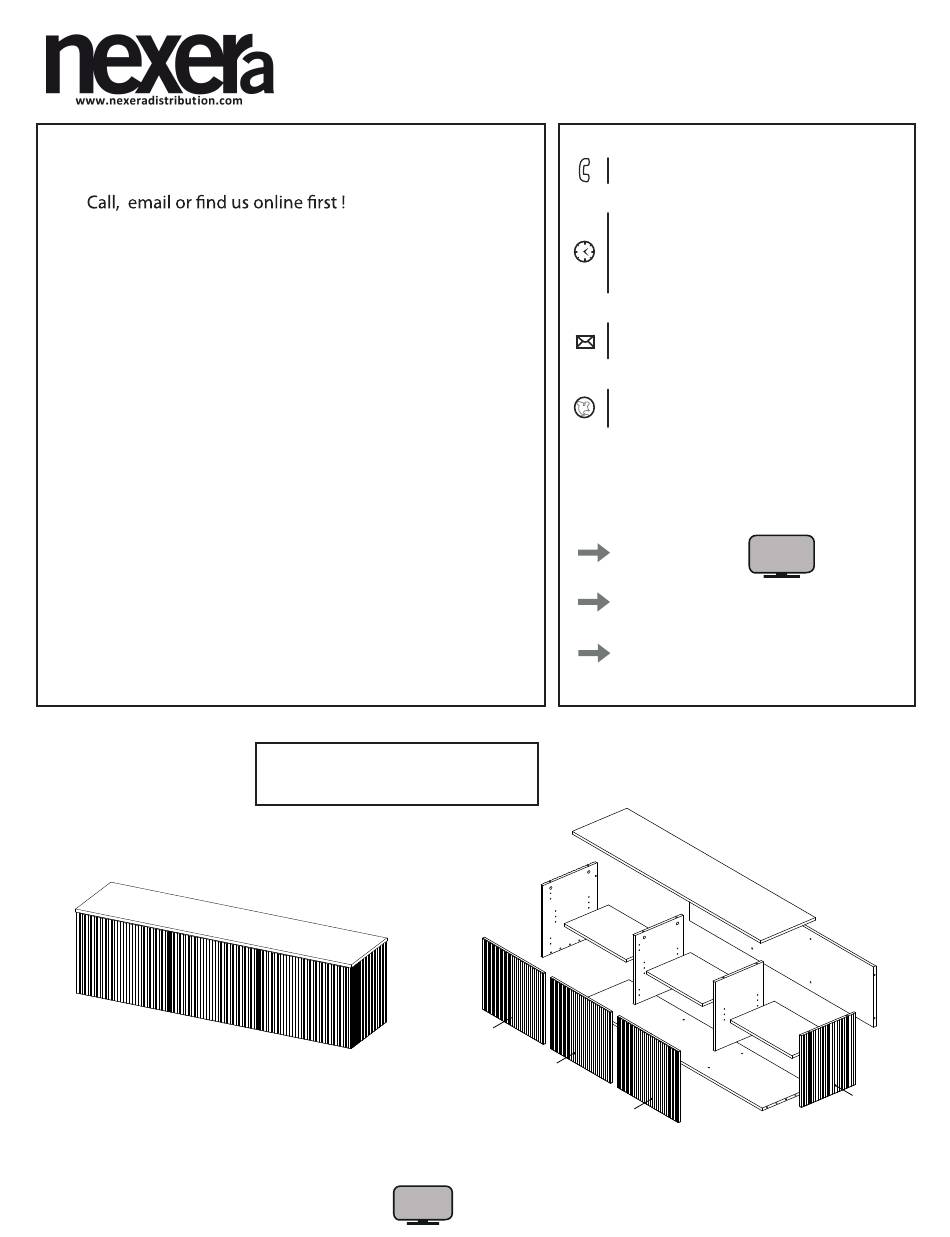

We're here to help - Do not return this product !
.
.
If you need help with assembly
.
If you received a damaged or defective part
If you are missing hardware
We will process replacement parts in 3-5 business days
or less. Parts are shipped via FedEx Ground or mail.
Nous sommes là pour vous - Ne retournez pas ce produit !
Appelez, écrivez ou trouvez-nous en ligne d'abord !
.
.
Si vous avez besoin d'aide avec l'assemblage
.
Si vous avez une pièce manquante ou endommagée
S'il vous manque de la quincaillerie
Nous vous enverrons les pièces de rechange dans un délai de
3 à 5 jours ouvrables, ou moins. Les pièces sont expédiées
via FedEx Ground ou par la poste.
134006
product number
numéro de produit
125 lb
Lot #
How-to videos
VIDEO
Vidéos d'aide
Assembly instructions
Instructions d'assemblage
CANADA / USA
Monday to Friday
7:30 AM - 4 PM - Eastern Time
Lundi au vendredi
7:30h à 16h - Heure normale de l'Est
Email / Courriel
service@nexeradistribution.com
Webpage / Page web
www.nexeradistribution.com
Ressources disponibles en ligne
How-to videos
Vidéos d'aide
FAQ's
Questions fréquentes
Order replacement parts
Commande de pièces de remplacement
A
H
PA
PB
PA
nexeradistribution.com
Online resources
VIDEO
C
AA
F
J
BB
H
D
B
65-134006_R0
