GYS TIG 250 AC/DC Manual

GYS TIG 250 AC/DC Manual

Hide thumbs Also See for TIG 250 AC/DC:
Table of Contents

Advertisement

Quick Links

Download this manual

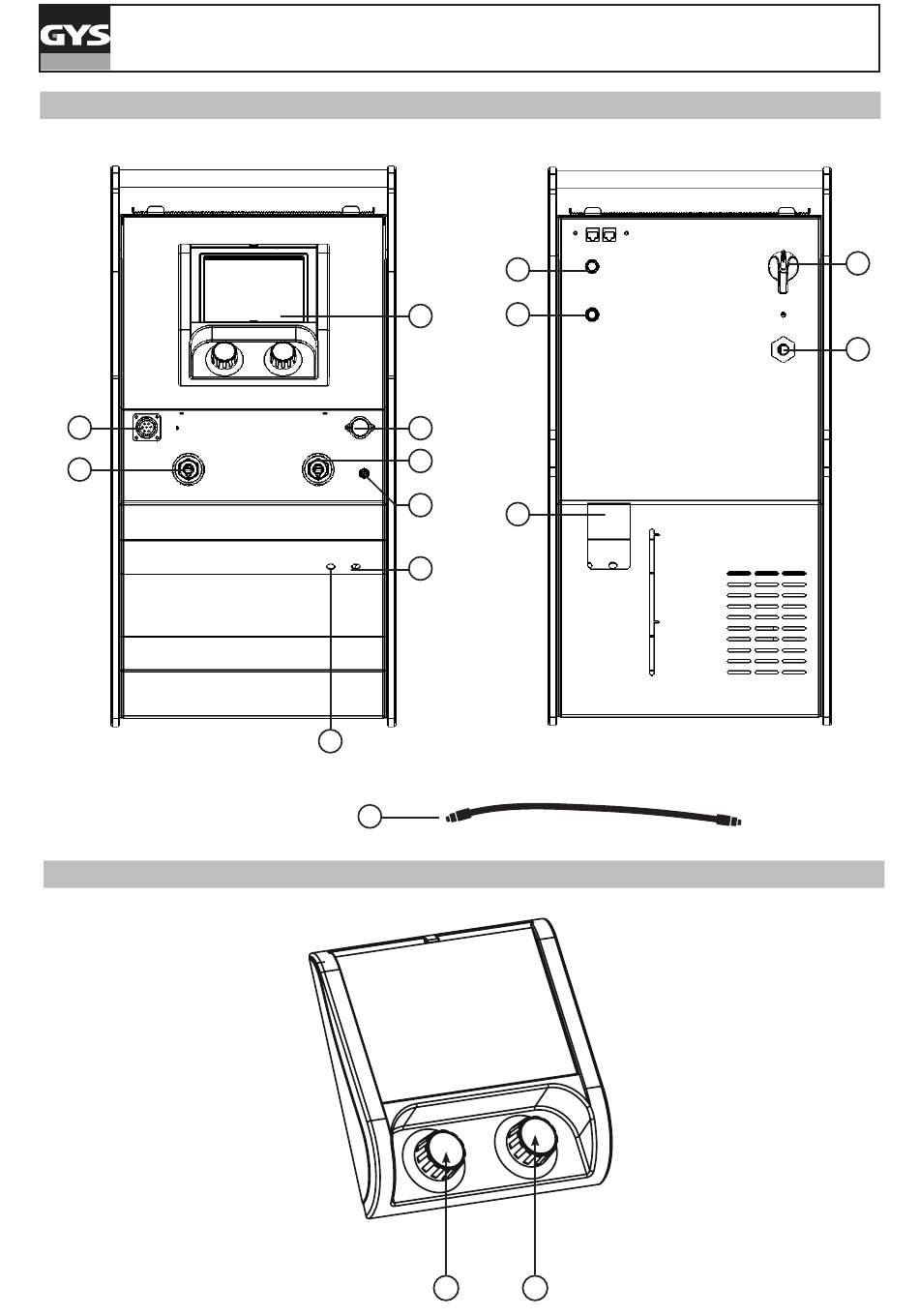

FIG-1
8
2
FIG-2
2
TIG 250 AC/DC
1
5
3
4
7
6
14
1
9
13
12
2
10
11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TIG 250 AC/DC and is the answer not in the manual?

Questions and answers

Related Manuals for GYS TIG 250 AC/DC

Summary of Contents for GYS TIG 250 AC/DC

  • Page 1 TIG 250 AC/DC FIG-1 FIG-2...
  • Page 2 TIG 250 AC/DC WARNING - SAFETY RULES GENERAL INSTRUCTIONS Read and understand the following safety recommendations before using or servicing the unit. Any change or servicing that is not specified in the instruction manual must not be undertaken. The manufacturer is not liable for any injury or damage caused due to non-compliance with the instructions featured in this manual .

  • Page 3: Electrical Safety

    TIG 250 AC/DC FIRE AND EXPLOSIONS RISKS Protect the entire welding area. Compressed gas containers and other inflammable material must be moved to a minimum safe distance of 11 meters. A fire extinguisher must be readily available near the welding operations.
  • Page 4 TIG 250 AC/DC • connect the earth clamp as close as possible to the area being welded; • do not work too close to, do not lean and do not sit on the welding machine • do not weld when you’re carrying the welding machine or its wire feeder.

  • Page 5: Installation

    Connecting generators in a series or a parallel circuit is forbidden. HARDWARE DESCRIPTION (FIG-1) The TIG 250 AC/DC is an Inverter welding unit to be used with refractory electrodes (TIG) in direct (DC) or alternative (AC) current. TIG welding requires gas shield protection of pure gas (Argon).

  • Page 6: Liquid Cooling

    TIG 250 AC/DC POWER SUPPLY-START-UP • This equipment is supplied with a 16A EN 60309-1 type plug and should only be used on a three-phase 400V (50-60 Hz) four-wire electrical instal- lation with an earthed neutral. The effective absorbed current (I1eff) is indicated on the equipment, for maximum use conditions. Check that the power supply and its protection (fuse and/or circuit breaker) are compatible with the current required for use.
  • Page 7 TIG 250 AC/DC Indicator of the place of the positive POSITIVE polarity (+). polarity HF ignition Arc ignition without contact Lift ignition LIFT Arc ignition with contact Pre-gas Pre-gas Time to purge the torch and to protect the area with gas before ignition...
  • Page 8 TIG 250 AC/DC TIG DC process SYNERGIC process Standard mode Pulse mode PULSE Spot mode SPOT 2T (time) torch mode 4T (time) torch mode 4T LOG 4T LOG 4T (time) LOG torch mode Languages Language selection Interface lock Locking the interface to prevent access to menus and parameters...
  • Page 9 TIG 250 AC/DC PRO and EASY mode options: % HotStart % ArcForce Reverse polarity EASY mode (40%) (40%) PRO mode 0 - 100% 0 - 100% RECOMMENDATIONS • ArcForce Depending on the electrode type and the welding position, we recommend the following settings :...
  • Page 10 TIG 250 AC/DC TIG AC WELDING PROCESSES TIG AC STD TIG AC PULSE • TIG AC STANDARD This TIG AC Standard mode is recommended to weld aluminium and alloys. (Al, AlSi, AlMg, AlMn…). AC current is essential to weld aluminium.
  • Page 11 TIG 250 AC/DC • Spotting - TACK (TIG DC) This mode can also pre-assemble workpieces, but in two phases : first phase is DC pulse whcih concentrates the arc for enhanced penetration, fol- lowed by a DC standard phase which enlarges the arc and the weld pool for a good spot.

  • Page 12: Recommended Combinations

    TIG 250 AC/DC Main button 4T MODE Main button T1 - The main button is pressed, the cycle starts at PreGas and stops in the I_Start phase. T2 - The main button is released, the cycle continues in UpSlope and in welding.
  • Page 13 TIG 250 AC/DC ELECTRODE GRINDING In Tig DC mode : To optimise the welding process, it is recommended to grind the electrode prior to welding as described below: : L = 3 x d for a low current. The recommended electrodes are : E3, WL15.

  • Page 14: Remote Control

    • Connect 5 - automaton mode: This mode enables to pilot the TIG 250 AC/DC from a console or from an automaton due to 5 pre-saved programs. For the foot pedal, the «Switch (D)» enables to start or stop welding according to the choosen cycle. The voltage value for the «slider (B)» matches a program or the actual statut.

  • Page 15: Troubleshooting

    TIG 250 AC/DC Additional explanations are available on our website. (https://goo.gl/i146Ma) . Loading settings: TROUBLESHOOTING This device integrates a default management system. A series of messages displayed on the control board allows for a fault and anomalies diagnosis. ABNORMALITIES CAUSES...
  • Page 16 TIG 250 AC/DC PIÈCES DE RECHANGE / SPARE PARTS / ERSATZTEILE / PIEZAS DE RECAMBIO / ЗАПЧАСТИ / RE- SERVE ONDERDELEN / PEZZI DI RICAMBIO...
  • Page 17 GYS SAS 1, rue de la Croix des Landes CS 54159 53941 SAINT-BERTHEVIN Cedex FRANCE...
