OWNER´S MANUAL
MEAT SAW
OPERATION INSTRUCTIONS
READ THIS MANUAL BEFORE USING THE EQUIPMENT FOR THE FIRST TIME.
MODELS
KSP-116
507242-A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSP-116 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pro-Cut KSP-116

Summary of Contents for Pro-Cut KSP-116

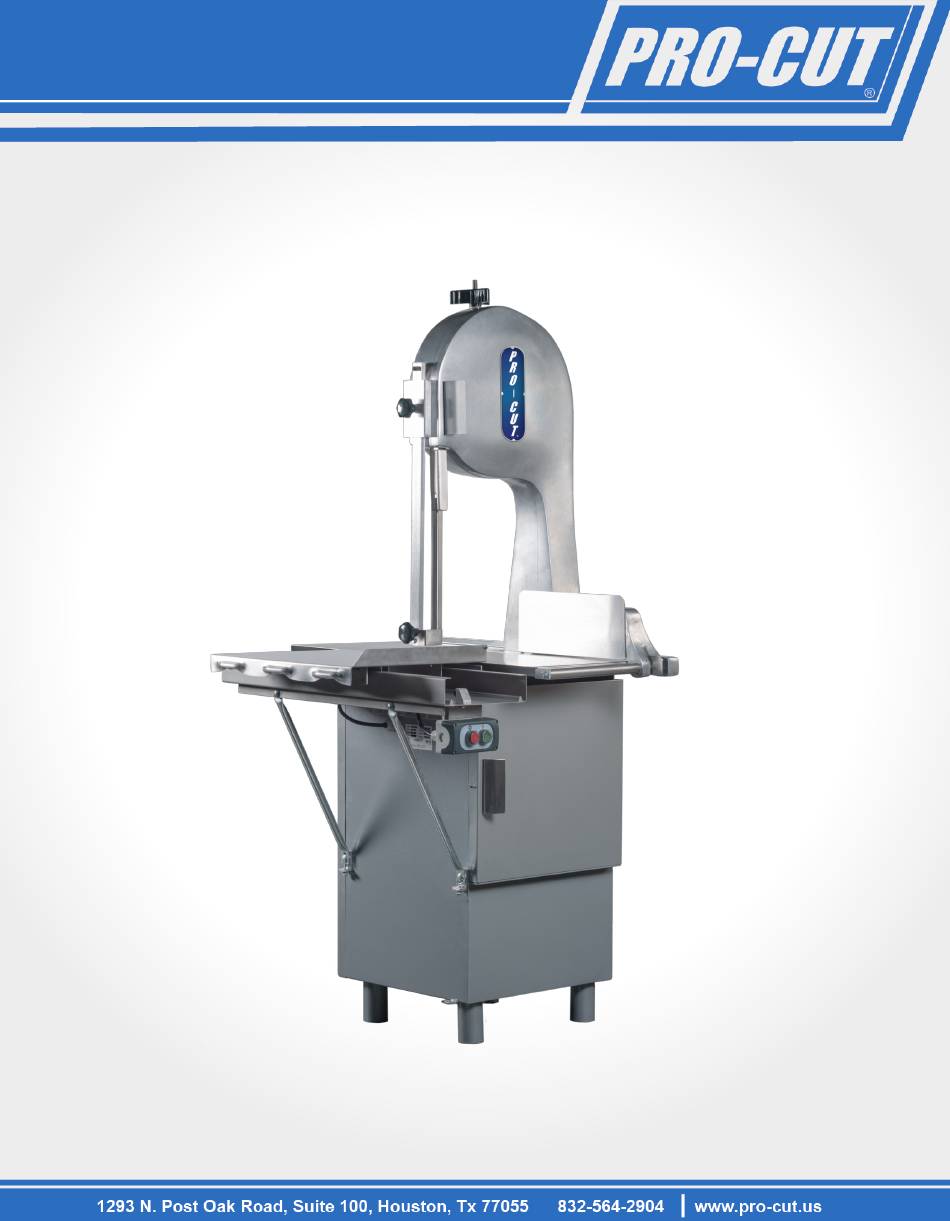

  • Page 1 OWNER´S MANUAL MEAT SAW MODELS OPERATION INSTRUCTIONS KSP-116 READ THIS MANUAL BEFORE USING THE EQUIPMENT FOR THE FIRST TIME. 507242-A...

  • Page 2: Table Of Contents

    KSP-116 MEAT SAW INSTRUCTIONS FOR OPERATION, SERVICE AND MAINTENANCE OF THIS EQUIPMENT CONTENTS: PAGE INTRODUCTION UNPACKING III. INSTALLATION OPERATION KEY ELEMENTS IN CUTTING QUALITY PRODUCT CLEANING VII. MAINTENANCE VIII. EQUIPMENT SPECIFICATIONS ELECTRICAL DIAGRAM ELECTROMAGNETIC BRAKE (SOME MODELS ONLY) I.- INTRODUCTION:...

  • Page 3: Unpacking

    KSP-116 MEAT SAW II.- UNPACKING While unpacking the machine take special care in removing these components to be assembled later. Make sure that all are accounted for *. 1 spare band saw (6) 1 Last Cut Pusher (40 - some models only)
  • Page 4 KSP-116 MEAT SAW B.- Carefully take the table assy. (5), place it on the table base guides (21). C.- First insert one rod on the base-slot as shown on step " a “ (Fig. 2), then put the other rod, on the other slot as shown on step "...

  • Page 5: Operation

    KSP-116 MEAT SAW WARNING!: Never operate this machine while the doors are open. Serious injury may happen . Before completing the electrical connection, verify the direction of movement of the band saw (6). When the on button is pressed, the band saw must moves from top to bottom in the sliding bar side (Fig. 5A). If the band saw moves from bottom to top, push the stop button and unplug the equipment.

  • Page 6: Safety Features

    KSP-116 MEAT SAW SAFETY FEATURES This Meat saw has special features to guarantee your own safety. Must of them are proximity switches (41) located in the equipment´s main accesses, like head (19) and lower (23) doors. The other switch is located below of table assy (5). In all cases, the operation of the meat saw will stop immediately if any door is open or if the table assy is not correctly located at the time of normal operation.

  • Page 7: Key Elements In Cutting Quality Product

    KSP-116 MEAT SAW V.- KEY ELEMENTS IN CUTTING QUALITY PRODUCT: 1.- Do not force the cut against the blade ( 6 ). 2.- Be sure of using always sharp saw blades. To know if you are still using a sharp blade, pay attention to the feel of the cut. If you have to force feed the product to cut into the blade then you need a new sharp blade, if the cut feels smooth and without much effort then your blade is still ok.
  • Page 8 KSP-116 MEAT SAW Note: To guarantee the right operation of the equipment, keep lubricated the next elements: Tension gauge Spring (39) Rod and indicator (1) Assemble again, reversing the disassemble order, taking care that the red color painted side of the rod and indicator (1) face the hole at the tension gauge housing (31).

  • Page 9: Maintenance

    KSP-116 MEAT SAW VII. - MAINTENANCE. 1.- Blade: after cleaning the saw, check the sharpness of the blade, if it is not sharp enough replace it. 2.- Fiber guide: the purpose of this guide is to keep the blade straight to help you in the cut of the product, if you see the blade is not cutting in a straight path, or you see the clearance of groove in the fiber guide ( 17 ) to be more than 1/8 of an inch, it's time to replace it.

  • Page 10: General Dimensions

    KSP-116 MEAT SAW VIII.- EQUIPMENT SPECIFICATION A) ELECTRICAL SPECIFICATIONS (Depends on your equipment. See ID plate):. Equipment Voltage Current Frequency Capacity 115 V~ 21 A 60 Hz 1,1 KW (1,5 HP) 220 V~ 11 A 50 OR 60 Hz 1,1 KW (1,5 HP)

  • Page 11: Electromagnetic Brake (Some Models Only)

    KSP-116 MEAT SAW X.- ELECTROMAGNETIC BRAKE (SOME MODELS ONLY): Your meat saw may be equipped with an electromagnetic brake (see Fig. A1). If so, please refer to this information for proper operation and maintenance. The brake motor is installed on the transmission system of the meat saw.

  • Page 12: Air Gap Adjustment

    KSP-116 MEAT SAW Release the brake (Fig A5) turning clockwise the screw in the lever of brake’s ring. After this, the friction plate (cylinder shown in Fig A3 at back side of brake), will freely move. Use your hand to center the cylinder into the circumference.
  • Page 13 KSP-116 MEAT SAW MEAT SAW DIAGRAM FOR COMPONENTS (SEE CENTRAL PAGES)
  • Page 14 KSP-116 MEAT SAW MEAT SAW DIAGRAM FOR COMPONENTS...
  • Page 15 THANKS FOR READING THIS MANUAL. IF YOU HAVE ANY DOUBT REGARDING THE OPERATION OF THIS MEAT SAW, PLEASE CONTACT TO YOUR PRO CUT AUTHORIZED DEALER.
