RS PRO SHS800X Series User Manual

RS PRO SHS800X Series User Manual

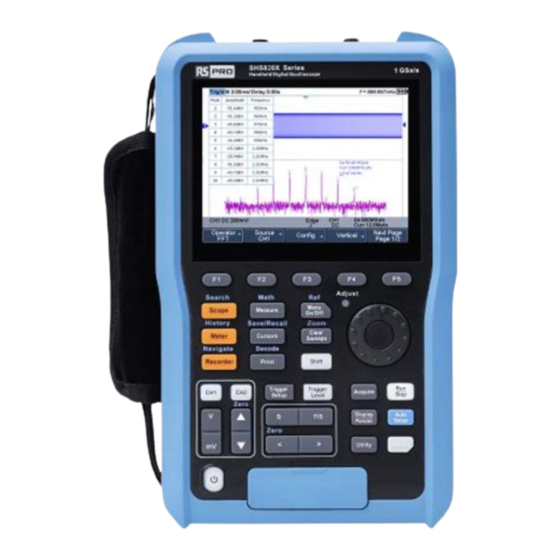

Handheld digital oscilloscope, isolated
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SHS800X - RS 254-3504 & 254-3505
SHS1100X - RS 254-3503 (isolated)
Handheld Digital Oscilloscope
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHS800X Series and is the answer not in the manual?

Questions and answers

Related Manuals for RS PRO SHS800X Series

Summary of Contents for RS PRO SHS800X Series

  • Page 1 SHS800X - RS 254-3504 & 254-3505 SHS1100X - RS 254-3503 (isolated) Handheld Digital Oscilloscope User Manual...
  • Page 2 Introduction This user manual includes important safety and installation information related to the SHS800X handheld digital oscilloscopes, and includes simple tutorials for basic operation of the oscilloscope. The series includes the following models: Model Analog Bandwidth SHS820X (254-3505) 200 MHz bandwidth, 2-channel, 1 GSa/s Sample rate SHS810X (254-3504) 100 MHz bandwidth, 2-channel, 1 GSa/s Sample rate SHS1102X...

  • Page 3: General Safety Summary

    General Safety Summary Carefully read the following safety precautions to avoid any personal injury or damage the instrument and avoid any products connected to it. To avoid potential hazards, please use the instrument as specified. Protection is impaired if used in a manner not specified by the manufacturer. Precautions for Operation Before operating this product, special training is required to ensure that the user is physically, mentally and emotionally healthy and able to use the oscilloscope, otherwise it...

  • Page 4: Safety Operation Matters

    Lithium battery failure EU label for separately recycled electrical and electronic equipment Cue and its meaning DANGER: Indicates direct injury or hazards that may happen. WARNING: Indicates potential injury or hazards that may happen. CAUTION: Indicates potential damage to the instrument or other property that may happen.
  • Page 5 installation is not carried out in accordance with the requirements of the document, it may cause personal injury or even death. Do not use this product in or near a heat source, and the ambient temperature cannot exceed the maximum temperature in the document or datasheet Safety of Electricity If you ignore the electrical safety methods, electric shock, fire and/or serious personal injury or death may occur.

  • Page 6: Safety Transportation Matters

    In order to facilitate the user to hold, RS PRO has installed a fabric handle on the oscilloscope. This handle cannot be used as a focus point to be fixed on transportation equipment, such as cranes, forklifts, trucks, etc.

  • Page 7: Waste Disposal

    Waste Disposal The used batteries in the product must not be disposed of together with unsorted municipal waste, they must be collected separately and placed in designated recycling points. If the product and its components are mechanically and/or thermally processed in a way beyond the intended use, hazardous substances may be released.

  • Page 8: Measurement Category

    To avoid damages to the instrument or probes, please do not expose them to fog, liquid, or solvents. Cleaning Please perform the following steps to clean the instrument and probes regularly in accordance with its operating conditions. Disconnect the instrument from all power sources and then clean with a soft wet cloth. Clean the loose dust on the outside of the instrument and probe with a soft cloth.

  • Page 9: Shs800X Measurement Category

    distribution boards and equipment permanently connected to fixed installations. CAT III:  Used for measurements installed in buildings, such as junction boxes, circuit breakers, distribution boards and equipment that are permanently connected to fixed installations. CAT IV:  It is used for measuring at the source of low-voltage devices, such as electricity meters and primary overcurrent protection devices.
  • Page 10 Multimeter CAT III 300Vrms, CATII 600Vrms. SCD10A CAT III 60Vrms. SCD600MA CAT III 60Vrms. Note: SCD10A is a 10A current adapter for the meter using to measure a current up to 10A, SCD600MA is a 600mA current adapter for the meter using to measure a current up to 600mA.

  • Page 11: Shs1000X Measurement Category

    SHS1000X Measurement Category SHS1000X can working under the measurement category listed in the table below The applicable measurement category of a combination of a probe assembly and an accessory is the lower of the measurement category. SHS1000X Max Input Voltage Scope（BNC input）...

  • Page 12: Working Environment

    Meter Input Ω CAT III 600V CAT II 1000V CAT III 600V CAT III 600V CAT II 1000V CAT II 1000V Protecting GND Measurement Category for SHS1000X Multimeter Working Environment General requirement Environment This product is intended for indoor use and should be operated in a clean, dry environment.

  • Page 13: Ventilation Requirement

    Installation (overvoltage) Category Definitions Installation (overvoltage) category I refers to signal level which is applicable to equipment measurement terminals connected to the source circuit. In these terminals, precautions are done to limit the transient voltage to the corresponding low level. Installation (overvoltage) category II refers to the local power distribution level which is applicable to equipment connected to the AC line (AC power).

  • Page 14: Ac Power Requirement

    AC Power Requirement The power adapter operates with a single-phase, 100 to 240 Vrms (+/-10%) AC power at 50/60 Hz (+/-5%). No manual voltage selection is required because the instrument automatically adapts to line voltage. Depending on the type and number of options and accessories (probes, PC port plug-in, charging etc.), When powered by adapter, the scope can consume up to 35 W of power.

  • Page 15: Maintenance And Services

    Adjustment, replacement of parts, maintenance and repair can only be performed by operators authorized by RS PRO . Safety-related parts can only be replaced with original parts. Safety tests must be carried out after replacing parts.

  • Page 16: Document Overview

    Document Overview This manual introduces how to use the digital oscilloscope in details. Quick Start Provide information about preparations before using the instrument and a brief introduction of the instrument. Vertical System Introduce the functions of the vertical system of the oscilloscope. Horizontal System Introduce the functions of the horizontal system of the oscilloscope.

  • Page 17: Table Of Contents

    Table of Content Copyright and Declaration ...................... II Introduction ..........................III General Safety Summary ......................IV Precautions for Operation ....................IV Safety Terms and Symbols ....................IV Safety Operation Matters....................V Safety of Electricity ......................VI Safety Transportation Matters ..................II Battery Usage ........................
  • Page 18 Help ............................19 User Interface ........................20 Vertical System .......................... 22 Enable the Channel ......................23 Adjust Scale ......................... 24 Vertical Position ......................... 25 Coupling ..........................25 Bandwidth Limit ......................... 26 Probe ............................. 26 Unit ............................27 Deskew..........................27 Invert ............................. 27 Trace Visible/Hidden ......................
  • Page 19 Video Trigger ....................... 70 Window Trigger ......................74 Interval Trigger ......................77 Dropout Trigger ......................79 Runt Trigger ......................... 82 Pattern Trigger ......................84 Serial Trigger and Decode ...................... 86 I2C Trigger and Serial Decode ..................87 Setup for I2C Signals ....................87 I2C Trigger ........................
  • Page 20 Y Cursors ..........................134 Make Cursor Measurements ..................136 Measure ............................138 Type of Measurement ..................... 139 Voltage Measurements ..................139 Time Measurements ....................141 Delay Measurements ....................142 Add Measurement ......................143 Clear Measurement ......................146 All Measurement ......................146 Gate Measurement ......................
  • Page 21 Navigate ............................. 180 Time Navigate ........................180 History Frame Navigate ....................180 Search Event Navigate ....................181 History ............................182 Meter ............................183 DCV/ACV ..........................185 Resistance .......................... 187 Diode ........................... 188 Continuity ........................... 189 Capacitance ........................190 DCI/ACI ..........................191 Recorder .............................

  • Page 22: Quick Start

    SHS800X User Manual Quick Start This chapter introduces the preparations when using the oscilloscope for the first time, the front panel, rear panel, and the oscilloscope's user interface . The contents of this chapter:  General Inspection  Appearance and Dimensions ...

  • Page 23: Appearance And Dimensions

    SHS800X User Manual Appearance and Dimensions Figure 1 Front View Figure 2 Side view...

  • Page 24: Prepare For Using

    SHS800X User Manual Prepare for Using Adjust the Supporting Leg Properly adjust the supporting leg and place the oscilloscope steadily for better operation and observation of the display screen. Figure 3 Adjust the Supporting Leg Battery Installation When the oscilloscope leaves the factory, the battery and the host are separated. Please install the battery as follows: Remove the three screws on the battery cover with a screwdriver, as shown in Figure 4.

  • Page 25: Connect The Power Supply

    SHS800X User Manual Figure 6 Figure 5 Figure 4 Important tips: Pay attention to the direction of the battery cover, with the serial number at  the bottom. Anti-reverse connection design is adopted for battery slot. Please put the  battery in gently, do not use force.

  • Page 26: Power-On Inspection

    SHS800X User Manual Figure 7 Connect to Power Supply Power-on Inspection When the oscilloscope is energized, press the power key at the lower-left corner of the front panel to start the oscilloscope. During the start-up process, the oscilloscope performs a series of self-tests and you can hear the sound of relay switching.
  • Page 27 SHS800X User Manual under the probe compensation signal output terminal. Use the probe to connect the input terminal of CH1 of the oscilloscope and the “Compensation Signal Output Terminal” of the probe. Press the Auto Setup. Observe the waveform on the display. In normal condition, the display should be a square waveform as shown in the figure below: Figure 8 Function Inspection Use the same method to test the other channels.

  • Page 28: Probe Compensation

    SHS800X User Manual Probe Compensation When the probes are used for the first time, you should compensate the probes to match the input channels of the oscilloscope. Non-compensated or poorly compensated probes may cause measurement inaccuracy or error. The probe compensation procedures are as follows.

  • Page 29: Front Panel Overview

    SHS800X User Manual Front Panel Overview Figure 9 Scope Front Panel Overview Description Description Power Button Universal Knob Vertical Control Trigger Control Dual Function Button Horizontal Control Menu Soft key Single Function Button LCD Display Multimeter Input Analog Channel Input...

  • Page 30: Side Panel Overview

    SHS800X User Manual Side Panel Overview Figure 10 Scope Side Panel Overview Probe Compensation/ Ground Terminal Supplies a 0-5 V, 1 kHz square wave for compensating the probes. USB Host Connect the USB host ports to USB storage devices for data transfer. USB Device The oscilloscope support SCPI remote control commands, user can control the oscilloscope through this interface.

  • Page 31: Rear Panel Overview

    SHS800X User Manual Rear Panel Overview Figure 11 Scope Rear Panel Overview Battery Cover Supporting Leg Adjust the supporting leg properly to use them as stands to tilt the oscilloscope upwards for stable placement of the oscilloscope as well as better operation and observation.

  • Page 32: Front Panel Function Overview

    SHS800X User Manual Front Panel Function Overview Horizontal Horizontal Position Button: adjust horizontal position. Press the button to change the horizontal delay time, waveforms of all channels will move horizontally with the trigger point. Press the Shift + Horizontal Position to quickly reset the horizontal delay to Zero.

  • Page 33: Vertical

    SHS800X User Manual Vertical : Analog input channels. The two channels are marked by different colors which are also used to mark both the corresponding waveforms on the screen and the channel input connectors. Vertical Position Button: adjust the vertical position of the current channel waveform.

  • Page 34: Trigger

    SHS800X User Manual Trigger : press the button to enter the TRIGGER function menu. The oscilloscope provides abundant advanced trigger functions. : press the button and then turn the Universal Knob to adjust the trigger level. During the modification, the trigger level line would move up and down.

  • Page 35: Run Control

    SHS800X User Manual Run Control press the button to set the acquisition state to Run or Stop. In RUN state, the key is illuminated in yellow. In STOP state, the key is illuminated in red. press the button to enable the waveform auto setting function.

  • Page 36: Universal Knob

    SHS800X User Manual Universal Knob Adjust the waveform intensity. You can press the Display/Persist button; press the Next Page soft key to go to the second page of the DISPLAY function menu; press the Intensity soft key and then turn the Universal Knob to adjust the waveform intensity. Select the desired submenu.

  • Page 37: Other Buttons

    SHS800X User Manual Other Buttons Function switching button Press the button to enter scope mode. Press Shift and this button to enter the SEARCH function menu. Press the button to enter meter mode. Press the button to enter the history mode. In history mode, it can record most 80,000 frames waveforms.
  • Page 38 SHS800X User Manual Press the button to enter the ACQUIRE function menu to set the acquisition mode, memory depth, wave interpolation and so Press the button to enter the DISPLAY menu. The second press turn on Persist, press the button again to turn off Persist. Press to enter the UTILITY function menu to look at the system status, do self-calibration, set the sound, language and so on.

  • Page 39: Help

    SHS800X User Manual Help The oscilloscope has an on line help function that supplies multi-language help information. You can access the help function by pressing any button for 2 seconds and a help window will explain the function. Also all of the submenus include help information.

  • Page 40: User Interface

    SHS800X User Manual User Interface Figure 13 User Interface Product Logo RS PRO is the registered trademark of RS Group. Acquisition Status Available trigger status includes Arm, Ready, Trig’d, Auto, Stop, FStop, Roll. Horizontal Time Base Represent the time per grid on the horizontal axis on the screen.
  • Page 41 SHS800X User Manual Trigger Delay Label Indicate the trigger delay on the waveform. Frequency Counter Display the frequency value of the trigger channel. Battery Level Date/Time Trigger Level Label Display the position of trigger level, the color is the same to the trigger channel.

  • Page 42: Vertical System

    SHS800X User Manual Vertical System This chapter introduces how to set the vertical system of the oscilloscope. The contents of this chapter:  Enable the Channel  Adjust Scale  Vertical Position  Coupling  Bandwidth Limit  Probe  Unit ...

  • Page 43: Enable The Channel

    SHS800X User Manual Enable the Channel The SHS800X provides 2 analog input channels and each channel shares same vertical control system. Since vertical system setting methods of each channel is the same, this chapter uses CH1 as an example to introduce the setting method of the vertical system.

  • Page 44: Adjust Scale

    SHS800X User Manual Adjust Scale The vertical scale can be adjusted in Coarse or Fine mode. Coarse adjustment (take counterclockwise as an example): set the vertical  scale in 1-2-5 step namely 2 mV/div, 5 mV/div, 10 mV/div …10 V/div. Fine adjustment: further adjust the vertical scale within a relatively smaller range to improve vertical resolution.

  • Page 45: Vertical Position

    SHS800X User Manual Vertical Position Press the Vertical Position button to adjust the vertical position of the channel waveform. Press up to increase the vertical position and the channel waveform moves up, while press down to decrease the vertical position and the waveform moves down.

  • Page 46: Bandwidth Limit

    SHS800X User Manual Bandwidth Limit Set the bandwidth limit to reduce display noise. For example, the signal under test is a pulse with high frequency oscillation. When the bandwidth limit is set to Full, the high frequency components of the ...

  • Page 47: Unit

    SHS800X User Manual Custom 1000000:1~0.000001:1 You can also customize the probe attenuation factor. Press the Probe softkey, select Custom, and then press the Custom softkey to select Custom or Custom Fine. First, select Custom and turn the Universal Knob to achieve rough adjustment;...

  • Page 48: Trace Visible/Hidden

    SHS800X User Manual settings. Inverting a channel also changes the result of any math function selected and measure function. Press CH1 button on the front panel to enter the CH1 function menu. Press the Next Page softkey to enter the second page of the CH1 function menu.

  • Page 49: Horizontal System

    SHS800X User Manual Horizontal System This chapter introduces how to set the horizontal system of the oscilloscope. The contents of this chapter:  Horizontal Scale  Horizontal Delay  Roll Mode  Zoom Mode...

  • Page 50: Horizontal Scale

    SHS800X User Manual Horizontal Scale Press the Horizontal Scale button on the front panel to adjust the horizontal time base. Press the ns to decrease the horizontal time scale and press the s to increase. The time base information at the upper left corner of the screen will change accordingly during the adjustment.

  • Page 51: Horizontal Delay

    SHS800X User Manual Horizontal Delay Press the Horizontal Position button on the front panel, the trigger point (solid inverted triangle) will move horizontally. The trigger point moves horizontally to the right when press > , while moves to left when press < . Press the Shift and Horizontal Position button to reset the trigger delay.

  • Page 52: Roll Mode

    SHS800X User Manual Roll Mode Press the Acquire button to enter the acquire menu and press the Roll Mode softkey to enable the roll mode. In Roll mode the waveform moves slowly across the screen from right to left. It only operates on time base settings of 50 ms/div or slower.

  • Page 53: Zoom Mode

    SHS800X User Manual Zoom Mode Zoom is a horizontally expanded version of the normal display. You can use Zoom to locate and horizontally expand part of the normal window for a more detailed (higher- resolution) analysis of signals. Press the Shift and Clear Sweep button on the front panel to turn on the zoom function, and press the combination buttons again to turn off the function.
  • Page 54 SHS800X User Manual Position button sets the left- to- right position of the zoom window. The delay value, which is the time displayed relative to the trigger point is momentarily displayed in the upper- right corner of the display when press the Horizontal Position button.

  • Page 55: Acquisition System

    SHS800X User Manual Acquisition System This chapter introduces how to use the acquisition control and set the sampling system of the oscilloscope. The contents of this chapter:  Overview  Memory Depth  Sampling Mode  Interpolation Method  Acquisition Mode ...

  • Page 56: Overview

    SHS800X User Manual Overview To understand the oscilloscope's sampling and acquisition modes, it is helpful to understand sampling theory, sample rate and oscilloscope bandwidth and sample rate. Sampling Theory The Nyquist sampling theorem states that for a limited bandwidth (band- limited) signal with maximum frequency f , the equally spaced sampling frequency f must be greater than twice the maximum frequency f...

  • Page 57: Bandwidth And Sample Rate

    SHS800XUser Manual Waveform Confusion: when the sample rate is lower than twice the actual signal frequency (Nyquist Frequency), the waveform frequency reconstructed from the sample data is lower than the actual signal frequency. The most common aliasing is the jitter on fast edge. Waveform Leakage: when the sample rate is too low, the waveform reconstructed from the sample data cannot reflect all the actual signal information.
  • Page 58 SHS800X User Manual In fact, digital signals have frequency components above the fundamental frequency (a square wave is composed of a sine wave of the fundamental frequency and numerous odd harmonics), and generally, for oscilloscopes with a bandwidth of 500 MHz and below, the system has a Gaussian frequency response.

  • Page 59: Memory Depth

    SHS800X User Manual Memory Depth Memory depth refers to the number of waveform points that the oscilloscope can store in a single trigger sample and it reflects the storage ability of the sample memory. Press the Acquire button on the front panel; press the Mem Depth softkey and then turn the Universal Knob to select the desired value and push down the knob to confirm.

  • Page 60: Sampling Mode

    SHS800X User Manual Sampling Mode The oscilloscope only supports real-time sampling. In this mode, the oscilloscope samples and displays waveform within a trigger event. The maximum real-time sample rate is 1GSa/s. Press the Run/Stop button to stop the sample, and the oscilloscope will hold the last display.

  • Page 61: Interpolation Method

    SHS800X User Manual Interpolation Method Under real-time sampling, the oscilloscope acquires the discrete sample values of the waveform being displayed. In general, a waveform of dots display type is very difficult to observe. In order to increase the visibility of the signal, the digital oscilloscope usually uses the interpolation method to display a waveform.
  • Page 62 SHS800X User Manual Figure 15 Display Type Set to Dots Figure 16 x Interpolation...
  • Page 63 SHS800X User Manual Figure 17 Sinx/x Interpolation...

  • Page 64: Acquisition Mode

    SHS800X User Manual Acquisition Mode The acquisition mode is used to control how to generate waveform points from sample points. The oscilloscope provides the following acquisition mode: Normal, Peak Detect, Average, and ERES. Press the Acquire button on the front panel to enter the ACQUIRE function menu;...

  • Page 65: Peak Detect

    SHS800X User Manual Peak Detect In this mode, the oscilloscope acquires the maximum and minimum values of the signal within the sample interval to get the signal's envelope or the narrow pulse of the signal that might be lost. In this mode, signal confusion can be prevented but the noise displayed would be larger.

  • Page 66: Average

    SHS800X User Manual Figure 20 Pulse With 0.1% Duty, Peak Detect Mode Average In this mode, the oscilloscope averages the waveforms from multiple samples to reduce the random noise of the input signal and improve the vertical resolution. The greater the number of averages is, the lower the noise and the higher the vertical resolution will be.
  • Page 67 SHS800X User Manual Figure 21 With Random Noise, Normal Mode Figure 22 With Random Noise, Average Mode...

  • Page 68: Eres

    SHS800X User Manual ERES This mode uses a kind of ultra-sample technique to average the neighboring points of the sample waveform to reduce the random noise on the input signal and generate much smoother waveforms on the screen. ERES mode is generally used when the sample rate of the digital converter is higher than the storage rate of the acquisition memory.

  • Page 69: Horizontal Format

    SHS800X User Manual Horizontal Format Press the Acquire button on the front panel; then press the XY soft key to set the XY(On) or YT(Off) mode. The default setup is YT. It is the normal viewing mode for the oscilloscope. In the Normal time mode, signal events occurring before the trigger are plotted to the left of the trigger point and signal events after the trigger plotted to the right of the trigger point.
  • Page 70 SHS800X User Manual If the principal axis of the ellipse is within quadrant I and III, the phase deviation angle obtained should be within quadrants I and IV, namely within (0 to π/2) or (3π/2 to 2π). Suppose the principal axis of the ellipse is within quadrant II and IV. In that case, the phase deviation angle obtained should be within quadrant II and III, namely within (π/2 to π) or (π...

  • Page 71: Sequence Mode

    SHS800X User Manual Sequence Mode Sequence is also a kind of acquisition mode, which does not display waveform during the sampling process. It improves the waveform capture rate, and the maximal capture rate is 400,000 wfs/s. So it can capture the small probability event effectively.
  • Page 72 SHS800X User Manual Figure 24 HISTORY Function Menu Press the List softkey to turn on the list display. The list records the acquisition time of every frame and shows the frame number that displaying on the screen. Press the Frame No. softkey; and then turn the Universal Knob to select the frame to display.

  • Page 73: Trigger

    SHS800X User Manual Trigger For trigger, you set certain trigger condition according to the requirement. When a waveform in the waveform stream meets this condition, the oscilloscope captures this waveform and the neighboring part and displays them on the screen. Still, the digital oscilloscope displays waveform continuously no matter whether it is stably triggered, but only stable trigger can ensure stable display.
  • Page 74 SHS800X User Manual The contents of this chapter:  Trigger Source  Trigger Mode  Trigger Level  Trigger Coupling  Trigger Holdoff  Noise Rejection  Trigger Type...

  • Page 75: Trigger Source

    SHS800X User Manual Trigger Source Press the Trigger Setup button on the front panel to enter the TRIGGER function menu; press the Source softkey and then turn the Universal Knob to select the desired trigger source. The current trigger source is displayed at the bottom of the screen. Select channel with signal input as trigger source to obtain stable trigger.

  • Page 76: Trigger Mode

    SHS800X User Manual Trigger Mode The SHS800X/SHS1000X’s trigger mode includes auto, normal, single and Force. Trigger mode affects how the oscilloscope searches for the trigger After the oscilloscope starts running, the oscilloscope operates by first filling the pre-trigger buffer. It starts searching for a trigger after the pre-trigger buffer is filled and continues to flow data through this buffer while it searches for the trigger.
  • Page 77 SHS800X User Manual To capture single event or a periodic signal.  To capture burst or other unusual signals.  In the Force trigger mode, when the trigger condition is not met, it will be  force triggered after the frame is acquired. The trigger status in the upper left corner of the screen will be displayed as "FStop".

  • Page 78: Trigger Level

    SHS800X User Manual Trigger Level Trigger level and slope define the trigger point, You can adjust the trigger level for a selected analog channel by pressing the Trigger Level button and turning the Universal Knob. You can push the Universal Knob to set the level to the waveform's 50% value immediately.

  • Page 79: Trigger Coupling

    SHS800X User Manual Trigger Coupling Press the Trigger Setup button on the front panel to enter the TRIGGER function menu. Then, press the Coupling softkey and turn the Universal Knob or press the Coupling softkey continually to select the desired coupling mode. The oscilloscope provides 4 kinds of trigger coupling modes: DC: allow DC and AC components into the trigger path.

  • Page 80: Trigger Holdoff

    SHS800X User Manual Trigger Holdoff Trigger holdoff can be used to stably trigger the complex waveforms (such as pulse series). Holdoff time is the amount of time that the oscilloscope waits before re-arming the trigger circuitry. The oscilloscope will not trigger until the holdoff time expires.

  • Page 81: Noise Rejection

    SHS800X User Manual Noise Rejection Noise Reject adds additional hysteresis to the trigger circuitry. By increasing the trigger hysteresis band, you reduce the possibility of triggering on noise. However, this also decreases the trigger sensitivity so that a slightly larger signal is required to trigger the oscilloscope.
  • Page 82 SHS800X User Manual Figure 26 Turn on the Noise Reject If the signal you are probing is noisy, you can set up the oscilloscope to reduce the noise in the trigger path and on the displayed waveform. First, stabilize the displayed waveform by removing the noise from the trigger path.

  • Page 83: Trigger Type

    SHS800X User Manual Trigger Type The oscilloscope provides abundant advanced trigger functions, including various serial bus triggers.  Edge trigger  Slope trigger  Pulse trigger  Video trigger  Window trigger  Interval trigger  Dropout trigger  Runt trigger ...

  • Page 84: Edge Trigger

    SHS800X User Manual Edge Trigger Edge trigger distinguishes the trigger points by seeking the specified edge (rising, falling, alternating) and trigger level. Press the Trigger Setup button on the front panel to enter the TRIGGER system function menu. Press the Type softkey; turn the Universal Knob to set select Edge and then push the knob to confirm.
  • Page 85 SHS800X User Manual Figure 27 Edge Trigger Holdoff, coupling and noise reject can be set in edge trigger, see the sections “Trigger Holdoff”, "Trigger Coupling" and "Noise Rejection" for details. Note: Press the Auto Setup button will set the trigger type to Edge and slope to rising.

  • Page 86: Slope Trigger

    SHS800X User Manual Slope Trigger The slope trigger looks for a rising or falling transition from one level to another level in greater than or less than a certain amount of time. In the oscilloscope, positive slope time is defined as the time difference between the two crossing points of trigger level line A and B with the positive edge as shown in the figure below.
  • Page 87 SHS800X User Manual Figure 28 Slope Trigger Press the Limit Range softkey; then turn the Universal Knob to select the desired slope condition, and push down the knob to confirm. <= (less than a time value): trigger when the input signal's positive or ...

  • Page 88: Pulse Trigger

    SHS800X User Manual Pulse Trigger Trigger on the positive or negative pulse with a specified width. Press the Trigger Setup button on the front panel to enter the TRIGGER function menu. Press the Type softkey; turn the Universal Knob to select Pulse and then push the knob to confirm.
  • Page 89 SHS800X User Manual [--,--] (within a range of time value):trigger when the input signal's  positive or negative pulse time is greater than the specified lower limit of time and lower than the specified upper limit of time value. For example, for a positive pulse, if you set t (pulse real width) ≥100ns and t ≤...

  • Page 90: Video Trigger

    SHS800X User Manual Video Trigger Video triggering can be used to capture the complicated waveforms of most standard analog video signals. The trigger circuitry detects the vertical and horizontal interval of the waveform and produces triggers based on the video trigger settings you have selected.
  • Page 91 SHS800X User Manual (line value)/7 (line value)/8 The table below takes Of Lines as 800 as an example to explain the relation between Of Lines, Of Fields, Interlace, Trigger Line and Trigger Field. Of Lines Of Fields Interlace Trigger Line Trigger Field 1,2,4 or 8 1, 1~2, 1~4, 1~8...
  • Page 92 SHS800X User Manual then turn the universal to select 1 and push the knob to confirm; press the Field softkey and then turn the Universal Knob to select 1 and push the knob to confirm Figure 30 Video Trigger To Use Custom Video Trigger Custom video trigger supports frame rate of 25Hz, 30Hz, 50Hz and 60Hz, and the line range is available from 300 to 2000.
  • Page 93 SHS800X User Manual Knob to select the desired value. Press the Field softkey; turn the Universal Knob to select the desired value.

  • Page 94: Window Trigger

    SHS800X User Manual Window Trigger Windows trigger provides a high trigger level and a low trigger level. The instrument triggers when the input signal passes through the high trigger level or the low trigger level. There are two kinds of window types: Absolute and Relative. They have different trigger level adjustment methods.
  • Page 95 SHS800X User Manual position. The trigger level values are displayed at the upper right corner of the screen. The Lower trigger level cannot be upper than the upper trigger level. Figure 31 Absolute Window Trigger To set window trigger via Relative window type: Press the Trigger Setup button on the front panel to enter the TRIGGER system function menu.
  • Page 96 SHS800X User Manual Figure 32 Relative Window Trigger Coupling and noise reject can be set in Window trigger, see the sections "Trigger Coupling" and "Noise Rejection" for details.

  • Page 97: Interval Trigger

    SHS800X User Manual Interval Trigger Trigger when the times difference between the neighboring rising or falling edges meets the time limit (<=, >=, [--,--], --][--). To set interval trigger: Press the Trigger Setup button on the front panel to enter the TRIGGER system function menu.
  • Page 98 SHS800X User Manual Figure 33 Interval Trigger Coupling and noise reject can be set in interval trigger, see the sections "Trigger Coupling" and "Noise Rejection" for details.

  • Page 99: Dropout Trigger

    SHS800X User Manual Dropout Trigger Dropout trigger includes two types: edge and state. Edge Trigger when the time interval (△T) from when the rising edge (or falling edge) of the input signal passes through the trigger level to when the neighboring rising edge (or falling edge) passes through the trigger level is greater than the timeout time set, as shown in the figure below.
  • Page 100 SHS800X User Manual Figure 34 Edge Dropout Trigger To set state Dropout trigger: Press the Trigger Setup button to enter the TRIGGER system function menu. Press the Type softkey; then turn the Universal Knob to select Dropout and push down the knob to confirm. Press the Source softkey;...
  • Page 101 SHS800X User Manual Figure 35 State Dropout Trigger Coupling and noise reject can be set in dropout trigger, see the sections "Trigger Coupling" and "Noise Rejection" for details.

  • Page 102: Runt Trigger

    SHS800X User Manual Runt Trigger The Runt trigger looks for pulses that cross one threshold but not another as shown in the picture below. A positive runt pulse across through a lower threshold but not an upper  threshold. A negative runt pulse across through an upper threshold but not a lower ...
  • Page 103 SHS800X User Manual Figure 36 Runt Trigger Coupling and noise reject can be set in runt trigger, see the sections "Trigger Coupling" and "Noise Rejection" for details.

  • Page 104: Pattern Trigger

    SHS800X User Manual Pattern Trigger The Pattern trigger identifies a trigger condition by looking for a specified pattern. The pattern trigger can be expanded to incorporate delays similar to other triggers. Pattern durations are evaluated using a timer. The timer starts on the last edge that makes the pattern “true”.
  • Page 105 SHS800X User Manual need to set trigger level. Press the Next Page softkey to enter the second page of the pattern trigger menu. Press the Logic softkey and then turn the Universal Knob to select the desired logic combination AND, OR, NAND or NOR. Press the Time softkey;...

  • Page 106: Serial Trigger And Decode

    SHS800X User Manual Serial Trigger and Decode The oscilloscope provides I2C, SPI, UART, CAN and LIN serial trigger and decode. This chapter introduces the method of triggering and decoding these serial signals in details. The contents of this chapter:  I2C Trigger and Decode ...

  • Page 107: I2C Trigger And Serial Decode

    SHS800X User Manual I2C Trigger and Serial Decode Please in order of “Setup for I2C Signals”, “I2C Trigger” and “I2C Serial Decode” to trigger and decode the signals. Setup for I2C Signals Setting the I2C (Inter-IC bus) signal includes two steps: connecting the serial data signal (SDA) and serial clock signal (SCK) to oscilloscope, specifying the threshold voltage of each input signal.

  • Page 108: I2C Trigger

    SHS800X User Manual will be interpreted as a start or stop condition (data transitioning while the clock is high)) Press the softkey to return previous menu. I2C Trigger This part introduces the nine kinds of trigger conditions (Start, Stop, Restart, No Ack, EEPROM, 7 Addr&Data, 10 Addr&Data and Data Length) and the methods of setting them.
  • Page 109 SHS800X User Manual 7 Address & Data — the oscilloscope will be triggered when the following  conditions are satisfied. The address’s length must be 7 bits and the address’s value is the same  as set value. If you have set either Data1’s or Data2’s value, and the signal has a data ...

  • Page 110: Operation Steps

    SHS800X User Manual is the same as that value. If you have set both Data1’s and Data2’s value, the signal should has two consecutive data, the first data’s value is Data1, second data value is Data2. (Note: If the set value is 0xXX, any data value will be matched) Data Length —...
  • Page 111 SHS800X User Manual Press the Addr softkey and turn the Universal Knob to select the 7- bit or 10- bit device address. Press the Data1 or Data2 softkey and set the value about them. Press the R/W bit softkey and select write-frame or read-frame to trigger the oscilloscope.

  • Page 112: I2C Serial Decode

    SHS800X User Manual I2C Serial Decode After completing the setup of I2C signal and trigger, we will decode I2C signals. Operation steps as follows. Press Shift and Print→ Decode. Select one of the options from the Decode1 and Decode2. Press the Display and select On to display the result of decoding. Press the Configure to turn on or off the read or write bit.
  • Page 113 SHS800XUser Manual Figure 41 I2C Decode Bus Display The lists of decoding result: Time — the horizontal displacement between current frame and trigger  position. Address — the address of a frame.  R/W — the type of a frame (write or read). ...

  • Page 114: Spi Trigger And Serial Decode

    SHS800X User Manual SPI Trigger and Serial Decode Please in order of “Setup for SPI Signals”, “SPI Trigger” and “SPI Serial Decode” to trigger and decode the signals. Setup for SPI Signals Setting the SPI (Serial Peripheral Interface) signal includes two steps: connecting the CLK, MISO, MOSI and CS signals to oscilloscope;...
  • Page 115 SHS800X User Manual Figure 45 MISO Menu Set MOSI: Press the MOSI softkey to enter the MOSI menu. Press the MOSI softkey to select the channel that is connected to the SPI MOSI signal. Press the Threshold softkey to set the SPI MOSI signal’s threshold voltage level by Universal Knob.
  • Page 116 SHS800X User Manual If the data width is set to be greater than 8 bits (such as 16 bits), the clock idle time between 8-bit data packets T2, and then set the timeout time to a value between T1/2+T2 and T3.
  • Page 117 SHS800X User Manual...

  • Page 118: Spi Trigger

    SHS800X User Manual SPI Trigger This part will provide a brief introduction and description for the operation of the SPI trigger. Press the Trigger Setup button to enter the TRIGGER function menu. Press the Type and select Serial. Press the Protocol and select SPI. Press the Trigger Setting softkey.

  • Page 119: Spi Serial Decode

    SHS800X User Manual SPI Serial Decode After completing the setup of SPI signal and trigger, we will decode SPI signals. Operation steps as follows. Press Shift and Print → Decode. Select one of the options from the Decode1 and Decode2. Press the Configure to set the bit stream format and bits (4-32 bits) Press the Display and select On to display the result of decoding.
  • Page 120 SHS800X User Manual Figure 48 SPI Decode Bus Display The lists of decoding result: Time — the horizontal displacement between current frame and trigger  position. MISO — the decoding result of “Master-In, Slave-Out” line.  MOSI —the decoding result of “Master-Out, Slave-In” line. ...

  • Page 121: Uart Trigger And Serial Decode

    SHS800X User Manual UART Trigger and Serial Decode Please in order of “Setup for UART Signals”, “UART Trigger” and “UART Serial Decode” to trigger and decode the signals. Setup for UART Signals Press the Shift and Print button to enter the DECODE function menu. Press the Decode softkey and select the desired slot (Decode1 or Decode2).
  • Page 122 SHS800X User Manual 12. Press the Stop Bit softkey to set the length of stop bit (1, 1.5 or 2 bits). 13. Press the Next Page softkey. 14. Press the Bit Order softkey to select the bit order (LSB or MSB). 15.

  • Page 123: Uart Trigger

    SHS800X User Manual UART Trigger This part shows a brief introduction and description for the operation of the UART trigger. Press the Trigger Setup button to enter the TRIGGER function menu. Press the Type and select Serial. Press the Protocol and select UART. Press the Trigger Setting softkey to enter UART TRIG SET menu.

  • Page 124: Uart Serial Decode

    SHS800X User Manual UART Serial Decode After completing the setup of UART signal and trigger, we will decode UART signals. Operation steps as follows. Press Shift and Print → Decode. Select one of the options from the Decode1 and Decode2. Press the Display and select On to display the result of decoding.
  • Page 125 SHS800X User Manual The lists of decoding result: Time— the horizontal displacement between current frame and trigger  position. RX — the receiving channel.  TX — the transmitting channel.  RX Err— Parity error or unknown error in the data received. ...

  • Page 126: Can Trigger And Serial Decode

    SHS800X User Manual CAN Trigger and Serial Decode Please in order of “Setup for CAN Signals”, “CAN Trigger” and “CAN Serial Decode” to trigger and decode the signals. Setup for CAN Signals Press the Shift and Print button to enter the DECODE function menu. Press the Decode softkey and select the desired slot (Decode1 or Decode2).

  • Page 127: Can Trigger

    SHS800X User Manual CAN Trigger This part will provide a brief introduction and description for the operation of the CAN trigger. Trigger Conditions Start— the oscilloscope will be triggered at the start bit of a frame.  Remote — the oscilloscope will be triggered by a remote frame with specified ...

  • Page 128: Can Serial Decode

    SHS800X User Manual CAN Serial Decode After completing the setup of can signal and trigger, we will decode CAN signals. Operation steps as follows. Press Shift and Print → Decode. Select one of the options from the Decode1 and Decode2. Press the Display and select On to display the result of decoding.
  • Page 129 SHS800X User Manual The list of decoding result: Time— the horizontal displacement between current frame and trigger  position. Type — the type of frames, “D” represents data frame, “R” represents  remote frame. ID — the id of frames, the oscilloscope can automatically detect the length ...

  • Page 130: Lin Trigger And Serial Decode

    SHS800X User Manual LIN Trigger and Serial Decode Please take the order of “Setup for LIN Signals”, “LIN Trigger” and “LIN Serial Decode” to trigger and decode the signals. Setup for LIN Signals There are two steps of setting the LIN signal, connecting the signal to oscilloscope, and specifying each input signal's parameters.

  • Page 131: Lin Trigger

    SHS800X User Manual LIN Trigger This part will provide a brief introduction and description for the operation of the LIN trigger. Trigger Conditions Break — the oscilloscope will be triggered at the position of break field’s  break delimiter. ID (Frame ID) — the oscilloscope will be triggered at the position of identifier ...

  • Page 132: Lin Serial Decode

    SHS800X User Manual LIN Serial Decode After completing the setup of LIN signal and trigger, we will decode LIN signals. Operation steps as follows. Press Shift and Print → Decode. Select one of the options from the Decode1 and Decode2. Press the Display and select On to display the result of decoding.
  • Page 133 SHS800X User Manual Figure 59 LIN Decode Bus Display The list of decoding result: Time— the horizontal displacement between current frame and trigger  position. ID — the value of frame’s Protected Identifier Field.  Data Length — the length of Data Field. ...

  • Page 134: Reference Waveform

    SHS800X User Manual Reference Waveform The oscilloscope can save the analog channel waveform or math waveform to the reference waveform position in the oscilloscope. Then, a reference waveform can be displayed and compared against other waveforms. All reference waveforms can be displayed at a time. The contents of this chapter: ...

  • Page 135: Save Ref Waveform To Internal Memory

    SHS800X User Manual Save REF Waveform to Internal Memory Do the following steps to save the REF waveform to internal memory: Press the Shift and Hide Menu button on the front panel to enter the REF WAVE function menu. Note that when the time horizontal format is in X-Y mode, REF function cannot be enabled.

  • Page 136: Adjust Ref Waveform

    SHS800X User Manual Adjust REF Waveform Please refer to the “Display REF Waveform” above to display the desired reference waveform. Press the Scale and Position softkey and turn the Universal Knob to adjust the vertical scale and position of the reference waveform. The vertical scale and position information display at the middle of the screen.

  • Page 137: Clear Ref Waveform

    SHS800X User Manual Clear REF Waveform The oscilloscope does not have the “Clear” option under the REF WAVE function menu. To clear the appointed reference waveform, you can save a new reference waveform to the same location to cover it. Or follow the Shift + Cursors → Recall →...

  • Page 138: Math

    SHS800X User Manual Math The oscilloscope supports many math operations between analog channels including addition (+), subtraction (-), multiplication (*), division (/), FFT, differential (d/dt), integral (∫dt), square root (√). The resulting math waveform is displayed in white and labeled with “M”. You can use cursors to measure it. The contents of this chapter: ...

  • Page 139: Units For Math Waveforms

    SHS800X User Manual Units for Math Waveforms Use the channel function menu to set the unit of each channel to “V” or “A”. The oscilloscope math operation includes units as below: Math Operation Unit Addition (+)or subtraction (-) V, A multiplication (*) 2, A 2 or W...

  • Page 140: Math Operators

    SHS800X User Manual Math Operators The oscilloscope supports math count operation (Addition, subtraction, multiplication, division), FFT (Fourier transform) operation and math function operation (differential, integral, square root). Addition or Subtraction Math operators perform arithmetic operations add or subtract operation on any two analog input channels.
  • Page 141 SHS800X User Manual Figure 62 C1+C2 Waveform If you want to invert the math waveform, press the Invert button and set the option to On to invert the display of the math waveform.

  • Page 142: Multiplication And Division

    SHS800X User Manual Multiplication and Division Math operators perform arithmetic operations multiplication or division operation on any two analog input channels. When you select multiplication or division, the Source A and Source B values are multiplied or divided point by point and the result is displayed.

  • Page 143: Fft Operation

    SHS800X User Manual FFT Operation FFT is used to compute the fast Fourier transform using analog input channels. FFT takes the digitized time record of the specified source and transforms it to the frequency domain. When the FFT function is selected, the FFT spectrum is plotted on the oscilloscope display as magnitude in dBV versus frequency.
  • Page 144 SHS800X User Manual and their characteristics. Please read the table below carefully to make an appropriate option according to the input signal. Window Applications and Characteristics These are normally used when the signal is transient (completely contained in the time-domain window) or known Rectangle to have a fundamental frequency component that is an integer multiple of the fundamental frequency of the window.
  • Page 145 SHS800X User Manual logarithmic scale or a linear scale to display vertical amplitude respectively. Press the Ext Lode softkey and then turn the Universal Knob to select the  external load value. Press the Horizontal softkey to enter HORIZONTAL menu. Figure 67 HORIZONTAL Menu Press the Center softkey, and then turn the Universal Knob to select the ...
  • Page 146 SHS800X User Manual Figure 70 FFT Markers Menu Press Markers Control softkey to enter MARKER Menu.  Figure 71 Marker Control Menu Press the Marker softkey continuously to select the marker number from NO.1~NO.8 Press the Show Marker softkey continuously to turn on or off the selected mark.
  • Page 147 SHS800X User Manual Figure 72 FFT Waveform Note: Signals with DC components or deviation would cause error or deviation of  the FFT waveform components. To reduce the DC components, set the Channel Coupling to AC. To reduce the random noise and aliasing frequency components of repetitive ...
  • Page 148 SHS800X User Manual...

  • Page 149: Math Function Operation

    SHS800X User Manual Math Function Operation The oscilloscope supports math function operation including differential (d/dt), integral (∫dt) and square root ( Differentiate d/dt (differentiate) calculates the discrete time derivative of the selected source. y (i+dx) – y(i) di = Where: d = differential waveform ...
  • Page 150 SHS800X User Manual Figure 73 Difference Function Operation You can use differentiate to measure the instantaneous slope of a waveform. For example, the slew rate of an operational amplifier may be measured using the differentiate function Note: Because differentiation is very sensitive to noise, it is helpful to set acquisition mode to Average.

  • Page 151: Integrate

    SHS800X User Manual Integrate dt (integrate) calculates the integral of the selected source. You can use integrate to calculate the energy of a pulse in volt- seconds or measure the area under a waveform. dt plots the integral of the source using the "Trapezoidal Rule". The equation is: ...
  • Page 152 SHS800X User Manual Figure 74 Integral without Offset Figure 75 Integral with Offset...

  • Page 153: Square Root

    SHS800X User Manual Square Root Square root ( ) calculates the square root of the selected source. Where the transform is undefined for a particular input, holes (zero values) appear in the function output. Figure 76 Square Root...

  • Page 154: Cursors

    SHS800X User Manual Cursors Cursors are horizontal and vertical markers that indicate X- axis values and Y- axis values on a selected waveform source. You can use cursors to make custom voltage, time measurements on oscilloscope signals. X Cursors X cursors are vertical dashed lines that adjust horizontally and can be used to measure time (when the source is FFT waveform, X cursors measure frequency).
  • Page 155 SHS800X User Manual Use the Universal Knob to set the Y1 and Y2 cursor values and the values are displayed in the cursors box in the top left corner of the screen along with the difference between Y1 and Y2 (△Y). When set cursor type to Y2-Y1, use Universal Knob will move the Y1 and Y2 cursors together.

  • Page 156: Make Cursor Measurements

    SHS800X User Manual Make Cursor Measurements Press the Cursors button on the front panel to enter the CURSOR function menu. Press the Mode softkey and set the cursors mode to Manual or Track. Press the Source softkey, and then use the Universal Knob to select the desired source.
  • Page 157 SHS800X User Manual Figure 77 Measure Pulse Width...

  • Page 158: Measure

    SHS800X User Manual Measure The oscilloscope provides measurements of 38 waveform parameters and the statistics. It contains voltage, time and delay parameters. Voltage and time parameters are under Type option. The results of the last four selected measurements are displayed at the bottom of screen and above the menu.

  • Page 159: Type Of Measurement

    SHS800X User Manual Type of Measurement Voltage Measurements Voltage measurements include 17 kinds of voltage parameter measurements. Figure 78 Voltage Measurements Peak-Peak: Difference between maximum and minimum data values. Maximum: Highest value in input waveform. Minimum: Lowest value in input waveform. Amplitude: Difference between top and base in a bimodal signal, or between max and min in a unimodal signal.
  • Page 160 SHS800X User Manual Figure 79 Overshoot 14. Preshoot: Preshoot is distortion that precedes a major edge transition expressed as a percentage of Amplitude. The X cursors show which edge is being measured (edge closest to the trigger reference point). Figure 80 Preshoot 15.

  • Page 161: Time Measurements

    SHS800X User Manual Time Measurements Time measurements include 11 kinds of time parameter measurements. Figure 81 Time Measurements Period: Period for every cycle in waveform at the 50% level, and positive slope. Frequency: Frequency for every cycle in waveform at the 50% level ,and positive slope + Width: Width measured at 50% level and positive slope.

  • Page 162: Delay Measurements

    SHS800X User Manual Delay Measurements Delay measurements measure the time different between arbitrary two channels, including 10 kinds of delay measurements. Phase: Calculate the phase difference between two edges. FRFR: Time between the first rising edges of the two channels. FRFF: Time from the first rising edge of channel A to the first falling edge of channel B.

  • Page 163: Add Measurement

    SHS800X User Manual Add Measurement Perform the steps below and select voltage or time parameters to make automatic measurement. Press the Measure button on the front panel to enter the MEASURE function menu. At the same, the frequency and period are enabled with the current trigger channel, the statistics also was enabled.
  • Page 164 SHS800X User Manual Figure 82 Select the Measurement Parameter...
  • Page 165 SHS800X User Manual Figure 83 Added the Measurement Note: if the parameter does not match the measure condition, it will display as “****”.

  • Page 166: Clear Measurement

    SHS800X User Manual Clear Measurement Press the Clear softkey to clear all the measurement parameters that are displaying on the screen. All Measurement All measurement could measure all the voltage and time parameters of the current measurement source and display the results on the screen. Figure 84 All Parameters Measurement Do the following steps to make all parameters measurement.
  • Page 167 SHS800X User Manual Press the Source softkey to select the measure source.

  • Page 168: Gate Measurement

    SHS800X User Manual Gate Measurement SHS800X support gate measurement perform selected measurement within the upper and lower limits of the gate. Setting the gate will affect the measurement of all voltage, time, and delay parameters. Press Measure → Gate → On to open the gate measurement. Press the Gate A to move the position of gate A by the Universal Knob.

  • Page 169: Display

    SHS800X User Manual Display You can set the display type, color, persistence, grid type, waveform intensity, grid brightness and transparence. The contents of this chapter:  Display Type  Color Grade  Persistence  Clear Display  Grid Type  Intensity ...

  • Page 170: Display Type

    SHS800X User Manual Display Type Press the Display/Persist button on the front panel, and then press the Type softkey to select Vectors or Dots display type. Vectors: the sample points are connected by lines and displayed. Normally,  this mode can provide the most vivid waveform to view the steep edge of the waveform (such as square waveform).

  • Page 171: Color Grade

    SHS800X User Manual Figure 87 Dots Display Color Grade Color temperature adopts the change of waveforms’ color to reflect the change of the waveforms’ appearing probability. The greater the probability that the waveform appears, the warmer the color is; the smaller the waveform appears, the colder the color is.

  • Page 172: Persistence

    SHS800X User Manual Figure 88 Color Temperature Persistence With persistence, the oscilloscope updates the display with new acquisitions, but does not immediately erase the results of previous acquisitions. All previous acquisitions are displayed with reduced intensity. New acquisitions are shown in their normal color with normal intensity.

  • Page 173: Clear Display

    SHS800X User Manual Figure 89 Persist Set to Infinite When the Persist is On, press the Clear Persist softkey to erase the results of previous acquisitions from the display. The oscilloscope will start to accumulate acquisitions again. To return to the normal display mode, turn off persist and the previous acquisitions will be clear at once.

  • Page 174: Grid Type

    SHS800X User Manual Grid Type To select grid type Press the Display/Persist button on the front panel to enter the DISPLAY function menu. Press the Next Page softkey to go to the second page of the Display function menu. Press the Grid softkey; and then turn the Universal Knob to select the desired grid type.

  • Page 175: Grid Brightness

    SHS800X User Manual Grid Brightness Do the following steps to adjust the grid brightness: Press the Display/Persist button on the front panel to enter the DISPLAY function menu. Press the Next Page softkey to go to the second page of the Display function menu.
  • Page 176 SHS800X User Manual menu. Press the LCD Light softkey; and then turn the Universal Knob to select the desired value.

  • Page 177: Save And Recall

    SHS800X User Manual Save and Recall Oscilloscope setups, waveforms, pictures, and CSV files can be saved to internal oscilloscope memory or to a USB storage device. The saved setups, waveforms can be recalled later. The oscilloscope provides an USB Host interface on the side panel to connect an USB device for external storage.

  • Page 178: Save Type

    SHS800X User Manual Save Type The oscilloscope supports setups, waveforms, images and CSV files storage. The default save type is setups. 1. Setups It’s the default storage type of the oscilloscope. It saves the settings of the oscilloscope in internal or external memory in “*.xml” format. The stored settings can be recalled.
  • Page 179 SHS800X User Manual 8. Matlab The oscilloscope saves the waveform data in “*.DAT” format. The data of all the channels turned on can be saved in the same file. The recall of Matlab file is not supported. 9. To Default Key The oscilloscope saves the factory config and user set config.

  • Page 180: Save And Recall File

    SHS800X User Manual Save and Recall File The Oscilloscope can store files to internal memory or external USB storage device. External storage supports all the save types of files, but in recall, images and CSV are not supported. If you want to save it externally, insert the USB flash drive into the USB Host interface of the side panel.
  • Page 181 SHS800X User Manual to save the file. When the save type is "To Default Key", press F3 to select "Current Setup" or "Factory Setup", and then press the Press to Save softkey to save. Recall file  Figure 91 Recall Type Press Shift and Cursors button on the front panel to enter the SAVE/RECALL function menu.

  • Page 182: File Manager

    SHS800X User Manual softkey to delete all files in the local internal memory, and it will pop up the prompt “Security erase completed”. File Manager In addition to save and recall files, the file manager also supports the operations of creating, deleting, renaming, copying, cutting and pasting files. Figure 92 File Manager Create new file and folder ...
  • Page 183 SHS800X User Manual the box as shown as the figure below. Figure 93 Input Keyboard To delete the name in the name input area, press the Backspace softkey continuously to delete the character one by one. Turn the Universal Knob to enter a new name, and then select "SHS1000X_TEST".
  • Page 184 SHS800X User Manual Copy file and folder  Press the File Manager softkey to enter the file manager. Turn the Universal Knob to select the file or folder to be copied, and press the Copy softkey. Turn and press the Universal Knob to select the desired location. Press the Paste softkey, and the file or folder will be copied successfully.

  • Page 185: System Setting

    SHS800X User Manual System Setting This function module supports the oscilloscope’s system-related function, such as system status, language, sound, and other advanced settings, such as do self-cal, update and remote interface configure. The contents of this chapter:  View System Status ...

  • Page 186: View System Status

    SHS800X User Manual View System Status Do the following steps to view the system status: Press the Utility button on the front to enter the UTILITY function menu. Press the System Status softkey to view the system status of the oscilloscope. The system status includes the information below: Startup Times: record the boot-strap times of the oscilloscope.

  • Page 187: Do Self Cal

    SHS800X User Manual Do Self Cal The self-calibration program can quickly make the oscilloscope reach the best working state to get the most precise measurement values. You can perform self-calibration at any time, especially when the environment temperature change is up to or more than 5 ℃. Ensure that the oscilloscope has been warmed up or operated for more than 30 minutes before the self-calibration.

  • Page 188: Quick-Cal

    SHS800X User Manual Quick-Cal Quick calibration can correct the measurement deviation caused by temperature to get more accurate measurements. If the ambient temperature of your current operating oscilloscope is unstable, press Utility → Quick-Cal softkey to select On to enable quick calibration. Sound When the sound is enabled, you can hear the sound of the beeper when you press a function key or a menu softkey or when the prompt message pops up.
  • Page 189 SHS800X User Manual Do the following steps to update the firmware: Insert the USB flash driver which with the firmware and the configure files inside into the USB host interface on the side panel of the oscilloscope. Press the Utility button on the front panel to enter the UTILITY function menu. Press the Next Page softkey to go to the third page of the UTILITY function menu.

  • Page 190: Do Self-Test

    SHS800X User Manual Do Self-Test Self-tests include screen test, keyboard test, and LED test. Self-tests used to test the screen, buttons, knobs and LED lights whether works well. Screen Test Press the Utility button on the front panel to enter the UTILITY function menu. Press the Next Page softkey to go to the third page of the UTILITY function menu.

  • Page 191: Keyboard Test

    SHS800X User Manual Keyboard Test Keyboard test is used to test that if the keys or the knobs work well. Do the following steps to do keyboard test: Press the Utility button on the front panel to enter the UTILITY function menu. Press the Next Page softkey to go to the third page of the UTILITY function menu.

  • Page 192: Led Test

    SHS800X User Manual LED Test LED test is used to test that if the button lights work well. Press the Utility button on the front panel to enter the UTILITY function menu. Press the Next Page softkey to go to the third page of the UTILITY function menu.

  • Page 193: Screen Saver

    SHS800X User Manual Screen Saver When the oscilloscope enters the idle state and holds for a certain period of time, the screen saver program will be enabled. Do the following steps to set the screen saver time: Press the Utility button on the front panel to enter the UTILITY function menu. Press the Next Page softkey to go to the third page of the UTILITY function menu.

  • Page 194: Date/Time

    SHS800X User Manual Date/Time SHS800X supports setting date and time. After restarting the oscilloscope, you need to reset the system time. Press Utility → NextPage2/3 → Date/Time to enter the DATA/TIME function menu. Press the Display softkey to select On to display the date and time. Figure 100 Date/Time Function Interface Set Date/Time Press the Date/Time softkey to enter the Data/Time setting menu.

  • Page 195: Set Time Zone

    SHS800X User Manual Set Time Zone Press the Time Zone softkey to enter the Time Zone function menu, and pop up time zone page. Rotate the Universal Knob to select the time zone. Press the Confirm softkey to confirm the selection. Figure 102 Time Zone Setting Interface...

  • Page 196: Reference Position

    SHS800X User Manual Reference Position The reference position setting determines the physical point that the oscilloscope uses during vertical and horizontal scale changes. In some situations, it is more convenient to use a fixed position on the display. Press the Utility button on the front panel and then press the Reference Pos. softkey to enter the Reference POS menu.

  • Page 197: Search

    SHS800X User Manual Search SHS800X provides search function. This function can search for the events that users specify in the acquired data, the results are displayed with black triangle symbol. In the YT mode or the Roll mode with the acquisition in stop, the maximum search events number is 600.

  • Page 198: Results

    SHS800X User Manual Press the Setting softkey to enter the SETTING function menu. The setting menu is different according to every search type. The details show as the following table. Search Mode Setting Menu Description Edge Slope includes Rising, Falling, Either. Slope Slope includes Rising, Falling Limit Range includes four types: <=, >=, [--,--] and --] [--, Users...
  • Page 199 SHS800X User Manual Figure 104 Search in Run When the acquisition is stop, “EVENT NUM: 4/7” means current event number/total events number, the current event is the closest event to the middle of the screen. Figure 105 Search in Stop...

  • Page 200: Navigate

    SHS800X User Manual Navigate SHS800X provides three navigate type: Search Event, Time, History Frame. Time Navigate Press the Shift and Recorder button on the front panel to enter the NAVIGATE function menu. Press the Type softkey In the NAVIGATE function menu, then select Time. There are two ways to navigate time.

  • Page 201: Search Event Navigate

    SHS800X User Manual Search Event Navigate When the Search function is enabled and acquisitions are stopped, you can use the navigation controls to go to found search events Press the Shift and Recorder button on the front panel to enter the NAVIGATE function menu.

  • Page 202: History

    SHS800X User Manual History The history function can record the waveforms of the input channels before press the Run/Stop button. In run state, the oscilloscope records input waveform continually; when fill up the memory (reach the maximal frame), the new frames will cover the old frames and keep the latest frames.

  • Page 203: Meter

    SHS800X User Manual The Frame format is A/B; A is the frames number that displays on the  screen and B is the maximal frame number you can set. The maximal frame number is determined by the current sampling point ...
  • Page 204 SHS800X User Manual Description Description Range of the multimeter Relative value graph displaying Measurement type measured value Reading value Measurement mode...

  • Page 205: Dcv/Acv

    When applied in CATII, the maximum input voltage is 600VDC/ VAC for the SHS800X series. When applied in CATIII, the maximum input voltage is 300VDC/ VAC for the SHS800X series. The method to connect and measure DC/AC Voltage will be introduced in details as the following steps: 1.
  • Page 206 SHS800X&SHS1000X User Manual Table 3-1 DC and AC Function Menu Option Setting Description Save the current input value as a reference and record again. Real value Relative equals relative value plus measurement value Real value equals measurement value Choose the best measurement scale Auto(V/mV) Mode automatically...

  • Page 207: Resistance

    SHS800X&SHS1000X User Manual Resistance The method to test resistance will be introduced in details as the following steps. 1. Press Meter to enter multimeter mode, press the F1 softkey to choose Res. measurement. 2. Insert the red probe to the V.Ω.C banana jack input and the black probe to the COM.

  • Page 208: Diode

    SHS800X&SHS1000X User Manual Diode The method to test Diode will be introduced in details as the following steps. 1. Press Meter to enter multimeter mode, press the F1 softkey to choose Diode measurement. 2. Insert the red probe to the V.Ω.C banana jack input and the black probe to the COM.

  • Page 209: Continuity

    SHS800X&SHS1000X User Manual Continuity Continuity test uses double leads method to measure the resistance of the measured circuit via about 0.2mA current. When the measured resistance in circuit is lower than the selected one, it is considered being connected with instrument. The method to test continuity will be introduced in details as the following steps.

  • Page 210: Capacitance

    SHS800X&SHS1000X User Manual Capacitance The Multimeter enables to measure Capacitance up to 400μF. The method to measure capacitance will be introduced in details as the following steps. 1. Press Meter to enter multimeter mode, press the F1 softkey to choose Cap. measurement.

  • Page 211: Dci/Aci

    SHS800X&SHS1000X User Manual DCI/ACI The Multimeter enables to measure DC/AC Current up to 10A by using the accessory SCD10A. The Multimeter enables to measure DC/AC Current up to 600mA by using the accessory SCD600MA . When using the above two accessories, the voltage of the measured circuit shall not exceed 60VDC/ VAC.
  • Page 212 SHS800X&SHS1000X User Manual “HOLD”is displayed on the upper left of the screen. Press the Run/Stop button again to continue the measurement. DC Current Measurement AC Current Measurement...

  • Page 213: Recorder

    SHS800X&SHS1000X User Manual Recorder SHS800X/SHS1000X supports Sample logger and Measure logger, which can record waveform data and measurement value. Press the Recorder button to enter the RECORDER function menu. Figure 111 Recorder Menu Sample Logger The Sample logger can record the original waveform points in real time at equal intervals to realize the long-time observation of low-speed signals.
  • Page 214 SHS800X&SHS1000X User Manual Figure 112 Sample Logger Interface Description Recorded waveform Record status（Run/Stop） Horizontal scale Recorded time Remaining recordable time Storage location Sample rate and recorded points of waveform Start time Record Waveform Press the Record softkey to enter the RECORD function menu. Press the Setting softkey to enter the SETTINGS function menu.
  • Page 215 SHS800X&SHS1000X User Manual storage path. Figure 113 Settings Interface Press the Return softkey to return to the RECORD function menu. Press the Start softkey to start to record, and the record status in the top information bar is displayed as "Run". Figure 114 Start Recording Waveform Press the Stop softkey to stop recording, and the record status in the top information bar is displayed as "Stop", the data is automatically stored in the...
  • Page 216 SHS800X&SHS1000X User Manual Press the Recall from softkey to select the storage path. Press the Press to Recall softkey to recall the recorded waveform data and enter the CONTROL menu automatically. Display Control Press the Horizontal Ref softkey to set the horizontal reference position. Press the Horizontal Scale button to zoom the waveform with the horizontal reference as the center.
  • Page 217 See the chapter "Save and Recall" for operation. The file format (*.slg) is described in detail in the document "How to Extract Data from the Binary File.docx". Please download from RS PRO website. The oscilloscope provides a tool named fileconverter to convert the waveform file (*.slg) to CSV format.

  • Page 218: Measure Logger

    SHS800X&SHS1000X User Manual Measure Logger The Measure logger can record the measured value of waveform in real time to realize the long-time measurement trend observation of low-speed signal. The measurement data is recorded in the internal, and can be stored to the internal or external storage device after stopping recording.
  • Page 219 SHS800X&SHS1000X User Manual Horizontal reference position Remaining recordable time, Recording interval, Number of recorded points Used memory Recorded time Start time The current value of measurement items Upper and lower scale of the trace Start/Stop Recording Press the Setting softkey to enter the SETTINGS function menu. Set record interval, record trace and the corresponding measurement item.
  • Page 220 SHS800X&SHS1000X User Manual Press the Stop softkey to stop recording, the record status in the top information bar is displayed as "Stop". Display Control Press the Display softkey to enter the DISPLAY settings menu. Press the Vertical Scale softkey and turn the Universal Knob to set the vertical scale of the trace.
  • Page 221 SHS800X&SHS1000X User Manual Average: Track the average value of the data within a pixel where  T-Cursors are located. Minimum: Track the minimum value of the data within a pixel where  T-Cursors are located. Peak: Track the data with the maximum deviation from the overall ...
  • Page 222 SHS800X&SHS1000X User Manual Figure 120 Save/Recall of Measure Logger Press the Type softkey to select the data type to be saved. The measurement data can be saved as binary data(*.mlg), CSV data or MATLAB data. Press the File Manager softkey to enter the file manager，and save the current record in the internal or external memory.

  • Page 223: Factory Setup

    SHS800X&SHS1000X User Manual Factory Setup Press Shift and Save/Recall button to enter the save/recall function menu, then press Save menu select To Default Key and save the type to Factory Setup. Then press the Default button on the front panel to set the oscilloscope to the leave factory setup.

  • Page 224: Troubleshooting

    The commonly encountered failures and their solutions are listed below. When you encounter those problems, please solve them following the corresponding steps. If the problem remains still, please contact RS Pro as soon as possible. The screen is still dark (no display) after power on: Check whether the power is correctly connected.
  • Page 225 Make sure that if the multimeter is beyond the calibration date. If the measurements and real values are beyond the relevant precision, please contact the calibration site warranted by the RS PRO company to calibrate the SHS800X. If you can’t use the SHS800X normally all the same, please...
  • Page 226 SHS800X&SHS1000X User Manual LAST PAGE INTENTIONALLY LEFT BLANK...
