HALDER EH 22354 Series Quick Start Manual

Threaded Lifting Pins
EH 22354.

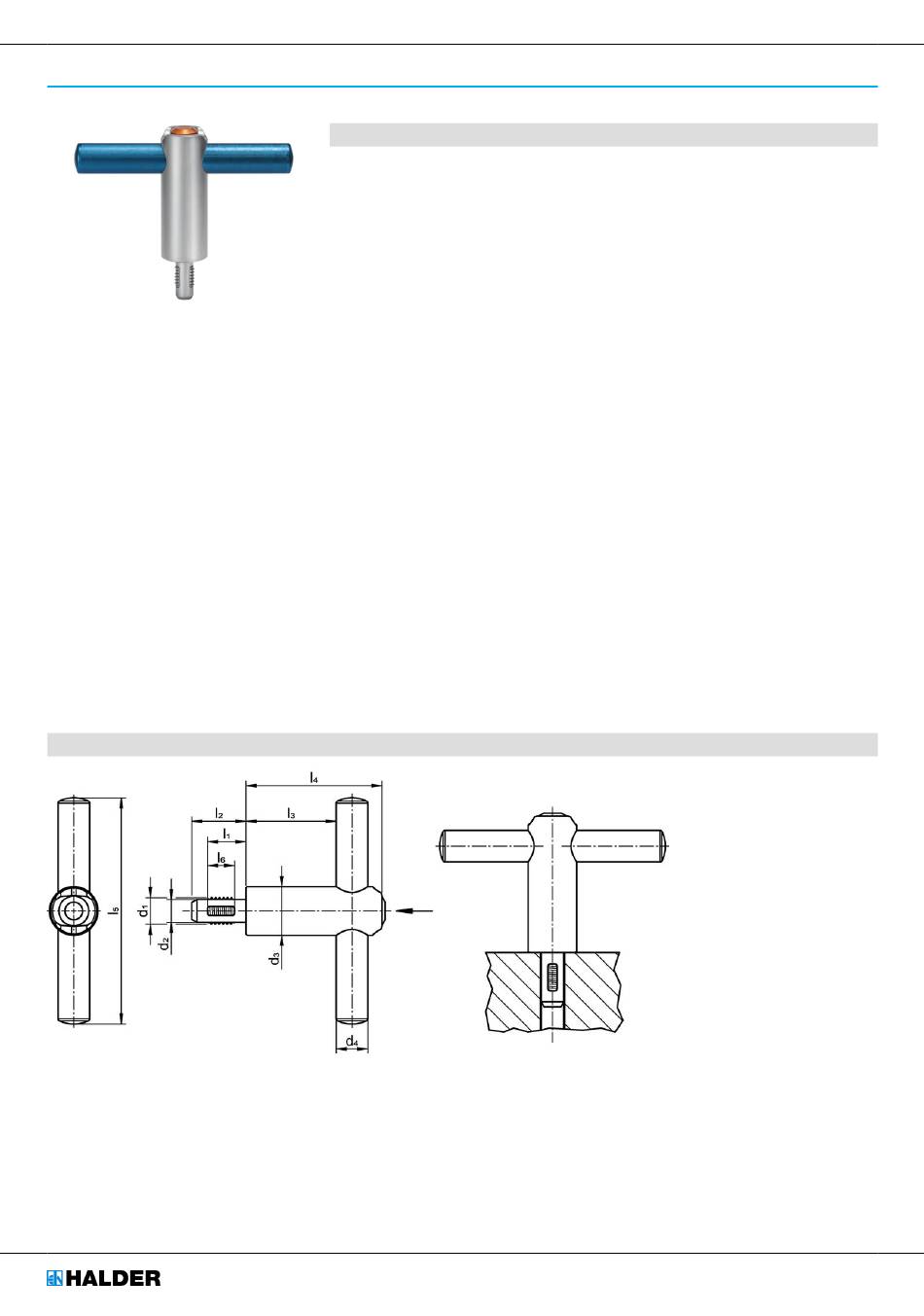

Drawing
self-locking, with handle
•
Product Description
The carrying element can be used universally for transporting workpieces, workholding systems,
components, containers etc. using manual force.
Heavy-duty lifting element with handle for quick and easy use. For lifting loads, the threaded lifting
pin is inserted into a threaded hole. In contrast to a ringbolt, time-consuming screwing in and out
is therefore unnecessary.
Corrosion and weathering resistant, thus also suitable for outdoor application. Very solid,
precipitation-hardened pin with an extreme load capacity.
Material
Pin part
• Stainless steel 1.4542, precipitation-
hardened
Handle
• Aluminium, blue anodised
Press button
• Aluminium, orange, anodised
Threaded element
• Stainless steel 1.4542, precipitation-
hardened
Spring
• Stainless steel
Halder France SAS
Machine and Fixture Elements
Lifting Pins / Threaded Lifting Pins
Assembly
Threaded lifting pins can be mounted into a
thread that is true to gauge.
Mounting:
1. Press in the button and hold it down.
2. Insert the threaded lifting pin.
3. Release the button (The button must be
back in its original position. A clearly visible
green marking on the press button indicates
the correct position.).
4. Tighten the threaded lifting pin by hand, until
it bears compleately on the bearing surface.
5. It must be ensured that the threaded
segments are engaged in the mounting
thread.
Dismantling:
1. Unscrew the threaded lifting pin approx. a
quarter of a turn anticlockwise.
2. Press in the button and hold it down.
3. Remove the threaded lifting pin.
4. Release the button.
Operation
Each threaded lifting pin is supplied with
operating instructions. This document is also
available for download as a PDF.
