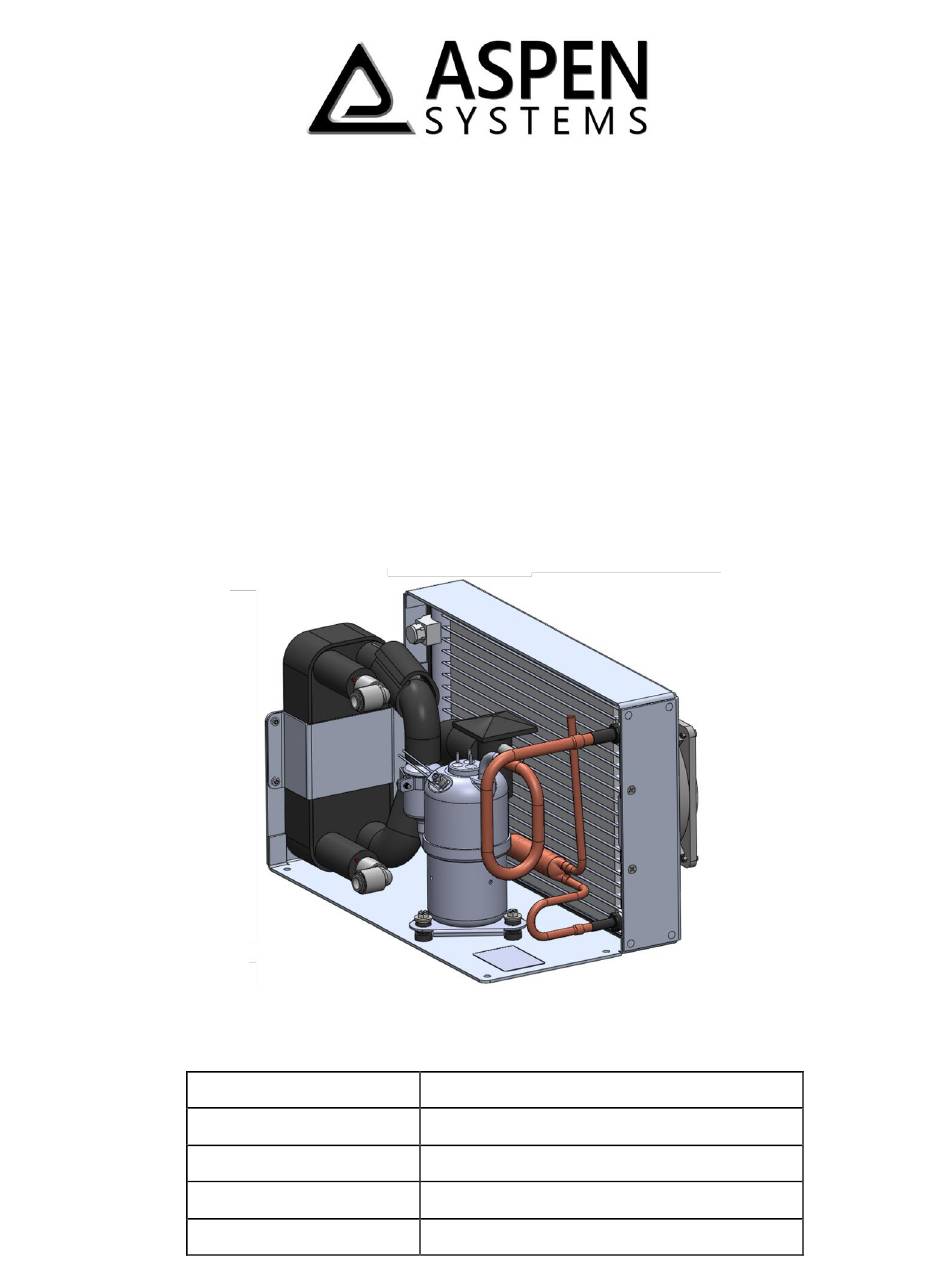

- Page 1 24 St. Martin Dr. Marlborough, MA 01752 Installation and Operation Instructions Liquid Chiller Module FP00152 & FP00171 Installation Notes Date of Purchase Date of Installation Installer Model Number Serial Number...
-
Page 2: Table Of Contents
Compressor Control ........................6 Performance ............................8 Maintenance ............................8 Customer Service..........................9 Commercial Product Warranty ......................9 Warranty Repairs ..........................9 Technical Support ...........................9 Aspen Contact Information......................10 APPENDIX ............................10 OM00031 Rev A, FP00152, FP00171 Operation Manual – January 17, 2025 Page 2 of 10... -
Page 3: System Information
DANGER! Risk of fire or explosion. To be repaired only by trained service personnel. Do not puncture refrigerant tubing Within the compressor, PAG (Polyalkylene Glycol) oil is used to lubricate the compressor. Contact Aspen for the MSDS on PAG oil. -
Page 4: General Operation
The provided fans each generates 190 cfm (without restriction). Aspen Systems does NOT recommend using the available voltage output on the compressor drive board to operate the fan. Please connect the fan directly to a 24 VDC supply (FP00152) or 48 VDC supply (FP00171). See Figure 2 for airflow direction. -
Page 5: Mounting
Contact Aspen directly if a solid model is required. Airflow direction Airflow direction Figure 2: LCM Dimensional Drawing - Note all dimensions are in inches OM00031 Rev A, FP00152, FP00171 Operation Manual – January 17, 2025 Page 5 of 10... -
Page 6: Power Supply - Fp00152 Only
VDC – 27 VDC. The LCM may draw up to 17.0 A of current during normal operation (compressor and fans combined). Aspen recommends at least 12 AWG wire for the power supply to the compressor drive board with an in-line 15 A fuse (see Appendix page 3) CAUTION! Operating the LCM outside the voltage range will void the system warranty. - Page 7 Figure 3 – FP00152 & FP00171 Drive-Board Jumper Configuration The FP00152 and FP00171 drive-board default jumper configuration is shown in the image above. More information about jumper settings and the driveboard functionality is located in the appendix.
-
Page 8: Performance
Be sure to reattach the fans and fan guards when finished cleaning the coils. CAUTION! Directing airflow at the condenser fins at an angle may result in bending/damage of the LCM fins, resulting in decreased condenser performance. OM00031 Rev A, FP00152, FP00171 Operation Manual – January 17, 2025 Page 8 of 10... -
Page 9: Customer Service
If buyer claims that a product violates such warranty, Aspen, upon o c p o p ly g v... -
Page 10: Aspen Contact Information
Aspen Contact Information Email: info@aspensystems.com Phone: 508-281-5322 Website: http://aspensystems.com/contact APPENDIX See following pages for appendix OM00031 Rev A, FP00152, FP00171 Operation Manual – January 17, 2025 Page 10 of 10... - Page 11 Universal Low Noise Sinusoidal BLDC Drive Operating Instructions Aspen’s Universal Low Noise Sinusoidal BLDC Drive can be operated in 2 distinct modes. This allows it the ability to seamlessly replace all existing Aspen drives, as well as offer significant compressor noise reduction, lower compressor operational speeds and several different input types for speed control.
- Page 12 Drive Mode Jumper Jumper Mode 2 Universal Quiet Sinusoidal Not Installed Aspen Compressor, LLC 24 St. Martin Drive, Marlborough, MA 01752 508-281-5322 508-281-5323 web: email: www.aspencompressor.com info@aspencompressor.com Sep, 2023 Rev. F...
- Page 13 Aspen’s Universal Sinusoidal Low Noise Drive is available in 12, 24 and 48 volts. The use of adequate wire gage and an inline fuse for short circuit protection is required for safe reliable operation. The table below shows the recommended wire gage and input fuse size for each of the Aspen drives.
- Page 14 1. Condenser Fan Output (TB7 & TB8) An output has been provided for running condenser fan(s) from the Aspen drive. The voltage of this output will be equivalent to the DC input voltage provided to the board. The power to the condenser fan is enabled 10 seconds after the drive starts the compressor.
- Page 15 Jumper settings for these options can be found at the end of this section. Aspen Compressor, LLC 24 St. Martin Drive, Marlborough, MA 01752 508-281-5322 508-281-5323...
- Page 16 This tab should be used when a secondary power supply is being used to supply power for speed control and the user wants the secondary supply to be isolated from the power supply being used to power the Aspen Compressor, LLC 24 St. Martin Drive, Marlborough, MA 01752 508-281-5322 508-281-5323...
- Page 17 Additional Board Functions 1. Compressor Start Delay – The Aspen drive has the ability to delay the compressor start in situations where starting may be difficult due to an unbalanced system. The logic behind the delay is based on a minimum off time for the compressor and can be enabled by installing jumpers per the table at the end of this section.
- Page 18 5. Lock Rotor Protection - The Aspen drive has the ability to detect if the compressor is not running due to a lock rotor condition. After the drive has made several unsuccessful attempts to start the...
- Page 19 1501048 1501018 48 Volt 8 Amp The ramping speed of the compressor will also be reduced to further enhance sound reduction. Aspen Compressor, LLC 24 St. Martin Drive, Marlborough, MA 01752 508-281-5322 508-281-5323 web: email: www.aspencompressor.com info@aspencompressor.com Sep, 2023 Rev.
- Page 20 1501050 2.8 & 5.6cc T & H Series 48 Volt 10 Amp 1501052 3.8cc & 7.6cc T & H Series 48 Volt 10 Amp Aspen Compressor, LLC 24 St. Martin Drive, Marlborough, MA 01752 508-281-5322 508-281-5323 web: email: www.aspencompressor.com info@aspencompressor.com...
- Page 21 24v compressors and 8 amps for 48v 10 or 15 amps for 24v compressors and to 8 amps compressors. for 48v compressors. Aspen Compressor, LLC 24 St. Martin Drive, Marlborough, MA 01752 508-281-5322 508-281-5323 web: email: www.aspencompressor.com info@aspencompressor.com...
- Page 22 Mounting Diagram Compressor Wiring – The Aspen Universal Quiet Sinusoidal drive is supplied with a cable to attach the drive to the compressor. All other wiring is to be supplied by the end user. It is important to wire the compressor to the drive with the colors coded in the order per the picture below.
- Page 23 Universal Low Noise Sinusoidal BLDC Drive Typical Compressor Wiring Wiring with user supplied speed input voltage Typical Wiring Diagram Wiring with user supplied 20k potentiometer Aspen Compressor, LLC 24 St. Martin Drive, Marlborough, MA 01752 508-281-5322 508-281-5323 web: email: www.aspencompressor.com info@aspencompressor.com...
-
Page 24: Troubleshooting Guide
/ pressure. 2. Liquid refrigerant being Limiting 2. Verify superheat to be between returned to the compressor. recommended 8-12 deg. F. Aspen Compressor, LLC 24 St. Martin Drive, Marlborough, MA 01752 508-281-5322 508-281-5323 web: email: www.aspencompressor.com info@aspencompressor.com Sep, 2023 Rev. F... - Page 25 4 Flashes Repeating Board overheated 8 Flashes Repeating Compressor overheated 16 Flashes Repeating Compressor multiple stall over time 32 Flashes Repeating Aspen Compressor, LLC 24 St. Martin Drive, Marlborough, MA 01752 508-281-5322 508-281-5323 web: email: www.aspencompressor.com info@aspencompressor.com Sep, 2023 Rev. F...
