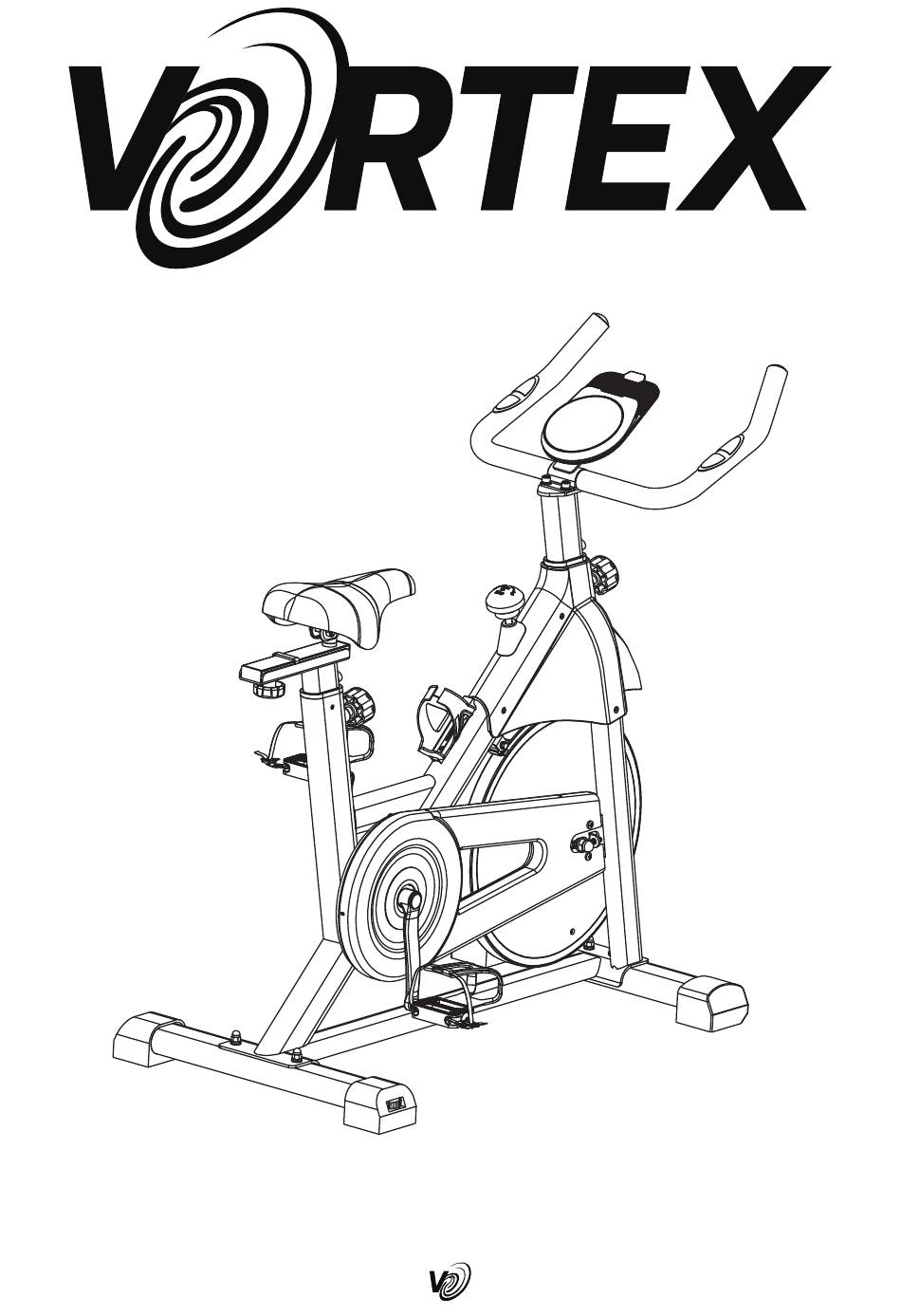

- Page 1 USER MANUAL | V-PULSE...
-
Page 2: Safety Precautions
BEFORE YOU START Thank you for purchasing this Fitness Product! For your safety and benefit, read this manual carefully before using the machine.Prior to assembly, remove components from the box and verify that all the listed parts were supplied. Assembly instructions are described in the following steps and illustrations. SAFETY PRECAUTIONS •... -
Page 3: Safety Product Information
SAFETY PRODUCT INFORMATION 1. This model is designed to be used as a group cycle in fitness studios, health clubs or home use. It has a fixed wheel driven flywheel and should be used under professional supervision. or asking your supplier before using. 2. - Page 4 Please keep the Packing stabilizer A & Packing stuff B for further possible repacking usage. Take off the Packing stabilizer A by dismounting the Carriage bolts (#14), Flat washer (#10), Spring washer (#12) and Acorn nuts (#13) as shown; Remove the Packing stuff B; V-PULSE...
- Page 5 STEP 2 - ASSEMBLY Attach the Front Stabilizer (#6) and Rear Stabilizer (#7) onto the Main Frame (#1), secured with the Carriage bolts (#14), Flat washers (#10), Spring washers (#12) and Acorn nuts (#13) as shown. V-PULSE...
- Page 6 To tighten turn the Left pedal COUNTERCLOCKWISE and the Right pedal CLOCKWISE. Fix the Pedal (#21L/R) onto the Crank (#16L/R) respectively, secured by using the cross spanner in the direction as shown. Both Pedals MUST be tightened securely otherwise damage may occur to the Crank. V-PULSE...
- Page 7 Fix the Saddle (#22) onto the Saddle Slider (#5) tightly with the cross spanner, and then insert the Saddle Slider (#5) onto the Saddle Post (#3), align the hole C or D, secured with the Plum knob (#27) and Flat washer (#11) as shown. V-PULSE...
- Page 8 Main Frame (#1) section, and then secure the Handlebar Post (#2) tightly with the Pop-pin knob (#26) at a proper height. Fix the Handlebar (#4) onto the Handlebar Post (#2) with the Allen cylindrical bolts (#9), Spring washers (#12) and Flat washers (#30) as shown. V-PULSE...
- Page 9 (#4) to connect the Sensor wire (#32) and Pulse sensor wires (#18),then lock the the Meter (#31) on the meter holder plate of the Handlebar (#4) with the Cross screw(#35) . Fix the Bottle holder (#33) onto the Main Frame (#1) with the Cross screws (#34) as shown. V-PULSE...
- Page 10 Stabilizer to compensate for uneven floors. RESISTANCE ADJUSTMENT To increase the intensity of your workout, simply adjust the Tension Knob (#19). Turning clockwise will increase the resistance created by the magnetic system. For Emergency or stop the flywheel quickly, push down the Brake Knob. V-PULSE...
-
Page 11: Exploded Diagrams
As you explore these pages, you'll find they make it easier to discuss any component with our customer support, should the need arise. We hope this detailed visual approach not only informs but also enriches your experience with your new purchase. V-PULSE... - Page 12 1 / 1 16 L/R Crank 1 PR Leveling end cap Pulse sensor wire Brake knob Plastic bushing 21 L/R Pedal 1 PR Saddle Square end cap Handlebar end cap Φ28 Round end cap Φ19 Pop-pin knob Plump knob Wire plug V-PULSE...
- Page 13 COMPLETE COMPONENT INVENTORY Description Note Quantity Key No. Foam grip Pulse sensor Meter Sensor wire Bottle holder Cross screw M5×16 Cross screw V-PULSE...
