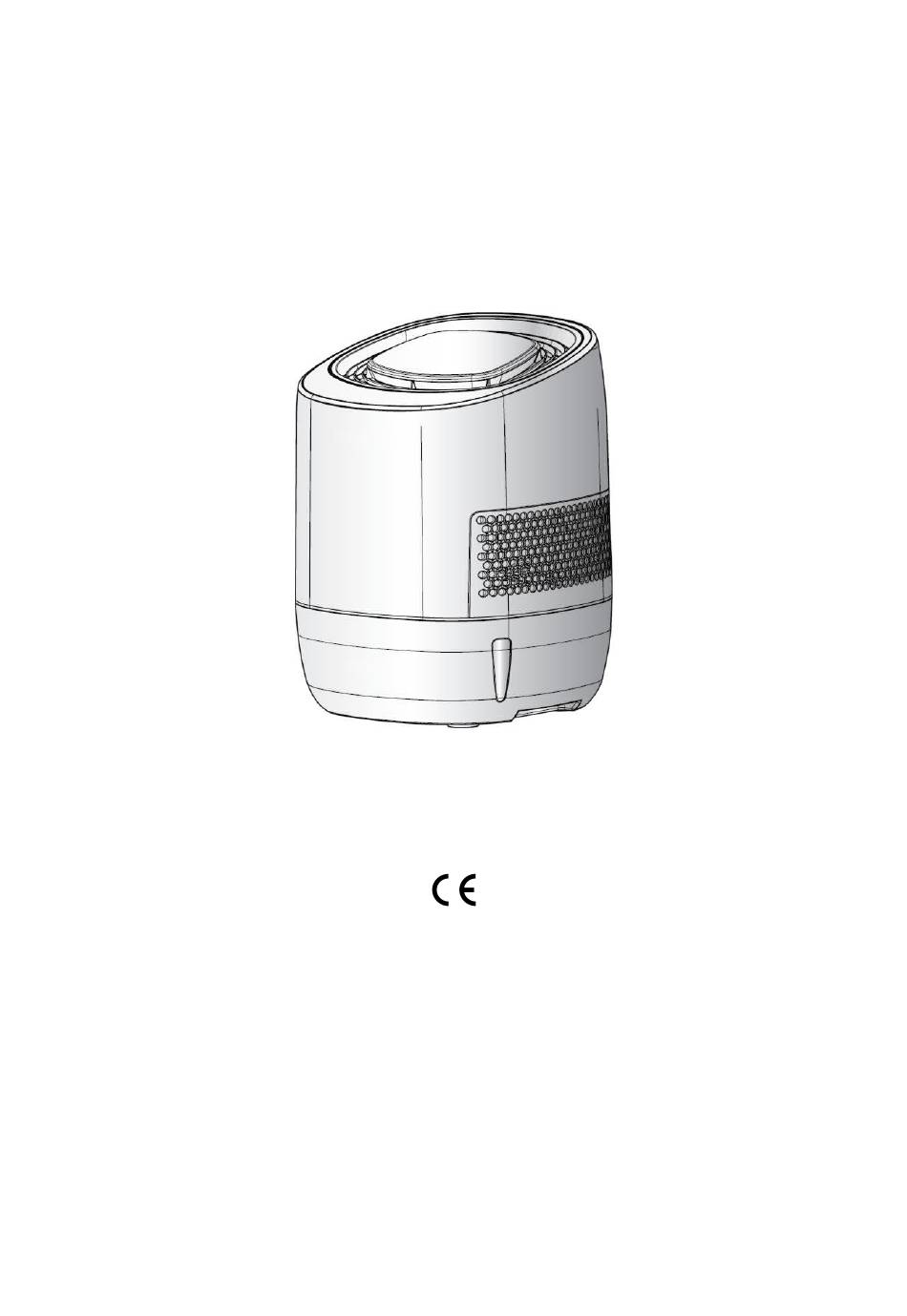

Airbi PRIME Instruction Manual

Multifunctional air cleaner and humidifier
Hide thumbs

Advertisement

Table of Contents

Multifunctional air cleaner and humidifier
Instruction manual
•
Please make sure to read the instruction manual carefully. This information will help
you to familiarise yourself with your new device, to learn all of its functions and parts
to find out important details about its first use and how to operate it, and to get advice
in the event of faults.
•
Following and respecting the instructions in your manual will prevent damage to your
instrument and loss of your statutory rights arising from defects due to incorrect use.
We shall not be liable for any damage occuring as a result of non following of these
instructions.
•
Likewise, we take no responsibility for any incorrect readings and for any
consequences which may result from them.
•
Please take particular note of the safety advice!
•
Please keep this instruction manual for future reference.
Airbi PRIME
Model: AWI-40PTOC
(version 1.0)
Page 1 of 18
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PRIME and is the answer not in the manual?

Questions and answers

Related Manuals for Airbi PRIME

Summary of Contents for Airbi PRIME

  • Page 1 Multifunctional air cleaner and humidifier Airbi PRIME Model: AWI-40PTOC Instruction manual (version 1.0) • Please make sure to read the instruction manual carefully. This information will help you to familiarise yourself with your new device, to learn all of its functions and parts to find out important details about its first use and how to operate it, and to get advice in the event of faults.
  • Page 2 1 Features of Airbi PRIME The Airbi PRIME is humidifier and also a air cleaner that rapidly intakes dry and contamined air and turns it into humidified, fresh, clean and healthy air. Basic features of Airbi PRIME: Optimum humidity level is generated by natural evaporation.

  • Page 3: Safety Advices

    2 Safety advices Criteria for possible critical danger to life or fire if not complied. Warning Criteria of possible danger to health or damage to the product if not complied. Caution 2.1 Important criteria before usage The product is only for domestic use in 230V 50Hz voltage.
  • Page 4 2.2 Important criteria to follow for operation and management Do not use too near the wall. Caution • Since the humidified and clean air is supplied from the front, right and left sides, it should be placed at least 30cm from the walls. (for the back, 10cm space should be allowed) •...
  • Page 5 Please don’t use harmful substance to plastics Caution • There may be harmful influence(breaking, etc.) to plastic products when perfume products(aroma) is used. • If you use it near a kitchen, oil components were splashed to damage or contaminate plastic products, so it may be difficult for you to clean the plastic products.
  • Page 6 Caution Stand the body up while cleaning or supplying water. • Damage to the product surface may occur if you lay it down. Do not handle with force the disinfectant device (BSS) surface Caution • The content may damage. Do not separate or eat the disinfectant device or use it for other purpose without consultation.

  • Page 7: Correct Operation

    When not in use for an extensive time, empty out completely the water in the cistern, clean the cistern and the disk and store after drying. Caution • Otherwise, contamination may occur. • If not in use for more than two days, empty out the water and turn off the electricity.

  • Page 8: Product Overview

    3.2 Product overview 1. Cistern - A place to store water for evaporation and air cleaning. 2. Disk - The water in the cistern is pumped up and a water film is formed on the surface with the water being evaporated and the minute dirt being eliminated.

  • Page 9: Operation Preparation

    3.3 Operation preparation Fill the water no more than water Lift up the upper part of the level (1) marked on both sides of main frame and place it the tank. When using underground sidewise. water, scale (lime) could form on the surface of the disk, cistern and Remove the insulation for the disinfectant device so please...
  • Page 10 Super-wind Operation – The device runs in maximum performance mode regardless of surrounding air humidity. Use when you want to airwash and humidify space the size of a living room. Strong-wind Operation – The device runs in medium performance mode regardless of surrounding air humidity.
  • Page 11 3.6 Switching on/off and basic operation of the device When the device is ready to be used, you can start it following these instructions: Switch it on by pushing Button 1. Using Button 2 select the operation mode of the device. The operation mode can be selected in the following order by pushing Button 2 repeatedly.
  • Page 12 • The set time decreases in one hour steps. • The device switches off as soon as the set time is reached. • To switch off the timer, push Button 4 and hold it until the set timing disappears from the display. 3.8 Resupplying of water When the empty water tank indicator on the operation panel is on, water must be added to the water tank.
  • Page 13 Disinfectant device should be separated from the cistern and washed with a shower for the exterior and the net part. Čistěte s pomocí otáčení Please fill water in a cistern up to a water level and dissolve proper amount of washing detergent and make foam.
  • Page 14 Separation and cleaning of the disks should be carried out once a month. (If there are much dust and odor in the surrounding, it should be done twice a month.) 1. Please insert the Easy Kit (brush) into a cap, turn it in an anti-clockwise direction and separate it after opening the cap.
  • Page 15 Push the filter holder Remove the upper down and pull the filter part of the device towards yourself. and place aside. Rinse the filter and clean it with a brush and a detergent. Rinse Release the filter again and let dry screw by a cross completely.
  • Page 16 Remove the upper part of the device. With a cross screw driver release the fan cover and open it. Unlock the fan by releasing the filter lock cap by turning clockwise. Carefully remove the dust from the electrode ends (1) with a cotton applicator (2). If it is difficult to remove dust from the electrode ends, you can moisten the cotton applicator but in this case it is vital to dry the electrode with dry cotton wool.
  • Page 17 2) For inside the product, are the disks placed in its correct location and direction? • Please adjust the disc to be set into its original place. 3) Is the cap for the disk assembly lose? • Please turn the cap clockwise to fasten it. 4) In automated/sleeping mode, the fan stops if the room humidity exceeds 60%.

  • Page 18: Technical Specification

    blinking. persists, please call our customer service. • Can I add As a phenomenon damaging or breaking the surface can occur by reacting perfume with plastic products, please don’t use it. (aroma) products? • When dust and smell are severe according to a use environment and it is not washed more than one time per week(especially a rainy period), smell can be It smells.
