Multifunctional air cleaner and humidifier
Airbi AIRWASHER
Instruction manual
•
Please make sure to read the instruction manual carefully. This information will help
you to familiarise yourself with your new device, to learn all of its functions and parts
to find out important details about its first use and how to operate it, and to get advice
in the event of faults.
•
Following and respecting the instructions in your manual will prevent damage to your
instrument and loss of your statutory rights arising from defects due to incorrect use.
We shall not be liable for any damage occuring as a result of non following of these
instructions.
•
Likewise, we take no responsibility for any incorrect readings and for any
consequences which may result from them.
•
Please take particular note of the safety advice!
•
Please keep this instruction manual for future reference.
Model: AWE-25PTOH(CZ)
(version 1.0)
Page 1 of 17
EN
Advertisement
Table of Contents
Related Manuals for Airbi AIRWASHER
Summary of Contents for Airbi AIRWASHER

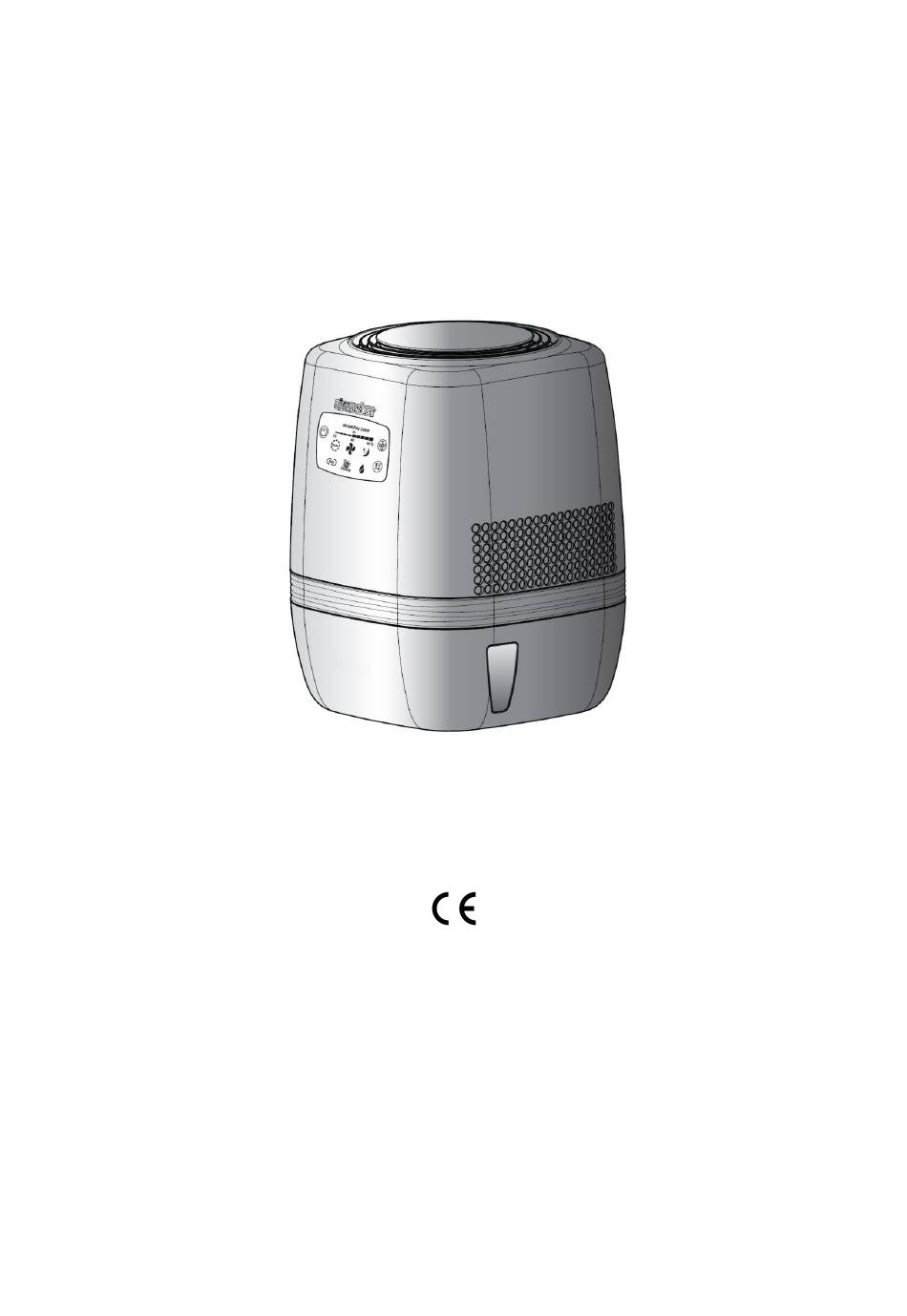

- Page 1 Multifunctional air cleaner and humidifier Airbi AIRWASHER Model: AWE-25PTOH(CZ) Instruction manual (version 1.0) • Please make sure to read the instruction manual carefully. This information will help you to familiarise yourself with your new device, to learn all of its functions and parts to find out important details about its first use and how to operate it, and to get advice in the event of faults.
- Page 2 1 Features of Airbi AIRWASHER The Airbi AIRWASHER is humidifier and also a air cleaner that rapidly intakes dry and contamined air and turns it into humidified, fresh, clean and healthy air. Basic features of Airbi AIRWASHER: Optimum humidity level is generated by natural evaporation.
-
Page 3: Safety Advices
2 Safety advices Criteria for possible critical danger to life or fire if not complied. Warning Criteria of possible danger to health or damage to the product if not complied. Caution 2.1 Important criteria before usage The product is only for domestic use in 230V 50Hz voltage. - Page 4 2.2 Important criteria to follow for operation and management Do not use too near the wall. Caution • Since the humidified and clean air is supplied from the front, right and left sides, it should be placed at least 30cm from the walls. (for the back, 10cm space should be allowed) •...
- Page 5 Please don’t use harmful substance to plastics Caution • There may be harmful influence(breaking, etc.) to plastic products when perfume products(aroma) is used. • If you use it near a kitchen, oil components were splashed to damage or contaminate plastic products, so it may be difficult for you to clean the plastic products.
- Page 6 Caution Stand the body up while cleaning or supplying water. • Damage to the product surface may occur if you lay it down. Do not handle with force the disinfectant device (BSS) surface Caution • The content may damage. Do not separate or eat the disinfectant device or use it for other purpose without consultation.
-
Page 7: Correct Operation
When not in use for an extensive time, empty out completely the water in the cistern, clean the cistern and the disk and store after drying. Caution • Otherwise, contamination may occur. • If not in use for more than two days, empty out the water and turn off the electricity. -
Page 8: Product Overview
3.2 Product overview 1. Cistern - A place to store water for evaporation and air cleaning. 2. Disk - The water in the cistern is pumped up and a water film is formed on the surface with the water being evaporated and the minute dirt being eliminated. 3. - Page 9 1) Auto : It controls its mode between super-strong-weak according to the humidity around. It stops operating if the humidity exceeds 60% and restarts if humidity becomes less than 60%. ※If humidity exceeds 60%, the humidifier stops but the airwasher operation continues so that the fan keeps operating with weak mode.
- Page 10 airwash and humidify the size equivalent to small room. 5) Sleeping Operation : Runs quietly. Stops when humidity exceeds 60% and restarts when it reaches under 60%.The brightness of display window becomes half of normal condition not to disturb sleeping. Button 3: BSS filter indicator When the life of the disinfection system has been expired (about 1 year), an indicator will appear.
- Page 11 Maximální When not in use for more than 2 days, empty out the water. For reuse, resupply the water. ※For extensive period of disuse, winged insects might enter the interior of the product which might cause the water to smell. 3.7 Cleaning (rotation washing –...
- Page 12 The cistern should be cleaned with a smooth sponge. Clean the water sensor inside the tank. Water level cannot be sensed well if any fur occurs on sensor. The cistern, discs and the disinfectant device should be rinsed cleanly with the disinfectant device placed in its original position in the cistern and after distinguishing the front and back of the discs, they should be lifted on.
- Page 13 it after turning it in an anticlockwise direction. 3. By pushing from the front side consecutively, it is easily separable in whole. Cleaning the Disk Set Preparation cleaning by water using shower. Scrub the front and back of the disc with laundry brush or scrubber using laundry detergent.
- Page 14 Open and lay During the process take down the upper care not to wet the main body. Use electrical connection or (+) screwdriver the motor part located to loosen the under fan. cover by Do not separate fan from separating screw the motor.
- Page 15 • You might not feel the humidifying effect of the airwasher for first several Page 15 of 17...
-
Page 16: Technical Specification
• For much of the odor of the air, it can easily dissolve by alcohol in the Does the air water. The airwasher, which uses water as a pure filter, helps to eliminate become purified? toxic gases. •... -
Page 17: Waste Disposal
Max. humidifying capacity 250 ml/h Cistern capacity 4,5 l Product size 280 x 280 x 370 mm Product weight 4,5 kg Voltage, frequency 220-240 V, 50/60 Hz Fan speeds high / middle / low Noise 30 db / 27 db / 24 db Warranty 2 years 6 Waste disposal...
