Summary of Contents for BOMANN GSPE 878

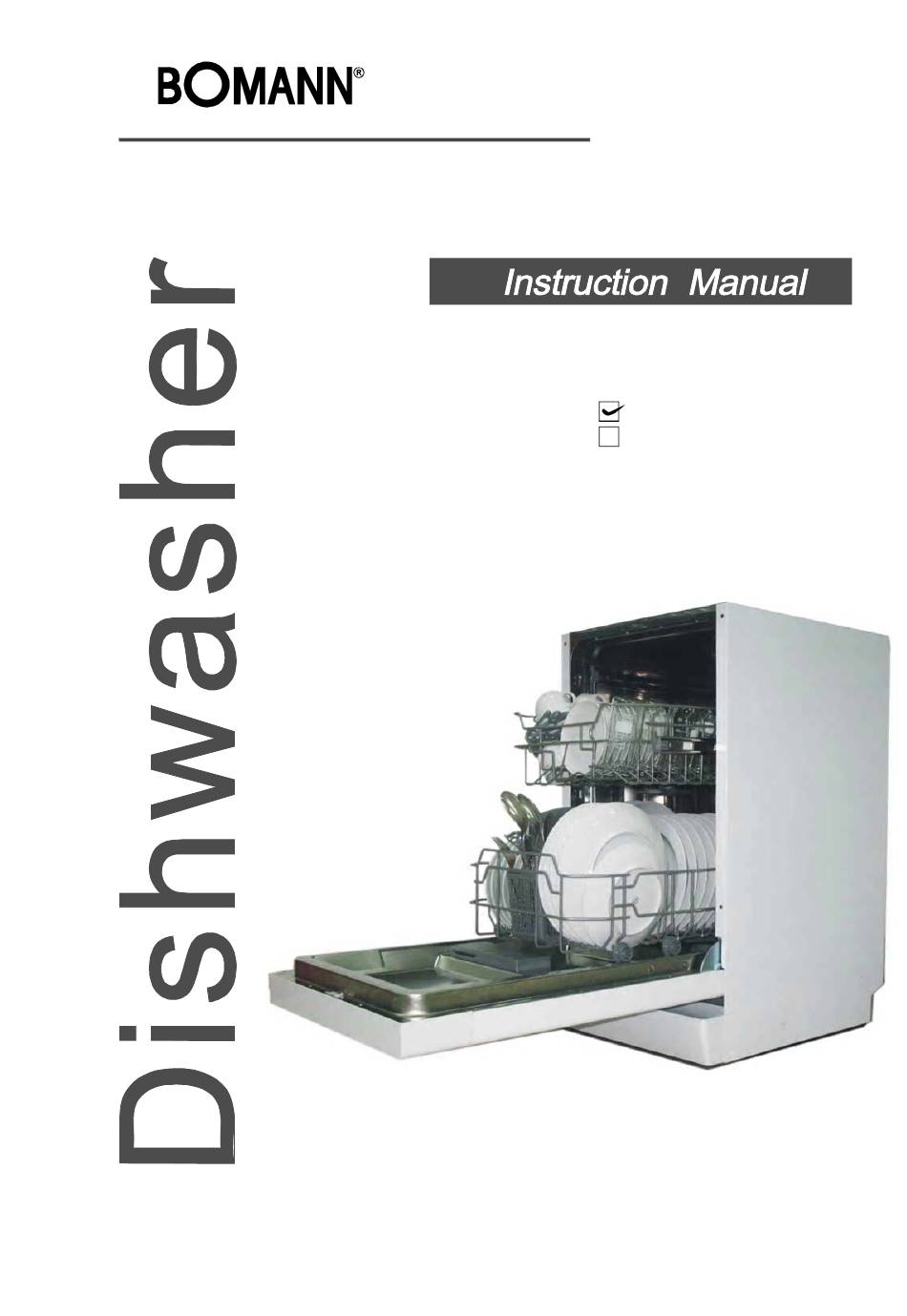

  • Page 1 GSPE 878 9 place settings 10 place settings...
  • Page 2 For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Open the door,press the On/Off button to switch on the appliance . With each wash cycle. Compartment Fill the detergent dispenser For programmes with pre-wash only. (Follow the user instructions!) Check the rinse aid level Electric indicator on control panel (if provided).
  • Page 3: Table Of Contents

    Dear Customer, This appliance is in tended to be used in household and similar applications such as: Control Panel...........3 -staff kitch en areas in shop s, offices and other Dishwasher Features........3 working environme nts; -farm hous es; -by clients in hotels, motels and othe r residential type environments;...
  • Page 4 When using your dishwasher, follow the precautions listed below: This appliance must be grounded. In the event of a Improper connection of the equipment-grounding malfunction or breakdown, grounding will reduce conductor can result in the risk of an electric shock. the risk of an electric shock by providing a path of Check with a qualified electrician or service least resistance of electric current.
  • Page 5: Control Panel

    Dispo se of the dishwasher packaging material correctly. All pa ckaging materials ca n be recycled. Plastic parts are marked with the standard international abbreviations: for polyethylene, e .g. sheet wrapping material for polysty rene, e.g. padding material po lyoxymethylene, e.g. pla stic clips polypropylene, e.g.
  • Page 6: Dishwasher Features

    To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Intensiv Glas Express Normal Schnell E in/Au s P rogra mm 1.On/Off Button: To turn on/off the power supply. 6.Power ind icator: To show when the power on. 2.
  • Page 7: C Fill The Rinse Aid Dispenser

    Before using your dishwasher for the first time: Set the water softener Add 1.5Kg dishwasher salt and then full fill the salt container with water Fill the rinse aid dispenser Fill in detergent The water softener must be set manually, using the water hardness dial. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance.
  • Page 8: Rinse Aid Dispenser

    Always use the salt intended for use with dishwasher. The salt contain er is located beneath the lower basket and should be fill ed as explained in t he foll owing: Attention! Only use salt spe cif ically desi gne d for t he use i n dishwashers! Every other type of salt not speci fically de sig ned fo r the u se in a d ishwasher, espe cially table salt, will damage the w ater sof tener.
  • Page 9: When To Refill The Rinse Aid Dispenser

    When to Refill the Rinse Aid Dispenser If there is no rinse-aid warning light in the control panel, you can estimate the amount from the colour " " of the optical level indicator C located next to the cap. When th e rinse-aid c ontainer is full, the whole indicator will be dark .As the rinse -aid diminishes, the size of the dark dot decreases.
  • Page 10: Concentrated Detergent

    Detergents There are 3 sorts of d etergents 1.With phosphate and with ch lorine 2.With phosphate and without chlorine 3.Without phosphate and without chlorine Normally new pulverised detergent is with out phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt con taine r even when °...
  • Page 11: Fill In Detergent

    Fill in Detergent Fill the detergent dispenser with detergent. The marking indicate s the dosing levels , as illustrate d on the righ t: The place of main wash cycle deterg ent placed. The place of pre-wash cycle deterge nt placed. Plea se o bserve the manufacturers dosing and storage Recommendations as stated on the detergent pac kaging.
  • Page 12: Attention Before Or After Loading The Dishwasher Baskets

    Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, do not take gla ss a nd c utlery out of the dishwasher immediately after the programme h as ended.
  • Page 13: Adjusting The Upper Basket

    The u pper basket is designed to hold more delicate We suggest that you place large items and the most and lighter dishware such as glasses, coffee and difficult to clea n ite ms are to be placed into the lo wer tea cups and saucers, as well as plates, small bowls basket: such as pots, pans, lids, se rving dishes and and shallow pans (as long as they are not too dirty).
  • Page 14: Wash Cycle Table

    Means: need to fill rinse into the Rinse-Aid Dispenser. ℃ Pre-wash(50 For heaviest soiled crockery, ℃ Wash (65 、 and normally soiled pots Intensive 5/22g Rinse 、 pans dishes etc with dried 1.30 Rinse 3in1 on soiling. ℃ Rinse(65 ) Drying ℃...
  • Page 15: Switch Off The Dishwasher

    Premise: A cycle that is underway can on ly be modified if it has only been running for a short time. Otherwise, the detergent may have already be en released, a nd the appliance may have already drained the wash water. If this is the case , the detergent dispenser mu st be refilled (see the section entitled "...
  • Page 16: Filter Assembly

    The filter prevents larger remnants of food or other objects from getting inside the pump. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter). Main filter Fo od and soil particles trap ped in this filter are pulverized by a specia l jet on the lower spray arm and washed down to drain.
  • Page 17: Cleaning The Filter

    Remarks: - Inspect the filters for blo cking a fter e very time the dishwa sher has been used. - By unscrewing the coarse filter, you can remove the filter system. Re move any foo d remna nts and clean the filters under running water. The entire filter assembly should be cleaned once a week.
  • Page 18: Installation P Reparation

    After Every Wash When not in Use for a LongTime It is recommend that you run a was h cy cle with the After every wash, turn off the water supply to the dishwasher empty an d the n remove the plug from the appliance and leave the door slightly open so that socket, turn off the wa ter supply and leave the door of moisture and odours are not trapped inside.
  • Page 19: Please Carefully Read The Installation Instruction

    Please carefully read the installation instruction. ● Illustrations of cabinet dimensions and installation position of the dishwasher Preparations should b e made before moving the dishwasher to the installation place. Choose a place near the sink to facilitate the installation of inlet and drain hoses (see figure 1).
  • Page 20 magical paster A and magical paster B be disjoinedon ,magical paster A on the aesthetic wooden panel and felted magical paster B of the outer door of dishwasher(see f igure 4a). After positioning of the panel , fix the panel onto t he outer door by screws and bolts(See figure 4b) 【...
  • Page 21: Tension Adjustment Of The Door Spring

    ● Tension adjustment of the door spring The door springs are set at the factory to the proper tension for the outer door. If aesthetic wooden panel are installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable (see figure 5).
  • Page 22: Dishwasher Installation Steps

    Dishwasher installation steps Install the furniture d oor to the outer door of the dishwasher using the brackets provided. Refer to the template for position ing of the brackets. Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to tighten the left and right door springs.
  • Page 23: About Electricity Connecting

    Dishwasher must be level for proper dish rack operation and wash performance. Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level. level the dishwasher by adjusting the three levelling legs individually. When level the dishwasher, please pay attention not to let the dishwasher tip over.
  • Page 24: Cold Water Connection

    The appliance must be connected to the water mains using new hose-sets. The old hose-sets should not be reused. Wate r pressure must b e between 0,04 MPa and 1 MPa. If the pressure is below the minimum consult our Service Department for advice. Pull The safety supply hoses completely out from storage compartment located at rear of dishwasher.
  • Page 25 The following things should be checked before starting the dishwasher. The dishwasher is level and fixed properly The inlet valve is open There is a leakage at the connections of the conducts The wires are tightly connected The power is switched on The inlet and drain hoses are knotted All packing materials and printings should be taken out from the dishwasher After installation, please make sure to keep this manual.
  • Page 26 Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher Make sure the dishwasher is turned on and the door is Power supply is not turned on closed securely.
  • Page 27 The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table . " Not enough detergent Use more detergent, or change your detergent. was dispensed.
  • Page 28 Height : Width : 448 mm Depth : 570mm with the door closed Power supply: see rating label Capacity: 9 place settings...
  • Page 30 Technical Data Sheet Sheet of hous ehold dishwasher according to EU Directive 1059/2010: Manufacturer BOMANN Type / Description GSPE 8 78 Standard place settings En ergy efficiency class An nual energy consump tion 197 kWh En ergy consumption of the standard cleaning cycle 0.69 kWh...
