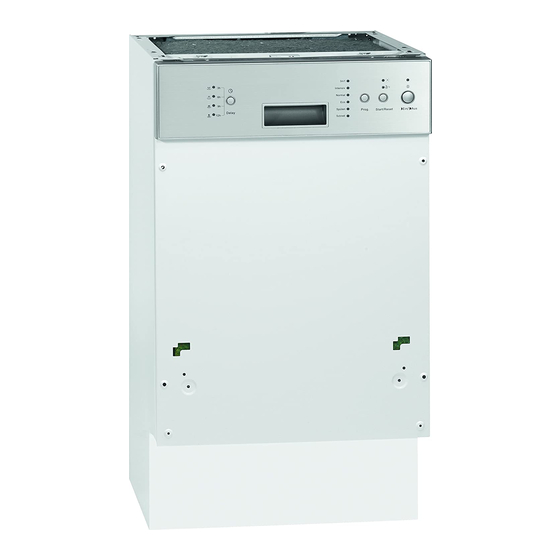

- Page 1 GSPE 774.1...
- Page 2 Control Panel...........3 Dishwasher Features........3 Dear Customer, Please carefully read this manual bef ore using the dishwasher, it will help you to use and maintain the 、 A Water Softener.........4 dishwasher properly. 、 B Loading the Salt in to the Softener....5 Keep it to refer to it at a later date.
- Page 3 When using your dishwasher, follow the precautions listed below: This appliance is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and other working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments.
- Page 4 Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.
- Page 5 Dispose of the dishwasher packaging material correctly. All packaging materials can be recycled. Plastic parts are marked with the standard international abbreviations: for polyethylene, e.g. sheet wrapping material for polystyrene, e.g. padding material polyoxymethylene, e.g. plastic clips polypropylene, e.g. Salt filler Acrylonitrile Butadiene Styrene, e.g.
- Page 6 For detailed operating method read the corresponding content on the instruction manual. Switch on the appliance Press the On/Off button to switch on the appliance, Open the door. With each wash cycle. Compartment Fill the detergent dispenser For programmes with pre-wash only. (Follow the user instructions!) Check the rinse aid level Electric indicator on control panel (if provided).
- Page 7 To get the best performance from your dishwasher, read all operating instructions before using it for the first time. Multi TAB Intensiv N or mal Express Vorwahl P rog. S tart / Pause E in A us Schnell Program indicator ligh ts: To show the washing Power in dica tor light: To show the power supply.
- Page 8 Before using your dishwasher for the first time: Set the water softener Add 1.5Kg dishwasher salt and then full fill the salt container with water Fill the rinse aid dispenser Fill in detergent The water softener must be set manually, using the water hardness dial. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance.
- Page 9 Always use the salt intended for use with dishwasher. The salt contain er is located beneath the lower basket and should be fill ed as explained in t he foll owing: Attention! Only use salt spe cif ically desi gne d for t he use i n dishwashers! Every other type of salt not speci fically de sig ned fo r the u se in a d ishwasher, espe cially table salt, will damage the w ater sof tener.
- Page 10 When to Refill the Rinse Aid Dispenser If there is no rinse-aid warning light in the control panel, you can estimate the amount from the colour " " of the optical level indicator C located next to the cap. When th e rinse-aid c ontainer is full, the whole indicator will be dark .As the rinse -aid diminishes, the size of the dark dot decreases.
- Page 11 Detergents There are 3 sorts of d etergents 1.With phosphate and with ch lorine 2.With phosphate and without chlorine 3.Without phosphate and without chlorine Normally new pulverised detergent is with out phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt con taine r even when °...
- Page 12 Fill in Detergent Fill the detergent dispenser with detergen t. The marking indicate s the dosing levels , as illustrate d on the righ t: The place of main wash cycle detergent placed. The place of pre-wash cycle detergent placed. Plea se o bserve the manufacturers do sing and storage Recommendations as stated on the detergent packaging.
- Page 13 Consider buying utensils which are identified as dishwasher-proof. Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers. For particular items, select a program with as low a temperature as possible. To prevent damage, do not take gla ss a nd c utlery out of the dishwasher immediately after the programme h as ended.
- Page 14 The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and sau cers, as well as plates, small bowls and shallow pans (as long as th ey a re not too dirty). Position the dishes and cookware so that they will not get moved by the spray o f water.
- Page 16 Adjusting the Upper Basket The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper/lower basket. The height of the upper basket can be adjusted by placing the wheels on different h eight of the rails. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms.
- Page 17 Means: need to fill rinse into the Rinse-Aid Dispenser. （ ℃ ） Pre-wash 5 0 （ ℃ ） Wash 55 For normally soiled loads, Rinse Multi TAB 1.08 13.5 use multifunctional detergent Multi TAB （ ℃ ） Rinse 65 Drying ℃...
- Page 18 When you press the Start/Reset button to pause during washing, the program light will stop blinking and the dishwasher will mooing every minute unless you press the Start/Reset button to start. Premise: A cycle that is underway can on ly be modified if it has only been running for a short time. Otherwise, the detergent may have already be en released, a nd the appliance may have already drained the wash water.
- Page 19 The filter prevents larger remnants of food or other objects from getting inside the pum. The residues may block the filter, in this case they must be removed. The filter system consists of a coarse filter,a flat (Main filter) And a microfilter(Fine filter). Main filter Fo od and soil particles trap ped in this filter are pulverized by a specia l jet on the lower spray arm and washed down to drain.
- Page 20 Remarks: - Inspect the filters for blo cking a fter e very time the dishwa sher has been used. - By unscrewing the coarse filter, you can remove the filter system. Re move any foo d remna nts and clean the filters under running water. The entire filter assembly should be cleaned once a week.
- Page 21 After Every Wash When not in Use for a LongTime It is recommend that you run a was h cy cle with the After every wash, turn off the water supply to the dishwasher empty an d the n remove the plug from the appliance and leave the door slightly open so that socket, turn off the wa ter supply and leave the door of moisture and odours are not trapped inside.
- Page 22 Please carefully read the installation instruction. Illustrations of cabinet dimensions and installation position of the dishwasher Preparations should be made before moving the dishwasher to the installation place. Choose a place near the sink to facilitate the installation of inlet and drain hoses (see figure 1).
- Page 23 2 Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer door of dishwasher(see figure 4a). After positioning of the panel , fix the panel onto the outer door by screws and bolts(See figure 4b) . 【...
- Page 24 ● Tension adjustment of the door spring The door springs are set at the factory to the proper tension for the outer door. If aesthetic wooden panel are installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable(see figure 5).
- Page 25 Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer to the template for positioning of the brackets. Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to tighten the left and right door springs.
- Page 26 Dishwasher must be level for proper dish rack operation and wash performance. Place level on door and rack track inside the tub as shown to check that the dishwasher is level. level the dishwasher by adjusting the four leveling legs individually. When level the dishwasher, please pay attention not to let the dishwasher tip over.
- Page 27 Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time , let the water run to make sure that the water is clear.
- Page 28 Fuse blown, or the Replace fuse or reset circuit breaker. Remove any other circuit breaker acted appliances sharing the same circuit with the dishwasher Make sure the dishwasher is turned on and the door is Power supply is not turned on closed securely.
- Page 29 The dishes were not See notes in " Loading the Dishwasher Baskets ". loaded correctly. The programme was Select a more intensive programme. not powerful enough. See" Wash Cycle Table . " Not enough detergent Use more detergent, or change your detergent. was dispensed.
- Page 30 Height : 820mm(adjustable+60mm) Width : 445 mm Depth : 540mm Water pressure: 0.04-1.0MPa Power supply: see rating label Capacity: 9 place settings...
- Page 31 Technical Data Sheet Sheet of hous ehold dishwasher according to EU Directive 1059/2010: Manufacturer BOMANN Type / Description GSPE 7 74.1 Standard place settings En ergy efficiency class An nual energy consump tion 222 kWh En ergy consumption of the standard cle aning cycle 0.77kWh...
