Summary of Contents for DIEX DXW36

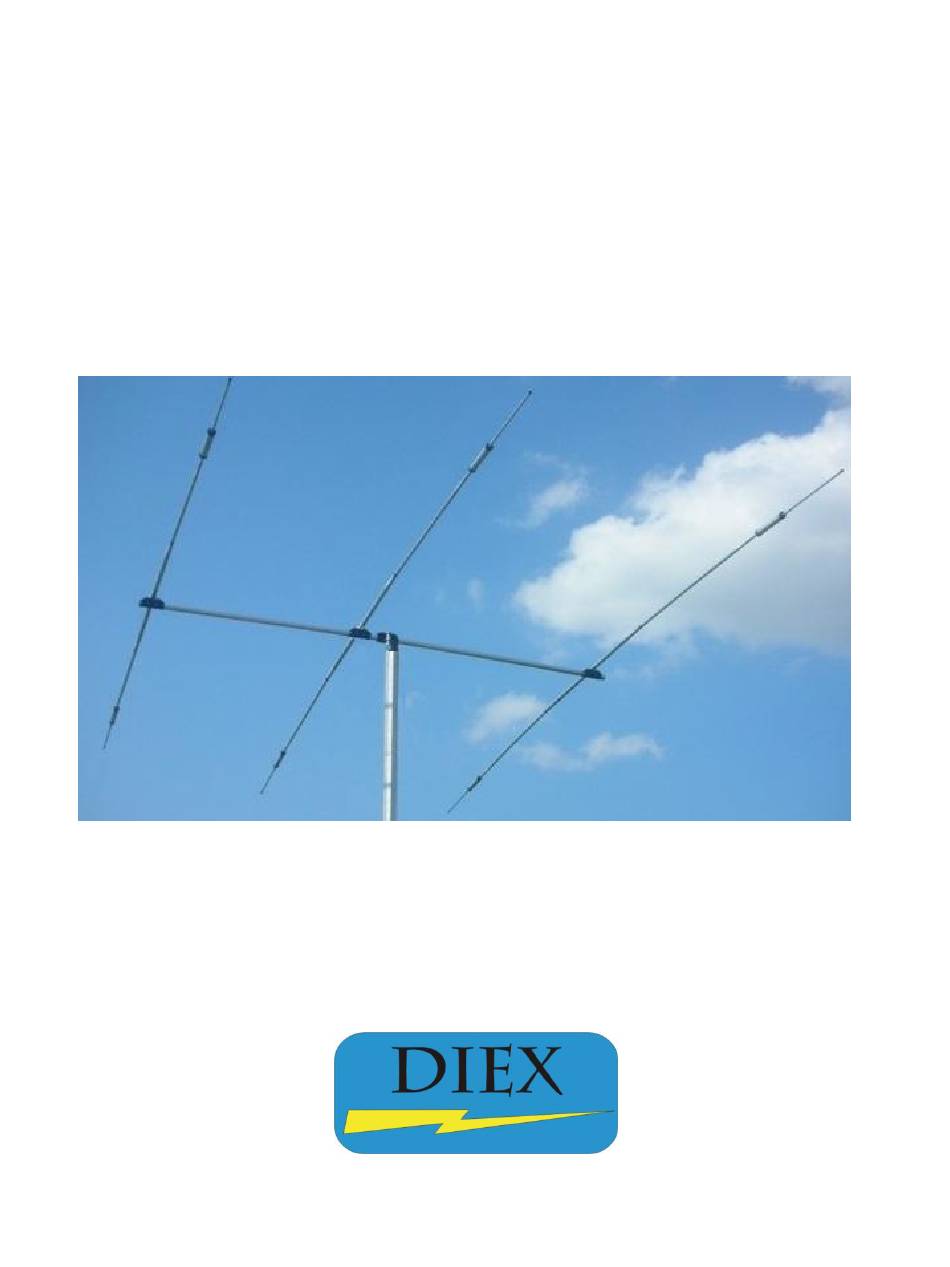

- Page 1 DXW36 3 ELEMENTS 6-12/17 M ASSEMBLY/INSTALLATION...
- Page 2 Thank you for purchasing our products. Be sure to read the manual, it is important to know the product better to get the most out of it. The DXW36* model is the same as the DXW3 model with the addition of the 6m kit.
-
Page 3: Choosing The Best Location
- Don't forget the security procedures. ASSEMBLY Assemble the DXW36* following the instructions as per the diagrams and illustrations, assemble the boom first, then the elements, place the elements on the boom, make the alignment, connect the coaxial, measurements and adjustments and finally attach to the mast. - Page 4 ADJUSTES If there is a need for adjustments, make small adjustments to the drive element in 1 band at a time, increasing if you want to lower the resonance frequency or decreasing if you want to up the resonance frequency, as the adjustment of one band can interfere with the adjustment of another band, always mark what you are doing and then put the same measurement on the other side of the antenna.
- Page 5 DRIVE – (RED) Leave with 10cm of space between the elements. *Assemble the antenna driver as in the attached 6m kit assembly manual* ITEM DESCRIPTION ALUMINUM PIPES 1 1/8” 1ª SECTION ALUMINUM PIPES 1” 2ª SECTION 1ª TRAP (RED TAPE) ALUMINUM PIPES 3/4”...
-
Page 6: Boom Assembly
MAST SUPPORT ITEM DESCRIPTION ALUMINUM PLATE “U” BOLT WITH LOW SUPPORT GBB-U51 BOOM ASSEMBLY -Fit the tubes GB using the splice GA, secure the mast fixing plate CPM and after final assembly look for the balance point which is close to from element driver. Fixing the element to the boom:... -
Page 8: Specifications
WARRANTY Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.
