Summary of Contents for DIEX DXFS6

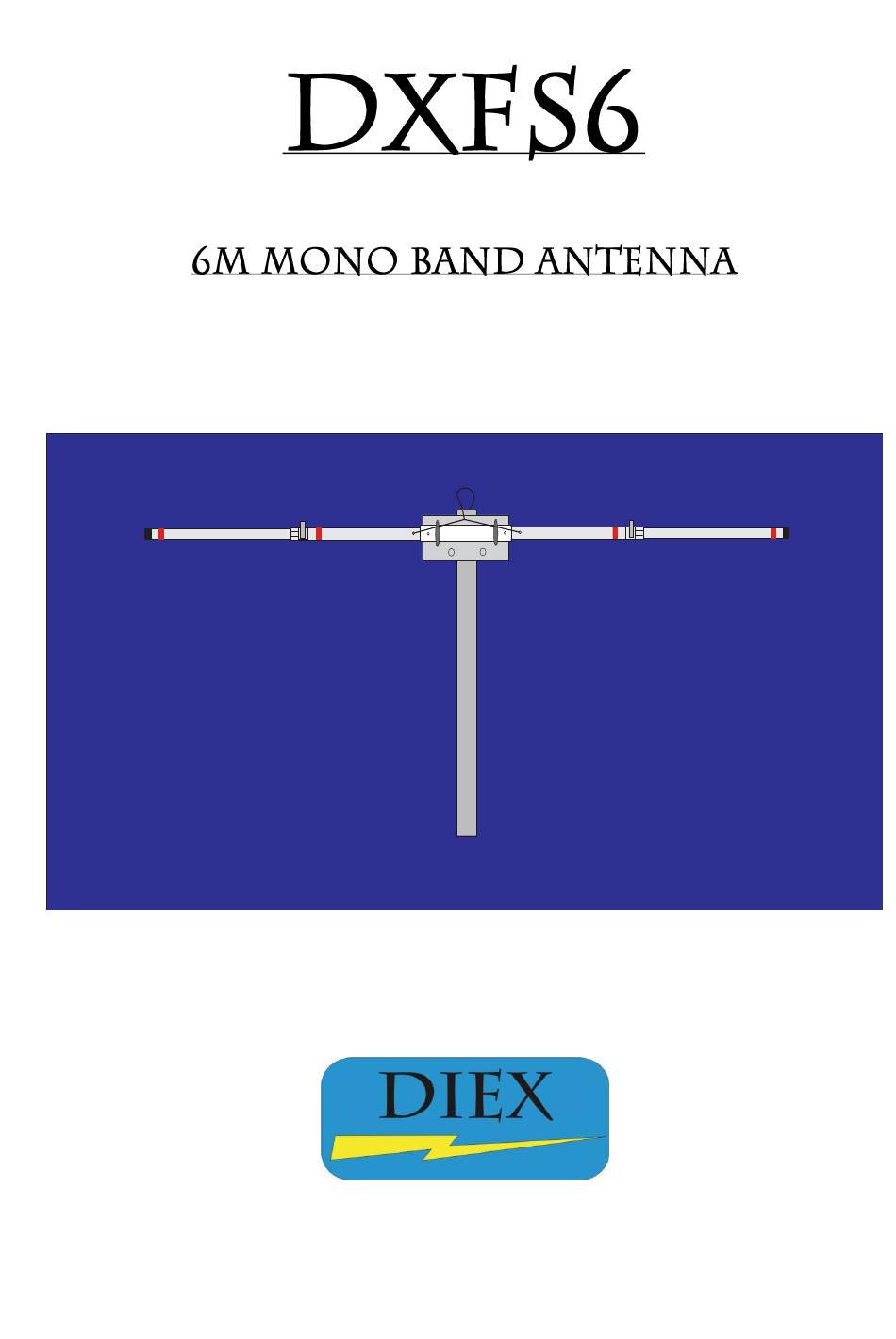

- Page 2 1.1. Introduction and Description This manual explains how to assemble the DIEX DXFS series. The DXFS6 is a bidirectional antenna that covers the VHF spectrum between 50 - 54 MHz (tunable).The power input limit is 2000w pep.
- Page 3 If there is any such damage, notify your DIEX dealer immediately. Failure to do so may invalidate your warranty. Select a large and clear area to assemble the antenna. The DIEX production uses metric (European) system of measurement units.
- Page 4 2.2.1 - Place the contact screws (PC) as shown in figure 4. Figure 4 2.3 - Assembling the elements. 2.3.1 - The total length should be around 2.85m, small adjustments may be necessary. 2.3.2 - Place the element 2 inside the element 1. The element is adjustable with the clamp to the desired frequency;...
- Page 5 The contents of this manual are subject to change without notice. WARRANTY Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or...
