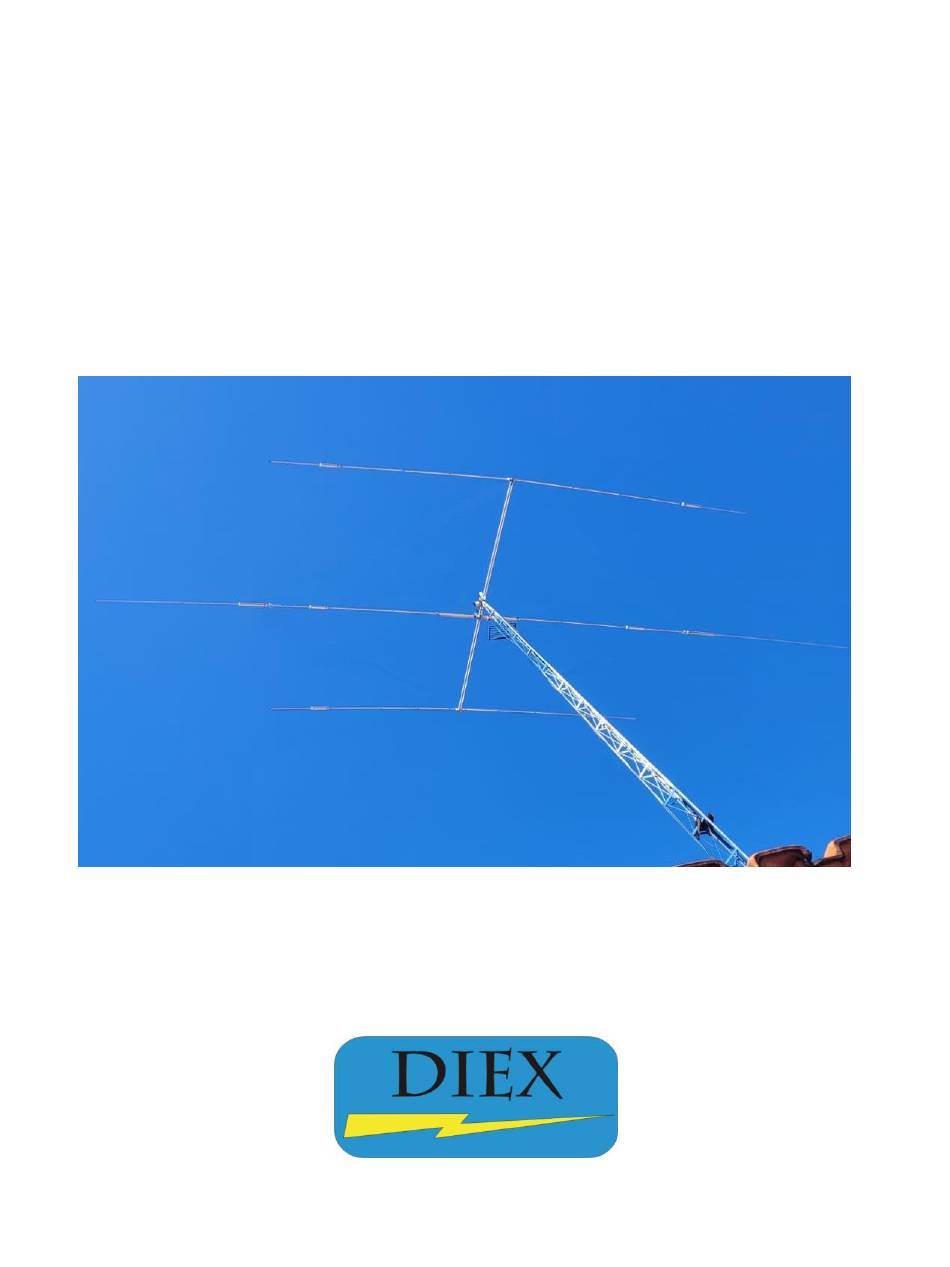

- Page 1 DXW3-30 3 ELEMENTS -12/17/30 M TRIBAND ANTENNA ASSEMBLY/INSTALLATION...
- Page 2 Thank you for purchasing our products. Be sure to read the manual, it is important to know the product better to get the most out of it. THE ANTENNA PARTS -The boom has 2 parts. -The larger “u” clamps are the supports for the elements. -Take a good look at all the components and familiarize yourself with them.
- Page 3 - Don't forget the security procedures. ASSEMBLY Assemble the DXW3-30 following the instructions as per the diagrams and illustrations, assemble the boom first, then the elements, place the elements on the boom, make the alignment, connect the coaxial, measurements and adjustments and finally attach to the mast.
- Page 4 ADJUSTES If there is a need for adjustments, make small adjustments to the drive element in 1 band at a time, increasing if you want to lower the resonance frequency or decreasing if you want to up the resonance frequency, as the adjustment of one band can interfere with the adjustment of another band, always mark what you are doing and then put the same measurement on the other side of the antenna.
- Page 5 DRIVE – (RED) Leave with 10cm of space between the elements. ITEM DESCRIPTION ALUMINUM PIPES 1 1/8” 1ª SECTION ALUMINUM PIPES 1” 2ª SECTION 1ª TRAP (RED TAPE) 2ª TRAP (RED TAPE) ALUMINUM PIPES 3/4” (3ª SECTION) ALUMINUM PIPES 5/8” (4ª SECTION) ALUMINUM PIPES 1/2”...
- Page 6 MAST SUPPORT ITEM DESCRIPTION ALUMINUM PLATE “U” BOLT WITH LOW SUPPORT GBB-U51 BOOM ASSEMBLY -Fit the tubes GB using the splice GA, secure the mast fixing plate CPM and after final assembly look for the balance point which is close to from element driver. Fixing the element to the boom:...
- Page 8 WARRANTY Diex antenna products are guaranteed for One year against manufacturing defects, Diex may repair or replace parts or all of the product at its own discretion within the warranty period. Damage caused by lightning, falling, forces of nature, misuse, installation by an unqualified person, i.e., improper, negligent or incorrect assembly is not covered by the warranty.
