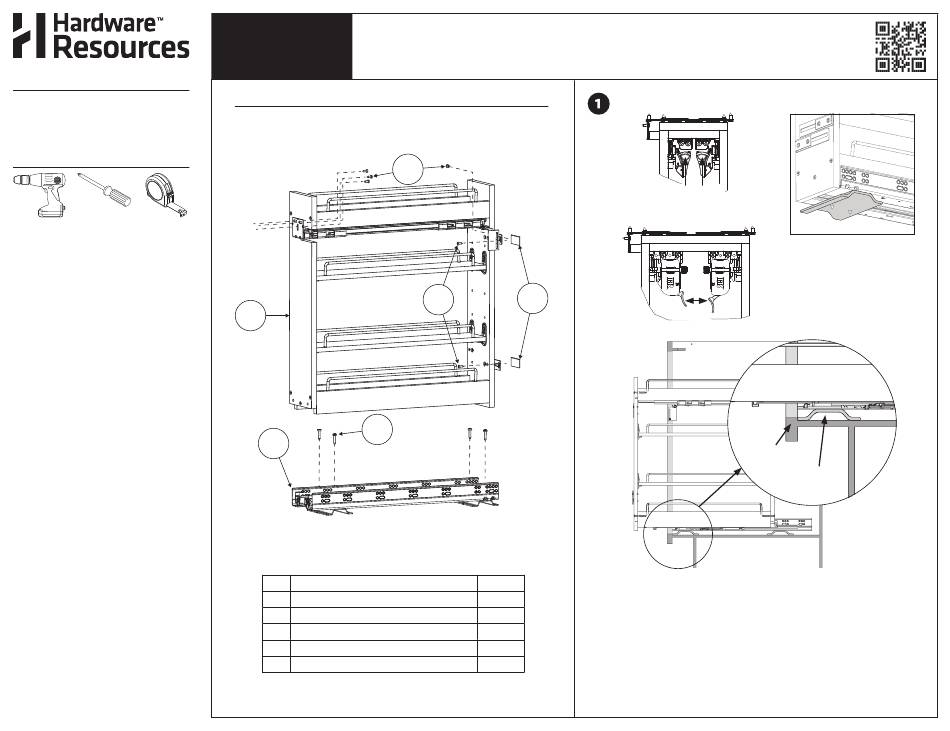

HARDWARE RESOURCES BPO2 Series Installation Instructions

IMPORTANT:
Before you begin, make sure
you familiarize yourself with
all the parts and fully read the
instructions.
TOOLS NECESSARY:
Screw Phillips Tape
Gun Screwdriver Measure
NOTE: If screw gun has a clutch,
set to lowest setting so as not to
over tighten and/or strip screws.
BPO2 Series
Base Pullout
PARTS IDENTIFICATION:
B
C
A
A Mounting Base
B Base Pullout Unit
C #10 x 3/4" Pan Head Wood Screw
D #8 x 5/8" Pan Head Wood Screw
E #8 x 5/8" Flat Head Wood Screw
F 3M Double-sided Tape
Installation Instructions
D
F
E
1 pc
1 pc
4 pcs
4 pcs
4 pcs
4 pcs
Scan QR or visit link to
view installation video
http://delivr.com/22TZY
BPO2-5SC
Pull forward
BPO2-8SC • BPO2-11SC • BPO2-14SC
Pull out
Face frame
Remove unit (B) from mounting base (A) by releasing slide clips.
• In framed cabinets, center mounting base in opening
making sure front metal runner is pulled tight against back
of face frame.
• For frameless cabinets, metal runner needs to be set back
3/4".
Secure mounting base by installing four (4) #10 x 3/4" Pan Head
Wood Screws (C) provided into slots of metal runners. Re-install
unit onto slides.
Front metal runner
Front metal
runner
