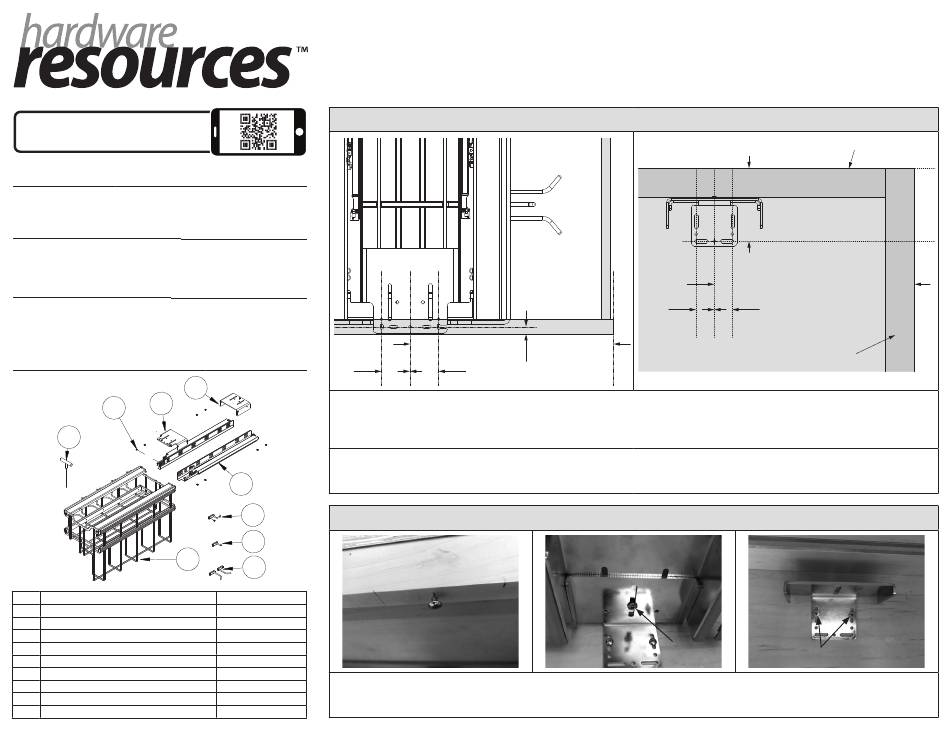

HARDWARE RESOURCES SWS-PO21 Series Installation Instructions

Scan to watch the installation video
https://delivr.com/23y5t
IMPORTANT:
Before you begin, make sure you familiarize yourself with all the
parts and fully read the instructions.
CUSTOMER SERVICE:
Toll free customer help line available weekdays between 7:00am
and 6:00pm Central Time at 800-463-0660.
TOOLS NECESSARY:
Screw gun or Phillips screwdriver, level and tape measure. NOTE:
If screw gun has a clutch, set to lowest setting so as not to over
tighten and/or strip screws.
PARTS IDENTIFICATION:
B
A
I
J
D
A Front Mounting Bracket
B Rear Mounting Bracket
C 100 lb. Undermount Slides
D Pot & Pan Organizer Unit
E Angled Hook
F Straight Hook
G Sway Bar Hook
H #8 X 5/8" Pan Head Phillips Wood Screw
I M4 X 6 Flat Head Phillips Machine Screw
J T-Handle Hex Driver
Installation Instructions for
the SWS-PO21 Series
Center of cabinet
For face framed cabinets: For front bracket, find center of the face frame opening from front to left and mark back 1/2" from the front
of the face frame. Also mark 1-1/2" from the first mark on both sides as shown above. For the rear bracket find center of cabinet from
right to left and measuring down 2-1/8" plus the width of the front face frame make a plus sign mark. Draw a straight line from that
mark to top of cabinet. On either side of that line measure over 15/16" and draw two parallel lines as shown above.
For frameless cabinets: Find center on the front of the cabinet and measure back from the front 1/2". From the first mark measure
over 1-1/2" on both sides and mark as shown above. Find center in the rear of the cabinet and measure down 2-1/8". Draw a straight
C
line from that mark to top of cabinet. On either side of that line measure over 15/16" and draw two parallel lines as shown above.
E
F
G
1 pcs
1 pcs
1 pair
1 pcs
5 pcs
3 pcs
16 pcs
On the front marks, start a #8 X 5/8" pan head wood screw on the left front mark (left). Remove the one attachment screw on the rear
6 pcs
bracket (center) and separate the two parts of the rear bracket, set top portion aside for step 3. Attach the lower portion of the rear
8 pcs
bracket to the back of the cabinet as shown (right) with (2) #8 X5/8" pan head wood screws.
1 pcs
STEP 1 - Mark Mounting Location
1/2" back from
face frame or
front of cabinet
1-1/2" off center on both sides
STEP 2 - Mounting Bracket Installation
Storage with Style
Pot/Pan Organizer
Top of cabinet
Face Frame: 2-1/8" + face
frame thickness
Frameless: 2-1/8"
Center of cabinet
15/16" off center
on both sides
Face Frame
Attachment
#8 X5/8" pan head wood screws
Screw
