Philips EVNIA 32M2N6800ML User Manual

Philips EVNIA 32M2N6800ML User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
32M2N6800ML
EN
User manual
Register your product and get support at www.philips.com/welcome

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EVNIA 32M2N6800ML and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Philips EVNIA 32M2N6800ML

Summary of Contents for Philips EVNIA 32M2N6800ML

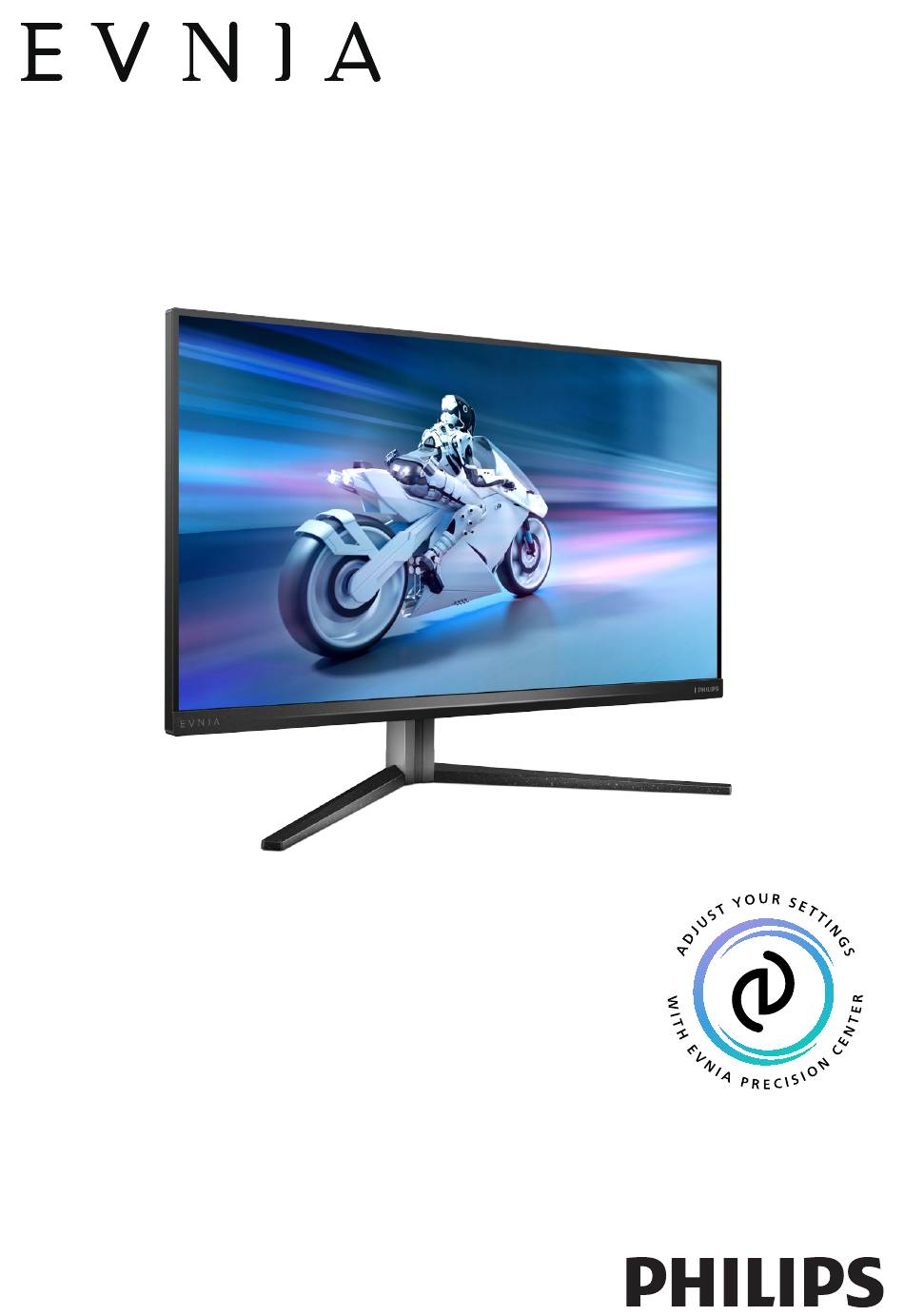

  • Page 1 32M2N6800ML User manual Register your product and get support at www.philips.com/welcome...

  • Page 2: Table Of Contents

    8. Technical Specifications ...22 8.1 Resolution & Preset Modes ..25 9. Power Management ....27 10. Customer care and warranty ..28 10.1 Philips’ Panel Monitors Pixel Defect Policy ........ 28 10.2 Customer Care & Warranty ... 31 11. Troubleshooting & FAQs ..32 11.1 Troubleshooting ......

  • Page 3: Important

    Keep the display away from oil. Oil may damage the plastic cover of the display and void the warranty. This electronic user’s guide is intended for anyone who uses the Philips • Remove any object that could fall monitor. Take time to read this user into ventilation holes or prevent manual before you use your monitor.
  • Page 4 damage will not be covered under • Oil-based cleaning solutions may warranty. damage the plastic parts and void the warranty. • Do not knock or drop the monitor during operation and/or • Unplug the monitor if you are not transportation. going to use it for an extensive period.

  • Page 5: Notational Descriptions

    1.2 Notational Descriptions technology. In most cases, the “burn-in”, “after-imaging” or “ghost The following subsections describe the imaging” will disappear gradually notational conventions used in this over some time after the power has document. been switched off. Notes, Cautions, and Warnings Warning It is highly recommended that you Throughout this guide, blocks of text...

  • Page 6: Disposal Of Product And Packing Material

    From the planning, design, and production stages, Philips emphasizes the importance of making products that can easily be recycled. At Philips, end-of-life management primarily This marking on the product or its entails participation in national take-...

  • Page 7: Setting Up The Monitor

    Now you can pull Quick Start out the styrofoam. When you pull out the styrofoam, do not squeeze the panel . Register your product and get support at www.philips.com/welcome Power *HDMI *USB A-B *Different according to region Install the base 1.
  • Page 8 Connecting to your PC AC power input HDMI 1 input HDMI 2 input DisplayPort input USB upstream USB downstream/USB fast charger Fast Charger USB downstream HDMI 1 HDMI 2 USB UP AUDIO Audio Out Kensington anti-theft lock Connect to PC USB hub 1.

  • Page 9: Operating The Monitor

    2.2 Operating the monitor USB hub To comply with International energy Description of the control buttons standards, the USB hub/ports of this display are disabled during Standby and Off modes. Connected USB devices will not work in this state. To permanently put the USB function in the “ON”...
  • Page 10 Description of the On-Screen Display What is On-Screen Display (OSD)? On-Screen Display (OSD) is a feature in all Philips LCD monitors. It allows an end user to adjust screen performance or select functions of the monitors directly through an on- screen instruction window.
  • Page 11 Main menu Sub menu SmartImage Standard, Illustrator, FPS, Racing, RTS, Brightness 0~100 Movie, LowBlue Mode, EasyRead, Contrast 0~100 Economy, SmartUniformity, Game1, Game2 SmartContrast On, O Gamma 1.8, 2.0, 2.2, 2.4, 2.6 Sharpness 0~100 Native, sRGB, DCI-P3, Adobe RGB Color Space Color Temperature Native, Preset, 5000K, 6500K, 7500K, 8200K, 9300K, 11500K R.G.B.
  • Page 12 • Smart Crosshair through the Philips website. What Color of Crosshair is set by default. does Evnia Precision Center do? It is an When Smart Crosshair is on, the additional software that helps control...

  • Page 13: Height Adjustment

    Physical Function Warning • To avoid potential screen damage, Tilt such as panel peeling, ensure that the monitor does not tilt downward 20° by more than -5 degrees. • Do not press the screen while -5° adjusting the angle of the monitor. Grasp only the bezel.

  • Page 14: Remove The Base Assembly For Vesa Mounting

    2.3 Remove the Base Assembly for VESA Mounting 100mm Before you start disassembling the 100mm Display base, please follow the instructions below to avoid any possible damage or injury. 1. Place the monitor face down on a smooth surface. Pay attention not to scratch or damage the screen.

  • Page 15: Multiview

    7. Toggle to the right to confirm your selection. Why do I need it? MultiView in OSD menu With the ultra-high-resolution Philips • PIP / PBP Mode: There are two MultiView display, you can comfortably modes for MultiView: [PIP] and experience a world of connectivity in the [PBP].
  • Page 16 Top-Left Top-Right When the sub source is not detected. (main) (main) (main) Note Bottom-Left Bottom-Right The black strip located on the top and the bottom of the screen is for measuring the correct aspect ratio when in the PBP mode. If you expect to see full- (main) (main) screen, adjust your device's resolutions...

  • Page 17: Image Optimization

    LowBlue Mode, EasyRead, Economy, brightness, contrast, color, and sharpness SmartUniformity , Game 1 and Game 2 in real-time. Whether you're working with text applications, displaying images, or watching a video, Philips SmartImage SmartImage GAME delivers great monitor performance. Standard Why do I need it?
  • Page 18 HDR Game rays from LED displays can cause eye damage and affect vision over HDR Movie time. Developed for well-being, the HDR Vivid Philips LowBlue Mode setting uses DisplayHDR 1000 smart software technology to reduce Personal harmful shortwave blue light. Off...

  • Page 19: Smartcontrast

    3.3 Customize color space Note To switch off the HDR function, please You can manually select the appropriate disable the Input device and its content. color space mode to properly display the Inconsistent HDR settings between the content you are viewing. input device and monitor may cause Select appropriate color space mode unsatisfying images.

  • Page 20: Adaptive Sync

    4. Adaptive Sync AMD Radeon R7 260 • ■ Processor A-Series Desktop and Mobility APUs AMD A10-7890K • Adaptive Sync AMD A10-7870K • AMD A10-7850K • PC gaming has long been an imperfect experience because GPUs and monitors AMD A10-7800 •...

  • Page 21: Ambiglow

    3-step brightness settings allow you to adjust the ambiance to your liking and available wall surface. Whether you are playing games or watching movies, Philips Ambiglow offers you a unique and immersive viewing experience. How does it work? It is recommended that you dim the lighting conditions in your room for maximum effect.

  • Page 22: Hdr

    6. HDR HDR Settings in Windows11/10 system. Steps 1. Right-click on the desktop, and enter Display settings. 2. Select the display/monitor. 3. Select an HDR-capable display under Rearrange your displays. 4. Select Windows HD Color settings. 5. Adjust Brightness for SDR content. Note Windows 11/10 edition is required.

  • Page 23: Designs To Prevent Computer Vision Syndrome (Cvs)

    4. Choose a Philips monitor for viewing that is easy on the eyes. Follow the below instructions and use a Philips monitor to efficiently • Anti-glare screen: This feature...

  • Page 24: Technical Specifications

    8. Technical Specifications Picture/Display Monitor Panel Type Backlight Mini LED backlight Panel Size 31.5" (80 cm) Aspect Ratio 16:9 Pixel Pitch 0.18159 (H) mm x 0.18159 (V) mm Contrast Ratio (typ.) 3000:1 Recommended 3840 X 2160 @ 60 Hz Resolution Maximum Resolution 3840 X 2160 @ 165 Hz Viewing Angle...
  • Page 25 English, German, Spanish, Greek, French, Italian, Hungarian, Dutch, Portuguese, Brazil Portuguese, Polish, Russian, OSD Languages Swedish, Finnish, Turkish, Czech, Ukranian, Simplified Chinese, Traditional Chinese, Japanese, Korean Other Convenience VESA mount (100 x 100 mm), Kensington Lock Plug & Play DDC/CI, sRGB, Windows 11/10, Mac OS X Compatibility Stand Tilt...
  • Page 26 3. In order to update the monitor’s firmware to the latest version, Please download the Evnia Precision Center software from Philips website. It is necessary to be connected to a network when updating the firmware on Evnia Precision Center over-the-air (OTA).

  • Page 27: Resolution & Preset Modes

    Please note that your display works best at the native resolution of 3840 X 2160. For best output performance, please always ensure that your graphic card is capable of achieving the maximum resolution and refresh rate of this Philips display.
  • Page 28 Display Input Format 422/420 444/RGB 422/420 444/RGB (HDMI2.1) (HDMI2.1) (DP1.4) (DP1.4) 3840 x 2160 @165Hz, 10bits 3840 x 2160 @165Hz, 8bits 3840 x 2160 @144Hz, 10bits 3840 x 2160 @144Hz, 8bits Minimum:1920 x 1080 @ 60Hz Note In order for the monitor to function properly, your PC’s graphics card must support the following: HDMI2.1 FRL with a bandwidth of up to 48 Gbps (Fixed Rate Link), DisplayPort 1.4 with Display Stream Compression (DSC),.The display resolution and refresh rate are also dependent on the computer’s graphic card capability.

  • Page 29: Power Management

    9. Power Management If you have a VESA DPM compliance display card or software installed on your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse, or other input device is detected, the monitor will 'wake up' automatically.

  • Page 30: Customer Care And Warranty

    Other Defect Policy combinations of lit and dark sub-pixels appear as single pixels of other colors. Philips strives to deliver the highest quality products. We use some of the Types of Pixel Defects industry's most advanced manufacturing...
  • Page 31 To qualify for repair or replacement due to pixel defects during the warranty Black Dot Defects period, a TFT Monitor panel in a Philips Black dot defects appear as pixels or flat panel monitor must have pixel sub-pixels that are always dark or 'off'.
  • Page 32 BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 3 or fewer 2 adjacent dark subpixels 2 or fewer...

  • Page 33: Customer Care & Warranty

    Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below.

  • Page 34: Troubleshooting & Faqs

    If the problem The Auto Function is not applicable in persists after you have tried these DVI-Digital mode as it is not necessary. solutions, contact a Philips customer service representative. Visible signs of smoke or sparks •...
  • Page 35 Service contact information listed in • Eliminate the vertical bars using the Important information manual the Phase/Clock of Setup in OSD and contact a Philips customer service Main Controls. It is valid only in VGA representative. mode. * Functionality is different according to display.

  • Page 36: General Faqs

    Shut down your computer, and is protected from sharp or disconnect your old monitor, and blunt objects. When handling the reconnect your Philips LCD monitor. monitor, make sure that there is • Turn on your monitor and then turn no pressure or force applied to on your PC.
  • Page 37 Philips website support page. Can I connect my LCD monitor to any PC, workstation, or Mac? Ans.: Yes. All Philips LCD monitors are fully compatible with standard PCs, Macs, and workstations. You may need a cable adapter to connect the monitor to your Mac system.

  • Page 38: Multiview Faqs

    11.3 Multiview FAQs Can I enlarge the PIP sub- window? Ans.: Yes, there are 3 sizes to select: [Small], [Middle], [Large]. You can press to enter the OSD menu. Select your preferred [PIP Size] option from the [PIP / PBP] main menu.
  • Page 39 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V.
