Summary of Contents for Philips EVNIA 32M2N8900/01

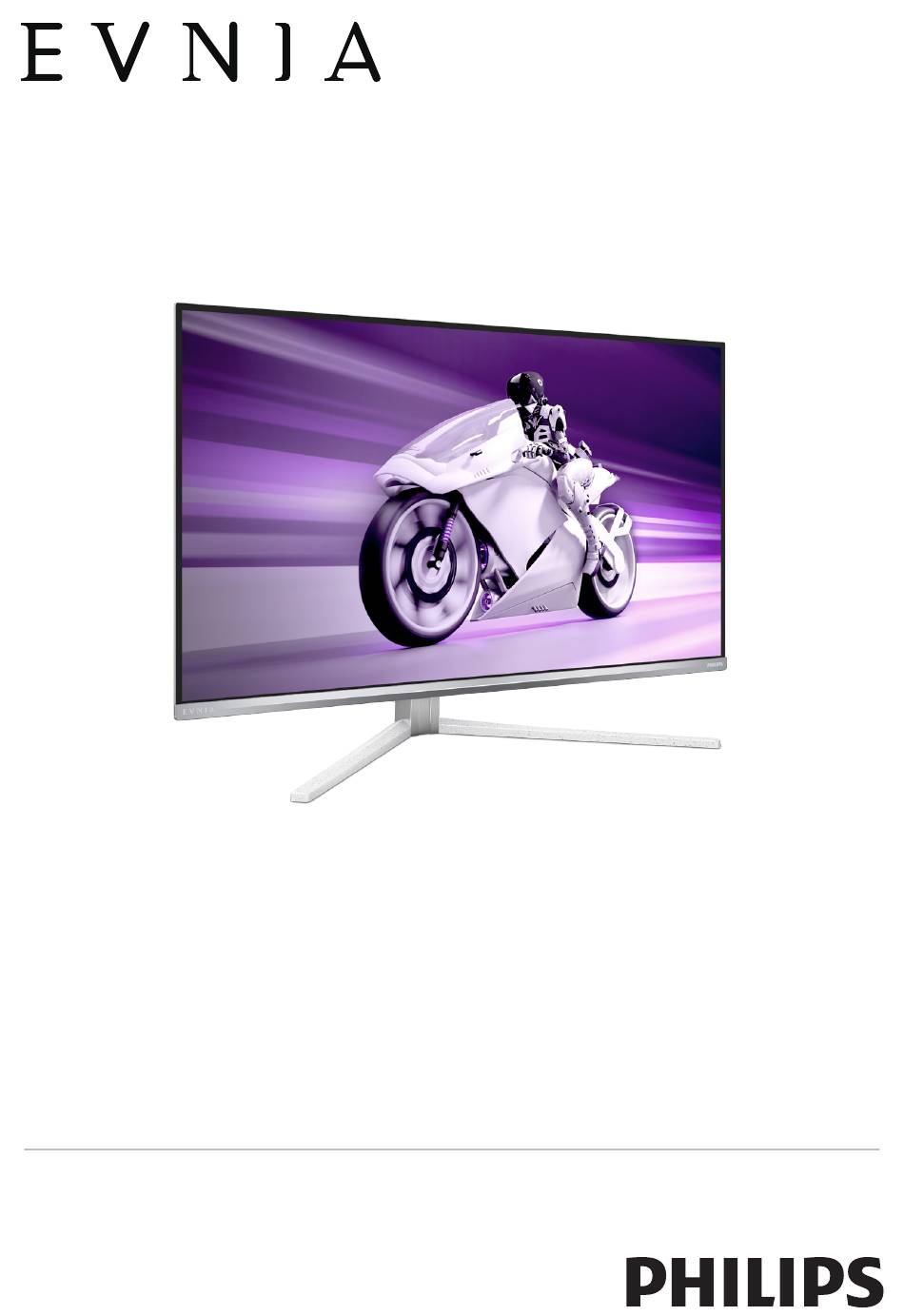

Page 1 32M2N8900 User manual Customer care and warranty Troubleshooting and FAQs Register your product and get support at www.philips.com/welcome...
Page 2 Table of Contents 1. Important ........1 12.1 Philips’ Panel Monitors Pixel Defect Policy ........ 34 1.1 Safety precautions and 12.2 Customer Care & Warranty ... 37 maintenance ........1 1.2 Notational Descriptions ....3 1.3 Disposal of product and packing 13. Troubleshooting & FAQs ..38 material ..........4...
Page 3 Keep the display away from oil. Oil may damage the plastic cover of the display and void the warranty. This electronic user’s guide is intended for anyone who uses the Philips • Remove any object that could fall monitor. Take time to read this user into ventilation holes or prevent manual before you use your monitor.
Page 4 damage will not be covered under • Oil-based cleaning solutions may warranty. damage the plastic parts and void the warranty. • Do not knock or drop the monitor during operation and/or • Unplug the monitor if you are not transportation. going to use it for an extensive period.
Page 5 1.2 Notational Descriptions • “Burn-in”, “after-imaging”, or “ghost imaging” is a well-known The following subsections describe the phenomenon in QD OLED panel notational conventions used in this technology. In most cases, the document. “burn-in”, “after-imaging” or “ghost imaging” will disappear gradually Notes, Cautions, and Warnings over some time after the power has Throughout this guide, blocks of text...
Page 6 From the planning, design, and production stages, Philips emphasizes the importance of making products that can easily be recycled. At Philips, end-of-life management primarily This marking on the product or its entails participation in national take-...
Page 7 2.1 Installation Package contents Quick Start 32M2N8900 Register your product and get support at www.philips.com/welcome 2. Hold the stand with both hands. Gently attach the base to the stand. (2) Use your fingers to tighten the VESA Bracket...
Page 8 Connecting to your PC AC power input HDMI 1 input HDMI 2 input DisplayPort input USB C Fast Charger USB UP AUDIO HDMI 1 HDMI 2 USBC USB UP USB downstream/USB fast charger USB downstream USB C-C Audio Out Kensington anti-theft lock Connect to PC USB Type-C USBC...
Page 9 HDD, for example. The display must be powered ON at all times to be able to use this function. Some selected Philips displays may not Power or Charge your device when it enters “Sleep/Standby” mode (White power LED blinking). In that case, please enter to OSD Menu and select “USB...
Page 10 Adjust the Game Setting. Basic and simple instructions on the Adjust the OSD menu. control keys To access the OSD menu on this Philips Change the signal input display, simply use the single toggle source. button located on the rear side of the Adjust the OSD menu.
Page 11 Main menu Sub menu SmartImage Standard, Illustrator, FPS, Racing, RTS, Brightness 0~100 Movie, LowBlue Mode, EasyRead, Contrast 0~100 Economy, Game1, Game2 SmartContrast On, O Gamma 1.8, 2.0, 2.2, 2.4, 2.6 Sharpness 0~100 Native, sRGB, DCI-P3, Adobe RGB Color Space Color Temperature Native, Preset, 5000K, 6500K, 7500K, 8200K, 9300K, 11500K R.G.B.
Page 12 In software and is easily downloadable addition, this feature helps you fine- through the Philips website. What tune your sight so that enemies get does Evnia Precision Center do? It is an exposed more quickly when gaming.
Page 13 2.3 Remove the Base Assembly Physical Function for VESA Mounting Tilt Before you start disassembling the 20° Display base, please follow the instructions below to avoid any possible -5° damage or injury. 1. Place the monitor face down on a smooth surface.
Page 14 PCs with one monitor-keyboard-mouse set up. How to enable MultiClient Integrated With the built-in MultiClient Integrated KVM, Philips monitor allows to quickly switch your peripherals back and forth Note between in two devices through the OSD VESA-Compliant mounting interface.
Page 15 ambiglow ambiglow SmartImage Game Mode Ambiglow Input Audio System Setup Close SmartImage Game Mode Ambiglow Input Audio System Setup Close HDMI Refresh Rate USB-C Setting High Resolution Auto HDMI Refresh Rate USB-C Setting High Resolution Auto OSD Setting USB Standby Mode Oﬀ...
Page 16 Toggle to the right to confirm your work a breeze. selection. Why do I need it? MultiView in OSD menu With the ultra-high-resolution Philips • PIP / PBP Mode: There are two MultiView display, you can comfortably modes for MultiView: [PIP] and experience a world of connectivity in the [PBP].
Page 17 Top-Left Top-Right When the sub source is not detected. (main) (main) (main) Note Bottom-Left Bottom-Right The black strip located on the top and the bottom of the screen is for measuring the correct aspect ratio when in the PBP mode. If you expect to see full- (main) (main) screen, adjust your device's resolutions...
Page 18 LowBlue Mode, EasyRead, Economy, brightness, contrast, color, and sharpness Game 1 and Game 2 in real-time. Whether you're working with text applications, displaying images, or watching a video, Philips SmartImage SmartImage GAME delivers great monitor performance. Standard Why do I need it?
Page 19 Developed for well-being, the gaming scene is vivid and reveals Philips LowBlue Mode setting uses more details, easily spotting enemies smart software technology to reduce hiding in the dark corner and harmful shortwave blue light.
Page 20 3.2 SmartContrast 3.3 Customize color space You can manually select the appropriate What is it? color space mode to properly display the It is a unique technology that content you are viewing. dynamically analyzes displayed content and automatically optimizes a monitor's Select appropriate color space mode contrast ratio for maximum visual clarity to fit the content you’re viewing:...
Page 21 4. Adaptive Sync AMD Radeon R7 260 • ■ Processor A-Series Desktop and Mobility APUs AMD A10-7890K • Adaptive Sync AMD A10-7870K • AMD A10-7850K • PC gaming has long been an imperfect experience because GPUs and monitors AMD A10-7800 •...
Page 22 3-step brightness settings allow you to adjust the ambiance to your liking and available wall surface. Whether you are playing games or watching movies, Philips Ambiglow offers you a unique and immersive viewing experience. How does it work? It is recommended that you dim the lighting conditions in your room for maximum effect.
Page 23 Dynamic Lighting feature When you find Dynamic Lighting creates a complete and consistent settings, Make the selection based on RGB lighting ecosystem with Philips your personal preference. Evnia Ambiglow across all devices that ultimately caters to a customizable user •...
Page 24 Note • The function is only available for Windows-approved devices/apps. • The connected computer must equipped with a Windows 11 operation system or later.
Page 25 7. HDR HDR Settings in Windows11/10 system. Steps 1. Right-click on the desktop, and enter Display settings. 2. Select the display/monitor. 3. Select an HDR-capable display under Rearrange your displays. 4. Select Windows HD Color settings. 5. Adjust Brightness for SDR content. Note Windows 11/10 edition is required.
Page 26 8. Screen maintenance Pixel Refresh: Pixel Refresh is activated when the Following the characteristics of QD screen has passed accumulative usage OLED displays, there are automatic of over 4 hours. This is an effort to avoid mechanisms used to protect the screen the image sticking on the monitor.
Page 27 detected. A reminder message that pops up after 4 hours of continuous use, and will then appear every 2 hours after. To maintain the panel quality, Pixel Refresh will automatically run after in use for a periods of time. Pixel Refresh will take few minutes and Power LED will blink until it is �nished.
Page 28 • Taskbar Dimmer LED Indicator The Taskbar Dimmer technology will dim the brightness of the taskbar area on the screen. No brightness changes will be noticeable in the areas other than in the taskbar. Status LED Color Power On White Standby White (breathing) Pixel Refresh...
Page 29 4. Choose a Philips monitor for viewing that is easy on the eyes. Follow the below instructions and use a Philips monitor to efficiently • Anti-glare screen: This feature...
Page 30 10. Technical Specifications Picture/Display Monitor Panel Type QD OLED Panel Size 31.5" W (80 cm) Aspect Ratio 16:9 Pixel Pitch 0.1814 (H) mm x 0.1814 (V) mm Contrast Ratio (typ.) 1500000:1 Recommended 3840 x 2160 @ 60 Hz Resolution Maximum Resolution 3840 x 2160 @ 240 Hz Viewing Angle 178°...
Page 31 Convenience Built-in speaker 5W x 2 MultiView PIP/PBP mode, 2×devices English, German, Spanish, Greek, French, Italian, Hungarian, Dutch, Portuguese, Brazil Portuguese, Polish, Russian, OSD Languages Swedish, Finnish, Turkish, Czech, Ukranian, Simplified Chinese, Traditional Chinese, Japanese, Korean Other Convenience VESA mount (100 x 100 mm), Kensington Lock Plug &...
Page 32 2.In order to update the monitor’s firmware to the latest version, Please download the Evnia Precision Center software from Philips website. It is necessary to be connected to a network when updating the firmware on Evnia Precision Center over-the-air (OTA).
Page 33 Please note that your display works best at the native resolution of 3840 X 2160. For best output performance, please always ensure that your graphic card is capable of achieving the maximum resolution and refresh rate of this Philips display.
Page 34 Display Input Format 422/420 444/RGB 422/420 444/RGB 422/420 444/RGB (HDMI2.1) (HDMI2.1) (DP1.4) (DP1.4) USBC@ USBC@ USBC@ USBC@ USB3.2 USB2.0 USB3.2 USB2.0 3840 x 2160 @240Hz, 10bits 3840 x 2160 @240Hz, 8bits 3840 x 2160 @165Hz, 10bits 3840 x 2160 @165Hz, 8bits 3840 x 2160 @144Hz, 10bits 3840 x 2160 @144Hz, 8bits 3840 x 2160 @120Hz, 10bits...
Page 35 11. Power Management If you have a VESA DPM compliance display card or software installed on your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse, or other input device is detected, the monitor will 'wake up' automatically.
Page 36 Other Pixel Defect Policy combinations of lit and dark sub-pixels appear as single pixels of other colors. Philips strives to deliver the highest quality products. We use some of the Types of Pixel Defects industry's most advanced manufacturing...
Page 37 To qualify for repair or replacement due to pixel defects during the warranty Black Dot Defects period, a TFT Monitor panel in a Philips Black dot defects appear as pixels or flat panel monitor must have pixel sub-pixels that are always dark or 'off'.
Page 38 BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 5 or fewer 2 adjacent dark subpixels 2 or fewer...
Page 39 Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below.
Page 40 Contact Philips customer service be corrected by a user. If the problem representative immediately. persists after you have tried these Imaging Problems solutions, contact a Philips customer service representative. Image is not centered • Adjust the image position using Common Problems...
Page 41 Service contact information listed in period may cause "burn-in", also the Important information manual known as "after-imaging" or "ghost and contact a Philips customer service imaging", on your screen. "Burn-in ", representative. "after-imaging", or "ghost imaging" * Functionality is different according to is a well-known phenomenon in display.
Page 42 • Turn on your monitor and then turn monitor, make sure that there is on your PC. no pressure or force applied to the panel surface side. This may What is the recommended refresh affect your warranty conditions. rate for an QD OLED monitor? Ans.: Recommended refresh rate in QD How should I clean the QD OLED OLED monitors is 60 Hz, In case...
Page 43 PC, workstation, jagged characters? or Mac? Ans.: Your QD OLED monitor works Ans.: Yes. All Philips QD OLED best at its native resolution of monitors are fully compatible 3840 x 2160. For the best display, with standard PCs, Macs, and please use this resolution.
Page 44 13.3 Multiview FAQs Can I enlarge the PIP sub- window? Ans.: Yes, there are 3 sizes to select: [Small], [Middle], [Large]. You can press to enter the OSD menu. Select your preferred [PIP Size] option from the [PIP / PBP] main menu.
Page 45 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V.
