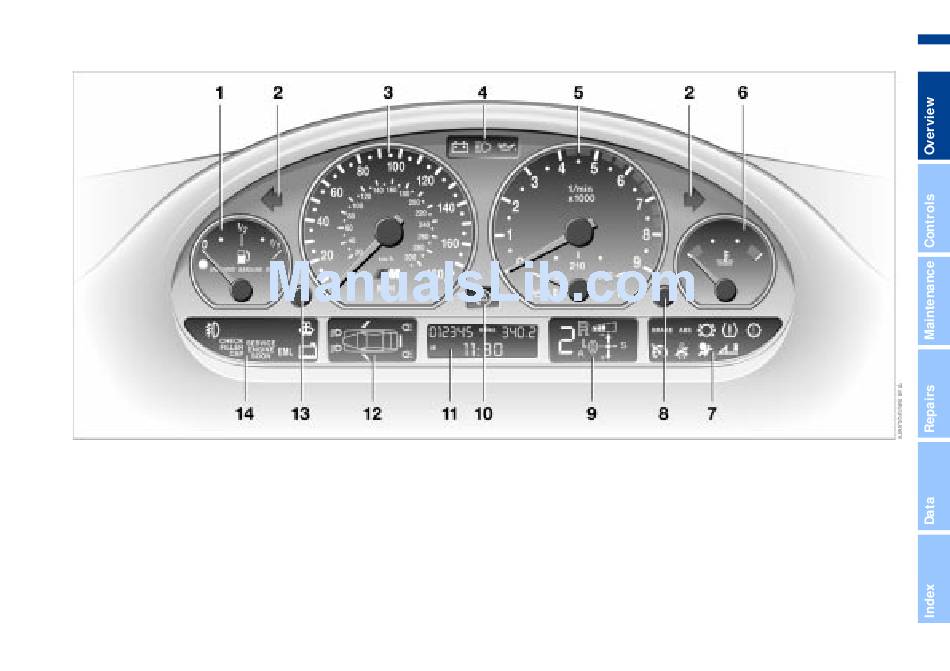

Instrument cluster

1 Fuel gauge 76
2 Turn signal indicator 20
3 Speedometer
4 Indicator and warning
lamps 17 to 20
5 Tachometer and
Engine oil temperature 75
6 Engine coolant temperature
gauge 76
7 Indicator and warning
lamps 17 to 20
8 Clock reset
> Clock 77
> Unit of measure of outside temper-
ature display 78
9 Display for sequential M gearbox
SMG II 66
