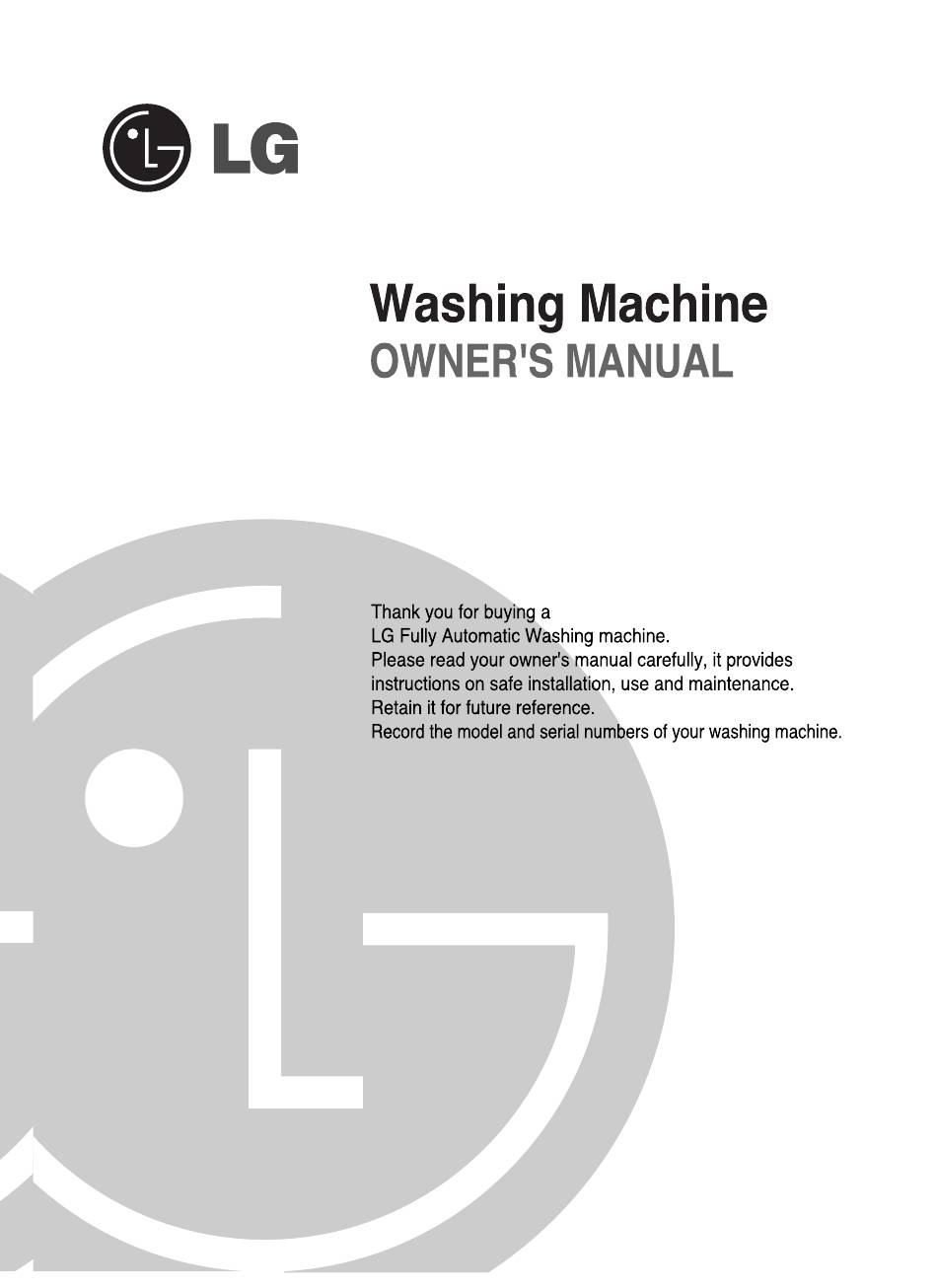

  • Page 1 WD-1231(0~9)RDK WD-1431(0~9)RDK P/No.: MFL38868739...

  • Page 2: Table Of Contents

    The Child lock prevents children from pressing any button to change the settings during operation. Jumbo drum LG’s jumbo drum can wash about 40% more load than conventional washing machines. A bigger drum improves the wash performance. More economical by Intelligent Wash System...

  • Page 3: Warnings

    arnings READ ALL INSTRUCTIONS AND EXPLANATION OF THE INSTALLATION BEFORE USE For your safety, the information in this manual must be followed to minimize WARNING! the risk of fire or explosion, electric shock, or to prevent property damage, personal injury, or loss of life. IMPORTANT SAFETY INSTRUCTIONS WARNING To reduce the risk of fire, electric shock, or injury to persons when using...
  • Page 4 arnings To minimize the risk of fire in a tumble dryer, the following should be observed: • Items that have been spotted or soaked with vegetable or cooking oil constitute a fire hazard and should not be placed in a tumble dryer. Oil-affected items can ignite spontaneously, especially when exposed to heat sources Such as in a tumble dryer.

  • Page 5: Specification

    pecification Name : Front loading washing machine Power supply : 220-240V~, 50Hz Size : 600mm(W)×645mm(D)×850mm(H) Weight : 66kg Wash capacity/Max. Watt : Refer to the Rating Label Dry capacity/Max. Watt : Refer to the Rating Label Spin speed : No Spin/400/800/1000/1200 [WD-1231(0~9)RDK] No Spin/400/800/1000/1400 [WD-1431(0~9)RDK] Water consumption : 144ℓ...

  • Page 6: Installation

    nstallation Install or store where it will not be exposed to temperatures below freezing or exposed to the weather. Properly ground washer to conform with all governing codes and ordinances. The base opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.

  • Page 7: Installation Place Requirement

    nstallation Installation place requirement Level floor : Allowable slope under entire washer is 1˚ Power outlet : Must be within 1.5 meters of either side of location of washer. Do not overload the outlet with more than one appliance. Additional Clearance : For wall, door and floor modeling is required.

  • Page 8: Electrical Connection

    nstallation Electrical connection 1. Do not use an extension cord or double adapter. 2. If the supply cord is damaged, it must be replaced by the manufacturer or its service agents or similarly qualified person in order to avoid a hazard. 3.
  • Page 9 nstallation Normal Tap without thread & screw type inlet hose Unscrew the fixing screw to Push the connector up till the Push the water supply hose attach the tap. rubber packing is in tight contact vertically upwards so that the with the tap.

  • Page 10: Installation Of Drain Hose

    nstallation This equipment is not designed for maritime use or for use mobile installations such as caravans, aircraft etc. Turn off the stopcock if the machine is to be left for any length of time (e.g. holiday), especially if there is no floor drain(gully) in the immediate vicinity. When disposing of the appliance, cut off the mains cable, and destroy the plug Disable the door lock to prevent young children being trapped inside.

  • Page 11: Level Adjustment

    • If possible install the washer in one of the corners of the room, where the floor is more stable. ※ ※ Insert the rubber cups to reduce vibration. ※ ※ You can obtain the rubber cups (p/no.4620ER4002B) from the LG spares dept. Important! •...

  • Page 12: Care Before Washing

    are before washing Before the first washing Select a cycle (COTTON 60°C, add a half load of detergent) allow the unit to wash without clothing. This will remove residues and water from the drum that may have been left during manufacturing. Caring before washing 1.

  • Page 13: Adding Detergent

    dding detergent Adding detergent and fabric softener 1. The Dispenser Drawer • Main wash only ➔ • Pre Wash + Main Wash ➔ 2. Adding Fabric Softener • Do not exceed the maximum fill line. Close the dispenser drawer slowly. Overfilling can cause early dispensing of the fabric softener which could stain clothes.

  • Page 14: Detergent Dosage

    dding detergent ❋ Tips 3. Detergent dosage Full load : according to • The detergent should be used according to the manufacturer’s recommendation. instruction of the detergent manufacture. Part load : 3/4 of the normal amount. • If too much detergent is used, too many suds Minimum load : 1/2 of full load.

  • Page 15: Function

    unction Recommended courses according to the laundry type Option Program Fabric Type Proper Temp. Maximum Load Color fast garments 60˚C (shirts, night dresses, (Cold, 30˚C, Cotton Rating pajamas...)and lightly soiled - Soak 40˚C, 95˚C) white cotton (underwear...) - Pre Wash - Rinse+Spin Laundry type is the same in 60˚C...

  • Page 16: How To Use Washer

    ow to use washer 2. Manual Selecting 1. Cotton automatically selected upon power on. • Press the Power button to start. • Select the conditions which you want to use, • Press the Power button to start. by pressing each button. •...

  • Page 17: Initial Program

    ow to use washer (10) (11) (1) Button : Power (5) Child lock (9) Button : Dry (2) Dial : Program (6) Button : Rinse (10) Button : Intensive (3) Button : Start/Pause (7) Button : Spin (11) Button : Time Delay (4) Button : Option (8) Button : Temperature Power...
  • Page 18 ow to use washer Start/Pause Option • By pressing the option button, only one option function be selected. 1. Start • This Start/Pause button is used to start wash cycle or pause the wash cycle. 2. Pause 1. Soak • If temporary stop of wash cycle is needed, •...

  • Page 19: Child Lock

    ow to use washer Child lock Rinse • By pressing the Rinse button, the Rinse type can be selected. - Normal - Rinse + If you choose to lock the buttons on the control - Rinse ++ assembly to prevent tampering, this function may be selected.

  • Page 20: Time Delay

    ow to use washer Time Delay ( Spin Preparing washing before starting “Time Delay” - Turn on the water tap. - Load laundry and close the door. [WD-1231(0~9)RDK] [WD-1431(0~9)RDK] - Place the detergent and fabric softener in the • By pressing the Spin button, the spin speed drawer.

  • Page 21: Water Temp

    ow to use washer Water Temp. • By pressing the Temp. • This washer-dryer’s automatical button, the water temperature process from washing to drying can be selected. can be selected easily. • For most even drying , make - Cold sure all articles in the clothes - 30˚C / 40˚C / 60˚C / 95˚C load are similar in material and...
  • Page 22 ow to use washer 2.Drying time guide Fiber glass - Do not dry fiberglass articles in your dryer. • By press the Dry button, the drying time Glass particles left in the dryer could be can be selected. picked up by your clothes the next time •...
  • Page 23 ow to use washer Display 3. Completion of washing • When washing cycle is completed, “ ” is displayed on the “Multi display”. 1. Special function display 4. Time left • When Child lock is selected, the • During washing cycle, the remaining washing “...

  • Page 24: Maintenance

    aintenance ❋ Before cleaning the washer interior, unplug the electrical power cord to avoid electrical shock to avoid electrical shock hazards. ❋ When disposing of the appliance, cut off the mains cable, and destroy the plug Disable the door lock to prevent young children being trapped inside. The water inlet filter - "...

  • Page 25: The Drain Pump Filter

    aintenance The drain pump filter ❋ The drain filter collects threads and small objects left in the laundry. Check regularly that the filter is clean to ensure smooth running of your machine. CAUTION First drain using the drain hose and then open the pump filter to remove whatever any threads or objects.

  • Page 26: Dispenser Drawer

    aintenance Dispenser drawer ❋ After a while detergents and fabric softeners leave a deposit in the drawer. • It should be cleaned from time to time with a jet of running water. • If necessary it can be removed completely from the machine by pressing the catch downward and by pulling it out.

  • Page 27: Cleaning Your Washer

    aintenance The water circulation nozzle • Clean the water circulation nozzle, if clogged. Cleaning your washer 1. Exterior Proper care of your washer can extend its life. The outside of the machine can be cleaned with warm water and a neutral non abrasive household detergent.

  • Page 28: Troubleshooting Guide

    roubleshooting guide ❋ This washing machine is equipped with automatic safety functions which detect and diagnose faults at an early stage and react appropriately. When the machine does not function properly or does not function at all, check the following points before you contact your service provider. Symptom Possible Cause Solution...
  • Page 29 roubleshooting guide Symptom Possible Cause Solution Washer does not start • Electrical power cord may not Make sure plug fits tightly in wall be plugged in or connection outlet. may be loose. • House fuse blown, circuit Reset circuit breaker or replace fuse. breaker tripped,or a power Do not increase fuse capacity.
  • Page 30 roubleshooting guide Symptom Possible Cause Solution Check another tap in the house. • Water supply is not adequate in area Fully open tap. • Water supply taps are not completely open. Straighten hose(s). • Water inlet hose(s) are kinked. Check the filter of the inlet hose(s). •...

  • Page 31: Terms Of Warranty

    erms of Warranty What Is Not Covered: • Service trips to your home to teach you how to use the product. • If the product is connected to any voltage other than that shown on the rating plate. • If the fault is caused by accident, neglect, misuse or Act of God. •...
  • Page 32 WD-1231(0~9)RDK WD-1431(0~9)RDK...
  • Page 33 ➡➮™❾➙š➤➡ ➝➣➜➱...
  • Page 36 240-220 [WD-1431(0~9)RDK] 1400/1000/800/400 [WD-1231(0~9)RDK] 1200/1000/800/400 1000...
  • Page 38 • • • • •...
  • Page 39 ❖ ❖ ❖ ❖ 1000 10-0.3 ❖ ❖ 1000...
  • Page 42 • • • • • • 4620ER4002B • • • • •...
  • Page 46 IEC60456 EN60456...
  • Page 47 1200 G [WD-1231(0~9)RDK] 1400 G [WD-1431(0~9)RDK]...
  • Page 48 (10) (11) Time Delay [WD-1231(0~9)RDK] G 1200 [WD-1431(0~9)RDK] G 1400...
  • Page 49 ‫ﻗﺖ, أو‬ ‫ﻗ اﳌﺆ‬ ‫: ﻟﻦ ﻳﻔﺘﺢ اﻟﺒﺎب ﳌﺪة دﻗﻴﻘﺔ أو دﻗﻴﻘﺘﲔ ﺑﻌﺪ اﺧﺘﻴﺎر اﻟﺘﻮ‬ ‫ﻣﻼﺣﻈﺔ‬ ‫ﻣﻼﺣﻈﺔ‬ ‫ﻣﻼﺣﻈﺔ‬ ‫ﻣﻼﺣﻈﺔ‬ ‫ﻣﻼﺣﻈﺔ‬ . ‫ان اﻟﻐﺴﻴﻞ‬ ‫ﻋﻨﺪ ﻧﻬﺎﻳﺔ دور‬...
  • Page 50 ‫وزر‬ ‫ﺟﺔ‬ ‫ﳝﻜﻨﻚ ﺿﺒﻂ إﻏﻼق اﻟﻄﻔﻞ ﺑﺎﻟﻀﻐﻂ ﻋﻠﻰ زر در‬ Rinse . ‫ﻗﺖ‬ ‫ﻓﻲ ﻧﻔﺲ اﻟﻮ‬ Option ‫ار‬ ‫ﻇﻴﻔﺔ إﻏﻼق اﻟﻄﻔﻞ , ﻻ ﺗﻌﻤﻞ ﺟﻤﻴﻊ اﻷزر‬ ‫ﻋﻨﺪ ﺿﺒﻂ و‬ . ‫ﺑﺎﺳﺘﺜﻨﺎء زر اﻟﻄﺎﻗﺔ‬ Option Rinse Rinse Option...
  • Page 51 [WD-1231(0~9)RDK] [WD-1431(0~9)RDK] Time Delay [WD-1231(0~9)RDK] Time Delay 1200 1000 1000 [WD-1431(0~9)RDK] 1400 1000 1000...
  • Page 53 Multi display “ ” COOL DOWN COOL DOWN “ ”...
  • Page 54 ” ”...
  • Page 55 ” ”...
