Strain Gauge or Load Cell Hand Held Display
For pricing or any further information, please contact Omni Instruments Ltd.

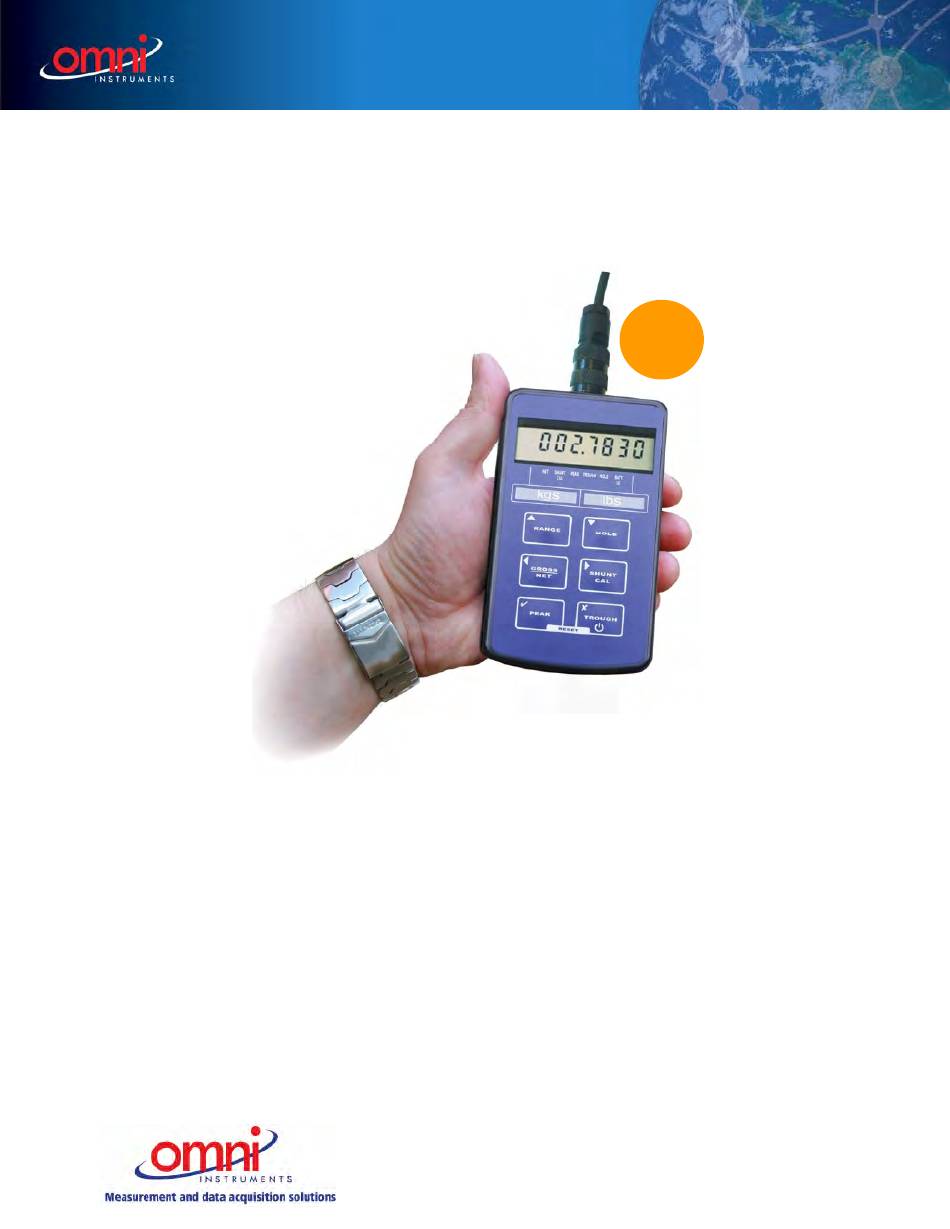

TR150
TEDS enabled
User Manual
Contact Details:
Tel: +44 845 9000 601
Fax: +44 845 9000 602
Local Tel: 01382 443000
Email: info@omni.uk.com
TEDS
enabled
Mailing Address:
Suite E, East Kingsway Business Centre,
Mid Craigie Trading Estate, Mid Craigie Road,
Dundee, DD4 7RH, UK
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Omni Instruments TR150
Summary of Contents for Omni Instruments TR150
- Page 1 TR150 Strain Gauge or Load Cell Hand Held Display TEDS enabled User Manual For pricing or any further information, please contact Omni Instruments Ltd. Mailing Address: Contact Details: Suite E, East Kingsway Business Centre, Tel: +44 845 9000 601...
-
Page 2: Table Of Contents
Volt Calibration Menu Structure ................9 Configuration Menu......................10 Calibration Menu......................12 Millivolt per Volt Calibration Menu ..................14 Operation Features ......................15 Normal Display Operation ....................15 Switching the TR150 On/Off ....................15 RANGE Button .......................15 HOLD Button .........................16 GROSS/NET Button ......................16 SHUNT CAL Button ......................16 PEAK Button .........................16 TROUGH Button ......................16... -
Page 3: What Is Teds
And because all sensors produced according to the standard will carry the same basic identically formatted self-identification information, you will be able to mix and match sensors and applicable signal conditioners across manufacturers. TR150 User Manual www.omniinstruments.co.uk... -
Page 4: Advantages
• Better sensor tracking by storing data sheets electronically • Improved accuracy by providing detailed calibration information • Simplified asset management by eliminating paper data sheets • Reliable sensor location by identifying individual sensors electronically • TR150 User Manual www.omniinstruments.co.uk... -
Page 5: Introduction
50mV/V. Bridge resistances from 85 Ω upwards can be used with the TR150. Configuration and calibration of the TR150 is achieved using the front panel push buttons to navigate through a very simple menu structure. -
Page 6: Electrical Connection Information
+ve Charge Input or TEDS RS232 Port Connections If the TR150 has been ordered with the optional RS232 output, then this will be available via a 8 pin 723 series Binder connector. The wiring for this is as detailed below:-... - Page 7 There are six push buttons on the front panel of the TR150, which are available for use in normal operation. Each of these is described below:- Front Panel Button Function of Button in Normal Operation Mode To switch the TR150 ON or OFF press and hold the...
-
Page 8: Menu Structure
Menu Structure The TR150 has two menus, details of which are outlined below:- A CONFIGURATION MENU, which enables the user to tailor the operation to meet a specific application requirement. The values selected in the CONFIGURATION MENU are completely independent for each range. - Page 9 InPut LO 0000000 dISP LO 0000000 InPut HI 0000000 dISP HI 0000000 donE SEt OFFS 0000000 donE CAL VAL? SEt 9Ain 0000000 tedS EnAbLEd? RETURN TO NORMAL DISPLAY MODE * Note:Only when TEDS is disabled TR150 User Manual v2.9 www.omniinstruments.co.uk...
-
Page 10: Millivolt Per Volt Calibration Menu Structure
Millivolt per Volt Calibration Menu Structure To access the millivolt CALIBRATION MENU, Press and hold for 10 seconds www.omniinstruments.co.uk TR150 User Manual v2.9... -
Page 11: Configuration Menu
Press To skip to next menu item Press To set overload alarm This allows the setting of a visual overload. The value entered is the display value at which the TR150 displays OUErLOAd. OUEr Values between -9999999 +9999999 can be entered, using the... - Page 12 The RS232 output is an option that has to be rS232 ordered with the TR150. To conserve battery life, it is suggested that the RS232 output is disabled, when it is not required.
-
Page 13: Calibration Menu
To select 50mV/V you need to power down the unit and access the internal circuit board. Move link LK1 and place it onto JP1. Power on the TR150 and return to this point of the calibration menu. You will notice that the menu parameter has changed to SEnS 50.0, press... - Page 14 If you have chosen to enter the TEDS you will be prompted whether you want to select EnAbLEd? if you do not press otherwise press . If you have selected enabled, two flashing indicators will appear. For more detailed TEDS calibration information, please refer to the TEDS section of the manual. www.omniinstruments.co.uk TR150 User Manual v2.9...
-
Page 15: Millivolt Per Volt Calibration Menu
5mV/V offset. 50 OFFS Here the factory offset value can be changed to a measured value (see Milli-Volt Calibration Procedure – back end of manual). Once the derived value has been entered Press to confirm. www.omniinstruments.co.uk TR150 User Manual v2.9... -
Page 16: Operation Features
Normal Display Operation The TR150 has a full 7 digit display, which can be scaled using the calibration menu to suit the application it is to be used in. The display can display the instantaneous, peak or trough values. It is also possible to hold the display value (this only operates when not in peak or trough mode). -
Page 17: Hold Button
PEAK Button When pressed this button puts the TR150 into peak mode. This will display the highest display reading and hold it on the display until it is reset or a higher value is reached. To reset the peak display, press the peak and trough buttons simultaneously. -
Page 18: Configuration Menu Parameters
The benefit is that the battery life, based on a 350 sensor bridge being connected, increases from 45 hours to 450 hours. It is also important to remember that when the TR150 is re-calibrated with a sensor, the power save facility will be automatically turned off. The power save facility will therefore need to be re-activated after calibration has been completed. - Page 19 05 and 99 (00 de-activates activity for a continuous 25 minute period, then the TR150 will power down, to conserve power. If keyboard activity is detected at any time during the 25 minute period, then the time period is restarted.
-
Page 20: Calibration Menu Parameters
If however, a higher sensitivity sensor is used with the TR150, it will be necessary to gain access to the internal PCB (you must turn the TR150 off) to move link LK1 to JP1 (see picture below) to allow the TR150 to accept sensitivities of up to 50mV/V. -
Page 21: Calibration Procedures
The best method of calibration, if it is possible to do so, is the calibration, as this reads in the sensor signal at two calibration points and scales the TR150 automatically. If this is not possible, then the sensitivity figure (in tAbLE mV/V) from the sensor calibration certificate can be used to scale the TR150, by using the calibration. - Page 22 You should now see displayed. This means the calibration was successful, press to the TR150 to normal operation mode, with the new calibration data stored. If you see FaiLEd, then you will need to repeat the calibration, checking that you have completed the procedure in the correct order, and that the sensor is connected correctly.
-
Page 23: Millivolt Per Volt Calibration Procedure
1. Ensure that the factory settings for gain and offset are set to 1 and 0, respectively. See millivolt per volt calibration section to do this. 2. Begin by connecting up the model TR150 and a high precision Multimeter to the calibration source set at 2.5mV/V with a 350 load. -
Page 24: Specifications
1 part in 65,000 at 10Hz update rate Annunciators: Low Battery warning; peak; trough; hold; net; shunt cal; range Tactile Keys with recessed rims for:- ON/OFF Switches TR150 power on/off RANGE Selects between two ranges HOLD Hold the current display value, press again to release...
