AllSee PF32 Installation Manual

PF32 Mounting Plate Installation Guide
▪This guide explains how to install the mounting plate using the screw fixing method. Structural
adhesive fixing is another option, but this guide focuses solely on screw fixing.
▪The mounting plate is pre-installed on the back of the screen at the factory. Users must prepare
Accessory 3 independently.
Required Accessories for Installation
1. Mounting Plate × 1
(Anti-theft screws are pre-installed on the mounting plate at the factory.)
2. Mounting Bracket Installation Guide × 1
3. M4 Countersunk Expansion Screws × 6
(Users must source this accessory themselves.)
Safety Precautions
· Refer to the provided installation diagram and included accessories.
· Follow the installation steps as a reference.
· Ensure all screws are securely tightened.
· Use the equipment within the specified size and weight limits for safety.
· Install on a flat wall.
· Important: For wooden walls, ensure the wall thickness is at least 3 cm and the
load-bearing capacity is 100 kg.
· Suitable for 32" installations.

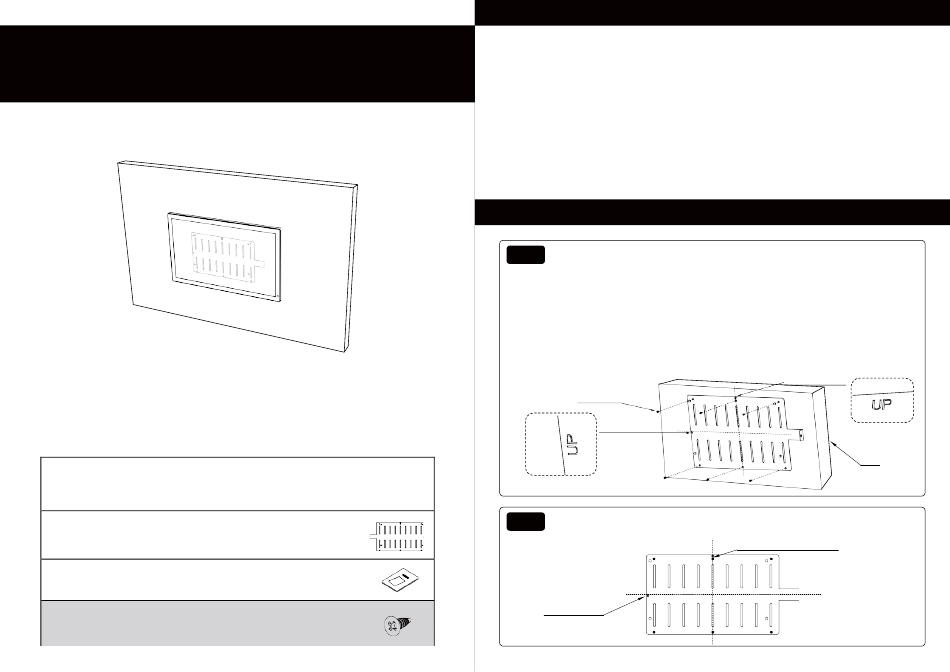

Installation Steps
Secure the mounting plate to a solid, load-bearing wall using M4
Step 1
screws × 6.
For vertical installation, the "UP" label on the short side of the mounting plate
should face upwards. For horizontal installation, the "UP" label on the long
side of the mounting plate should face upwards. After installation, the
mounting plate will be geometrically symmetrical relative to the machine,
with the center of the cross-dashed line marking the center of both the plate
and the machine. This alignment ensures consistency and allows customers
to create custom fixtures for future installations.
M4 screw × 6
Vertical UP label
Make sure the screw heads are flush with or lower than the surface
Step 2
of the mounting plate to avoid interference.
Vertical UP label
Horizontal UP label
wall
Horizontal UP label
